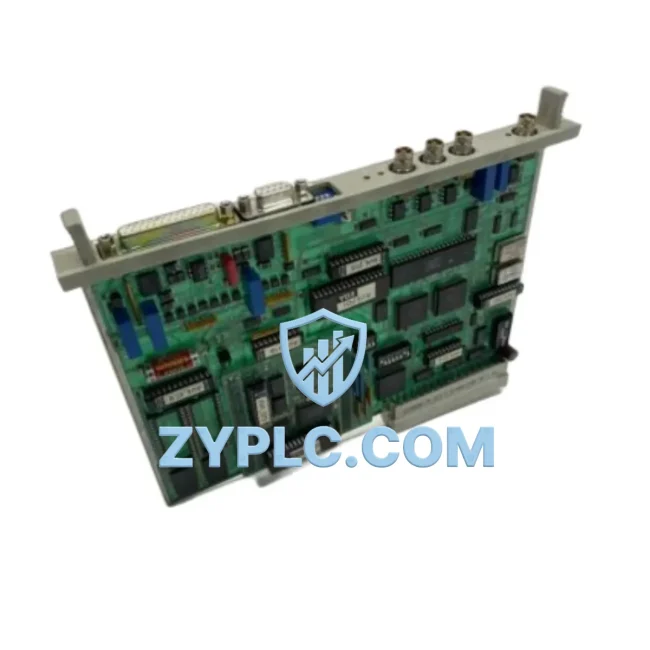

Siemens EGA-AVUS4-UTV4.0 System-Ready HMI Video Module for AVUS Architecture

Siemens EGA-AVUS4-UTV4.0 System-Ready HMI Video Module for AVUS Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, the human-machine interface layer is not a standalone display terminal — it is a critical node within a layered control architecture that must maintain real-time synchronization with the CPU layer, I/O layer, communication network, power distribution, and field execution devices. The Siemens EGA-AVUS4-UTV4.0 HMI Video Module is engineered specifically for integration within the Siemens AVUS control platform, providing high-integrity video signal processing and operator visualization capabilities that are tightly coupled to the system’s overall data flow and control logic.

Unlike generic display modules, the EGA-AVUS4-UTV4.0 is designed to operate as a contextually aware component within the AVUS architecture. It receives structured process data from the central processing unit, renders real-time status across multiple video channels, and feeds operator commands back into the control loop — all within the deterministic timing constraints demanded by process-critical environments such as power generation, petrochemical refining, water treatment, and heavy manufacturing.

The module’s value is fully realized when deployed alongside complementary AVUS system components. In a typical AVUS control cabinet configuration, the EGA-AVUS4-UTV4.0 interfaces with the AVUS central processing unit to receive live process variables, alarm states, and trend data. It coordinates with AVUS I/O modules — including analog input cards and digital output modules — to display field-level signals in operator-readable formats. The module also works in conjunction with AVUS communication gateway units that bridge the control network to PROFIBUS, PROFINET, or Modbus TCP field devices, ensuring that the video output always reflects the true state of the physical process.

Power integrity is maintained through the AVUS system power supply modules, which provide regulated 24 VDC to the HMI layer with built-in redundancy options. The EGA-AVUS4-UTV4.0 is designed to operate within the voltage tolerance bands specified by the AVUS platform, and its low power consumption profile ensures that adding video visualization capacity does not compromise the power budget of the control cabinet. In redundant system designs, the module can be paired with a secondary AVUS CPU module and a redundancy synchronization unit, ensuring that operator visualization remains available even during primary controller failover events.

At the network layer, the EGA-AVUS4-UTV4.0 supports the AVUS internal communication bus, enabling seamless data exchange with AVUS terminal modules, backplane bus couplers, and remote I/O stations. This architecture eliminates the need for separate video signal cabling between the HMI and the control layer, reducing installation complexity and improving electromagnetic compatibility in high-noise industrial environments. Engineers commissioning AVUS-based systems will find that the EGA-AVUS4-UTV4.0 integrates directly into the AVUS system rack without requiring additional interface converters or protocol translators.

From a maintenance and lifecycle perspective, the EGA-AVUS4-UTV4.0 is supported by Siemens’ global spare parts network and is covered by a 12-Month Warranty from ZYPLC, ensuring that replacement units are available with verified compatibility for installed AVUS architectures. This is particularly important for long-lifecycle industrial installations where maintaining system consistency across maintenance cycles is a priority. The module’s standardized form factor and connector pinout are consistent with the broader AVUS product family, meaning that field replacement can be completed without specialized tooling or extended downtime.

For system architects specifying new AVUS installations or upgrading existing control rooms, the EGA-AVUS4-UTV4.0 provides a future-proof visualization platform that supports multi-channel video output, high-resolution display rendering, and contextual alarm management — all within the unified AVUS engineering environment. Its Contextual Integration capability means that display content is dynamically linked to the process state, not statically configured, enabling operators to receive situational awareness that adapts to changing process conditions in real time.

Architecture Specification Table

Coordinated Control System Design

The EGA-AVUS4-UTV4.0 achieves its full performance potential when deployed as part of a coordinated AVUS system architecture. In a complete AVUS control station, the module operates alongside the AVUS Central Processing Unit (CPU), which executes the control program and generates the process data streams that the HMI video module renders for operator review. The CPU communicates with the EGA-AVUS4-UTV4.0 via the AVUS backplane bus, ensuring low-latency data transfer without external cabling.

The AVUS Power Supply Module provides the regulated 24 VDC rail that powers both the CPU and the HMI video module, with built-in overcurrent protection and diagnostic outputs that can be monitored by the control program. In redundant configurations, a secondary AVUS Redundancy Power Unit ensures continuous power availability to the HMI layer during primary supply maintenance or failure events.

At the I/O layer, AVUS Analog Input Modules collect 4–20 mA and 0–10 V signals from field transmitters — pressure, temperature, flow, and level — and pass these values to the CPU, which then forwards them to the EGA-AVUS4-UTV4.0 for display on operator screens. AVUS Digital Output Modules receive commands generated by operator interactions with the HMI and execute them at the field device level, closing the control loop between visualization and actuation.

Network connectivity is extended through AVUS Communication Gateway Modules, which bridge the AVUS internal bus to PROFIBUS DP field networks, enabling the HMI video module to display data from remote I/O stations and distributed field devices located outside the main control cabinet. For Ethernet-based architectures, AVUS PROFINET Interface Cards provide the network layer connectivity required for integration with plant-wide SCADA systems and historian servers.

The physical installation is completed using AVUS System Rack and Backplane Assemblies, which provide the mechanical housing and electrical bus connections for all AVUS modules. AVUS Terminal Modules at the field wiring interface ensure that signal connections are made with the correct impedance matching and surge protection required for long cable runs in industrial environments. Together, these components form a complete, validated AVUS control architecture in which the EGA-AVUS4-UTV4.0 serves as the operator-facing visualization layer — the point at which system intelligence becomes human-readable process awareness.

Application in Layered Automation Systems

Power Generation and Utilities: In thermal power plants and hydroelectric facilities, the EGA-AVUS4-UTV4.0 provides operators with real-time visualization of turbine speed, generator output, cooling water flow, and protection relay status. Its multi-channel video output capability allows a single module to drive multiple operator displays in the control room, reducing hardware count while maintaining full situational awareness across all process areas.

Petrochemical and Refining: In continuous process plants where operator response time directly affects product quality and safety, the EGA-AVUS4-UTV4.0’s Contextual Integration capability ensures that alarm displays are dynamically linked to the process state. Operators see not just the alarm condition, but the upstream and downstream process context that caused it — enabling faster, more accurate corrective action.

Water and Wastewater Treatment: Municipal water treatment facilities operating AVUS-based control systems use the EGA-AVUS4-UTV4.0 to monitor pump station status, chemical dosing rates, and effluent quality parameters across multiple treatment stages. The module’s compatibility with AVUS remote I/O stations allows a single control room installation to visualize data from geographically distributed pump stations and storage facilities.

Mining and Metallurgy: In ore processing and smelting operations, where high-vibration and high-temperature environments challenge conventional HMI hardware, the EGA-AVUS4-UTV4.0’s industrial-grade construction and AVUS platform integration provide reliable visualization of conveyor speeds, furnace temperatures, and material flow rates. Its 12-Month Warranty and global spare parts availability through ZYPLC ensure that replacement units can be sourced quickly to minimize production downtime.

Packaging and Discrete Manufacturing: On high-speed packaging lines where machine cycle times are measured in milliseconds, the EGA-AVUS4-UTV4.0 provides the real-time display refresh rates required for operators to monitor line speed, reject rates, and changeover status without display lag. Its integration with AVUS digital I/O modules enables direct visualization of machine state signals without intermediate data conversion.

Architecture Engineering FAQ

Q1: Is the EGA-AVUS4-UTV4.0 compatible with all AVUS system rack configurations, and does it require any additional interface modules for installation?

The EGA-AVUS4-UTV4.0 is designed for direct installation in standard AVUS system racks using the AVUS backplane bus connector. No additional interface modules or protocol converters are required for integration with AVUS CPUs, power supply modules, or I/O cards within the same rack. For installations that require connection to external PROFIBUS or PROFINET networks, the appropriate AVUS communication gateway module should be specified as part of the system architecture. ZYPLC’s engineering team can assist with rack configuration validation prior to order placement.

Q2: How does the EGA-AVUS4-UTV4.0 support system redundancy, and what happens to operator visualization during a CPU failover event?

In AVUS redundant CPU configurations, the EGA-AVUS4-UTV4.0 maintains continuous display operation during primary-to-secondary CPU switchover by receiving process data from the active CPU at all times. The AVUS redundancy synchronization mechanism ensures that the secondary CPU maintains a current copy of all process variables, so the HMI video module experiences no data gap during failover. Display refresh continuity is maintained within the AVUS platform’s specified switchover time, which is transparent to the operator in most process applications. For safety-critical installations, ZYPLC recommends specifying a complete redundant AVUS architecture including redundant power supply modules and redundant communication gateways.

Q3: What does the 12-Month Warranty cover for the EGA-AVUS4-UTV4.0, and how does ZYPLC support long-term maintenance for installed AVUS systems?

The 12-Month Warranty provided by ZYPLC covers manufacturing defects, component failures under normal operating conditions, and compatibility issues arising from verified AVUS system configurations. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched from in-stock inventory to minimize system downtime. For long-term maintenance planning, ZYPLC maintains buffer stock of EGA-AVUS4-UTV4.0 units and compatible AVUS system components, enabling customers to source replacement hardware years after the original installation without compatibility risk. Extended support agreements and multi-unit spare parts packages are available upon request. Contact ZYPLC at [email protected] or +86 19859288691 for maintenance planning consultation.
