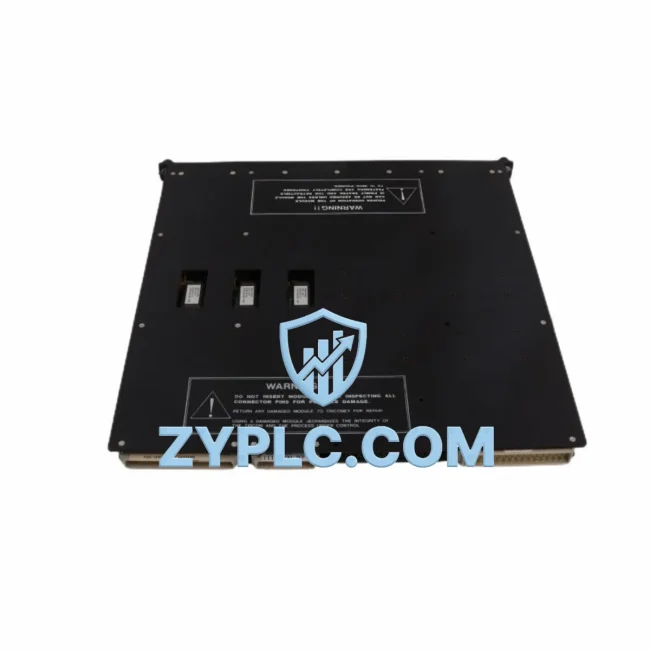

Triconex 3604E Energy-Saving Digital Output Module Tricon

Triconex 3604E Energy-Saving Digital Output Module Tricon

The Triconex 3604E is a high-efficiency digital output module engineered for the Tricon Triple Modular Redundant (TMR) safety control platform. In modern industrial facilities where energy accountability is no longer optional, the 3604E plays a pivotal role in reducing unnecessary power draw at the field device level. By delivering precise, fault-tolerant digital switching to actuators, solenoids, and motor starters, it eliminates the wasted energy cycles that accumulate from imprecise or delayed output control. Every millisecond of optimized switching translates directly into measurable reductions in energy consumption across the production line.

Designed for safety-critical environments including oil & gas, petrochemical, power generation, and chemical processing, the 3604E integrates seamlessly into the Tricon chassis alongside modules such as the Triconex 3703E analog input module and the Triconex 3805E digital input module, forming a tightly coordinated control loop that monitors, decides, and acts with minimal latency. This low-latency execution is essential for maintaining optimal production line rhythm — when output commands are executed precisely and without delay, downstream equipment operates at its designed efficiency point rather than compensating for control lag.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 3604E does not operate in isolation — its energy optimization value is fully realized when it functions as part of a coordinated automation architecture. In a typical Tricon-based safety instrumented system (SIS), the Triconex MP3008 main processor module executes the safety logic and issues output commands to the 3604E at deterministic scan rates, ensuring that field devices such as motor starters and control valves receive switching signals at precisely the right moment — not a cycle too early or too late. This determinism is the foundation of energy-efficient motor control.

On the drive side, the 3604E output signals are frequently used to command variable frequency drives (VFDs) — such as those in the Schneider Electric Altivar series or ABB ACS880 drives — enabling soft-start and speed-ramping profiles that dramatically reduce inrush current and mechanical wear. When paired with a Triconex 3703E analog input module reading process feedback such as flow rate or pressure, the control loop can dynamically adjust motor speed through the VFD, eliminating the energy waste of running motors at full speed when partial load is sufficient.

For power quality monitoring, the architecture typically incorporates dedicated power monitoring modules or energy meters — such as Schneider Electric PowerLogic ION series or Siemens SENTRON PAC devices — that feed real-time kWh and power factor data back into the control system via Modbus RTU or PROFIBUS DP communication protocols. The Triconex 4351B communication module or Triconex 4119A Hiway Gateway can bridge this data into the Tricon platform, enabling the safety controller to make energy-aware decisions without compromising its primary SIL-rated safety function.

At the I/O marshalling level, the 3604E works alongside Triconex 3625 digital output modules and Triconex 3700A analog input modules to provide comprehensive field coverage. HMI visualization — typically delivered through Wonderware InTouch or Rockwell FactoryTalk View SCADA platforms — presents operators with real-time energy dashboards, allowing production supervisors to identify inefficient equipment before it escalates into a costly unplanned shutdown.

Power Optimization in Real Production Lines

In a refinery or chemical plant running continuous processes, unplanned shutdowns are among the most energy-intensive events that can occur. A single emergency shutdown and restart cycle can consume as much energy as hours of normal operation, due to the thermal cycling of furnaces, the restart inrush of large motors, and the purging and re-pressurization of process vessels. The Triconex 3604E, by virtue of its TMR architecture, virtually eliminates spurious trips — false shutdowns triggered by single-point module failures — that would otherwise force these costly restart sequences.

In practical terms, a plant operating a Tricon SIS with 3604E output modules can expect measurably higher equipment utilization rates. When the safety system does not generate false alarms, operators trust the system, production targets are met consistently, and the energy consumed per unit of output decreases. This is the most direct path to energy efficiency in process industries: not reducing the energy used per hour, but ensuring that every hour of energy consumption produces saleable output.

The 3604E also supports predictive maintenance strategies. Because the Tricon TMR system continuously compares the outputs of its three independent processing legs, any divergence between legs — even before a fault becomes critical — is logged and flagged. Maintenance teams can schedule interventions during planned downtime windows rather than reacting to failures, avoiding the energy spikes and production losses associated with emergency repairs. Combined with condition monitoring data from field instruments connected through Triconex 3805E digital input modules, the system builds a comprehensive picture of equipment health that supports data-driven maintenance scheduling.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including output channel verification, TMR voting logic confirmation, and communication interface checks. Stock is maintained for immediate dispatch, with a 12-month warranty covering all supplied modules. Lead times are minimized through proactive inventory management, ensuring that replacement modules reach your facility before production impact occurs.

Energy Optimization FAQ

Q1: How does the Triconex 3604E contribute to energy savings in a process plant?
The 3604E contributes to energy savings primarily by eliminating spurious trips through its TMR redundancy. Each false shutdown avoided prevents the energy-intensive restart cycle of large rotating equipment and process heaters. Additionally, its precise digital switching supports VFD-based motor control strategies that match motor speed to actual process demand, reducing energy consumption during partial-load conditions.

Q2: Is the 3604E compatible with my existing Tricon chassis and processor?
The Triconex 3604E is compatible with Tricon v9, v10, and v11 chassis configurations and is designed to work with the Triconex MP3008 main processor module. If you are operating an older Tricon platform, our technical team can verify compatibility based on your chassis revision and firmware version before shipment.

Q3: Can the 3604E replace an older Triconex digital output module in my system?
Yes. The 3604E is a direct form-fit-function replacement for earlier Triconex digital output modules in the 3600 series. Hot-swap capability within the Tricon TMR architecture means replacement can be performed without shutting down the safety system, minimizing production interruption and the associated energy costs of a full plant restart.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every Triconex 3604E supplied by ZYPLC is tested prior to shipment to verify all 32 output channels, TMR voting logic integrity, and backplane communication. The 12-month warranty covers functional failures under normal operating conditions. Units are shipped with test documentation upon request. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty claims or pre-shipment test reports.
