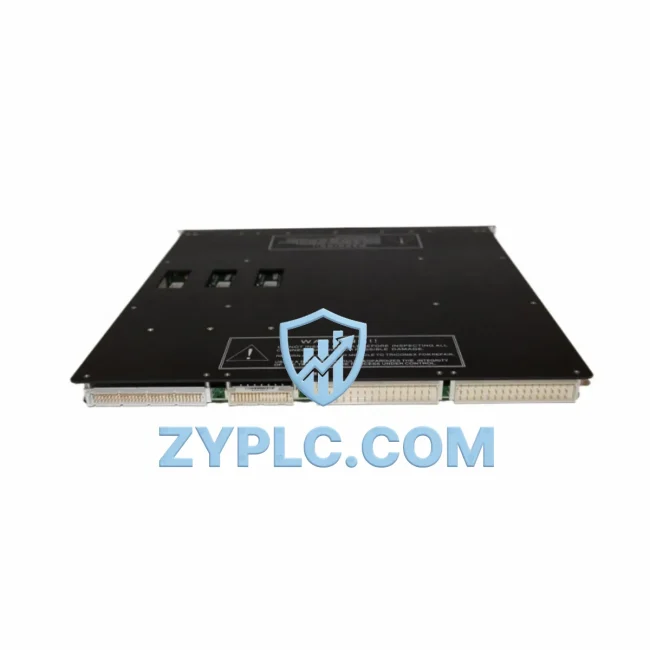

The Triconex 3636T Relay Output Module is a critical field-side interface component engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety system architecture. Rather than functioning as a standalone device, the 3636T is designed to operate as an integrated element within a layered automation hierarchy — bridging the logic solver layer and the physical actuator layer with deterministic, fault-tolerant relay switching capability. In safety-critical environments such as oil and gas processing, chemical manufacturing, power generation, and water treatment, the integrity of the output layer is paramount. The 3636T addresses this requirement by providing relay contact outputs that are continuously voted across three independent processing channels, ensuring that any single-channel fault does not compromise system output integrity.

Within the Tricon platform, the 3636T occupies the I/O layer of the control architecture. It interfaces directly with the Tricon main chassis backplane, receiving voted logic signals from the Tricon MP3008 or MP3010 Main Processor modules and translating those signals into discrete relay contact closures for field device actuation. The module’s relay outputs are suitable for driving solenoid valves, motor starters, alarm annunciators, and other binary actuators that require dry contact switching. This positions the 3636T as a foundational component in any Tricon-based emergency shutdown (ESD), fire and gas (F&G), or burner management system (BMS) architecture.

System architects integrating the 3636T must consider its role within the broader Tricon chassis configuration. The module is installed into a Tricon 8-slot or 16-slot chassis, sharing the backplane with complementary I/O modules such as the Triconex 3501 Digital Input Module and the Triconex 3703E Analog Input Module. Power distribution to the chassis is managed by the Triconex 9662 or 9665 Power Supply Module, which provides redundant 24 VDC rails to all installed I/O modules including the 3636T. Proper power sequencing and load budgeting across the chassis are essential engineering considerations when deploying multiple relay output modules in high-density I/O configurations.

From a network and communication architecture perspective, the 3636T does not directly participate in fieldbus or Ethernet communication — its outputs are hardwired to field devices. However, the module’s operational status, diagnostic data, and output states are continuously monitored by the Tricon Communication Module (TCM), which aggregates I/O health data and transmits it to the engineering workstation via the TriStation 1131 programming environment. This allows maintenance engineers to perform online diagnostics, force output states during commissioning, and verify relay contact integrity without interrupting process operations. Integration with the Triconex ACM (Application Communication Module) further enables the 3636T’s output states to be reflected in SCADA and DCS systems via OPC-DA or Modbus TCP protocols.

In layered automation system design, the 3636T contributes to the execution layer — the final control element interface — while remaining fully supervised by the Tricon TMR logic solver. This architecture ensures that output commands are only executed when all three processing channels reach consensus, providing SIL 3-capable output integrity as defined by IEC 61511 and IEC 61508. For applications requiring output-side redundancy, multiple 3636T modules can be configured in parallel output arrangements, with field wiring distributed across module outputs to achieve 1oo2 or 2oo3 actuator voting at the field device level.

Long-term maintainability is a key advantage of the 3636T within the Tricon ecosystem. Because the module is hot-swappable under power, field replacement can be performed without shutting down the safety system, minimizing process downtime and maintaining continuous protection. Spare module management is simplified by the module’s compatibility across multiple Tricon chassis generations, allowing a single spare pool to support diverse installed base configurations. ZYPLC maintains tested, serialized stock of the 3636T with full functional verification, supporting both emergency replacement and planned maintenance programs.

All 3636T modules supplied by ZYPLC are covered by a 12-Month Warranty and have undergone functional testing to verify relay contact operation, backplane communication integrity, and LED diagnostic accuracy. Contextual Integration support is available for customers requiring assistance with module configuration, chassis slot assignment, TriStation 1131 I/O mapping, and field wiring verification. Our technical team supports integration across the full Tricon I/O family, including the Triconex 3805E Digital Output Module, Triconex 3625 Relay Output Module, and Triconex 3700A Analog Output Module.

Architecture Specification Table

Coordinated Control System Design

The 3636T does not operate in isolation — its value is realized through coordinated integration with the full Tricon system stack. At the processor level, the Triconex MP3008 Main Processor executes the safety application logic and delivers voted output commands to the 3636T via the TMR backplane. Alongside the 3636T in the I/O chassis, the Triconex 3501 Digital Input Module captures field sensor states — pushbutton signals, limit switch feedback, and process interlock inputs — that feed the logic solver’s decision-making cycle. For analog process variable monitoring, the Triconex 3703E Analog Input Module provides 4–20 mA signal acquisition from pressure transmitters, flow meters, and temperature sensors, enabling the safety logic to evaluate process conditions before commanding relay outputs.

Power integrity across the chassis is maintained by the Triconex 9662 Power Supply Module, which delivers redundant 24 VDC to all I/O modules including the 3636T. In high-availability architectures, dual power supplies are deployed in parallel to eliminate the power supply as a single point of failure. Communication between the Tricon system and the plant DCS or SCADA is handled by the Triconex ACM (Application Communication Module), which maps 3636T output states and diagnostic data to OPC or Modbus registers accessible by the control room operator interface. For applications requiring peer-to-peer safety communication between Tricon controllers, the Triconex TCM (Tricon Communication Module) provides the network gateway function.

In larger system architectures, the 3636T may be deployed alongside the Triconex 3805E Digital Output Module for transistor-switched DC outputs, and the Triconex 3625 Relay Output Module for applications requiring higher current relay switching. The Triconex 3700A Analog Output Module complements the 3636T in mixed-output chassis configurations where both relay contacts and 4–20 mA analog commands are required for field device control. Together, these modules form a complete, validated I/O subsystem within the Tricon TMR architecture, supporting the full range of discrete and analog field device interfaces required in process safety applications.

Application in Layered Automation Systems

The Triconex 3636T finds application across a broad spectrum of safety-critical industries where relay output integrity is non-negotiable. In oil and gas processing, the 3636T drives ESD solenoid valves on wellhead control panels and pipeline isolation systems, providing the final hardwired output that initiates emergency shutdown sequences when process safety limits are exceeded. In chemical and petrochemical manufacturing, the module controls reactor isolation valves, quench system actuators, and depressurization valve drivers within SIL 2 and SIL 3 rated safety instrumented functions.

In power generation — including thermal, nuclear, and combined-cycle plants — the 3636T is deployed in turbine protection systems, boiler safety systems, and generator protection panels, where relay contact reliability and TMR voting integrity are essential for preventing equipment damage and personnel injury. Water and wastewater treatment facilities use the 3636T in pump protection systems, chemical dosing interlock panels, and overflow prevention systems, where the module’s hot-swap capability supports continuous operation during maintenance windows.

In mining and metallurgical processing, the 3636T controls conveyor interlock systems, crusher protection panels, and smelter safety systems, operating reliably in high-vibration, high-temperature industrial environments. Packaging and discrete manufacturing lines deploy the 3636T in machine safety systems and light curtain interlock panels, integrating the Tricon TMR architecture into production environments where safety and throughput must coexist. Across all these applications, the 3636T’s combination of TMR-voted relay outputs, online diagnostics, and hot-swap maintainability delivers the system-level reliability that modern industrial safety standards demand.

Architecture Engineering FAQ

Q1: Is the Triconex 3636T compatible with both 8-slot and 16-slot Tricon chassis configurations?
Yes. The 3636T is designed for installation in standard Tricon TMR chassis backplanes, including both 8-slot and 16-slot configurations. The module occupies a single I/O slot and communicates with the Main Processor via the TMR backplane bus. Slot assignment is configured in TriStation 1131, where the module type is selected and I/O mapping is defined. No hardware modification is required for deployment in either chassis size, making the 3636T a flexible spare for mixed-chassis installed bases.

Q2: Can the 3636T be replaced online without shutting down the Tricon safety system?
Yes. The 3636T supports hot-swap replacement under power, a key feature of the Tricon TMR architecture. During module replacement, the remaining two TMR channels continue to execute safety logic and maintain output integrity, ensuring that the safety function is not interrupted. After the replacement module is seated, the Tricon system automatically synchronizes the new module with the running application. This capability is essential for maintaining continuous protection in processes that cannot tolerate safety system downtime. All replacement modules supplied by ZYPLC are pre-tested and covered by a 12-Month Warranty to support reliable hot-swap operations.

Q3: What Contextual Integration support does ZYPLC provide for the 3636T?
ZYPLC provides Contextual Integration support covering the full deployment lifecycle of the 3636T, including chassis slot assignment verification, TriStation 1131 I/O configuration guidance, field wiring terminal block mapping, relay contact load verification, and online diagnostic interpretation. Our technical team can assist with integration planning for new installations and with troubleshooting for existing Tricon systems experiencing relay output anomalies. Support is available via direct consultation at plc.sales@zyplc.com or by phone at +86 19859288691, with response times aligned to the urgency of the application.
