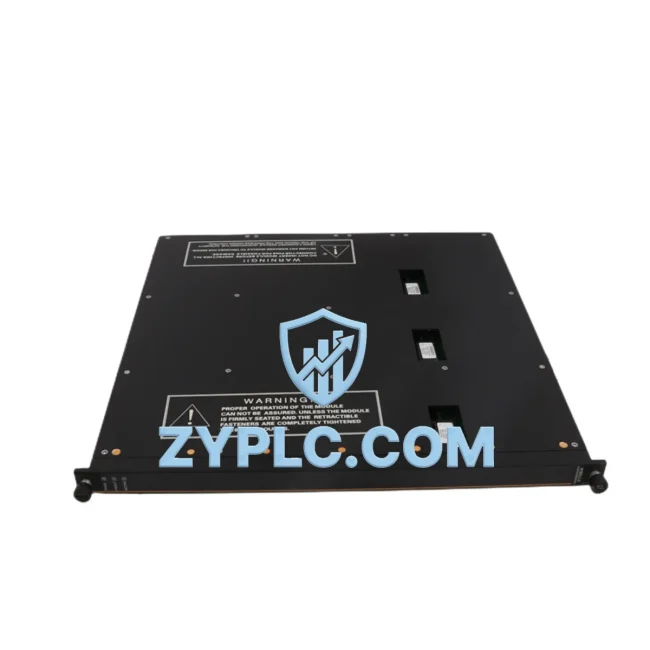

TRICONEX 3706A Energy-Saving Analog Input Module Tricon

TRICONEX 3706A Energy-Saving Analog Input Module: Precision Control for Optimized Tricon Automation

The TRICONEX 3706A is a high-performance Analog Input Module engineered for deployment within Schneider Electric’s Tricon Triple Modular Redundant (TMR) safety and control architecture. In modern industrial facilities where energy efficiency and process uptime are directly tied to profitability, the 3706A plays a critical role in capturing accurate field-level analog signals — the foundation of every energy-aware control decision. By delivering precise, low-drift signal acquisition across multiple channels, this module enables control systems to respond faster, reduce overcorrection cycles, and minimize the unnecessary energy expenditure that results from imprecise process feedback.

Whether deployed in oil and gas processing, chemical manufacturing, power generation, or continuous process industries, the TRICONEX 3706A ensures that every analog measurement — temperature, pressure, flow, or level — is faithfully transmitted to the Tricon controller with the accuracy required to sustain optimal equipment utilization and reduce idle energy draw.

Efficiency Performance Table

Energy-Aware Automation Architecture

The TRICONEX 3706A does not operate in isolation — it is the sensing backbone of a tightly integrated energy-aware control architecture. In a typical Tricon-based safety instrumented system (SIS), the 3706A feeds real-time analog data into the Tricon Main Chassis and communicates with the TRICONEX 3008 Main Processor Module, which executes the safety and control logic that governs energy-intensive field devices. When paired with the TRICONEX 3625 Enhanced Communication Module (TCM), the system gains Modbus TCP and OPC-DA connectivity, enabling plant-level SCADA and energy management platforms to receive live process data without polling delays that waste CPU cycles and inflate network energy overhead.

On the output side, the analog signals processed by the 3706A drive decisions executed through TRICONEX 3805E Digital Output Modules and TRICONEX 3703E Analog Output Modules, which in turn command variable frequency drives (VFDs) and control valves. When the 3706A accurately reports a flow rate deviation, the VFD — such as a Schneider Electric Altivar ATV630 Series Drive — can adjust motor speed in real time rather than running at fixed speed, directly reducing kilowatt-hour consumption per production cycle. This closed-loop efficiency is impossible without the signal fidelity that the 3706A provides.

For facilities integrating energy monitoring at the panel level, the 3706A’s analog inputs can be mapped to power transducers and current transformers feeding into Schneider Electric PowerLogic ION7650 Power Meters, creating a unified energy data stream from field sensor to enterprise dashboard. Combined with TRICONEX 3721 Termination Assemblies for clean field wiring and the Tricon 3000 I/O Bus Expander for distributed I/O architectures, the 3706A anchors a scalable, energy-transparent automation infrastructure.

In facilities running Wonderware System Platform or Aveva Process Optimization as the supervisory layer, the 3706A’s data — routed through the Tricon communication stack — feeds predictive energy models that identify inefficient operating windows, flag equipment running outside optimal load curves, and recommend setpoint adjustments before energy waste compounds into measurable cost overruns.

Power Optimization in Real Production Lines

In a refinery or chemical plant, the cost of imprecise analog measurement is not just a quality issue — it is an energy issue. When a flow transmitter signal is misread by even 1–2%, the downstream control response may command a pump or compressor to work harder than necessary, consuming excess power for minutes or hours before the deviation is corrected. The TRICONEX 3706A’s 12-bit resolution and TMR voting architecture eliminate this class of error by cross-validating signals across three independent input paths, ensuring that only verified, accurate data reaches the control logic.

This accuracy directly reduces the frequency of unnecessary actuator movements — a key driver of both energy waste and mechanical wear. Fewer valve strokes and fewer motor speed corrections mean lower energy consumption per production batch and extended mean time between maintenance (MTBM) intervals. In high-throughput continuous process lines, this translates to measurable reductions in maintenance downtime, which itself carries significant energy cost: restarting a process line after an unplanned shutdown consumes substantially more energy than maintaining steady-state operation.

The 3706A also supports predictive maintenance strategies by providing the clean, consistent analog data that condition monitoring algorithms require. When vibration, temperature, or pressure trends are tracked with high-fidelity inputs, maintenance teams can schedule interventions during planned low-production windows rather than responding reactively to failures — preserving production rhythm, protecting line throughput, and avoiding the energy spikes associated with emergency restarts.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, signal integrity, and backplane communication before dispatch. With verified surplus inventory on hand and a 12-month warranty covering all supplied modules, facilities can replace aging or failed 3706A modules with confidence, minimizing the risk of extended downtime and the associated energy and production losses.

Energy Optimization FAQ

Q1: How does the TRICONEX 3706A contribute to energy savings in a process plant?
The 3706A delivers high-accuracy analog signal acquisition that enables tighter, more responsive control loops. Precise process feedback reduces overcorrection by actuators and drives, directly lowering unnecessary energy consumption from pumps, compressors, and motors operating outside their optimal efficiency range.

Q2: Is the 3706A compatible with both Tricon v9 and v10 systems?
Yes. The TRICONEX 3706A is designed for use within the Tricon TMR platform and is compatible with Tricon v9 and v10 main chassis configurations. It is recommended to verify chassis slot assignments and I/O bus compatibility with your system’s configuration documentation prior to installation.

Q3: Can the 3706A replace a failed analog input module without a full system shutdown?
The Tricon TMR architecture is designed to support module replacement under certain operating conditions due to its triple-redundant design. Consult your site’s safety management of change (MOC) procedure and TRICONEX system documentation to confirm hot-swap eligibility for your specific configuration.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
All TRICONEX 3706A modules supplied by ZYPLC are functionally tested prior to shipment to verify analog channel accuracy, signal range, and backplane communication integrity. The 12-month warranty covers defects in hardware performance under normal operating conditions, providing assurance for both immediate deployment and inventory-held spares.
