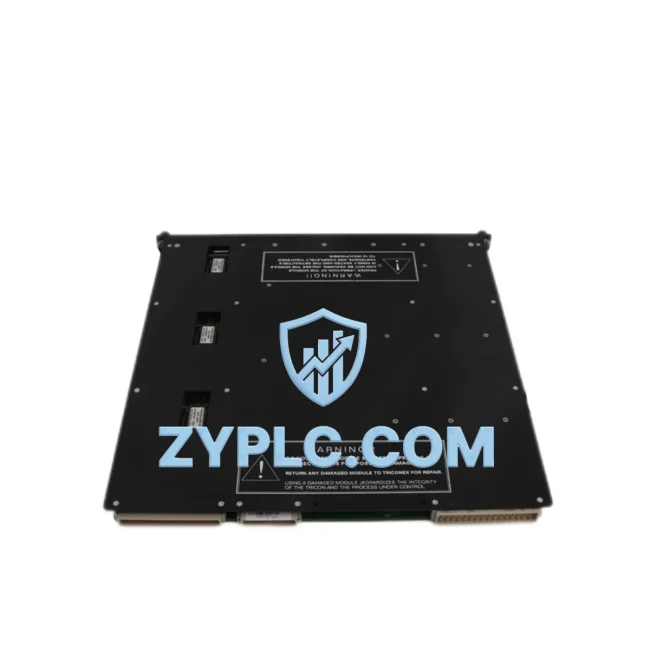

TRICONEX 3805E System-Ready Analog Output for Tricon Architecture

TRICONEX 3805E System-Ready Analog Output for Tricon Control Architecture

The TRICONEX 3805E is an 8-channel Triple Modular Redundant (TMR) analog output module purpose-built for deployment within Tricon safety instrumented systems. Rather than functioning as a standalone component, the 3805E is designed to operate as an integral node within a layered, fault-tolerant control architecture — one where every signal path, power rail, and communication channel is engineered for continuous availability, deterministic response, and long-term maintainability. Understanding the 3805E in the context of the full Tricon system reveals why it remains a preferred choice for engineers in safety-critical industries worldwide.

In a complete Tricon control system, the 3805E occupies the analog output layer, translating digitally processed control decisions into precise 4–20 mA current signals that drive final control elements such as control valves, variable frequency drives, and electro-pneumatic positioners. Its TMR architecture means that three independent processing channels simultaneously compute and vote on every output value, ensuring that a single-channel fault neither interrupts the output signal nor compromises the integrity of the safety function. This level of redundancy is not incidental — it is the architectural foundation upon which Tricon systems achieve IEC 61511 SIL 3 compliance across the most demanding process environments.

Architecture Specification Table

Coordinated Control System Design

The 3805E does not operate in isolation. Its performance and reliability are inseparable from the broader Tricon system architecture in which it is installed. At the controller layer, the Tricon Main Processor (MP) module — such as the TRICONEX 3008 — executes the safety application logic and issues output commands to the 3805E via the Tricon backplane bus. The MP’s TMR processing ensures that the commands reaching the 3805E are already voted and validated before transmission, eliminating single-point failures at the logic layer.

Power integrity is maintained by the Tricon Power Supply module (e.g., TRICONEX 8312), which delivers regulated, redundant DC power to the chassis backplane. The 3805E draws its operating power directly from this backplane, meaning that power supply redundancy at the chassis level directly supports uninterrupted analog output operation. In high-availability installations, dual power supplies are configured in parallel, with automatic failover ensuring no output disruption during a supply fault.

The chassis infrastructure itself — the Tricon Main Chassis and associated Expansion Chassis — provides the physical and electrical backbone for the 3805E. When process requirements exceed the I/O capacity of a single chassis, the TRICONEX Enhanced Hiway Cable (EHC) or Remote Termination Panel (RTP) assemblies extend the system’s reach without compromising signal integrity or TMR voting consistency. The 3805E slots directly into any compatible I/O slot, and its configuration is managed transparently through the Tristation 1131 programming environment.

On the input side, the TRICONEX 3703E or 3706A Analog Input modules provide the process variable measurements that feed the control algorithms driving the 3805E outputs. This closed-loop relationship — from field sensor through analog input module, through the MP, and out through the 3805E to the final control element — defines the core signal flow of a Tricon process control loop. Any degradation in this chain is immediately detected by the TMR voter logic and flagged to the operator via the Tricon Communication Module (TCM), such as the TRICONEX 4351B, which bridges the Tricon system to plant-level SCADA and DCS networks using Modbus TCP or OPC DA/UA protocols.

For digital output coordination, the TRICONEX 3625 Digital Output module works alongside the 3805E in mixed-signal control cabinets, handling discrete actuator commands while the 3805E manages proportional control signals. Together, they provide a complete output layer capable of addressing both on/off and modulating control requirements within a single Tricon chassis. Field terminations are managed through Tricon Terminal Panels and marshalling assemblies, which provide the physical interface between the 3805E’s output circuits and the field wiring, simplifying commissioning and enabling hot-swap maintenance without process interruption.

Application in Layered Automation Systems

The TRICONEX 3805E finds application across a wide spectrum of safety-critical and high-availability process industries. In oil and gas processing and petrochemical plants, the 3805E drives control valves in emergency shutdown (ESD) and process control systems, where SIL 3 integrity is mandated by functional safety standards. Its TMR architecture ensures that valve positioning commands remain accurate and uninterrupted even during partial system faults, supporting both normal process control and safety instrumented function (SIF) execution.

In power generation facilities — including thermal, nuclear, and combined-cycle plants — the 3805E is deployed in turbine control, boiler management, and reactor protection systems. The module’s deterministic output behavior and fault-tolerant design align with the stringent availability and reliability requirements of power plant automation, where unplanned shutdowns carry significant operational and safety consequences.

For water and wastewater treatment infrastructure, the 3805E controls dosing pumps, aeration blowers, and flow control valves within distributed Tricon architectures. Its ability to maintain accurate 4–20 mA outputs across wide temperature ranges and in electrically noisy environments makes it well-suited for both indoor control room installations and remote field panel deployments.

In mining and metallurgical operations, the 3805E supports conveyor speed control, furnace temperature regulation, and slurry flow management within Tricon-based process automation systems. The module’s robust isolation and TMR redundancy protect against the electrical interference common in heavy industrial environments, ensuring consistent output performance throughout extended production campaigns.

Packaging and discrete manufacturing lines also benefit from the 3805E’s precise analog output capability, particularly in applications requiring tight control of tension, pressure, temperature, or flow. Integration with Tricon’s high-speed backplane bus ensures that output updates occur within the system’s deterministic scan cycle, supporting the fast loop closure times demanded by modern production equipment.

Architecture Engineering FAQ

Q1: Is the TRICONEX 3805E compatible with both Tricon v9 and Tricon CX platforms, and can it be mixed with other I/O modules in the same chassis?
The 3805E is compatible with Tricon v9/v10 and Tricon CX chassis platforms. It can be installed in any available I/O slot alongside other Tricon analog input, digital input, and digital output modules without restriction. Module configuration and I/O assignment are managed through the Tristation 1131 development environment, which automatically recognizes installed modules and validates slot assignments against the application program. Mixed I/O configurations are standard practice in Tricon system design and do not affect the TMR integrity of any individual module.

Q2: What are the commissioning and diagnostic procedures for the 3805E in a live Tricon system, and how does the 12-Month Warranty apply to field-installed units?
Commissioning the 3805E involves slot insertion into a powered or de-energized Tricon chassis, followed by automatic module recognition by the Main Processor. Output channel calibration and loop checks are performed through Tristation 1131’s online diagnostic tools, which provide real-time channel status, output values, and fault flags. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty service includes module replacement or repair, with Contextual Integration support available to assist engineers in verifying replacement module compatibility and reconfiguration within the existing system architecture.

Q3: How does the 3805E support long-term maintenance strategies in aging Tricon installations, and what is the recommended approach for spare parts management?
The 3805E’s hot-swap capability allows field replacement without system shutdown, minimizing maintenance windows and supporting continuous process operation. For long-term maintenance planning, it is recommended to maintain at least one spare 3805E module per installed chassis, stored in a controlled environment consistent with Triconex storage specifications. Given the extended service life of Tricon systems — often exceeding 20 years in critical applications — proactive spare parts procurement ensures that replacement modules are available when needed, avoiding the lead times associated with sourcing legacy hardware. Our inventory program supports long-term supply continuity, and all units are covered by a 12-Month Warranty from the date of dispatch.
