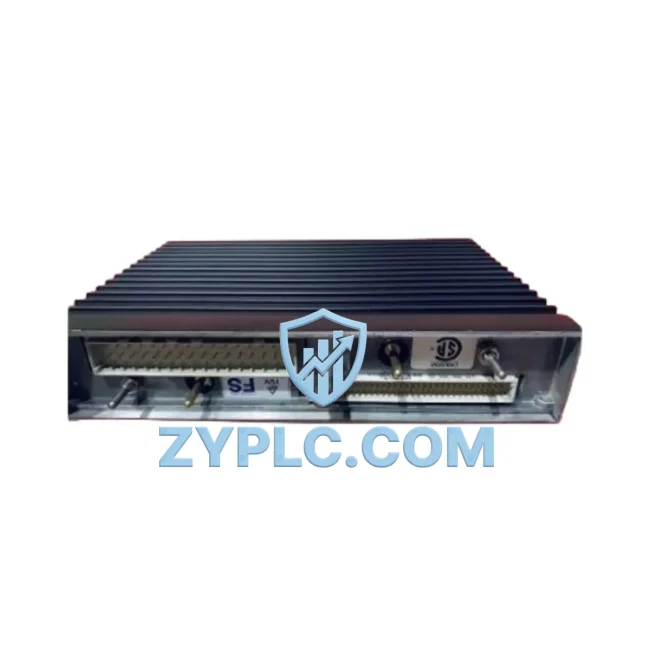

Triconex DI3301 System-Ready Digital Input for Tricon Architecture

Triconex DI3301 System-Ready Digital Input for Tricon Control Architecture

The Triconex DI3301 is a high-integrity digital input module engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety system architecture. Rather than functioning as a standalone component, the DI3301 occupies a critical position within a layered automation hierarchy — bridging field-level signal acquisition with the deterministic logic execution of the Tricon Main Chassis. Its role spans the I/O layer, where it receives discrete 24 VDC field signals from sensors, limit switches, emergency shutdown pushbuttons, and process interlocks, and converts them into fault-tolerant digital data streams that feed directly into the Tricon MP3008 or MP3010 Main Processor modules.

In a complete Tricon safety instrumented system (SIS), the DI3301 operates in concert with multiple system layers. At the control layer, the Tricon Main Processor executes IEC 61511-compliant safety logic, continuously polling the DI3301’s voted input states across all three redundant channels. At the I/O layer, the DI3301 shares the Tricon chassis backplane with complementary modules such as the DO3401 Digital Output Module, the AI3351 Analog Input Module, and the AO3481 Analog Output Module, forming a complete signal conditioning and actuation ecosystem. The module’s TMR voting architecture — where three independent input channels are compared and a 2-of-3 majority vote determines the output state — ensures that no single-point failure in field wiring, sensor, or internal circuitry can compromise system integrity.

From a network and communications perspective, the DI3301 integrates seamlessly with the Tricon Communication Module (TCM) and supports Modbus TCP/IP and OPC DA/UA protocols for supervisory data exchange with DCS platforms, SCADA systems, and historian servers. This contextual integration capability allows plant operators to monitor individual channel health, diagnostic counters, and voted output states in real time without interrupting the safety function — a critical requirement in continuous process industries such as oil and gas, petrochemical refining, and power generation.

At the power layer, the DI3301 draws regulated DC power from the Tricon Power Supply Module (PSM), which itself operates in a redundant N+1 configuration to eliminate power-related common-cause failures. The module’s low power consumption profile allows dense I/O configurations within a single Tricon chassis, supporting up to 32 discrete input points per module slot and enabling engineers to maximize I/O density without compromising thermal management or backplane loading.

For human-machine interface integration, real-time DI3301 channel states are surfaced through Triconex TriStation 1131 programming software and can be mapped to Wonderware, FactoryTalk View, or Ignition SCADA displays, providing operators with clear visual indication of field device status, voted logic states, and diagnostic alarms. This end-to-end visibility from field sensor through the DI3301 to the HMI layer is fundamental to effective alarm management and rapid fault isolation during plant upsets.

In execution layer applications, the DI3301’s voted digital outputs drive the Tricon Main Processor’s logic solver, which in turn commands DO3401 output modules connected to solenoid valves, motor starters, and safety relay modules. This complete signal chain — from field sensor through DI3301 input voting, through MP3008 logic execution, through DO3401 output actuation — represents the core of a Tricon SIS loop and demonstrates the DI3301’s indispensable role in system architecture continuity.

Architecture Specification Table

Coordinated Control System Design

The DI3301 achieves its full operational value only when considered within the broader Tricon system architecture. A typical Tricon SIS installation pairs the DI3301 with the MP3008 Main Processor for high-speed logic execution and the TCM4351 Tricon Communication Module for Modbus TCP/IP and OPC connectivity to the plant DCS. On the output side, the DO3401 Digital Output Module handles actuator commands derived from the DI3301’s voted input states, while the AI3351 Analog Input Module handles continuous process variable monitoring — pressure, temperature, and flow — within the same chassis.

Power integrity is maintained by the PSM3002 Power Supply Module operating in redundant configuration, ensuring that neither a single power supply failure nor a field wiring fault can interrupt the DI3301’s input scanning cycle. For applications requiring chassis expansion, the Tricon Expansion Chassis and associated EICM Enhanced Intelligent Communication Module extend the I/O capacity while maintaining TMR voting integrity across all expansion slots.

At the field termination layer, Tricon Terminal Panels and marshalling cabinets provide organized, labeled field wiring connections to the DI3301’s input circuits, simplifying commissioning and reducing the risk of wiring errors during initial installation or module replacement. For applications requiring galvanic isolation between field devices and the Tricon chassis, Pepperl+Fuchs or MTL safety barriers are commonly integrated upstream of the DI3301 input terminals in hazardous area installations.

Application in Layered Automation Systems

The DI3301 is deployed across a wide range of safety-critical industries where process upsets carry significant risk to personnel, environment, and assets. In oil and gas production and pipeline applications, the module monitors wellhead shutdown valves, high-pressure switches, and gas detector contacts, providing the voted input data that drives emergency shutdown (ESD) logic in the Tricon Main Processor. In petrochemical and refinery environments, the DI3301 interfaces with reactor interlock circuits, compressor surge protection systems, and fired heater safety loops, where SIL 3 integrity is mandated by process hazard analysis (PHA) findings.

In power generation facilities — including gas turbine, steam turbine, and combined-cycle plants — the DI3301 monitors turbine protection inputs such as overspeed switches, vibration trip contacts, and lube oil pressure switches, feeding the Tricon TMR logic solver that executes turbine trip sequences within milliseconds of a fault condition. In water and wastewater treatment plants, the module monitors pump run/fail status, valve position feedback, and level switch contacts across distributed pump stations, with Modbus TCP/IP integration to SCADA systems providing centralized monitoring.

In mining and minerals processing applications, the DI3301 is used in conveyor belt safety systems, crusher protection interlocks, and ventilation fan monitoring circuits, where the TMR architecture provides the fault tolerance required to maintain continuous production while meeting mine safety regulations. In pharmaceutical and fine chemical manufacturing, the module supports batch reactor safety interlocks and clean-in-place (CIP) system monitoring, where IEC 61511 compliance is required for process safety management certification.

Architecture Engineering FAQ

Q1: Is the DI3301 compatible with both the Tricon Main Chassis and Tricon Expansion Chassis?
Yes. The DI3301 is designed for installation in any standard Tricon chassis slot, including both the Main Chassis and Expansion Chassis configurations. When installed in an Expansion Chassis, the module communicates with the Main Processor via the Tricon backplane bus, maintaining full TMR voting integrity. Engineers should verify chassis slot assignments using TriStation 1131 configuration software to ensure correct I/O mapping and avoid address conflicts with existing modules such as the AI3351 or DO3401.

Q2: How does the DI3301 support long-term maintenance and module replacement without process shutdown?
The Tricon TMR architecture allows the DI3301 to be replaced online — while the safety system remains in service — using the Tricon hot-swap procedure. With two of the three redundant channels still operational, the system continues to execute safety logic and maintain voted output states during module replacement. After installation of the replacement DI3301, TriStation 1131 performs automatic channel synchronization and diagnostic verification before returning the module to full TMR operation. All replacement units supplied by ZYPLC are covered by a 12-Month Warranty and are tested prior to shipment to confirm channel integrity and input threshold accuracy.

Q3: What communication protocols does the DI3301 support for integration with DCS and SCADA systems?
The DI3301 itself does not have an independent communication interface — it exchanges data with the Tricon Main Processor via the chassis backplane. External communication is handled by the Tricon Communication Module (TCM), which supports Modbus TCP/IP, Modbus RTU, and OPC DA/UA protocols. This contextual integration architecture allows DCS platforms such as Honeywell Experion, Emerson DeltaV, and ABB 800xA to read DI3301 channel states, diagnostic data, and voted output values in real time, supporting integrated alarm management and safety system performance monitoring without requiring direct access to the Tricon safety network.
