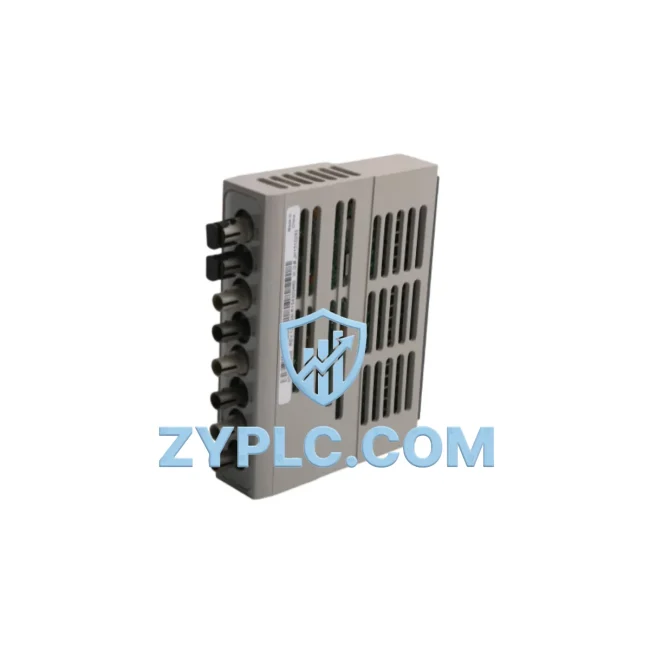

Westinghouse 1C31181G02 System-Ready Remote I/O for WDPF Architecture

Westinghouse 1C31181G02 System-Ready Remote I/O for WDPF Architecture

The Westinghouse 1C31181G02 is a Remote I/O Module engineered for deployment within the Westinghouse Distributed Processing Family (WDPF) Distributed Control System architecture. In large-scale process automation environments — spanning power generation, petrochemical refining, water treatment, and metallurgical operations — the integrity of the I/O layer is foundational to the entire control hierarchy. The 1C31181G02 fulfills this role by providing reliable, high-density signal acquisition and distribution between field instrumentation and the WDPF controller network, ensuring that every process variable is captured, conditioned, and delivered to the control layer with precision and consistency.

Unlike generic I/O solutions, the 1C31181G02 is purpose-built for the WDPF platform’s layered architecture. It interfaces directly with the WDPF Data Highway, the proprietary communication backbone that links remote I/O stations to the WDPF Process Controllers (WPC) and WDPF Operator Workstations. This native integration eliminates protocol translation overhead, reduces scan cycle latency, and preserves the deterministic timing that process control applications demand. When paired with the Westinghouse 1C31197G01 WDPF Power Supply Module, the 1C31181G02 operates within a fully conditioned electrical environment, protecting signal integrity across all connected field channels.

Within the WDPF rack assembly, the 1C31181G02 occupies a defined slot position alongside companion modules such as the Westinghouse 1C31116G01 Analog Input Module and the Westinghouse 1C31122G01 Digital Output Module. This modular co-location allows engineers to construct application-specific I/O configurations without redesigning the backplane or reconfiguring the communication layer. The WDPF backplane itself — including the Westinghouse 1C31234G01 I/O Rack Backplane — routes both power and data signals through a unified bus structure, simplifying cabinet wiring and reducing the risk of inter-module interference.

System redundancy is a critical design consideration in continuous-process industries. The 1C31181G02 supports WDPF’s redundant I/O architecture, where paired modules operate in hot-standby configurations. Should the primary module experience a fault condition, the standby unit assumes control without interrupting the data stream to the WDPF Process Controller. This seamless failover capability is essential in applications such as turbine control, boiler management, and reactor monitoring, where even momentary signal loss can trigger costly process upsets or safety system activations.

At the network layer, the WDPF Data Highway connects the 1C31181G02 to higher-level supervisory systems, including WDPF Operator Workstations running the WDPF-II software environment. This connectivity enables real-time process visualization, alarm management, and historical data logging — all synchronized with the I/O scan cycle managed by the 1C31181G02. For facilities integrating WDPF with modern DCS platforms or SCADA systems, the Westinghouse 1C31238G01 Communication Gateway Module provides the necessary protocol bridging, preserving the 1C31181G02’s role in the expanded architecture without requiring hardware replacement.

From a maintenance and lifecycle perspective, the 1C31181G02 is a long-term asset in WDPF installations that may span 20 to 30 years of operational service. Facilities management teams rely on verified spare inventory to execute planned maintenance cycles, respond to unplanned failures, and support control system upgrades without full platform migration. ZYPLC maintains in-stock inventory of the 1C31181G02, with each unit subjected to functional testing prior to shipment. All units are covered by a 12-Month Warranty, providing procurement teams with the assurance needed for capital spares planning and maintenance budget allocation.

Engineering teams commissioning or expanding WDPF systems will find the 1C31181G02 fully compatible with existing rack configurations, requiring no firmware updates or hardware modifications for standard deployment. Calibration and channel assignment are managed through the WDPF engineering workstation, consistent with the configuration methodology used across all WDPF I/O modules. This uniformity reduces commissioning time and minimizes the risk of configuration errors during system expansion or module replacement.

Architecture Specification Table

Coordinated Control System Design

The 1C31181G02 does not operate in isolation — its value is realized through its position within a coordinated WDPF control architecture. At the controller level, the WDPF Process Controller (WPC) executes the control strategy, issuing setpoints and receiving process feedback through the Data Highway. The 1C31181G02 serves as the physical bridge between this controller logic and the field instruments — transmitters, actuators, switches, and drives — that interact with the process directly.

Power integrity is maintained by the Westinghouse 1C31197G01 Power Supply Module, which conditions incoming AC supply into the regulated DC voltages required by the I/O rack. Alongside the 1C31181G02, the rack may house the Westinghouse 1C31116G01 Analog Input Module for 4–20 mA transmitter signals, the Westinghouse 1C31122G01 Digital Output Module for discrete actuator control, and the Westinghouse 1C31113G01 Analog Output Module for control valve positioning. The Westinghouse 1C31234G01 Rack Backplane unifies these modules into a single addressable I/O station on the Data Highway.

For facilities requiring integration with modern control platforms, the Westinghouse 1C31238G01 Communication Gateway enables data exchange between the WDPF Data Highway and Ethernet-based supervisory networks, extending the reach of the 1C31181G02’s data without disrupting the existing architecture. At the human-machine interface layer, WDPF Operator Workstations provide real-time process displays and alarm management, consuming the I/O data delivered by the 1C31181G02 through the controller scan cycle.

Application in Layered Automation Systems

In power generation facilities — including coal, gas, and nuclear plants — the 1C31181G02 is deployed in turbine control panels, boiler management systems, and balance-of-plant automation racks. Its deterministic scan cycle and redundancy support make it suitable for applications where signal loss directly impacts generation output or safety system response.

In petrochemical and refining operations, the module handles analog signals from pressure transmitters, temperature sensors, and flow meters distributed across reactor units and distillation columns. The WDPF architecture’s zone-based I/O distribution — enabled by modules like the 1C31181G02 — reduces field wiring runs and simplifies hazardous area cable management.

In water and wastewater treatment plants, the 1C31181G02 supports pump control, valve sequencing, and chemical dosing automation. Its long operational lifespan aligns with the extended asset cycles typical of municipal infrastructure, where control system components must remain serviceable for decades without platform replacement.

In metallurgical and mining applications, the module operates in high-vibration, high-temperature environments within rolling mill control systems, ore processing automation, and conveyor management platforms. Its rack-mount form factor and backplane-based power distribution simplify installation in space-constrained control cabinets.

Architecture Engineering FAQ

Q1: Is the 1C31181G02 compatible with both WDPF and WDPF-II system configurations?
The 1C31181G02 is designed for the WDPF platform and is compatible with WDPF-II rack configurations that maintain the standard WDPF Data Highway interface. Compatibility with specific rack generations and controller firmware versions should be verified against the system’s engineering documentation. ZYPLC’s technical team can assist with compatibility assessment prior to procurement.

Q2: Can the 1C31181G02 be installed as a hot-standby redundant module without system shutdown?
The WDPF architecture supports hot-standby redundant I/O configurations, and the 1C31181G02 is designed to participate in these configurations. The specific procedure for installing a redundant module — including whether a live insertion is supported — depends on the rack type and system firmware version. Engineering teams should consult the WDPF I/O Module Installation Guide and coordinate with the system integrator before performing live module changes in critical process environments.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every 1C31181G02 unit supplied by ZYPLC undergoes functional testing to verify communication interface integrity, channel operation, and power consumption within specification. The 12-Month Warranty covers defects in materials and workmanship identified during normal operational use. Units that fail during the warranty period are replaced or repaired at no additional cost. ZYPLC maintains documented test records for each shipped unit, supporting traceability requirements for regulated industries.

—
