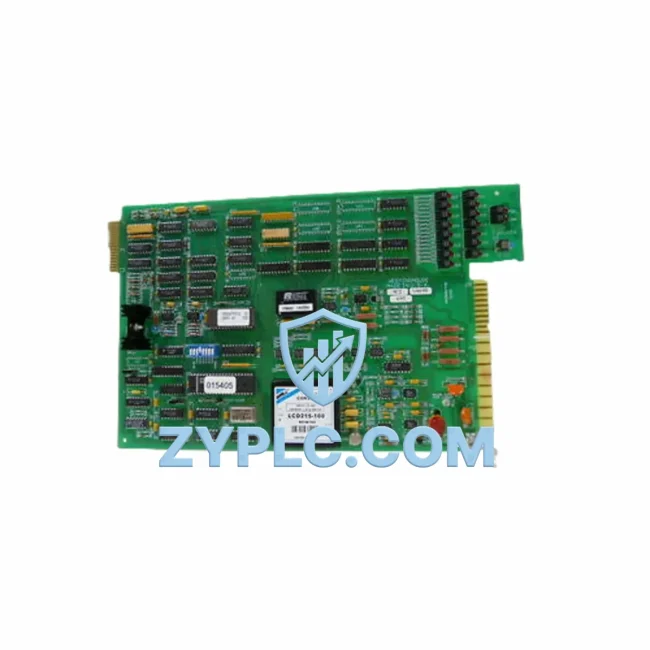

The Westinghouse 7381A73G01 is a precision-engineered Speed Sensor Card designed for integration within the WDPF (Westinghouse Distributed Processing Family) distributed control architecture. In modern industrial facilities — from power generation plants to heavy process manufacturing — the ability to accurately monitor rotational speed and translate that data into actionable control signals is foundational to energy-efficient operation. The 7381A73G01 fulfills this role by delivering high-resolution speed feedback that enables drive systems, turbine governors, and motor controllers to operate at their optimal efficiency points, eliminating unnecessary energy consumption caused by imprecise speed regulation.

Industrial energy waste is rarely the result of a single failing component. More often, it stems from a cascade of small inefficiencies: a motor running slightly above its required speed, a turbine governor responding too slowly to load changes, or a conveyor drive cycling unnecessarily because speed feedback is delayed or inaccurate. The 7381A73G01 addresses these root causes directly. By providing real-time, high-fidelity speed signals to the WDPF controller network, it enables the control system to make precise, timely adjustments — reducing energy draw, extending equipment service life, and improving overall production line throughput.

In turbine control applications, the 7381A73G01 works in close coordination with the WDPF system’s governor control modules to maintain shaft speed within tight tolerances. This precision is critical not only for grid synchronization in power generation but also for minimizing mechanical stress on rotating equipment — a key factor in reducing maintenance frequency and unplanned downtime. When paired with Westinghouse WDPF I/O modules such as the 1C31234G01 analog input card, the speed data captured by the 7381A73G01 can be cross-referenced with process variables like steam flow, pressure, and temperature to build a comprehensive picture of turbine energy efficiency in real time.

For motor-driven systems, accurate speed sensing is the prerequisite for effective variable frequency drive (VFD) control. When the 7381A73G01 feeds precise speed data into the WDPF control loop, the system can command VFDs to adjust output frequency with minimal overshoot or hunting — the two primary causes of excess energy consumption in motor control applications. This closed-loop efficiency is further enhanced when the WDPF network includes power monitoring modules such as the 5X00106G01, which can correlate speed data with real-time power consumption to calculate motor efficiency and flag deviations that indicate mechanical wear or load imbalance.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 7381A73G01 does not operate in isolation — its value is realized within a broader WDPF automation architecture designed for energy-aware industrial control. In a typical WDPF installation, the speed sensor card occupies a slot in the WDPF I/O cabinet alongside a range of complementary modules that together form a complete energy monitoring and control ecosystem.

At the data acquisition layer, the 7381A73G01 works alongside analog input cards such as the 1C31227G01 and 1C31234G01, which capture process variables including current, voltage, temperature, and flow. This multi-variable data collection allows the WDPF controller — typically a WDPF-II processor module — to build a real-time energy balance model for each driven load. The processor correlates speed data from the 7381A73G01 with electrical consumption data from power monitoring modules like the 5X00106G01, enabling the system to calculate instantaneous efficiency and detect degradation trends before they result in energy waste or equipment failure.

At the control execution layer, the WDPF system uses the speed feedback from the 7381A73G01 to generate precise control outputs through digital output cards such as the 1C31116G01 and analog output modules like the 5X00070G04. These outputs command VFDs, servo drives, and actuators to maintain optimal operating points. In turbine applications, the speed signal feeds directly into governor control algorithms that regulate steam admission valves, ensuring the turbine operates at peak thermal efficiency across varying load conditions.

Communication between the 7381A73G01’s host I/O cabinet and the WDPF supervisory network is handled through the WDPF data highway — a deterministic, high-speed communication bus that ensures speed data reaches the control processor with minimal latency. This low-latency feedback loop is essential for dynamic load-following applications where delayed speed signals would result in control overshoot, energy waste, and mechanical stress. For facilities integrating WDPF with modern SCADA or MES platforms, gateway modules such as the 7379A06G01 provide protocol translation, enabling speed and efficiency data to flow into plant-wide energy management systems.

HMI integration is equally important for energy optimization. Operators monitoring the WDPF system through Westinghouse operator stations or modern HMI terminals can view real-time speed trends, efficiency curves, and energy consumption data derived from the 7381A73G01’s output. This visibility enables operators to make informed decisions about load scheduling, equipment sequencing, and maintenance timing — all of which contribute to measurable reductions in energy cost per unit of production. Additional I/O expansion cards such as the 1C31189G01 and 7381A73G02 can be added to the WDPF cabinet to extend speed monitoring to additional drive trains or redundant measurement channels, further enhancing system reliability and energy data granularity.

Power Optimization in Real Production Lines

In real-world industrial environments, the energy savings delivered by the 7381A73G01 manifest across multiple dimensions of plant operation. Consider a combined-cycle power plant where multiple turbine-generator sets must be synchronized and load-balanced in real time. Without accurate speed feedback, the governor control system must operate with wider control bands, resulting in speed hunting that wastes fuel and increases mechanical wear. With the 7381A73G01 providing high-resolution speed signals, the WDPF governor can maintain shaft speed within ±0.1% of setpoint, enabling tighter load control and measurably lower heat rate — the key efficiency metric in power generation.

In process manufacturing — chemical plants, refineries, pulp and paper mills — large motor-driven loads such as compressors, pumps, and fans represent the dominant share of electrical energy consumption. These loads are typically controlled by VFDs that rely on accurate speed feedback to maintain process setpoints without over-driving the motor. When the 7381A73G01 provides clean, noise-free speed signals to the WDPF control loop, the VFD can operate with a tighter control band, reducing the average motor speed — and therefore energy consumption — while still meeting process requirements. Studies in similar applications consistently show that a 5% reduction in average motor speed translates to approximately a 14% reduction in energy consumption, due to the cubic relationship between speed and power in centrifugal loads.

Predictive maintenance is another dimension where the 7381A73G01 contributes to energy optimization. By continuously monitoring speed signals for anomalies — unexpected speed drops, oscillations, or asymmetric behavior between redundant sensors — the WDPF system can detect early signs of mechanical degradation such as bearing wear, coupling misalignment, or rotor imbalance. Addressing these issues proactively, before they cause significant efficiency losses or unplanned shutdowns, is one of the highest-value applications of precision speed monitoring in industrial automation. Each avoided unplanned shutdown eliminates not only the direct cost of emergency repair but also the energy waste associated with uncontrolled restart sequences and the production losses that accompany unexpected downtime.

All units of the 7381A73G01 supplied by ZYPLC are fully tested and inspected prior to shipment, with each card verified for signal accuracy, backplane communication integrity, and compatibility with WDPF system firmware. This pre-shipment testing protocol ensures that replacement cards can be installed and commissioned quickly, minimizing the duration of any planned maintenance window and reducing the risk of commissioning-related issues that could compromise system performance.

Energy Optimization FAQ

Q1: How does the 7381A73G01 contribute to measurable energy savings in motor control applications?
The 7381A73G01 provides high-resolution speed feedback that enables the WDPF control system to command VFDs with greater precision. This tighter closed-loop control reduces motor speed overshoot and hunting, allowing the drive to operate closer to the minimum speed required by the process. For centrifugal loads (pumps, fans, compressors), even small reductions in average operating speed yield significant energy savings due to the affinity laws governing centrifugal machine performance.

Q2: Is the 7381A73G01 compatible with both legacy WDPF and newer Ovation DCS platforms?
The 7381A73G01 is a native WDPF module designed for the WDPF I/O backplane architecture. For facilities transitioning from WDPF to Ovation, compatibility depends on the specific migration path and integration hardware in use. ZYPLC recommends consulting your system integrator to confirm backplane and firmware compatibility before installation. Our technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement procedure for the 7381A73G01 in a live WDPF system?
The WDPF architecture supports hot-swap replacement of I/O cards in most configurations, allowing the 7381A73G01 to be replaced during a planned maintenance window without a full system shutdown. The replacement card should be tested offline prior to installation. ZYPLC provides pre-tested, verified units to minimize commissioning time. Always follow Westinghouse WDPF maintenance procedures and ensure the replacement card’s firmware revision is compatible with the installed WDPF system version.

Q4: What warranty and testing assurance does ZYPLC provide with the 7381A73G01?
Every 7381A73G01 supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify signal output accuracy, backplane communication, and power integrity. Test records are available upon request. In the event of a warranty claim, ZYPLC provides prompt replacement or repair support to minimize impact on production operations.
