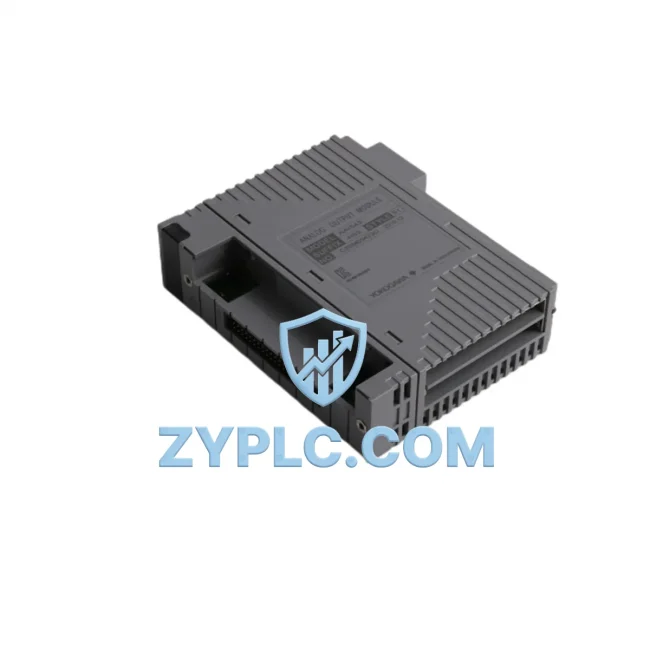

Yokogawa AAI543-H53/S1 Energy-Saving Analog Output Module

Yokogawa AAI543-H53/S1 Energy-Saving Analog Output Module: Precision Efficiency Control for Optimized CENTUM VP Automation

The Yokogawa AAI543-H53/S1 is a 16-channel analog output module engineered for deployment within the CENTUM VP and CS 3000 distributed control systems. In modern industrial facilities where energy accountability is no longer optional, this module plays a central role in translating digital control commands into precise 4–20 mA analog signals — directly governing actuators, control valves, variable frequency drives, and motor starters with minimal signal latency and maximum output fidelity. Every milliamp of output accuracy translates into measurable reductions in energy waste across the production line.

Unlike generic output modules, the AAI543-H53/S1 is designed to operate within Yokogawa’s tightly integrated field control architecture. When paired with the Yokogawa AFV10D Field Control Unit and coordinated through the CENTUM VP Engineering Environment (CAMS for HIS), the module enables closed-loop energy management at the field device level — ensuring that pumps, compressors, and HVAC systems receive only the energy they need, when they need it, based on real-time process feedback.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving genuine energy efficiency in a process plant requires more than installing efficient equipment — it demands a coherent architecture where every layer of the control system communicates with precision. The AAI543-H53/S1 sits at the execution layer of this architecture, converting optimized setpoints from the Yokogawa CENTUM VP Field Control Station (FCS) into stable, repeatable analog signals that drive field devices without overshoot or oscillation.

At the sensing layer, modules such as the Yokogawa AAI141-S (16-channel analog input) continuously feed process variables — flow rates, temperatures, pressures — back into the FCS. The FCS processes this data through PID and advanced control algorithms, then dispatches corrected output commands to the AAI543-H53/S1. This tight feedback loop prevents the energy waste associated with manual corrections and delayed actuator response.

For drive-level energy optimization, the AAI543-H53/S1 output signals are commonly routed to Yokogawa-compatible variable frequency drives (VFDs) and servo amplifiers. When a VFD receives a precise 4–20 mA speed reference rather than a stepped or noisy signal, it operates at the exact motor speed required by the process — eliminating the energy penalty of running motors at fixed full speed. In pump and fan applications, this alone can reduce motor energy consumption by 20–50% compared to on/off control strategies.

Power quality monitoring is handled upstream by dedicated energy metering modules integrated into the plant’s Yokogawa STARDOM FCN/FCJ autonomous controller network or via Modbus RTU / FOUNDATION Fieldbus communication links. The AAI543-H53/S1 supports seamless integration into these communication architectures, allowing energy data from power meters and analyzers to inform real-time output adjustments without operator intervention.

For facilities running hybrid control topologies, the module coexists with Yokogawa ProSafe-RS Safety Instrumented System (SIS) components, ensuring that energy optimization routines never compromise safety integrity levels. The Yokogawa EJX910A Multivariable Transmitter and similar smart field instruments provide the high-fidelity process data that makes precision output control possible, while Yokogawa CENTUM VP HIS (Human Interface Stations) give operators full visibility into energy KPIs, output trends, and alarm states across all 16 channels simultaneously.

In I/O-intensive applications, the AAI543-H53/S1 is often deployed alongside Yokogawa ADV151-P digital output modules and Yokogawa AAI841-S analog I/O modules to form a complete field I/O subsystem — covering both discrete actuator control and continuous analog regulation within a single node cabinet. This consolidated architecture reduces wiring complexity, lowers cabinet heat load, and minimizes the auxiliary power draw associated with distributed I/O sprawl.

Power Optimization in Real Production Lines

In a typical continuous process plant — a refinery, a chemical reactor train, or a water treatment facility — energy waste rarely comes from a single source. It accumulates through thousands of small inefficiencies: a control valve that hunts because its setpoint signal is noisy, a pump that runs 5% faster than necessary because the output module lacks resolution, a compressor that cycles on and off because the analog output drifts at low signal levels.

The AAI543-H53/S1 addresses these inefficiencies at their root. Its 13-bit output resolution means that a 0–100% control range is divided into over 8,000 discrete steps — fine enough to hold a control valve at exactly the position required by the process without hunting. In a cooling water system, this precision can reduce pump energy consumption by eliminating the constant micro-corrections that characterize lower-resolution output modules.

Downtime is one of the most expensive forms of energy waste in industrial operations — not because idle equipment consumes power, but because restart sequences, purge cycles, and re-stabilization periods consume disproportionate energy relative to steady-state operation. The AAI543-H53/S1’s robust design, combined with Yokogawa’s hot-standby redundancy options within the CENTUM VP architecture, minimizes unplanned shutdowns. Predictive maintenance data — drawn from output load monitoring and channel diagnostics — can be surfaced through the CENTUM VP HIS to maintenance teams before a failure occurs, keeping production lines running at their optimal energy-per-unit-output ratio.

For production lines with variable throughput demands — batch chemical processes, food and beverage filling lines, automotive paint shops — the ability to rapidly and accurately adjust output setpoints allows the control system to match energy input to production rate in real time. Rather than running at a fixed energy baseline regardless of throughput, the plant can scale energy consumption proportionally, improving the overall equipment effectiveness (OEE) metric and reducing the energy cost per unit produced.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to full functional output testing across all 16 channels prior to shipment, and covered by a 12-month warranty. Stock is maintained for fast dispatch to minimize production downtime for customers requiring urgent replacement or system expansion.

Energy Optimization FAQ

Q1: How does the AAI543-H53/S1 contribute to measurable energy savings on the production line?
By delivering high-resolution, stable 4–20 mA output signals to field actuators and VFDs, the module eliminates the overcorrection cycles and actuator hunting that waste energy in poorly controlled loops. Precise output means field devices operate at exactly the required setpoint — no more, no less — reducing unnecessary energy consumption in pumps, fans, compressors, and control valves.

Q2: Is the AAI543-H53/S1 compatible with both CENTUM VP and CS 3000 systems?
Yes. The AAI543-H53/S1 is designed for use within Yokogawa’s CENTUM VP and CENTUM CS 3000 DCS platforms. It slots into the standard field control station I/O nest and is recognized by the CENTUM VP engineering environment without additional configuration hardware. Compatibility should always be verified against your specific FCS model and software revision before installation.

Q3: What is the recommended replacement or upgrade path if my existing AO module is failing?
The AAI543-H53/S1 is a direct form-fit-function replacement for compatible Yokogawa analog output modules within the same I/O nest generation. Before replacement, verify the channel count, output signal type (4–20 mA), and FCS slot compatibility. ZYPLC’s technical team can assist with cross-referencing your existing module part number to confirm compatibility and advise on any firmware or configuration considerations.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every AAI543-H53/S1 unit undergoes full functional output testing across all 16 channels prior to dispatch — verifying signal accuracy, channel isolation, and communication integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static, shock-protected materials to ensure they arrive in tested condition ready for installation.
