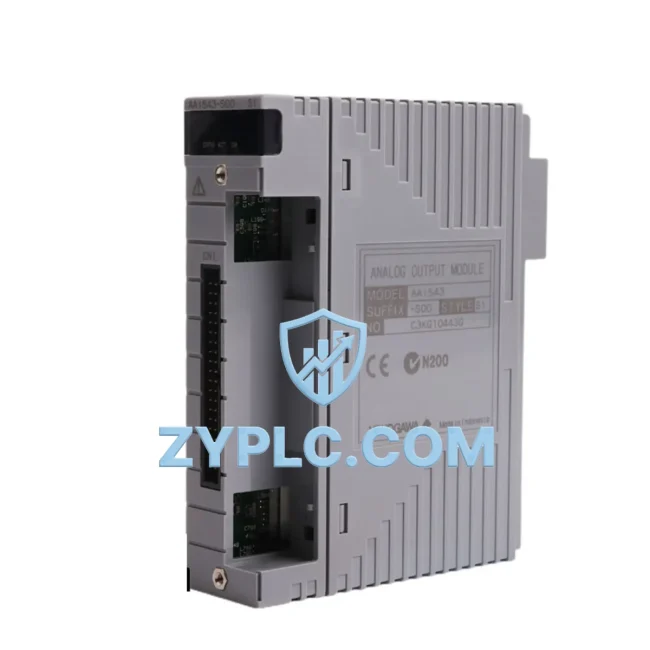

YOKOGAWA AAI543-S00 S1 System-Ready Analog Output for CENTUM Architecture
In modern distributed control systems, every layer of the architecture must communicate with precision and reliability. The YOKOGAWA AAI543-S00 S1 Analog Output Module is engineered to serve as a critical signal-conditioning and output-driving component within the CENTUM CS 3000 and CENTUM VP distributed control system platforms. Designed for demanding process industries, this module delivers stable 4–20 mA analog output signals to field actuators, control valves, variable frequency drives, and positioners — ensuring that the control layer’s commands are faithfully translated into physical process actions.
Within a layered automation architecture, the AAI543-S00 S1 occupies the I/O layer, sitting between the controller CPU and the field execution layer. It receives setpoint data from the CENTUM VP Field Control Station (FCS) or CENTUM CS 3000 FCS, processes the digital command values, and converts them into precise analog signals that drive downstream devices. This tight integration between the control layer and the field layer is what enables real-time process regulation across complex industrial environments including petroleum refining, chemical processing, power generation, water treatment, and pharmaceutical manufacturing.
The module is designed for installation in YOKOGAWA’s standard I/O nest and node unit assemblies. It slots into the system’s modular backplane alongside other I/O cards such as the AAI141-S00 Analog Input Module and the ADV151-P00 Digital Output Module, forming a cohesive I/O subsystem that feeds data bidirectionally between the field and the control network. The backplane architecture ensures that all modules share a common communication bus, reducing wiring complexity and improving signal integrity across the entire I/O tier.
Architecture Specification Table
| Attribute |
Specification |
| System Role |
Analog Output — I/O Layer (Field Signal Conditioning) |
| Compatible Platform |
YOKOGAWA CENTUM CS 3000 / CENTUM VP DCS |
| Output Type |
4–20 mA Analog Current Output |
| Number of Channels |
16 Channels (typical for AAI543 series) |
| Output Resolution |
16-bit D/A Conversion |
| Communication Interface |
Internal V-net / ESB Bus (CENTUM backplane) |
| Power Supply |
Supplied via I/O nest backplane (24 VDC system bus) |
| Isolation |
Channel-to-channel and channel-to-bus isolation |
| Operating Temperature |
0°C to 60°C |
| Mounting |
YOKOGAWA Standard I/O Nest / Node Unit |
| Origin |
Japan |
| Warranty |
12-Month Warranty — Tested before dispatch |
Coordinated Control System Design
The AAI543-S00 S1 does not operate in isolation — its value is fully realized when integrated into a complete CENTUM system architecture. At the control layer, the YOKOGAWA CP451-10 or CP461-50 Field Control Station CPU manages the execution of control strategies, PID loops, and sequence logic. These CPUs communicate with the I/O modules via the internal ESB bus or V-net, passing output setpoints to the AAI543-S00 S1 at scan cycle speeds that support real-time process control.
Power integrity is maintained by the PW481-50 or PW482-50 Power Supply Units, which provide regulated 24 VDC to the I/O nest. Redundant power configurations are commonly deployed in critical process applications, ensuring that a single power supply failure does not interrupt output signal delivery to field devices. The AAI543-S00 S1 benefits directly from this redundancy architecture, maintaining continuous analog output even during power module switchover events.
On the network layer, the ALF111 or ALE111 Communication Interface Modules bridge the CENTUM V-net/IP control network to Ethernet-based supervisory systems, enabling the SCADA and HMI layers to monitor and adjust output setpoints in real time. Operators working at YOKOGAWA FAST/TOOLS or third-party HMI stations can observe the live output values of each AAI543-S00 S1 channel, confirm valve positions, and issue manual overrides when required by process conditions.
At the field execution layer, the analog output signals from the AAI543-S00 S1 are wired to HART-compatible smart positioners, electro-pneumatic converters (I/P transducers), and variable frequency drives (VFDs) from manufacturers such as YOKOGAWA, ABB, or Siemens. The 4–20 mA signal standard ensures universal compatibility with field devices across the plant, regardless of manufacturer. Terminal blocks and marshalling panels — often equipped with YOKOGAWA TB series terminal assemblies — provide the physical connection points between the module’s output terminals and the field cable runs.
For applications requiring redundant I/O, the AAI543-S00 S1 can be paired with a redundant counterpart module in a dual-module configuration supported by the CENTUM VP redundancy framework. This ensures that if one output module fails, the standby module assumes control without interrupting the analog output signal to the field device — a critical requirement in continuous process industries where unplanned shutdowns carry significant operational and safety consequences.
Application in Layered Automation Systems
In petroleum refining and petrochemical plants, the AAI543-S00 S1 drives control valves on distillation columns, heat exchangers, and reactor feed systems. The module’s high-resolution 16-bit D/A output ensures that valve positioning commands are executed with the precision required to maintain product quality and process safety margins. Integrated with the CENTUM VP safety instrumented system (SIS) gateway, the output module participates in coordinated emergency shutdown sequences when process variables exceed defined limits.
In power generation facilities — including thermal, hydro, and combined-cycle plants — the module controls turbine governor actuators, boiler feedwater control valves, and combustion air dampers. The reliability of the analog output signal directly affects plant efficiency and grid stability, making the 12-month warranty and pre-dispatch testing protocol a critical procurement consideration for plant engineers and maintenance managers.
In water and wastewater treatment systems, the AAI543-S00 S1 regulates chemical dosing pumps, aeration blower speed references, and sludge dewatering press controls. The module’s channel isolation prevents ground loops and signal interference in environments where multiple field devices share common cable trays, ensuring measurement and control accuracy across the treatment process.
In pharmaceutical and food & beverage manufacturing, where batch process control and regulatory compliance are paramount, the module’s deterministic output behavior and compatibility with CENTUM VP’s batch management functions support recipe-driven production sequences. Engineers can configure output ramp rates, output limits, and fallback values directly within the CENTUM engineering environment, reducing commissioning time and ensuring consistent product quality across production batches.
Architecture Engineering FAQ
Q1: Is the AAI543-S00 S1 compatible with both CENTUM CS 3000 and CENTUM VP systems?
Yes. The AAI543-S00 S1 is designed for use within YOKOGAWA’s CENTUM platform family. It is compatible with CENTUM CS 3000 and CENTUM VP I/O nest assemblies that support the standard ESB bus interface. Before installation, engineers should verify the nest type, bus revision, and firmware version of the Field Control Station to confirm full compatibility. ZYPLC provides pre-sales technical consultation to assist with compatibility verification.
Q2: Can this module be used in a redundant I/O configuration, and what are the installation requirements?
Yes. CENTUM VP supports redundant I/O configurations for critical analog output channels. Redundant deployment requires a compatible redundant I/O nest, a paired AAI543-S00 S1 module, and appropriate configuration within the CENTUM engineering builder. The system automatically manages switchover between primary and standby modules, with bumpless transfer to maintain output continuity. ZYPLC supplies matched module pairs for redundant configurations upon request.
Q3: What does the 12-Month Warranty cover, and how is the module tested before dispatch?
Every AAI543-S00 S1 unit supplied by ZYPLC undergoes functional testing prior to dispatch, including channel output verification, isolation resistance checks, and communication bus response testing. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed through ZYPLC’s technical support team, with replacement or repair turnaround coordinated to minimize system downtime. Extended warranty and on-site support options are available for long-term maintenance contracts.
—
