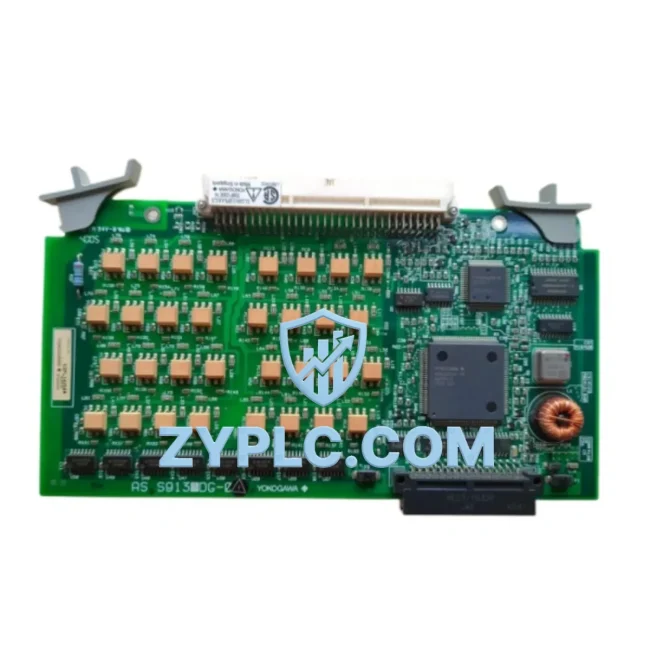

Yokogawa ADM12-S4 System-Ready Analog Input Module for CENTUM Architecture

Yokogawa ADM12-S4 System-Ready Analog Input Module for CENTUM Architecture

The Yokogawa ADM12-S4 is a high-precision analog input module engineered for seamless integration within the CENTUM VP and CENTUM CS 3000 distributed control system (DCS) architecture. Designed to operate as a core signal acquisition component within the field control station (FCS) layer, the ADM12-S4 enables reliable, high-resolution analog signal conditioning across multi-loop process environments. Its role within the control hierarchy extends beyond simple signal conversion — it serves as a foundational element that determines the accuracy, stability, and scalability of the entire process control loop.

In a fully layered automation architecture, the ADM12-S4 occupies the I/O layer, interfacing directly with field transmitters, sensors, and process instruments while feeding conditioned signals upward to the CPU and control execution layer. This upstream-downstream coordination is critical in industries where signal fidelity directly impacts process safety, regulatory compliance, and operational efficiency. The module’s architecture is optimized for tight integration with Yokogawa’s CENTUM VP engineering environment, enabling engineers to configure, calibrate, and diagnose the module without removing it from the control cabinet.

Architecture Specification Table

Coordinated Control System Design

The ADM12-S4 does not function in isolation — its value is realized through coordinated deployment within a complete CENTUM-based control architecture. At the CPU layer, the Yokogawa CP451 or CP461 field control processor governs all control execution, receiving digitized process values from the ADM12-S4 via the internal ESB bus. The processor executes PID loops, cascade strategies, and feedforward algorithms based on the analog inputs delivered by this module, making signal accuracy at the ADM12-S4 level directly consequential to control performance.

Power integrity across the I/O nest is maintained by the Yokogawa PW481 or PW482 power supply units, which provide regulated DC power to the node unit backplane. Stable power delivery is essential for maintaining ADC linearity and minimizing noise-induced measurement error across all 12 input channels. In redundant system designs, dual power supply configurations ensure that a single power unit failure does not interrupt signal acquisition.

For analog output coordination, the ADM12-S4 is typically paired with the Yokogawa ADM51 or AAM51 analog output modules within the same I/O nest, enabling closed-loop control where the input measurements from the ADM12-S4 drive corresponding output commands to control valves, variable speed drives, or positioners. This pairing is standard in flow control, pressure regulation, and temperature management loops across process industries.

Communication between the FCS and the operator station (HIS) is handled through the Yokogawa Vnet/IP control network, which provides deterministic, high-speed data exchange between field control stations and the human-machine interface layer. The Yokogawa FAST/TOOLS SCADA platform or the integrated CENTUM VP HIS workstation presents real-time analog values acquired by the ADM12-S4 to operators, enabling process monitoring, alarm management, and trend analysis.

In applications requiring field-level digital communication, the ADM12-S4 can coexist within an FCS node alongside Yokogawa ALF111 FOUNDATION Fieldbus H1 communication modules or ALR111 PROFIBUS DP interface modules, supporting hybrid architectures where legacy 4–20 mA instruments and modern digital field devices share the same control platform. Terminal block assemblies such as the Yokogawa TB820V or equivalent marshalling panels provide the physical wiring interface between field cables and the ADM12-S4 input terminals, ensuring organized, maintainable signal routing within the control cabinet.

Application in Layered Automation Systems

The ADM12-S4 is deployed across a wide range of process-critical industries where analog signal integrity and system architecture consistency are non-negotiable requirements.

Oil, Gas & Petrochemical: In upstream and downstream processing facilities, the ADM12-S4 acquires pressure, temperature, flow, and level signals from field transmitters installed on pipelines, separators, heat exchangers, and storage tanks. Its 16-bit resolution supports the tight measurement tolerances required for custody transfer, safety instrumented system (SIS) coordination, and emissions monitoring compliance.

Power Generation & Utilities: In thermal, hydroelectric, and combined-cycle power plants, the module monitors turbine inlet temperatures, steam pressures, generator output parameters, and cooling water flow rates. Its compatibility with redundant FCS configurations ensures that analog signal acquisition continues uninterrupted even during partial system failures, supporting continuous generation without forced outages.

Chemical & Pharmaceutical Manufacturing: Batch and continuous process environments in chemical and pharmaceutical plants rely on the ADM12-S4 for precise reactor temperature profiling, pH signal acquisition, and feed rate monitoring. The module’s channel isolation prevents cross-contamination of signals between adjacent measurement loops, which is critical in multi-product facilities where process separation is a regulatory requirement.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the ADM12-S4 to monitor influent flow, chemical dosing rates, dissolved oxygen levels, and effluent quality parameters. Its stable operation across varying ambient temperatures makes it suitable for outdoor control buildings and remote pump station installations.

Mining, Metallurgy & Minerals Processing: In ore processing, smelting, and refining operations, the ADM12-S4 supports analog acquisition from high-temperature sensors, slurry density transmitters, and conveyor load cells. Its robust design and compatibility with the CENTUM VP redundancy framework ensure continuous operation in environments characterized by vibration, dust, and electrical interference.

Architecture Engineering FAQ

Q1: Is the ADM12-S4 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The ADM12-S4 is designed for use within Yokogawa’s CENTUM platform and is compatible with both CENTUM VP and CENTUM CS 3000 field control station architectures. It mounts into the standard I/O node unit nest and communicates via the internal ESB bus, which is consistent across both generations of the CENTUM platform. Engineers migrating from CS 3000 to CENTUM VP can retain existing ADM12-S4 modules within upgraded FCS configurations, reducing hardware replacement costs during system modernization projects.

Q2: Can the ADM12-S4 be used in a redundant FCS configuration, and what additional components are required?
Yes. The ADM12-S4 supports deployment within dual-redundant FCS node configurations. In a redundant architecture, two FCS processors (e.g., CP451 pairs) share access to the I/O nest, with automatic switchover occurring in the event of a primary processor fault. The I/O modules, including the ADM12-S4, remain active and continue signal acquisition during switchover without interruption to the control loop. Redundant power supply units (e.g., PW481 dual configuration) are recommended to complement the redundant processor setup and eliminate single points of failure at the power layer.

Q3: What warranty and long-term support does ZYPLC provide for the ADM12-S4?
All ADM12-S4 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional verification prior to dispatch to confirm channel integrity, signal accuracy, and bus communication performance. ZYPLC maintains inventory of CENTUM-compatible I/O modules to support both immediate project requirements and long-term maintenance stock programs. For system architects managing aging CENTUM installations, ZYPLC provides Contextual Integration support — advising on module compatibility, FCS configuration constraints, and replacement strategies to ensure architectural continuity across the system lifecycle. Contact our technical team at [email protected] or +86 19859288691 for project-specific consultation.
