Yokogawa ADM55-S1 System-Ready Analog Input for CENTUM Series: Control System Architecture and Upstream–Downstream Coordination

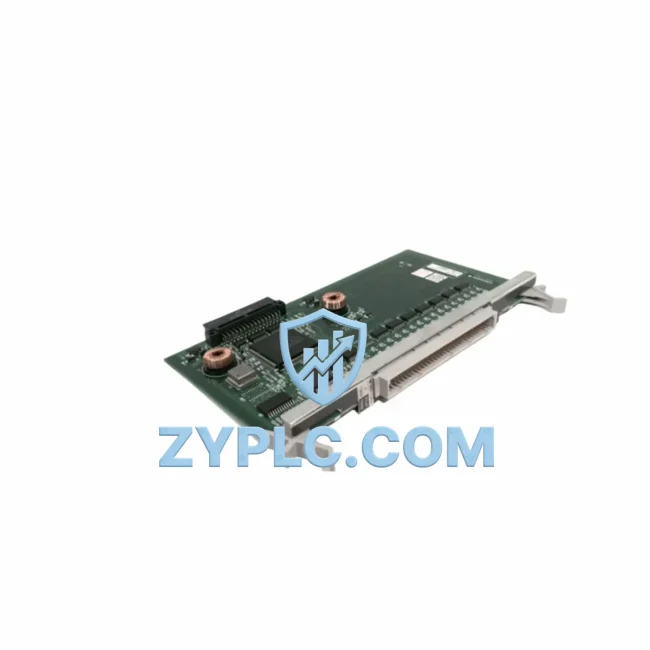

The Yokogawa ADM55-S1 is a high-precision analog input module purpose-built for integration within the CENTUM VP and CENTUM CS 3000 distributed control system (DCS) platforms. Rather than functioning as a standalone component, the ADM55-S1 occupies a critical position within the I/O layer of a multi-tier automation architecture — receiving field-level process signals and converting them into structured digital data that feeds directly into the control layer for real-time decision-making. Understanding this module’s role requires examining the full system stack: from field instrumentation and marshalling terminals, through the I/O subsystem, across the control network, and up to the operator interface and supervisory layers.
In a typical CENTUM-based process control system, the ADM55-S1 is mounted on a node unit or field control station (FCS) backplane, where it shares a common bus with CPU modules such as the CP451 or CP461 series field control processors. The module accepts 4–20 mA or 1–5 V analog signals from field transmitters — including pressure, temperature, flow, and level instruments — and delivers digitized process values to the controller at high scan rates. This tight coupling between the I/O layer and the control layer is fundamental to achieving the sub-second response times demanded by continuous process industries such as oil refining, chemical processing, and power generation.
Architecture Specification Table
| Parameter |
Specification |
| Module Type |
Analog Input Module (DCS I/O) |
| System Role |
Field Signal Acquisition — I/O Layer |
| Compatible Platform |
Yokogawa CENTUM VP / CENTUM CS 3000 |
| Input Signal Range |
4–20 mA / 1–5 V DC (configurable per channel) |
| Number of Channels |
8 channels (isolated) |
| Resolution |
16-bit A/D conversion |
| Accuracy |
±0.1% of full scale |
| Scan Cycle |
Synchronised with FCS control cycle (125 ms typical) |
| Communication Interface |
Internal V-net / ESB bus (backplane) |
| Power Supply |
Supplied via node unit backplane (24 V DC bus) |
| Installation Environment |
Panel-mount, DIN rail compatible; IP20 enclosure |
| Operating Temperature |
0°C to 55°C |
| Certifications |
CE, UL, ATEX (zone 2 with appropriate barrier) |
| Country of Origin |
Japan |
| Warranty |
12-Month Warranty — all units tested prior to dispatch |
Coordinated Control System Design
The ADM55-S1 does not operate in isolation. Its value is realised through coordinated interaction with adjacent modules and system layers. In a fully configured CENTUM FCS node, the ADM55-S1 shares a backplane with the CP451-10 field control processor, which executes the control logic and communicates upstream via the V-net Vnet/IP control network. Power to the node is supplied by the PW481 or PW482 dual-redundant power supply modules, ensuring that a single power fault does not interrupt signal acquisition.
On the field side, the ADM55-S1 connects to marshalling cabinets via the TB820 or TB830 terminal board assemblies, which provide screw-terminal field wiring interfaces and signal conditioning. For applications requiring intrinsic safety, the module is paired with Zener barriers or galvanic isolators mounted in the marshalling panel, maintaining ATEX compliance for hazardous area installations.
Within the same node unit, the ADM55-S1 may coexist with ADM51 or ADM57 analog input modules for expanded channel density, as well as ADV151 or ADV161 digital input modules for discrete signal acquisition. Analog output functions are handled by companion AAM51 or AAM55 analog output modules, which close the control loop by driving control valves and variable-speed drives based on the setpoints calculated by the CP451 processor.
At the network layer, the CENTUM system uses Vnet/IP — a deterministic, redundant Ethernet-based control network — to connect multiple FCS nodes to the HIS (Human Interface Station) running CENTUM VP’s operator console software. This architecture ensures that the process values acquired by the ADM55-S1 are available to operators in real time, with full alarm management, trend logging, and historical data archiving. For integration with enterprise MES or ERP systems, the Exaopc OPC DA/UA server provides a standardised data gateway without disrupting the real-time control layer.
Application in Layered Automation Systems
The ADM55-S1 is deployed across a wide range of process industries where signal integrity, system consistency, and long-term maintainability are non-negotiable requirements.
In oil refining and petrochemical plants, the module acquires pressure and temperature signals from reactor vessels and distillation columns, feeding the CENTUM FCS with the data needed to maintain precise temperature profiles and prevent runaway conditions. Its 16-bit resolution ensures that small process deviations are detected and corrected before they escalate.
In power generation facilities — including thermal, hydro, and combined-cycle plants — the ADM55-S1 monitors turbine inlet pressures, generator output voltages, and cooling water flow rates. The module’s synchronisation with the FCS control cycle ensures that protective interlocks respond within the required timeframe, supporting both normal operation and emergency shutdown sequences.
In water and wastewater treatment systems, the ADM55-S1 acquires flow, pH, turbidity, and dissolved oxygen signals from field analysers, enabling the CENTUM system to automate dosing, aeration, and filtration processes. Its compatibility with 4–20 mA HART-capable transmitters allows asset health data to be extracted alongside process values, reducing the need for manual field inspections.
In mining and metallurgical operations, the module is used in ore processing, flotation control, and smelting furnace management, where it must perform reliably in high-vibration, high-temperature environments. Proper installation within a sealed, climate-controlled control cabinet — combined with the module’s wide operating temperature range — ensures continuous operation under demanding site conditions.
For pharmaceutical and food-grade manufacturing, the ADM55-S1 supports 21 CFR Part 11-compliant data acquisition when integrated with Yokogawa’s Exaquantum historian, providing the audit trail and data integrity required for regulatory submissions.
Architecture Engineering FAQ
Q1: Is the ADM55-S1 compatible with both CENTUM VP and CENTUM CS 3000 systems, and can it be hot-swapped during operation?
The ADM55-S1 is designed for use within Yokogawa CENTUM VP and CENTUM CS 3000 field control station node units. It is mechanically and electrically compatible with the standard ESB bus backplane used across both platforms. Hot-swap capability depends on the FCS configuration and the redundancy mode selected during engineering — in dual-redundant FCS configurations, the standby controller continues signal acquisition while the module is replaced, minimising process disruption. Always verify the specific FCS firmware version and node unit type with your system documentation before performing live module replacement.
Q2: How does the ADM55-S1 support system redundancy and what happens if the module develops a fault?
In a standard CENTUM architecture, I/O redundancy is achieved at the FCS level through dual-redundant controller modules (e.g., CP451 primary and standby) rather than at the individual I/O module level. If the ADM55-S1 develops a channel fault, the CENTUM system generates an alarm at the HIS operator station and flags the affected tag with a bad-quality indicator, allowing operators to take manual control of the affected loop. For critical loops requiring I/O-level redundancy, Yokogawa offers dual-redundant I/O configurations using paired modules on separate node units connected via the Vnet/IP network. Our 12-Month Warranty covers all ADM55-S1 units supplied, with pre-dispatch functional testing to minimise the risk of infant-mortality failures.
Q3: What is the recommended commissioning procedure for the ADM55-S1, and how is Contextual Integration achieved within an existing CENTUM project?
Contextual Integration of the ADM55-S1 into an existing CENTUM project is performed using Yokogawa’s System View or CENTUM VP Builder engineering tools. The module is assigned to a specific slot within the node unit, and each channel is configured with the appropriate signal range, tag name, engineering units, alarm limits, and scan period. Field wiring is connected via the terminal board assembly, and loop checks are performed using the FCS’s built-in signal forcing function, which allows engineers to simulate input values without disconnecting field instruments. Once loop checks are complete, the module is placed in online mode and integrated into the running control strategy. Our technical team can provide commissioning guidance and configuration templates to accelerate project delivery.
