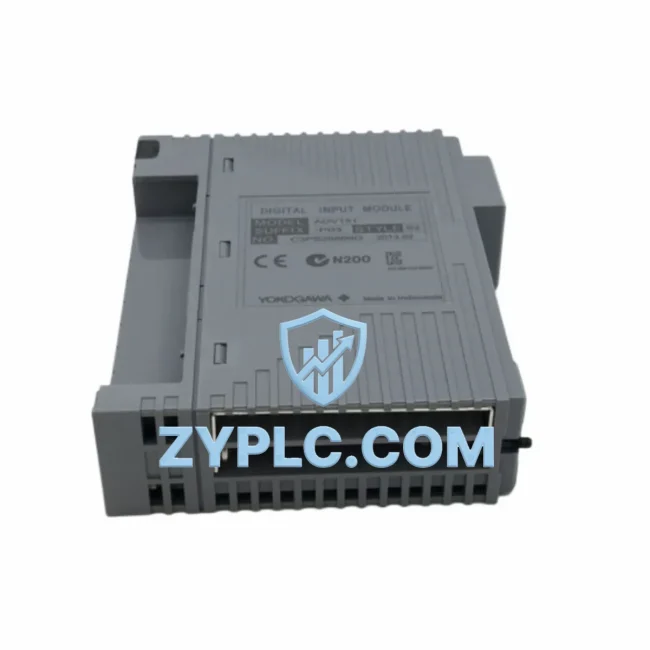

Yokogawa ADV151-P03 Energy-Saving Digital Input Module

Yokogawa ADV151-P03 Energy-Saving Digital Input Module: Precision I/O for Optimized CENTUM VP Automation

The Yokogawa ADV151-P03 is a high-performance digital input module engineered for the CENTUM VP Distributed Control System (DCS). Designed to meet the rigorous demands of modern industrial automation, this module plays a critical role in reducing unnecessary energy consumption across production lines by delivering accurate, real-time digital signal acquisition with minimal power overhead. Whether deployed in petrochemical plants, power generation facilities, pharmaceutical manufacturing, or large-scale process industries, the ADV151-P03 enables control engineers to build leaner, more responsive automation architectures that directly translate into measurable energy savings and improved equipment utilization.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed CENTUM VP automation architecture, the ADV151-P03 digital input module serves as the sensory nerve of the control loop. It collects discrete on/off signals from field devices — limit switches, pressure switches, motor run feedbacks, valve position indicators — and transmits them to the CENTUM VP Field Control Station (FCS) for real-time decision-making. When paired with the Yokogawa ADV151-P00 or ADV151-P01 variants within the same I/O chassis, engineers can build a scalable, energy-conscious I/O subsystem that avoids over-provisioning and eliminates idle power draw from unused channels.

For analog process variables such as flow, temperature, and pressure, the ADV151-P03 works in concert with the Yokogawa AAI141 analog input module, which handles 4–20 mA signals from transmitters across the plant. Together, these modules feed the FCS with a complete picture of plant status, enabling the controller to make energy-aware decisions — such as reducing pump speed via a connected Yokogawa VFAS1 variable frequency drive (VFD) when process demand drops, or triggering a motor soft-start sequence to eliminate inrush current spikes that inflate peak energy demand charges.

On the output side, the ADV151-P03 integrates seamlessly with the Yokogawa ADV551 digital output module, which actuates solenoid valves, motor contactors, and relay-driven loads. This tight I/O pairing ensures that control commands are executed with minimal latency, reducing the time equipment operates in transitional states — a key contributor to unnecessary energy consumption in batch and continuous processes alike.

For power quality monitoring and energy metering at the panel level, the ADV151-P03 can interface with Yokogawa WT series power analyzers through digital status signals, enabling the FCS to log energy events and correlate them with process states. This data feeds into the CENTUM VP’s built-in historian and can be visualized on a Yokogawa HIS (Human Interface Station) running the CENTUM VP operator console, giving energy managers a real-time dashboard of consumption patterns across production units.

Communication integrity is maintained through the CENTUM VP’s redundant V-net fieldbus, which the ADV151-P03 supports natively. For plants that also deploy Yokogawa EJX series smart transmitters over HART or FOUNDATION Fieldbus, the DI module captures discrete alarm outputs from these transmitters, ensuring that abnormal energy states — such as a pump cavitating or a heat exchanger fouling — are detected and acted upon before they escalate into costly failures. Integration with the Yokogawa STARDOM FCN/FCJ remote I/O controllers is also possible in hybrid architectures, extending the energy monitoring perimeter to remote field stations without requiring additional wiring infrastructure.

Power Optimization in Real Production Lines

The practical energy impact of the ADV151-P03 becomes most visible in high-density process plants where hundreds of discrete signals must be monitored continuously. In a typical refinery or chemical plant, unmonitored field devices often run longer than necessary because the control system lacks the granular feedback to issue timely stop commands. The ADV151-P03 eliminates this blind spot by providing 32 isolated digital input channels that can monitor motor run confirmations, valve open/close status, and equipment health signals simultaneously — all within a single module slot in the CENTUM VP I/O chassis.

By accurately capturing motor run feedback signals, the ADV151-P03 enables the FCS to implement equipment utilization logic that automatically sequences standby pumps, compressors, and fans based on actual demand rather than fixed timers. This demand-driven control strategy can reduce motor running hours by 15–30% in typical utility systems, directly cutting electricity consumption and extending motor service life. Fewer motor starts also mean reduced mechanical wear, lower maintenance frequency, and decreased lubricant consumption — all of which contribute to a lower total cost of ownership.

In production line pacing (takt time optimization), the ADV151-P03 captures cycle completion signals from downstream equipment, allowing the FCS to synchronize upstream processes and eliminate idle running of conveyors, mixers, and agitators between production cycles. This synchronization reduces the energy wasted during inter-cycle gaps — a frequently overlooked source of inefficiency in batch manufacturing environments.

For predictive maintenance applications, the module’s discrete inputs can be connected to vibration switches, thermal cutouts, and bearing temperature alarms on rotating equipment. When these signals are trended in the CENTUM VP historian, maintenance teams gain early warning of developing faults, allowing planned interventions before catastrophic failures occur. Avoiding unplanned shutdowns not only saves energy (restart sequences are energy-intensive) but also protects production throughput and product quality.

All units supplied by ZYPLC undergo a comprehensive outgoing quality test (OQT) prior to shipment, verifying channel integrity, isolation resistance, and signal response time. Each ADV151-P03 is covered by a 12-month warranty from the date of delivery, with in-stock availability ensuring short lead times for urgent maintenance replacements or new project builds.

Energy Optimization FAQ

Q1: How does the ADV151-P03 contribute to energy savings in a CENTUM VP system?
The ADV151-P03 provides accurate, real-time discrete signal acquisition that enables the CENTUM VP FCS to implement demand-driven control logic. By precisely detecting when equipment is running, idle, or in fault, the controller can issue timely stop commands, sequence standby assets efficiently, and eliminate unnecessary motor running time — directly reducing electricity consumption without compromising process performance.

Q2: Is the ADV151-P03 compatible with existing CENTUM VP and CENTUM CS 3000 installations?
The ADV151-P03 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 depends on the specific I/O chassis and FCS generation in use. We recommend verifying the hardware revision and firmware version of your existing FCS before ordering. Our technical team can assist with compatibility assessment based on your system configuration.

Q3: What is the recommended replacement or upgrade path for aging digital input modules in CENTUM VP?
For direct replacement of failed or end-of-life DI modules, the ADV151-P03 S2 is the current production variant and is backward-compatible with standard CENTUM VP I/O chassis. If your plant is running older ADV151-P00 or ADV151-P01 modules, the P03 variant offers improved isolation and updated firmware support. No FCS configuration changes are typically required for a like-for-like swap.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every ADV151-P03 supplied by ZYPLC is tested through a full outgoing quality test (OQT) that verifies all 32 input channels, isolation integrity, power consumption within specification, and communication handshake with a CENTUM VP test bench. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your downtime.
