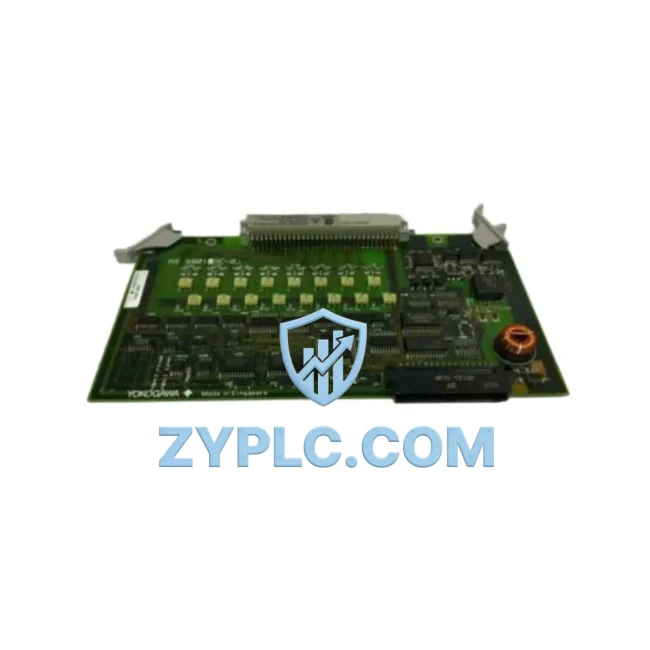

Yokogawa AMM22-S3 Energy-Saving Analog Input Module

Yokogawa AMM22-S3 Energy-Saving Analog Input Module: Precision Energy Control for Centum CS3000 Automation

The Yokogawa AMM22-S3 is a high-performance analog input module engineered for the Centum CS3000 Distributed Control System (DCS). Designed to meet the rigorous demands of modern industrial process control, the AMM22-S3 delivers accurate, low-latency signal acquisition from field instruments — enabling plant operators to make faster, more energy-informed decisions across every stage of production. Whether deployed in oil & gas, chemical processing, power generation, or advanced manufacturing, this module serves as a critical node in an energy-aware automation architecture.

At ZYPLC, every AMM22-S3 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty. Our inventory is maintained in-stock for rapid deployment, minimizing procurement lead times and reducing unplanned downtime costs for your facility.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AMM22-S3 does not operate in isolation — it functions as a precision data acquisition layer within a broader energy-optimized control ecosystem. In a typical Centum CS3000 installation, the AMM22-S3 collects real-time analog signals from field transmitters and feeds them into the Yokogawa PFCS (Process Field Control Station), where control logic executes with deterministic timing. This tight integration between signal acquisition and control execution is fundamental to reducing energy waste caused by delayed or inaccurate process feedback.

On the output side, the AMM22-S3 works in tandem with analog output modules such as the Yokogawa AMM52 to close control loops efficiently — for example, modulating valve positions or adjusting setpoints on variable-speed drives based on live process data. When paired with the Yokogawa ACM12 communication module, the system gains the ability to transmit high-fidelity process data over the plant network, enabling supervisory energy monitoring at the SCADA or MES level.

For motor-driven applications — which account for the majority of industrial energy consumption — the AMM22-S3 provides the analog feedback signals that allow Yokogawa-compatible variable frequency drives (VFDs) to operate at optimal speed rather than fixed full-load. This dynamic adjustment alone can reduce motor energy consumption by 20–50% in pump, fan, and compressor applications. The module’s multi-channel capability means a single AMM22-S3 can simultaneously monitor multiple drive feedback signals, reducing the total number of I/O cards required and lowering panel power draw.

In facilities using the Yokogawa Exaquantum plant information management system, the analog data streams captured by the AMM22-S3 feed directly into energy KPI dashboards, enabling operations teams to track specific energy consumption (SEC) per production unit in real time. This visibility is essential for ISO 50001 energy management compliance and for identifying equipment that is consuming disproportionate energy relative to its output.

The AMM22-S3 also integrates seamlessly with Yokogawa’s FIO (Field I/O) remote I/O nodes and supports connection to FOUNDATION Fieldbus and HART protocol field devices, enabling direct digital communication with smart transmitters. This eliminates the signal degradation associated with long analog cable runs and reduces the need for signal conditioning hardware — both of which contribute to lower auxiliary power consumption in the field junction box infrastructure.

For facilities transitioning toward predictive maintenance, the AMM22-S3’s high-resolution sampling supports vibration envelope monitoring and process deviation detection when used alongside Yokogawa’s Plant Resource Manager (PRM). Early detection of abnormal process signatures — such as cavitation in pumps or fouling in heat exchangers — allows maintenance teams to intervene before equipment efficiency degrades, avoiding the energy penalty of running deteriorating assets at full load.

Power Optimization in Real Production Lines

In a refinery or chemical plant running continuous processes, the cost of energy is second only to feedstock. The AMM22-S3 contributes to power optimization at three distinct levels: measurement accuracy, control responsiveness, and system-level visibility.

Measurement accuracy is the foundation. An analog input module with poor resolution or high drift forces control systems to apply conservative setpoints — running processes hotter, faster, or at higher pressure than necessary to maintain a safety margin. The AMM22-S3’s high-resolution A/D conversion and stable reference design allow tighter setpoint control, which directly translates to reduced energy input per unit of output.

Control responsiveness is equally critical. In a Centum CS3000 environment, the AMM22-S3 updates the control station with fresh process values at high scan rates, enabling the PID controllers to respond to disturbances before they propagate into energy-wasting oscillations. In steam systems, for example, a sluggish analog input can cause the boiler control loop to overshoot, wasting fuel. With the AMM22-S3 in the loop, the control response is sharp and proportional.

System-level visibility is achieved when the AMM22-S3’s data is aggregated across multiple control loops and presented in energy management dashboards. Plant managers can identify which units are consuming excess energy, correlate consumption spikes with specific process events, and schedule maintenance during low-demand windows — reducing both energy cost and production disruption.

From a maintenance cost perspective, the AMM22-S3’s robust design and compatibility with the CS3000 hot-swap architecture means modules can be replaced without shutting down the control station, eliminating the energy and production losses associated with planned outages for I/O maintenance. Combined with ZYPLC’s in-stock availability and pre-tested units, replacement lead times are minimized, keeping your production line running at peak efficiency.

Energy Optimization FAQ

Q1: How does the AMM22-S3 contribute to measurable energy savings in a process plant?
The AMM22-S3 enables tighter closed-loop control by providing high-accuracy analog input data to the Centum CS3000 control station. Tighter control means processes run closer to their optimal setpoints, reducing over-consumption of utilities such as steam, cooling water, compressed air, and electrical power. When integrated with energy monitoring systems like Yokogawa Exaquantum, the module’s data feeds directly into energy KPI tracking, making savings quantifiable at the equipment and process unit level.

Q2: Is the AMM22-S3 compatible with existing Centum CS3000 and CS1000 installations?
Yes. The AMM22-S3 is designed for direct installation into Centum CS3000 and CS1000 I/O nest assemblies. It is compatible with the standard Yokogawa I/O bus and requires no additional interface hardware for integration into existing control stations. For systems using remote I/O via FIO nodes, compatibility should be verified against the specific FIO model and firmware revision in use.

Q3: What is the recommended replacement procedure, and how does ZYPLC support fast turnaround?
The AMM22-S3 supports hot-swap replacement within the Centum CS3000 architecture, allowing the module to be swapped without powering down the control station. ZYPLC maintains in-stock inventory of the AMM22-S3 and ships pre-tested units, ensuring that replacement modules arrive ready for immediate installation. Our 12-month warranty covers functional defects, and our technical team can assist with compatibility verification prior to purchase.

Q4: What testing does ZYPLC perform before shipping the AMM22-S3?
Every AMM22-S3 unit sold by ZYPLC undergoes a full functional test that verifies analog input accuracy across all 16 channels, communication integrity with the CS3000 I/O bus, and correct response to standard 4–20 mA and 1–5 V DC input signals. Units that do not pass testing are not shipped. Each unit is covered by a 12-month warranty from the date of shipment, providing assurance of performance in your production environment.
