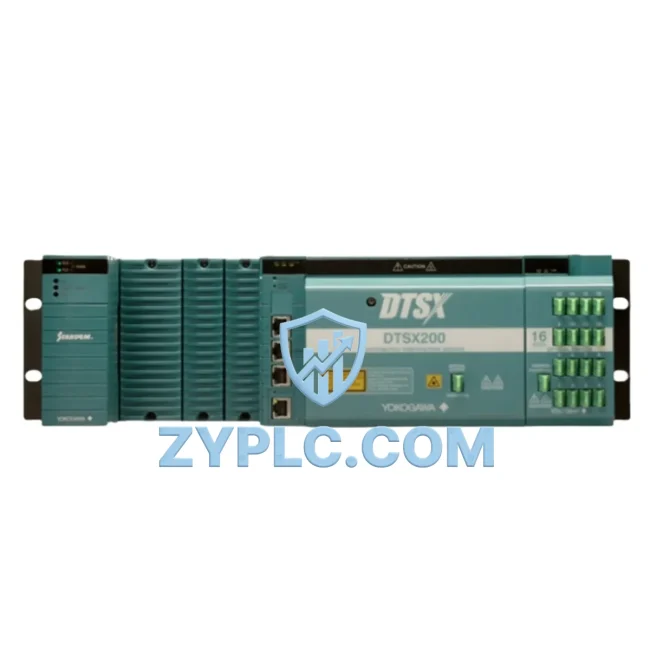

Yokogawa DTSX200-N0EN System-Ready Distributed Temperature Sensor

Yokogawa DTSX200-N0EN System-Ready Distributed Temperature Sensor for CENTUM VP Architecture

The Yokogawa DTSX200-N0EN is a fiber-optic distributed temperature sensing (DTS) module engineered for seamless integration within layered industrial control system architectures. Rather than functioning as a standalone measurement device, the DTSX200-N0EN is designed to operate as a coherent element within a broader automation hierarchy — connecting the field sensing layer to the control layer, the data acquisition layer, and ultimately the supervisory and historian systems that govern plant-wide decision-making. In demanding environments such as oil and gas pipelines, power cable monitoring, tunnel fire detection, and chemical process plants, the DTSX200-N0EN delivers continuous, spatially resolved temperature profiles along the entire length of a sensing fiber, providing the kind of real-time thermal intelligence that discrete point sensors simply cannot replicate.

Within a CENTUM VP distributed control system environment, the DTSX200-N0EN integrates at the field network layer, feeding temperature data upstream to field control stations (FCS) via Modbus TCP or OPC-DA/UA communication interfaces. This allows the DTS data to be processed alongside signals from Yokogawa’s FOUNDATION Fieldbus H1 I/O modules, HART-enabled analog input cards such as the AAI141 and AAI543, and digital I/O modules like the ADV151 and ADV161, all housed within the same CENTUM VP node cabinet. The result is a unified control architecture where fiber-optic temperature sensing and conventional process I/O coexist on the same engineering platform, reducing integration complexity and improving system-wide data consistency.

From a system architecture perspective, the DTSX200-N0EN occupies a critical position in the sensing and data acquisition layer. Its outputs are consumed by the CENTUM VP HIS (Human Interface Station), where operators can visualize temperature gradients across kilometers of fiber in real time. When paired with Yokogawa’s FAST/TOOLS SCADA platform or the Exaquantum plant information management system, the DTS data becomes part of a long-term process historian, enabling trend analysis, predictive maintenance scheduling, and regulatory compliance reporting. This contextual integration — where the DTSX200-N0EN is not merely a sensor but a data source embedded in the plant’s information architecture — is what distinguishes it from conventional temperature measurement approaches.

Redundancy and system resilience are central design considerations for any critical infrastructure deployment. The DTSX200-N0EN supports dual-ended measurement configurations, where the sensing fiber is interrogated from both ends simultaneously, ensuring that a fiber break at any point along the cable does not result in a complete loss of temperature data. This redundancy model aligns with the fault-tolerant design philosophy of ProSafe-RS safety instrumented systems, where the DTSX200-N0EN can serve as a temperature input source for safety logic related to fire and gas detection, pipeline leak detection, or transformer thermal protection. Integration with ProSafe-RS requires careful mapping of DTS alarm zones to safety function blocks, a process that is well-supported by Yokogawa’s engineering tools and documented integration guidelines.

At the power and infrastructure layer, the DTSX200-N0EN is typically installed in a dedicated 19-inch rack enclosure within the instrument room or control room, powered by a regulated 24 VDC supply. It is common practice to deploy the unit alongside Yokogawa’s PW481 or PW482 power supply modules, which provide the stable, low-ripple DC power required for optical measurement accuracy. The fiber-optic sensing cable itself — typically a single-mode or multimode fiber depending on the measurement range and spatial resolution requirements — is routed from the instrument room to the field through armored conduit or cable trays, terminating at the measurement zone without any active electronics in the field, which is a significant advantage in hazardous area installations.

For engineering teams responsible for system commissioning and long-term maintenance, the DTSX200-N0EN offers a straightforward configuration interface via its dedicated software suite, which communicates with the unit over Ethernet. Temperature calibration, zone definition, alarm threshold setting, and fiber loss compensation are all performed through this interface, and the configuration data can be exported and archived as part of the plant’s as-built documentation. This approach simplifies future maintenance activities and ensures that replacement units can be configured consistently, reducing the risk of configuration errors during emergency maintenance scenarios. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing procurement teams and plant engineers with the assurance of reliable post-sale support and replacement coverage.

Architecture Specification Table

Coordinated Control System Design

The DTSX200-N0EN achieves its full value when deployed as part of a coordinated Yokogawa control system architecture. In a typical CENTUM VP installation, the DTS module operates alongside field control stations equipped with AAI141 analog input modules for 4–20 mA process signals, ADV151 digital input modules for discrete field device status, and ALR111 relay output modules for alarm annunciation and interlock actuation. The CENTUM VP FCS communicates with these I/O modules over the Vnet/IP control network, while the DTSX200-N0EN connects via Modbus TCP over a dedicated Ethernet segment, ensuring that DTS data is available to the same control logic that governs the broader process.

In safety-critical applications, the DTSX200-N0EN temperature alarm zones are mapped to ProSafe-RS safety function blocks, where they serve as inputs to fire and gas detection logic or pipeline integrity monitoring functions. The ProSafe-RS system communicates with the CENTUM VP via the SCS Gateway, maintaining a clear separation between the safety layer and the basic process control layer while allowing alarm and status information to be displayed on the CENTUM VP HIS operator stations. For remote monitoring applications, the Yokogawa STARDOM FCN/FCJ remote I/O controllers can be used to extend the control architecture to unmanned field stations, with DTS data aggregated at the central CENTUM VP system via wide-area Ethernet or fiber-optic communication links.

At the human-machine interface layer, the DTSX200-N0EN data is visualized on CENTUM VP HIS workstations using custom graphic displays that show color-coded temperature profiles along the sensing fiber route. These displays are configured using Yokogawa’s HIS Builder tool and can be integrated with the plant’s alarm management system to provide operators with immediate notification of temperature anomalies. For plants using the Exaquantum PIMS, DTS temperature data is automatically archived at configurable intervals, supporting long-term trend analysis and regulatory reporting requirements.

Application in Layered Automation Systems

The DTSX200-N0EN is deployed across a wide range of industries where continuous, spatially resolved temperature monitoring is essential to process safety and operational efficiency. In the power generation and transmission sector, the module is used for real-time thermal monitoring of high-voltage power cables, transformer windings, and generator stator slots, providing early warning of thermal overload conditions that could lead to insulation failure or catastrophic equipment damage. Utilities operating large cable networks rely on the DTSX200-N0EN to maximize cable ampacity while maintaining safe operating temperatures, directly improving grid capacity and reducing capital expenditure on new cable infrastructure.

In the oil and gas industry, the DTSX200-N0EN is applied to pipeline leak detection systems, where temperature anomalies caused by product leakage are detected along the full pipeline route. The module’s ability to provide spatially resolved temperature data with one-meter resolution allows leak location to be identified with high precision, enabling rapid response and minimizing environmental impact. Offshore platforms and onshore processing facilities also use the DTSX200-N0EN for fire and gas detection in cable trays and process areas, where the passive fiber sensing approach eliminates the need for intrinsically safe field electronics in Zone 1 and Zone 2 hazardous areas.

In the petrochemical and chemical processing industries, the DTSX200-N0EN monitors reactor vessel temperatures, distillation column profiles, and heat exchanger performance, providing process engineers with detailed thermal data that supports process optimization and predictive maintenance. Water treatment and desalination plants use the module for monitoring membrane filtration systems and large-diameter pipeline networks, where early detection of temperature deviations can indicate fouling, blockage, or equipment malfunction. Mining and tunneling applications leverage the DTSX200-N0EN for fire detection in conveyor belt tunnels and underground cable installations, where the long sensing range and passive field design are particularly advantageous.

Architecture Engineering FAQ

Q1: Is the DTSX200-N0EN compatible with existing CENTUM VP systems, and what is required for integration?
The DTSX200-N0EN integrates with CENTUM VP systems via Modbus TCP over Ethernet, which is a standard communication protocol supported by CENTUM VP’s field communication server (FCS) and communication I/O modules. Integration requires configuration of a Modbus TCP client function block within the CENTUM VP engineering environment, mapping the DTS temperature and alarm data to process tags accessible by the HIS and control logic. No additional hardware gateways are required for basic integration, though OPC-UA connectivity may be preferred for installations requiring standardized data exchange with third-party SCADA or historian systems. ZYPLC’s technical team can provide integration support and configuration guidance as part of the 12-Month Warranty service.

Q2: How does the DTSX200-N0EN support redundancy requirements in safety-critical architectures?
The DTSX200-N0EN supports dual-ended fiber measurement, where the sensing fiber is connected to two optical ports on the unit and interrogated from both ends simultaneously. This configuration ensures that a single fiber break does not result in complete loss of temperature data — the unaffected fiber segment continues to provide valid measurements from the nearest interrogation end. For safety instrumented system applications in conjunction with ProSafe-RS, the DTS alarm outputs should be mapped to redundant safety function inputs, and the overall SIL rating of the safety function must account for the DTS module’s PFD (probability of failure on demand) as documented in Yokogawa’s functional safety data sheets. ZYPLC recommends consulting Yokogawa’s TÜV-certified safety documentation when designing SIL-rated loops incorporating the DTSX200-N0EN.

Q3: What are the long-term maintenance requirements for the DTSX200-N0EN, and how does the 12-Month Warranty support ongoing operations?
The DTSX200-N0EN is designed for long-term, low-maintenance operation. The primary maintenance activities include periodic calibration verification using a reference temperature bath or known temperature zone along the sensing fiber, optical connector cleaning to maintain low insertion loss, and software updates to the DTS configuration and firmware as released by Yokogawa. The unit’s internal laser source has a defined operational lifetime, and Yokogawa recommends periodic laser power verification as part of the preventive maintenance schedule. All units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. ZYPLC maintains stock of DTSX200-N0EN units and key spare components to support rapid replacement in the event of a warranty claim, minimizing plant downtime and supporting continuous process operations.
