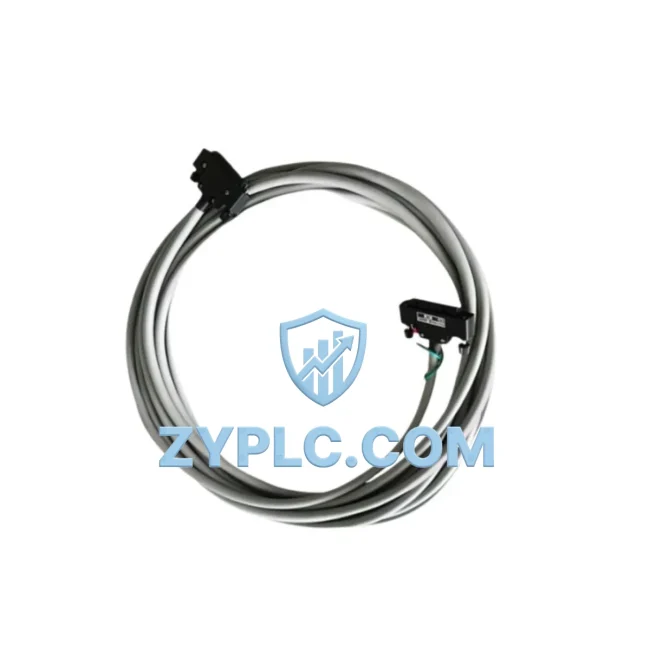

YOKOGAWA KS1*B Signal Cable for KS1 Series

YOKOGAWA KS1*B Signal Cable for KS1 Series

In a fully integrated industrial control system, every layer — from the controller and I/O modules to the communication network, power supply, HMI, and field actuators — depends on reliable signal transmission to maintain operational continuity. The YOKOGAWA KS1*B Signal Cable is purpose-engineered for the KS1 Series control architecture, serving as a critical interconnect component that ensures deterministic signal flow between the control layer and the I/O layer. Its role is not merely passive; it is a structural element that defines the integrity of the entire automation loop.

When deploying a KS1 Series system, engineers must consider the full signal chain from the CPU module down to the terminal block and field device. The KS1*B cable is designed to maintain signal fidelity across this chain, supporting the precise timing requirements of YOKOGAWA’s proprietary communication protocols and ensuring that data exchanged between the KS1 CPU and distributed I/O modules remains accurate under industrial electromagnetic interference conditions. This is especially critical in environments such as petrochemical plants, power generation facilities, and metallurgical processing lines, where signal degradation can lead to process instability or unplanned shutdowns.

The KS1*B integrates seamlessly with the broader KS1 Series ecosystem. In a typical rack-based deployment, the cable connects the KS1 CPU module to analog or digital I/O cards mounted on the same or adjacent backplane. When the system is expanded using additional I/O racks, the KS1*B provides the inter-rack signal path that preserves scan cycle consistency. Engineers working with YOKOGAWA’s CENTUM VP or ProSafe-RS platforms will recognize the KS1*B’s role as analogous to the internal bus cables used in those larger DCS architectures — a component that is invisible during normal operation but immediately critical when absent or degraded.

From a system architecture perspective, the KS1*B supports both simplex and redundant configurations. In redundant CPU deployments, where a primary and standby KS1 CPU module operate in hot-standby mode, the signal cable must maintain identical electrical characteristics on both paths to ensure seamless bumpless transfer during switchover. The KS1*B is manufactured to meet these symmetry requirements, making it a qualified component for safety-instrumented and high-availability control loops.

The cable’s physical construction is optimized for control cabinet installation. Its shielded design suppresses common-mode noise from adjacent power cables, variable frequency drives, and relay coils — all of which are typical co-inhabitants of industrial control panels. The connector terminations are keyed to prevent mismatched installation, reducing commissioning errors during initial system build-out and subsequent module replacement during maintenance windows.

For system integrators managing multi-vendor environments, the KS1*B’s standardized form factor simplifies spare parts management. A single cable type covers multiple I/O module positions within the KS1 rack, reducing the number of unique part numbers that must be stocked. This is particularly valuable for facilities operating under lean maintenance inventory policies, where minimizing SKU count while maintaining full system coverage is a key operational objective.

Long-term maintainability is a defining characteristic of the KS1*B’s design philosophy. YOKOGAWA’s KS1 Series is deployed across industries with 10-to-20-year operational lifecycles. The KS1*B is built to match this longevity, with connector materials and cable insulation rated for extended service in temperature-cycled environments. When a module replacement is required — whether due to end-of-life, fault, or capacity expansion — the KS1*B can be reused or replaced without requiring reconfiguration of the surrounding system, minimizing mean time to repair.

Product Specification Table

System Compatibility Notes

The KS1*B Signal Cable does not operate in isolation. Its value is realized only within a coherent system architecture that includes complementary YOKOGAWA components. A complete KS1 Series control node typically includes the KS1 CPU module as the processing core, responsible for executing the control program and managing I/O scan cycles. Analog input modules such as the KS1-AAI or equivalent cards handle 4–20 mA process signals from field transmitters, while digital output modules manage discrete actuator commands. The KS1*B provides the physical signal path between these modules and the CPU across the backplane or inter-rack bus.

Power distribution within the control cabinet is managed by YOKOGAWA’s dedicated power supply modules, which provide regulated 24 VDC to the I/O rack and CPU. The KS1*B’s shielded construction ensures that switching noise from these power supplies does not corrupt the low-level analog signals it carries. In larger system configurations, communication gateway modules — such as YOKOGAWA’s Ethernet or PROFIBUS interface cards — extend the KS1 architecture to supervisory SCADA systems or plant-wide DCS networks, with the KS1*B maintaining signal integrity at the local rack level while higher-level communication is handled by dedicated network modules.

For human-machine interface integration, YOKOGAWA’s WT or GP series HMI panels connect to the KS1 CPU via RS-232C or Ethernet, providing operators with real-time process visualization. The accuracy of the data displayed on these HMIs depends directly on the signal integrity maintained by the KS1*B at the I/O layer. Terminal block assemblies — such as YOKOGAWA’s TB or equivalent third-party DIN rail terminal modules — provide the field wiring interface at the cabinet boundary, with the KS1*B bridging the gap between these terminals and the I/O module connectors.

In redundant system designs, a secondary KS1 CPU module and its associated I/O cabling — including a mirrored set of KS1*B cables — operate in parallel with the primary path. Automatic switchover logic within the YOKOGAWA firmware ensures that a cable fault or module failure on the primary path triggers a bumpless transfer to the standby path, maintaining process continuity without operator intervention.

Industrial Application Notes

The KS1*B Signal Cable finds application across a wide range of industrial sectors where the KS1 Series platform is deployed. In power generation facilities, the cable supports turbine governor control loops and boiler management systems, where signal latency and noise immunity are critical to safe operation. In petrochemical and refinery environments, the KS1*B is used in reactor temperature control, pressure regulation, and emergency shutdown system wiring, where the 12-Month Warranty and long-term availability of spare components are key procurement criteria.

Water treatment and municipal utility plants rely on the KS1 Series for pump station automation and chemical dosing control. The KS1*B’s resistance to humidity and temperature cycling makes it suitable for the partially conditioned environments typical of these facilities. In mining and metallurgical applications, the cable supports conveyor control systems, crusher automation, and smelting process regulation, where vibration and electromagnetic interference from heavy machinery demand robust signal cable construction.

Packaging and discrete manufacturing lines use the KS1 Series for high-speed I/O control, where the KS1*B’s consistent electrical characteristics ensure that digital I/O scan times remain within the deterministic bounds required for synchronized machine operation. Process control applications in food and beverage, pharmaceutical, and chemical manufacturing benefit from the cable’s cleanroom-compatible materials and its compatibility with YOKOGAWA’s validation documentation for regulated industries.

Product Compatibility FAQ

Q1: Is the KS1*B compatible with all I/O module positions in the KS1 Series rack?
A: The KS1*B is designed as a universal signal cable for the KS1 Series rack architecture, compatible with both analog and digital I/O module slots. Engineers should verify the specific rack model and module position count against the KS1 system configuration guide to confirm cable length and connector orientation requirements for their installation.

Q2: Can the KS1*B be used in a redundant CPU configuration without modification?
A: Yes. The KS1*B meets the electrical symmetry requirements for hot-standby CPU redundancy in the KS1 Series architecture. Both the primary and standby signal paths should use KS1*B cables of identical length and routing to ensure matched propagation delay and consistent switchover behavior. No hardware modification is required.

Q3: What does the 12-Month Warranty cover, and how is a warranty claim processed?
A: The 12-Month Warranty covers manufacturing defects, connector integrity, and signal performance degradation attributable to the cable itself under normal operating conditions. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the purchase order reference and a description of the observed fault. Replacement units are dispatched from verified inventory stock, and return logistics are coordinated by the ZYPLC technical support team.
