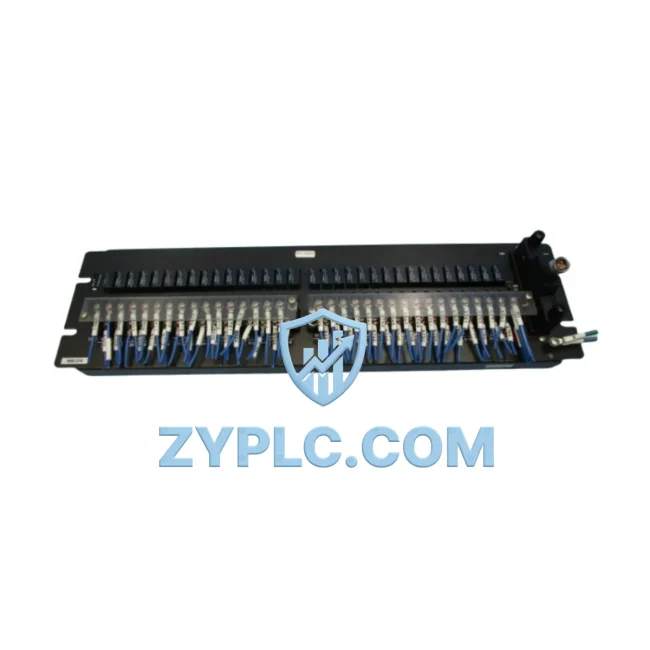

The Yokogawa MRI-214*A Relay Input Board is a precision-engineered discrete input module designed to operate as an integral component within the MRI Series Distributed Control System (DCS) architecture. Rather than functioning as a standalone device, the MRI-214*A is purpose-built to serve the relay signal acquisition layer of a multi-tier industrial automation hierarchy — collecting dry-contact and relay-driven status signals from field devices and delivering them reliably to the control layer for real-time process decision-making.

In a fully integrated control system, the MRI-214*A occupies the I/O layer, bridging the physical world of field instrumentation with the logical world of the DCS controller. Its role is to ensure that relay contact states — from motor starters, valve limit switches, protective relays, and interlock circuits — are accurately captured, conditioned, and transmitted to the CPU module without signal degradation or latency. This makes it an indispensable element in any architecture where discrete status monitoring is critical to process safety and operational continuity.

Architecture Specification Table

Coordinated Control System Design

The MRI-214*A achieves its full value when deployed within a coordinated Yokogawa control architecture. At the controller level, a Yokogawa CENTUM VP FCU (Field Control Unit) or a CS 3000 FCS (Field Control Station) serves as the processing core, executing control logic and issuing commands based on the discrete inputs gathered by modules like the MRI-214*A. The relay input data flows upward through the DCS backplane to the CPU, where it is processed in real time against configured interlock and alarm logic.

Within the same I/O node, the MRI-214*A typically operates alongside complementary modules such as the MRI-213*A analog input board for process variable acquisition, the MRI-215*A relay output board for discrete command execution, and the MRI-216*A analog output board for control signal delivery to final control elements. Together, these modules form a complete I/O node capable of handling both analog and discrete signals across the full process loop.

The node unit itself is mounted on a Yokogawa MRI Series node rack or I/O carrier, which provides the mechanical structure, backplane communication bus, and power distribution for all installed modules. Power to the node is supplied through a dedicated Yokogawa DCS power supply module, often with redundant power feeds to ensure uninterrupted operation in critical applications. The power supply module conditions incoming AC or DC plant power into the regulated voltages required by the I/O electronics.

At the network layer, the MRI Series node communicates with the CENTUM VP or CS 3000 domain controller via Yokogawa’s Vnet/IP or ESB (Enhanced Signal Bus) communication infrastructure, depending on the system generation. This high-speed, deterministic network ensures that relay status data from the MRI-214*A reaches the control layer within the required scan cycle, supporting fast interlock response times essential in safety-critical processes.

For human-machine interface, operator stations running Yokogawa CENTUM VP HIS (Human Interface Station) or legacy CS 3000 OPS workstations display the relay contact states acquired by the MRI-214*A in real time, enabling operators to monitor equipment status, acknowledge alarms, and initiate manual overrides. The seamless data path from field relay contact through the MRI-214*A to the HIS display exemplifies the contextual integration that defines a well-engineered Yokogawa DCS architecture.

Application in Layered Automation Systems

The MRI-214*A Relay Input Board finds application across a broad spectrum of process industries where discrete status monitoring is fundamental to safe and efficient operation. In power generation facilities, it monitors the contact states of generator protection relays, circuit breaker auxiliary contacts, and transformer tap changer limit switches, providing the DCS with real-time visibility into the electrical protection system. In petrochemical and refinery applications, it captures the open/closed status of emergency shutdown valves, high-level switches, and pressure safety valve position indicators, feeding the interlock logic that prevents hazardous process excursions.

In water and wastewater treatment plants, the MRI-214*A monitors pump run/stop status, valve position feedback, and flow switch contacts across distributed pump stations, enabling centralized SCADA and DCS oversight of geographically dispersed assets. In mining and mineral processing operations, it tracks conveyor belt running status, crusher overload relay contacts, and sump pump level switch states, supporting the high-availability control architectures required in continuous production environments. In pharmaceutical and food processing facilities, it provides the discrete input infrastructure for clean-in-place (CIP) sequence control, monitoring valve position feedback and agitator run status within GMP-compliant automation systems.

Across all these applications, the MRI-214*A contributes to system consistency by providing a standardized, platform-native relay input interface that eliminates the need for external signal conditioning hardware, reduces wiring complexity, and simplifies system commissioning and long-term maintenance.

Architecture Engineering FAQ

Q1: Is the MRI-214*A compatible with both CENTUM VP and CS 3000 DCS platforms?
The MRI-214*A is designed for the Yokogawa MRI Series I/O architecture, which is associated with the CENTUM CS 3000 and related MRI Series DCS generations. Compatibility with CENTUM VP depends on the specific node and carrier configuration in use. Engineers should verify the node unit model and backplane bus version against the target platform’s I/O compatibility matrix before integration. Our technical team can assist with cross-referencing the MRI-214*A against your existing system BOM to confirm architectural fit.

Q2: What installation and commissioning considerations apply when adding the MRI-214*A to an existing DCS rack?
When inserting the MRI-214*A into an existing MRI Series I/O rack, engineers should verify available slot assignments, confirm that the node unit’s I/O configuration database has been updated to recognize the new module address, and perform a loop check on all connected relay contacts before enabling the module in the control strategy. Hot-insertion capability depends on the specific node unit firmware version. All modules supplied by ZYPLC are tested prior to shipment and covered by a 12-Month Warranty, reducing commissioning risk associated with hardware defects.

Q3: How does the 12-Month Warranty support long-term maintenance planning for the MRI-214*A?
The 12-Month Warranty provided with every MRI-214*A purchased through ZYPLC covers hardware defects and functional failures under normal operating conditions. This warranty period aligns with typical annual maintenance shutdown cycles in process industries, allowing maintenance teams to plan module replacements and spares replenishment with confidence. In the event of a warranty claim, ZYPLC provides direct technical support and expedited replacement to minimize control system downtime. Maintaining a small buffer stock of MRI-214*A modules is recommended for aging DCS installations where original manufacturer support may be limited.
