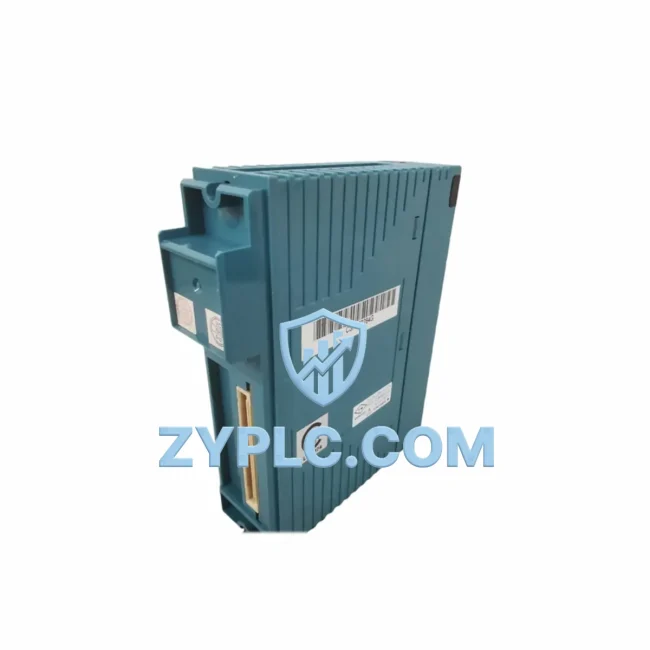

Yokogawa NFDR541-P00/S2 System-Ready Relay Output for CENTUM VP

Yokogawa NFDR541-P00/S2 System-Ready Relay Output for CENTUM VP

In a fully integrated distributed control system, every output module must do more than switch a signal — it must anchor the reliability of the entire control loop. The Yokogawa NFDR541-P00/S2 is a relay output module engineered for the CENTUM VP DCS platform, designed to deliver deterministic, high-integrity discrete output performance across demanding industrial environments. Whether deployed in a primary control station or a redundant field control station, this module occupies a critical position in the output layer of the automation hierarchy, bridging the controller’s logic decisions with physical actuators, solenoids, motor starters, and alarm annunciators on the plant floor.

The NFDR541-P00/S2 is built to operate within the CENTUM VP field control station architecture, where it slots into the I/O nest alongside other signal conditioning and output modules. Its relay contact outputs provide galvanic isolation between the control system and field devices, a fundamental requirement in environments where ground loops, voltage transients, and electrical noise from variable frequency drives or large motor loads could otherwise compromise signal integrity. This isolation characteristic makes the module particularly well-suited for integration in power generation facilities, petrochemical complexes, water treatment plants, and metallurgical processing lines where field-side electrical conditions are inherently harsh.

Within the CENTUM VP architecture, the NFDR541-P00/S2 communicates with the field control unit — typically an FFCS or SFCS processor — via the ESB bus backplane, which provides high-speed, deterministic data exchange between the CPU and all installed I/O modules. This tight coupling ensures that relay switching commands issued by the control application are executed with minimal latency, maintaining the scan-cycle consistency that process engineers depend on for interlock logic and sequential control. The module’s position in the I/O nest is managed through the CENTUM VP engineering environment, where channel assignments, tag definitions, and alarm thresholds are configured and downloaded without requiring physical rewiring.

Architecture Specification Table

Coordinated Control System Design

The NFDR541-P00/S2 does not operate in isolation — its value is realized through its coordination with the broader CENTUM VP system architecture. At the controller level, the FFCS-V field control station processor manages the execution of control strategies, issuing output commands to the relay module based on logic defined in the Function Block application. Redundant CPU configurations using paired FFCS processors ensure that a single processor failure does not interrupt relay output operation, with bumpless switchover maintaining field device states during the transition.

On the power supply side, the PW482 or equivalent CENTUM VP power module provides regulated DC power to the I/O nest, ensuring that relay coil energization remains stable even during grid fluctuations. The ESB bus backplane physically connects the NFDR541-P00/S2 to adjacent modules — including analog input modules such as the AAI141 for 4–20 mA process variable acquisition, and analog output modules like the AAO141 for control valve positioning — forming a coherent I/O assembly within a single nest. Digital input modules such as the ADV151 complement the relay output module by capturing field device status feedback, closing the control loop between command issuance and confirmation of execution.

At the network layer, the CENTUM VP Vnet/IP communication network connects field control stations to the human interface station (HIS), where operators monitor relay output states, acknowledge alarms, and initiate manual overrides through the CENTUM VP operator console. The SCP461 communication module, where deployed, extends connectivity to third-party systems via serial or fieldbus protocols, enabling the relay output data to be shared with SCADA platforms or energy management systems. Terminal boards and marshalling panels connected to the NFDR541-P00/S2 field terminals provide the physical interface to plant wiring, with the module’s relay contacts rated for the inductive loads typical of solenoid valves and motor control relays.

Application in Layered Automation Systems

In a petroleum refinery or petrochemical complex, the NFDR541-P00/S2 is commonly assigned to safety-related discrete output functions — activating emergency shutdown valves, de-energizing pump motor starters, or triggering audible and visual alarm annunciators in the control room. Its relay contact architecture provides the hard-wired separation between the DCS output and the field device that many functional safety standards require for SIL-rated interlock loops, even when the module itself is deployed in a standard (non-SIL-certified) capacity as part of a layered protection strategy.

In water treatment and municipal utility applications, the module controls pump start/stop sequences, valve open/close commands, and chemical dosing system activations. The deterministic scan cycle of the CENTUM VP field control station ensures that these commands are executed in the correct sequence, preventing process upsets caused by out-of-order switching. In metallurgical and mining operations, where high-current field devices and electrically noisy environments are the norm, the galvanic isolation of the relay contacts protects the CENTUM VP backplane from field-side disturbances, extending the service life of the entire I/O assembly.

For packaging lines and discrete manufacturing applications integrated into a CENTUM VP architecture, the NFDR541-P00/S2 handles conveyor control, reject gate activation, and end-of-line alarm outputs. Its compatibility with the CENTUM VP engineering environment means that channel reassignments, tag renames, and alarm limit changes can be made online without process interruption, reducing planned maintenance downtime and supporting continuous production targets.

ZYPLC maintains verified inventory of the NFDR541-P00/S2, with each unit subject to functional testing prior to shipment. A 12-month warranty is provided on all supplied modules, covering defects in materials and workmanship under normal operating conditions. Fast dispatch and export documentation support are available for international customers requiring rapid replacement of failed modules in live production environments.

Architecture Engineering FAQ

Q1: Is the NFDR541-P00/S2 compatible with both CENTUM VP and earlier CENTUM CS 3000 systems?
The NFDR541-P00/S2 is designed and validated for the CENTUM VP platform. While some physical form factors are shared across Yokogawa DCS generations, compatibility with CENTUM CS 3000 field control stations should be verified against the specific nest and bus revision in your installation. ZYPLC’s technical team can assist with cross-reference verification before order confirmation.

Q2: How does the 12-Month Warranty apply to relay output modules used in continuous process environments?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined by Yokogawa’s published environmental specifications. Modules are tested for relay contact continuity, isolation resistance, and bus communication integrity before shipment. Warranty claims are supported with replacement dispatch to minimize production impact.

Q3: What is required for Contextual Integration of the NFDR541-P00/S2 into an existing CENTUM VP project?
Contextual Integration requires that the module is registered in the CENTUM VP builder environment with the correct I/O nest address and channel tag assignments. No hardware modification is required beyond physical installation in the correct nest slot. Configuration download is performed online where the system supports it, or during a planned maintenance window for systems requiring offline download. ZYPLC can provide the module’s hardware revision details to support engineering team configuration planning.

—
