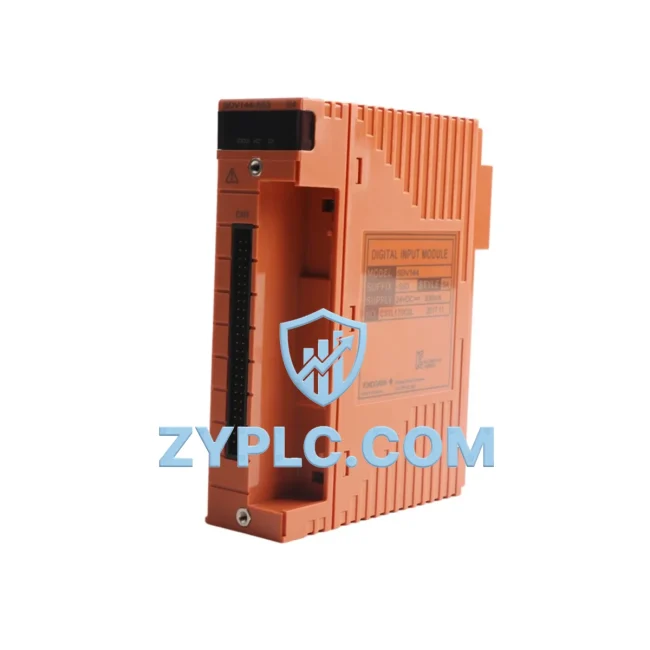

Yokogawa SDV144-S53 System-Ready DI Module for Centum VP Architecture

Yokogawa SDV144-S53 System-Ready DI Module for Centum VP Architecture: Control System Integration and Upstream-Downstream Coordination

The Yokogawa SDV144-S53 is a 32-channel digital input module engineered for seamless deployment within the Centum VP and CS3000 distributed control system (DCS) architecture. Designed to operate as a precision signal acquisition node at the I/O layer, the SDV144-S53 plays a foundational role in bridging field-level discrete signals — from limit switches, proximity sensors, valve position feedback, and motor status contacts — to the supervisory control layer managed by the Centum VP Field Control Station (FCS). Its integration into a layered automation architecture ensures that every upstream and downstream subsystem receives accurate, time-stamped digital state data, enabling deterministic process control across complex industrial environments.

In modern industrial automation, no module operates in isolation. The SDV144-S53 is conceived as a system component, not a standalone device. Its value is fully realized when deployed alongside complementary hardware within the same control cabinet, field junction box, or remote I/O node. Engineers specifying this module for a greenfield DCS installation or a brownfield upgrade project will find that its electrical characteristics, backplane communication protocol, and physical form factor are optimized for direct compatibility with the Centum VP I/O nest and associated field wiring infrastructure.

Architecture Specification Table

Coordinated Control System Design

The SDV144-S53 achieves its highest operational value when integrated as part of a coordinated Centum VP control node. At the control layer, the Centum VP Field Control Station (FCS) — such as the AFV10D or AFV30D processor unit — serves as the primary execution engine, processing the digital state data collected by the SDV144-S53 and executing control logic in real time. The FCS communicates with the I/O modules through the V-net/ER backplane bus, ensuring deterministic scan cycle performance even under high I/O density configurations.

Power integrity is maintained by the PW481 or PW482 power supply modules mounted within the same I/O nest, providing regulated 24 VDC to the backplane and field wiring terminals. For applications requiring power redundancy — common in continuous process industries such as petrochemicals and power generation — dual power supply configurations are supported, with automatic switchover to eliminate single-point power failure risk.

On the output side, the SDV144-S53 is frequently paired with the SDV541 or SDV542 digital output modules, which translate FCS control commands into discrete actuator signals for solenoid valves, motor starters, and relay-driven field devices. This DI/DO pairing within the same I/O nest minimizes wiring complexity and ensures signal path symmetry across the control loop.

For analog process variables — flow, pressure, temperature, and level — the AAI141-S or AAI543-H analog input modules are co-located within the same node, allowing the FCS to correlate digital status signals from the SDV144-S53 with continuous process measurements in a unified control strategy. This multi-signal integration is essential for interlock logic, permissive sequences, and safety instrumented function (SIF) coordination.

Network-layer connectivity is provided by the ESB401 or ESB461 Vnet/IP communication modules, which extend the Centum VP control domain across Ethernet-based plant networks. This enables the SDV144-S53’s field data to be accessible at the supervisory SCADA layer, historian servers, and remote engineering workstations without additional protocol conversion overhead. For legacy field device integration, the ALF111 FOUNDATION Fieldbus H1 interface module provides a gateway path, allowing the DCS to incorporate smart field instruments alongside conventional hardwired DI signals.

At the human-machine interface layer, Yokogawa FAST/TOOLS SCADA or the Centum VP integrated HIS (Human Interface Station) presents the digital input states collected by the SDV144-S53 in real-time process graphics, alarm management displays, and trend historians. Operators gain immediate visibility into field device status, enabling rapid fault diagnosis and process intervention. For panel-mounted local indication, third-party HMI terminals connected via Modbus TCP or OPC-UA can also consume the SDV144-S53 data through the Centum VP OPC server interface.

Terminal block assemblies — such as the TB141 or equivalent field wiring termination units — connect the SDV144-S53’s channel inputs to marshalling cabinets and field junction boxes, providing a structured, maintainable wiring interface that supports loop testing, hot-swap maintenance, and future I/O expansion without disrupting live process signals.

Application in Layered Automation Systems

The SDV144-S53 is deployed across a broad spectrum of process and discrete manufacturing industries where reliable digital signal acquisition is a prerequisite for safe and efficient operation.

In power generation and transmission facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — the module monitors breaker status, transformer tap positions, protection relay trip signals, and auxiliary equipment run/stop feedback. Its optical isolation ensures that high-voltage transients on the field side do not propagate into the DCS backplane, protecting the integrity of the control system during switching events.

In petrochemical and refinery applications, the SDV144-S53 collects valve position feedback, pump seal status, and emergency shutdown (ESD) system interlock signals. Its integration with the Centum VP safety-related control strategy — coordinated with Yokogawa ProSafe-RS safety instrumented system (SIS) modules — ensures that process hazard scenarios are detected and responded to within the required safety integrity level (SIL) time constraints.

In water and wastewater treatment plants, the module monitors pump run status, level switch activations, UV disinfection system states, and chemical dosing pump feedback across distributed pump stations. Its low power consumption and wide operating temperature range make it suitable for remote unmanned installations connected to a central Centum VP control room via fiber-optic Vnet/IP links.

In mining and mineral processing operations, the SDV144-S53 tracks conveyor belt run/stop status, crusher overload relay states, and flotation cell agitator feedback across large-scale distributed control architectures. The module’s 32-channel density reduces the number of I/O nests required per control node, lowering cabinet footprint and installation cost in remote site environments.

In pharmaceutical and food & beverage manufacturing, the module supports batch process control by capturing equipment ready signals, CIP (clean-in-place) valve positions, and filling line interlock states. Its compatibility with the Centum VP batch management function ensures that digital input data is correctly sequenced within recipe-driven production workflows, supporting 21 CFR Part 11 and GMP audit trail requirements.

Architecture Engineering FAQ

Q1: Is the SDV144-S53 compatible with both Centum VP and CS3000 DCS platforms, and can it be used in a mixed-generation system?
A: Yes. The SDV144-S53 is designed for compatibility with both the Centum VP and CS3000 I/O nest architectures, sharing the same backplane bus electrical interface and module form factor. In migration projects where CS3000 hardware is being upgraded to Centum VP FCS processors, existing SDV144-S53 modules can typically be retained in place, reducing hardware replacement costs and minimizing process downtime. However, firmware version alignment between the module and the FCS processor should be verified during the engineering phase. ZYPLC’s technical team can assist with compatibility matrix review prior to procurement.

Q2: What installation and commissioning considerations apply when integrating the SDV144-S53 into an existing live DCS architecture?
A: The SDV144-S53 supports hot-insertion into a powered I/O nest in most Centum VP configurations, allowing module replacement or addition without requiring a full system shutdown. During commissioning, each channel should be loop-tested using the Centum VP engineering workstation’s I/O test function to verify field wiring continuity and correct signal polarity. Shielded twisted-pair field cables are recommended for runs exceeding 50 meters to minimize induced noise on dry contact inputs. Grounding of cable shields at the marshalling cabinet end — with the field end left floating — follows Yokogawa’s standard field wiring practice for DI modules in industrial environments.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability for the SDV144-S53?
A: All SDV144-S53 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty includes advance replacement service for verified defective units, minimizing control system downtime. ZYPLC maintains dedicated inventory of Yokogawa Centum VP I/O modules — including the SDV144-S53 and related DI/DO, AI/AO, and communication modules — to support both planned maintenance schedules and emergency spare requirements. Long-term supply continuity is a core commitment of ZYPLC’s industrial automation distribution model, ensuring that engineers can source critical DCS components throughout the full lifecycle of their control system installation.
