CENTUM CS 3000 Spares: Verify CPU and Analog Output Evidence

Oct 7, 2026 5 min read DCS Process Control

How to validate Yokogawa CENTUM CS 3000 CPU and analog output spares, configuration backups and loop evidence before a DCS outage.

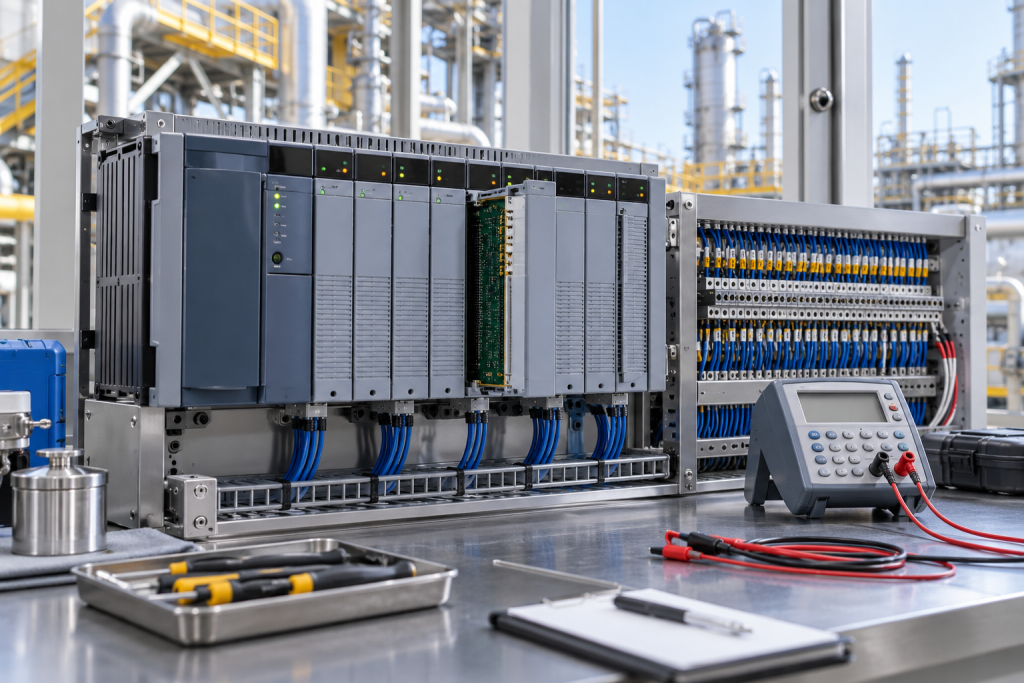

Yokogawa CENTUM CS 3000 CPU analog output spare parts 2026

A DCS output fault becomes serious when the process sees a plausible but incorrect command. A valve may move slowly, a setpoint may stop updating, or one loop may remain frozen while the operator display looks normal. Yokogawa CENTUM CS 3000 systems require the maintenance team to distinguish the CPU, bus, output card, marshalling and final element before ordering a spare.

The best replacement decision is based on evidence from the loop. Identify the output value at the engineering layer, the channel state at the module, the terminal signal and the actuator response. Preserve the configuration and the last known-good tuning. This keeps a maintenance intervention from becoming an undocumented control change.

Build the CS 3000 baseline

Record the node, cabinet, station, CPU, I/O station, module position and connected loops. Export the approved configuration and document the software revision. Photograph the rack, terminal strips and cable labels. For every critical analog output, record the range, engineering units, fail position, signal isolator and final element.

Note the normal CPU diagnostics, bus state and alarm sequence. If the node is redundant, identify the active and standby side. A spare CPU cannot be evaluated properly without knowing whether it is being used for direct recovery, a standby replacement or a bench test.

Trace the analog output loop

Start at the final element and work backward. Check actuator travel, positioner, cable continuity, terminal connections, isolator and output current or voltage. Compare the signal at the field terminal with the value shown in the engineering display. Review whether the loop fault is constant, intermittent or dependent on temperature or load.

The Yokogawa AAI543-S53-S1 analog output module should be matched to the channel range, connector, station and application. Request the condition statement and test scope. A module that powers up may still have an output channel problem that only appears under load or at a specific range.

Protect the CPU and application state

If the DCS node reports a processor or communication fault, preserve the diagnostic record before resetting it. Check power, rack contacts and bus connections. Confirm whether other stations see the node. Review recent engineering changes and configuration downloads. A controller swap without the approved application and hardware definition can create a longer outage than the original fault.

The Yokogawa CP133E-16-S3 CENTUM CS 3000 CPU must be evaluated against the station role, revision, memory arrangement and commissioning method. Record whether the spare is original, tested used, repaired or an exchange solution. The installation procedure should say how the project is loaded and how the control loops are verified.

Use an acceptance checklist

Before the outage, assign responsibility for configuration, isolation, installation, testing and operations approval. Bench-test a critical spare for power-up and diagnostics. During the live replacement, verify CPU state, I/O state, loop values, alarms, historian updates and final-element behavior. Check both normal and fail states where the site procedure permits.

Keep the removed module tagged until the root-cause review is complete. If the issue is caused by wiring or a field device, the old module may still be serviceable. Record the findings in the spare register so the next purchase does not repeat the same assumption.

For analog loops, save the measured output current or voltage at the terminal and the final-element position. This lets the control engineer separate a software command problem from a field actuator problem. For a CPU swap, record the exact project revision and the first successful restart time.

A useful DCS spare register also identifies whether the part is interchangeable, application-specific or a repair candidate. That distinction helps purchasing compare availability without creating a false impression that every CENTUM card can substitute for every other card.

For loops that drive a critical valve, capture the fail position and the safe state separately from the normal operating value. The output card may pass a bench test while the final element still requires a field calibration. Listing that remaining work makes the outage estimate more honest.

Use the same evidence when reviewing a future migration. The node map, loop list and failure history show which hardware is genuinely critical and which can be retired first. A DCS upgrade is easier to stage when the existing dependencies are visible.

Questions maintenance teams usually ask

Should an analog output card be replaced when a valve does not move?

Not automatically. Prove the actuator, positioner, terminals, isolator, field wiring and signal at each boundary before replacing the module.

Can a CS 3000 CPU spare be used without an application backup?

It may power up, but that is not a controlled recovery. Preserve the approved project, hardware data, station identity and commissioning steps first.

What test evidence should accompany a used DCS module?

Ask for power-up, diagnostics, representative I/O or communication tests, serial identity, condition and explicit limitations.

What belongs in an urgent CENTUM RFQ?

Include the part number, station and slot, loop role, range, quantity, condition, required test evidence, destination and cabinet photographs.

Make the loop evidence useful

CENTUM CS 3000 spare planning is strongest when the CPU, output channel and final element are documented as one control path. That evidence helps the plant restore the loop quickly and decide later whether the node needs a larger modernization program.
