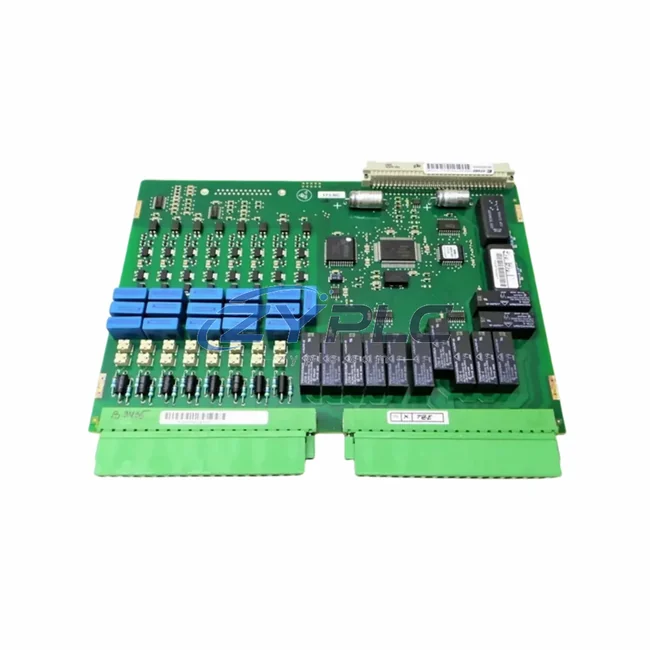

ABB 1MRK000173-BER05 Binary Input Module for REX Systems

ABB 1MRK000173-BER05 Industrial Network Interface for REX Systems: Bridging Field Devices and Smart Factory Data Links

In modern industrial automation environments, the ability to capture, convert, and transmit binary signals across complex network architectures is fundamental to operational transparency. The ABB 1MRK000173-BER05 Binary Input Module, designed for the ABB REX Series protection and automation relay platform, serves as a critical node in the industrial data chain — connecting field-level switching devices, protection relays, and substation equipment to higher-level SCADA systems, HMI platforms, and enterprise monitoring networks.

As industrial sites evolve toward fully digitized, IEC 61850-compliant architectures, the 1MRK000173-BER05 provides the binary signal acquisition layer that feeds real-time status data into the automation backbone. Whether deployed in power distribution substations, process automation plants, or smart factory environments, this module ensures that discrete input signals — from circuit breakers, isolators, motor starters, and protection contacts — are reliably captured and made available across the communication network without latency or data loss.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 1MRK000173-BER05 operates at the intersection of physical field signals and digital communication networks. In a typical substation or smart factory deployment, binary inputs from field devices — such as circuit breaker auxiliary contacts, motor protection relay outputs, and limit switches — are wired directly into the module’s input channels. These discrete signals are then mapped into the IEC 61850 data model, enabling seamless GOOSE message transmission across the station bus to peer IEDs (Intelligent Electronic Devices).

Within the ABB REX Series ecosystem, the 1MRK000173-BER05 works in close coordination with the ABB REX640 protection and control relay, which serves as the primary IED for feeder protection in medium-voltage switchgear. The binary input data collected by the 1MRK000173-BER05 is processed by the REX640’s logic engine, enabling interlocking, protection tripping, and alarm generation based on real-time field status. Alongside this, the ABB REB670 busbar protection relay receives GOOSE signals from the binary input module to execute differential protection schemes with sub-cycle response times.

For communication gateway functions, the ABB COM600 substation gateway aggregates IEC 61850 data from multiple IEDs — including the 1MRK000173-BER05 — and converts it to DNP3 or Modbus TCP for transmission to the SCADA master station. This ensures that binary status data from field contacts reaches the control room HMI in real time, enabling operators to monitor switching states, protection statuses, and alarm conditions without manual polling delays.

In remote monitoring scenarios, the ABB RTU560 remote terminal unit collects binary input data from the module and transmits it over WAN links using IEC 60870-5-101/104 protocols, bridging the gap between substation field devices and centralized energy management systems. For network infrastructure, ABB AFS660 industrial managed Ethernet switches provide the hardened Layer 2 switching backbone that carries IEC 61850 GOOSE and MMS traffic between the binary input module, protection relays, and the station HMI.

At the sensor and field device level, binary inputs from ABB SACE Emax2 low-voltage circuit breakers and ABB Relion 615 Series feeder protection relays feed status signals into the 1MRK000173-BER05, creating a unified digital representation of the entire switchgear lineup. The module’s data is also accessible to ABB Ability™ System 800xA distributed control systems via OPC UA or IEC 61850 MMS, enabling plant-wide integration of substation binary status into the process automation layer. For edge analytics, ABB Edge Controller EC720 can subscribe to GOOSE datasets published by the binary input module, enabling local pre-processing and anomaly detection before data is forwarded to cloud-based monitoring platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of field-level data — where binary signals from protection relays, switchgear, and I/O modules remain isolated within proprietary communication silos, invisible to SCADA operators and maintenance engineers. The ABB 1MRK000173-BER05 directly addresses this problem by providing a standardized IEC 61850-compliant binary input interface that integrates seamlessly into multi-vendor substation automation architectures.

Protocol incompatibility is eliminated through the module’s support for IEC 61850 GOOSE messaging, which enables peer-to-peer communication between IEDs without relying on a central controller. This means that a protection trip signal from a feeder relay can be transmitted to a busbar protection IED in under 4 milliseconds — meeting the stringent timing requirements of modern protection schemes. For legacy systems still operating on Modbus RTU or DNP3, the ABB COM600 gateway bridges the protocol gap, ensuring that binary input data from the 1MRK000173-BER05 is accessible to older SCADA masters without requiring infrastructure replacement.

Remote diagnostics and predictive maintenance are enabled through continuous binary input monitoring, where changes in contact state — indicating breaker operations, protection trips, or equipment faults — are time-stamped and logged with microsecond precision. This data is transmitted to the SCADA HMI and historian, enabling maintenance teams to reconstruct event sequences, identify recurring fault patterns, and schedule preventive maintenance before unplanned outages occur. Production line transparency is achieved as every switching event, protection operation, and alarm condition is captured in real time, providing plant managers with a complete digital audit trail of substation activity. System expansion is straightforward: additional 1MRK000173-BER05 modules can be added to the REX Series IED backplane to increase binary input capacity as the number of monitored field devices grows, without requiring changes to the communication network or SCADA configuration.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 1MRK000173-BER05 support, and is it compatible with existing SCADA systems?
The 1MRK000173-BER05 supports IEC 61850 GOOSE and MMS as its primary communication protocols, making it compatible with any IEC 61850-compliant SCADA, HMI, or substation automation system. For legacy SCADA platforms using DNP3 or Modbus TCP, an ABB COM600 or RTU560 gateway can be used to bridge the protocol, ensuring full backward compatibility without replacing existing infrastructure.

Q2: How does the module ensure network stability and data integrity in high-noise industrial environments?
The ABB 1MRK000173-BER05 is designed for substation-grade environments, with robust input filtering to reject electrical noise and contact bounce. IEC 61850 GOOSE messages include sequence numbering and retransmission mechanisms that detect and recover from network packet loss, ensuring that binary status changes are reliably delivered to all subscribing IEDs even under adverse network conditions.

Q3: Can the 1MRK000173-BER05 be integrated into an existing REX Series IED without system downtime?
Module installation and configuration within the REX Series platform is designed for minimal disruption. Using ABB’s PCM600 Protection and Control IED Manager, engineers can configure binary input assignments, GOOSE dataset mappings, and alarm thresholds offline, then download the configuration to the IED during a scheduled maintenance window. Hot-swap capability depends on the specific REX Series chassis configuration.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every ABB 1MRK000173-BER05 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing — including binary input channel continuity checks, communication interface validation, and IEC 61850 GOOSE message transmission tests — to confirm full operational readiness. Detailed test records are available upon request.
