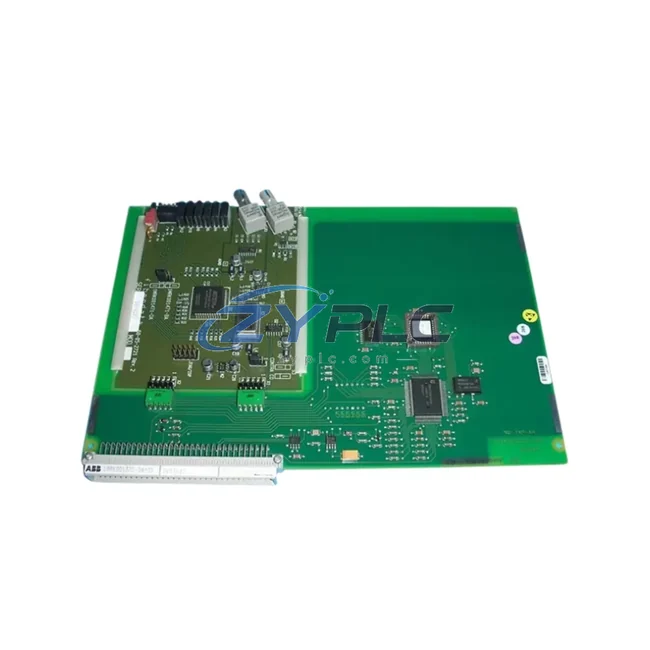

ABB 1MRK001370-DAR01 Digital Output for REX521

ABB 1MRK001370-DAR01 Digital Output for REX521: Compatibility and Replacement Notes

The ABB 1MRK001370-DAR01 is a digital output module engineered specifically for deployment within the REX521 protection relay platform — a modular, rack-based protection and control system widely adopted across power distribution, industrial substations, and process automation environments. Rather than functioning as a standalone component, the 1MRK001370-DAR01 is designed to operate as an integral node within a layered automation architecture, coordinating signal execution between the protection logic layer, the I/O layer, and the field device layer. Its role is to translate relay trip commands, alarm outputs, and control signals into discrete binary outputs that drive downstream actuators, circuit breakers, contactors, and annunciator panels.

In a complete REX521-based protection system, the 1MRK001370-DAR01 occupies the output execution tier. The REX521 CPU module — such as the REX521 base unit with integrated protection functions — processes current and voltage inputs from measurement transformers, evaluates protection algorithms (overcurrent, earth fault, differential, distance), and issues trip or alarm decisions. These decisions are routed through the internal backplane bus to the 1MRK001370-DAR01, which then drives the physical output contacts. This architecture ensures deterministic signal propagation with minimal latency between protection decision and field-level execution, a critical requirement in high-speed fault clearance applications.

The module integrates seamlessly with the REX521 rack system, sharing the same DIN-rail or panel-mount chassis infrastructure as companion modules including the REX521 analog input module (1MRK001370-DAA01), the binary input module (1MRK001370-DAB01), the communication gateway module (1MRK001370-DAC01), and the power supply module (1MRK001370-DAP01). This modular co-location within a single rack reduces wiring complexity, simplifies cabinet layout, and supports a unified maintenance strategy across the entire protection panel.

From a network and communication perspective, the 1MRK001370-DAR01 operates under the supervision of the REX521 CPU, which communicates upstream with SCADA systems, RTUs, and engineering workstations via IEC 60870-5-103, DNP3, or Modbus RTU protocols — depending on the communication module installed. This system integration capability allows the digital output states to be monitored, logged, and remotely controlled from the control room level, enabling operators to verify relay output status without physical panel inspection. Integration with ABB’s MicroSCADA Pro or third-party DCS platforms is supported through the communication gateway, making the 1MRK001370-DAR01 a fully networked component within the plant-wide automation hierarchy.

In redundant protection architectures — common in 110 kV and above substation designs — the 1MRK001370-DAR01 can be deployed in dual-redundant relay panels where Main 1 and Main 2 protection systems operate in parallel. Each REX521 rack carries its own set of digital output modules, ensuring that a single module failure does not compromise protection coverage. This redundancy design is further supported by the REX521’s self-monitoring diagnostics, which continuously verify output relay coil integrity and report faults to the HMI or SCADA layer via the communication module.

For human-machine interface coordination, the REX521 system typically pairs with ABB’s Panel 800 series operator terminals or third-party HMI panels connected via Modbus TCP or serial links. Output status from the 1MRK001370-DAR01 — including trip signals, alarm activations, and control outputs — is mapped to HMI display tags, providing real-time visibility of protection system behavior. This integration supports both local panel operation and remote supervisory control, satisfying the dual-mode operation requirements of modern substation automation standards.

At the field execution layer, the digital outputs of the 1MRK001370-DAR01 interface directly with circuit breaker trip coils, motor starter contactors, solenoid valves, and alarm horn circuits. The output contacts are rated for the voltage and current levels typical of substation auxiliary circuits, and their normally-open or normally-closed configuration can be assigned through the REX521 configuration tool (PCM600 or equivalent), allowing flexible mapping of protection functions to physical output terminals without hardware modification.

Product Specification Table

System Compatibility Notes

A complete REX521-based protection panel integrating the 1MRK001370-DAR01 typically includes the following coordinated components working in concert across the control, I/O, communication, power, and HMI layers:

The REX521 CPU / Base Unit serves as the central processing node, executing protection algorithms and issuing output commands to the 1MRK001370-DAR01 via the internal backplane. The 1MRK001370-DAA01 Analog Input Module feeds current and voltage measurements from CTs and VTs into the CPU for real-time protection evaluation. The 1MRK001370-DAB01 Binary Input Module captures external status signals — breaker auxiliary contacts, interlock signals, and remote trip commands — and feeds them into the protection logic. The 1MRK001370-DAP01 Power Supply Module provides regulated DC power to the entire REX521 rack, ensuring stable operation of all modules including the 1MRK001370-DAR01 under substation auxiliary supply conditions.

The 1MRK001370-DAC01 Communication Gateway Module bridges the REX521 rack to the substation LAN or serial communication network, enabling system integration with SCADA and engineering systems. For panel-level operator interaction, the REX521 Local HMI Panel (integrated or external) displays relay status, output contact states, and alarm conditions. In larger substation architectures, the REX521 system may be coordinated with ABB REC670 or REL670 IED units for busbar or line differential protection, with the 1MRK001370-DAR01 providing the output interface for inter-relay tripping schemes. Terminal blocks and marshalling modules — such as ABB ENTRELEC or Phoenix Contact terminal assemblies — connect the digital output contacts to field wiring, completing the signal path from relay logic to circuit breaker trip coil.

Industrial Application Notes

Power Distribution & Substation Automation: In 11 kV to 110 kV distribution substations, the 1MRK001370-DAR01 drives circuit breaker trip coils and alarm annunciators in response to overcurrent, earth fault, and thermal overload protection decisions. Its integration with the REX521 platform supports IEC 61850-compatible substation automation architectures when paired with the appropriate communication module, enabling GOOSE message-based tripping coordination with upstream and downstream IEDs.

Industrial Process Control & Manufacturing: In heavy manufacturing environments — steel mills, cement plants, paper mills — the 1MRK001370-DAR01 provides motor feeder protection output functions, driving motor contactor trip circuits and process interlock relays. Its deterministic output response time supports high-speed fault isolation requirements in continuous process lines where unplanned downtime carries significant production cost.

Petrochemical & Oil and Gas: In hazardous area control rooms and safe-area relay panels serving petrochemical plants, the 1MRK001370-DAR01 interfaces with ESD (Emergency Shutdown) systems and fire and gas detection panels, providing the discrete output signals required to initiate process shutdown sequences. Its robust contact rating and self-monitoring capability support SIL-assessed protection architectures.

Water Treatment & Utilities: Municipal water treatment and pumping station automation systems use the REX521 platform for motor protection and feeder control. The 1MRK001370-DAR01 provides the output interface for pump motor trip circuits, valve actuator control, and alarm signaling to SCADA systems managing distributed water infrastructure.

Mining & Metallurgy: Underground and surface mining operations deploy REX521-based protection panels for high-voltage feeder and transformer protection. The 1MRK001370-DAR01 drives trip outputs for vacuum circuit breakers and SF6 switchgear, supporting the demanding electrical environment of mining power distribution networks.

Product Compatibility FAQ

Q1: Is the 1MRK001370-DAR01 compatible with all REX521 rack configurations, and can it be added to an existing installation without replacing the CPU module?
The 1MRK001370-DAR01 is designed as a plug-in module for the REX521 modular rack system. It can be installed into available module slots within an existing REX521 chassis without replacing the CPU or other installed modules, provided the rack has available slot capacity and the CPU firmware version supports the module type. Configuration is performed via the PCM600 engineering tool, which allows output function mapping and contact assignment without hardware modification. Always verify slot compatibility and firmware version against the REX521 system documentation before installation.

Q2: How does the 1MRK001370-DAR01 support long-term maintenance and what diagnostics are available?
The REX521 platform includes continuous self-monitoring of module health, including output relay coil integrity checks and internal communication bus status. Fault conditions detected by the 1MRK001370-DAR01 or the CPU are reported via the local HMI and transmitted to the SCADA system through the communication gateway, enabling predictive maintenance scheduling without requiring physical panel inspection. The module’s design supports hot-swap replacement in systems configured for maintenance bypass, minimizing protection downtime during module exchange. ZYPLC supports RFQ sourcing for 1MRK001370-DAR01 modules to support rapid replacement requirements.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
All 1MRK001370-DAR01 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and early-life failures identified during commissioning. Warranty claims are processed through ZYPLC’s technical support team — contact +86 19859288691 or plc.sales@zyplc.com with the order reference and fault description. ZYPLC will arrange advance replacement or repair at no additional cost within the warranty period, ensuring minimal disruption to your protection system operation.
