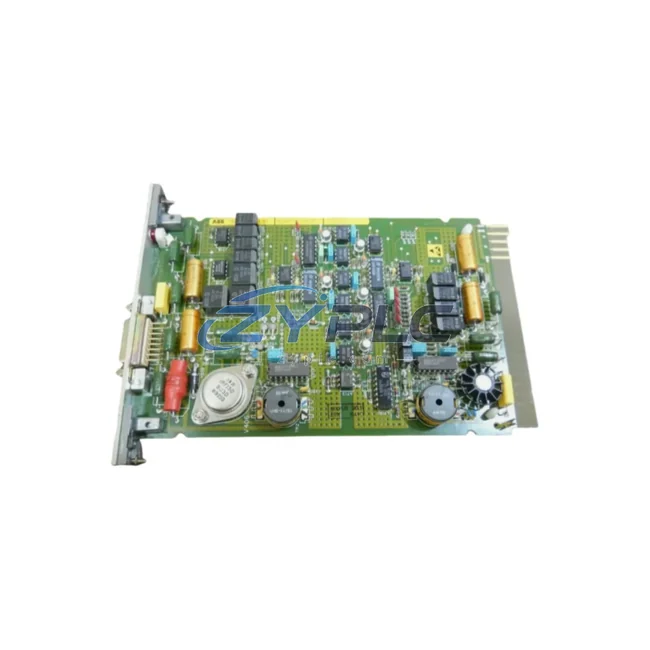

ABB 70BT01C HART Signal Transmitter for 70 Series Systems

ABB 70BT01C Industrial Network Interface for 70 Series Systems: Bridging Field Devices and Smart Factory Data Flows

In modern industrial environments, the ability to move process data reliably from field-level instruments to supervisory control systems is no longer optional — it is the backbone of operational intelligence. The ABB 70BT01C HART Signal Transmitter, part of ABB’s trusted 70 Series platform, is engineered to serve as a critical node in this industrial data chain. Designed for demanding process automation applications, the 70BT01C enables seamless communication between analog field devices and digital control architectures, supporting the HART (Highway Addressable Remote Transducer) protocol to deliver both 4–20 mA analog signals and superimposed digital data over a single pair of wires.

Whether deployed in oil and gas pipelines, chemical processing plants, water treatment facilities, or discrete manufacturing lines, the ABB 70BT01C provides the signal integrity and protocol compatibility that modern SCADA and DCS platforms demand. Its compact form factor and robust construction make it suitable for both panel-mount and field-mount installations, while its HART-compliant communication layer ensures compatibility with a wide range of asset management and remote diagnostics tools.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 70BT01C sits at the intersection of physical process measurement and digital plant intelligence. In a typical smart factory deployment, the data journey begins at the sensor layer — pressure transmitters, temperature sensors, and flow meters generate raw analog signals that must be conditioned, digitized, and transmitted upstream without loss of fidelity. The 70BT01C performs this function with precision, accepting 4–20 mA inputs from field instruments and simultaneously encoding HART digital data for transmission to higher-level systems.

At the PLC layer, controllers such as the ABB AC500 PLC series receive conditioned signals from the 70BT01C via HART-capable analog input modules. The AC500’s modular I/O architecture allows direct integration of HART device variables, enabling the controller to act on real-time process data without additional protocol conversion hardware. For installations requiring distributed I/O, the ABB S900 Remote I/O system can be paired with the 70BT01C to extend signal reach across large plant footprints while maintaining HART communication integrity.

When the data chain extends to the SCADA layer, the 70BT01C’s HART output interfaces cleanly with HART multiplexers and gateways — such as the ABB HART Multiplexer HMS-4 — which aggregate signals from multiple field devices and present them to the SCADA host over Modbus TCP or PROFIBUS. This architecture allows operators to monitor hundreds of field devices from a single ABB System 800xA workstation, with full access to device diagnostics, alarm states, and process variables in real time.

For HMI integration, the 70BT01C’s data stream feeds directly into ABB CP600 HMI panels, where operators can visualize process trends, configure alarm thresholds, and initiate remote diagnostics without leaving the control room. In edge computing scenarios, the signal can be routed through an ABB Edge Controller or a third-party industrial edge gateway, enabling local data processing, anomaly detection, and cloud upload for predictive maintenance analytics.

Variable frequency drives such as the ABB ACS880 drive series also benefit from HART-compatible signal inputs when motor speed or torque must be modulated based on upstream process measurements. The 70BT01C provides the clean, noise-immune signal that drive control loops require, ensuring stable closed-loop operation even in electrically noisy industrial environments. Power for the entire signal chain is typically supplied by ABB PSMQ industrial power supplies, which deliver regulated 24 VDC with high ripple rejection to maintain signal accuracy across all connected devices.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy 4–20 mA devices cannot natively communicate diagnostic data to modern DCS or SCADA platforms, creating data silos that obscure equipment health and complicate maintenance planning. The ABB 70BT01C directly addresses this problem by overlaying HART digital communication on the existing analog signal wire, eliminating the need for costly rewiring or parallel digital infrastructure.

In plants where multiple vendors’ instruments coexist — ABB transmitters alongside Siemens, Endress+Hauser, or Yokogawa devices — the HART protocol’s open standard ensures that the 70BT01C can serve as a universal interface layer, normalizing data formats before they reach the control system. This protocol-agnostic approach is essential for production line transparency: when every field device can report its status, calibration drift, and fault codes to the SCADA host, maintenance teams can shift from reactive to predictive strategies, reducing unplanned downtime and extending equipment service life.

Remote monitoring is another area where the 70BT01C delivers measurable value. In geographically dispersed installations — offshore platforms, pipeline monitoring stations, or multi-site manufacturing networks — the ability to interrogate field devices remotely via HART eliminates the need for on-site technician visits for routine diagnostics. Combined with a HART-over-IP gateway, the 70BT01C enables full remote configuration and calibration, reducing operational costs and improving response times for fault resolution.

System scalability is built into the 70BT01C’s architecture. As production capacity grows and new process loops are added, additional 70BT01C units can be integrated into the existing HART network without disrupting live processes. The device’s compatibility with ABB’s asset management software ensures that new instruments are automatically discovered, configured, and documented, maintaining a complete and accurate device inventory at all times.

Industrial Connectivity FAQ

Q1: What communication latency can be expected from the ABB 70BT01C in a HART network?
HART communication operates at 1200 baud, which is optimized for reliability rather than high-speed data transfer. For process variable updates, the 4–20 mA analog signal provides continuous real-time output with no latency, while HART digital polling for diagnostics and secondary variables typically completes within 250–500 ms per device. For time-critical control loops, the analog signal is always the primary control path.

Q2: Is the ABB 70BT01C compatible with third-party SCADA and DCS platforms?
Yes. The HART protocol is an open international standard (IEC 61158), and the 70BT01C is compatible with any HART-capable host system, including Emerson DeltaV, Honeywell Experion, Siemens PCS 7, Rockwell PlantPAx, and ABB System 800xA. HART Device Description (DD) files are available to ensure full parameter visibility in all major asset management platforms.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Every ABB 70BT01C unit supplied by ZYPLC undergoes a full functional test prior to shipment, including signal output verification, HART communication handshake testing, and insulation resistance checks. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Availability is confirmed via RFQ for same-week dispatch to minimize project delays.

Q4: Can the ABB 70BT01C be used to expand an existing HART network without system downtime?
Yes. HART devices can be added to a live multidrop network or connected to spare analog input channels on an existing DCS or PLC without interrupting ongoing process control. The 70BT01C’s plug-and-play HART compatibility means that once connected, the host system can automatically detect and configure the new device using standard HART commands, with no process shutdown required.
