ABB AGDR-81C Industrial Network Interface for SP Kit Series Systems

ABB AGDR-81C: Industrial Data Link and Smart Factory Connectivity for SP Kit Series Systems

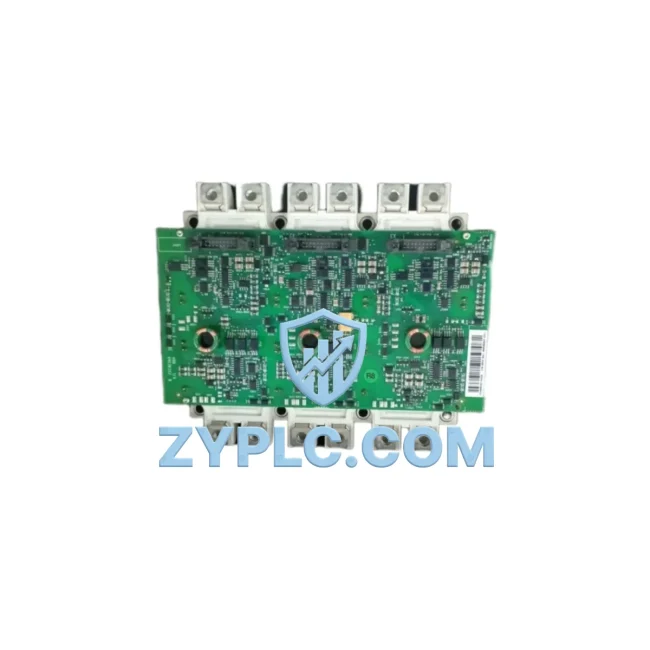

The ABB AGDR-81C (SKU: AGDR-81C FS450R17KE3) is a precision-engineered IGBT gate driver board designed for the ABB SP Kit Series drive platforms. Far beyond a simple power switching component, the AGDR-81C functions as a critical node in the industrial data chain — bridging high-power IGBT modules such as the FS450R17KE3 with the broader automation network that spans field devices, PLC controllers, remote I/O systems, HMI panels, SCADA platforms, and upper-level MES/ERP systems.

In modern smart factory environments, every layer of the drive system must communicate reliably. The AGDR-81C integrates directly with ABB’s ACS880 and ACS580 series variable frequency drives, enabling real-time gate signal feedback, fault diagnostics, and thermal status reporting that can be captured by the drive’s onboard communication interface and forwarded upstream via industrial protocols including PROFIBUS-DP, PROFINET, EtherNet/IP, Modbus RTU, and CANopen. This makes the AGDR-81C not just a hardware component, but a data-generating endpoint in your connected automation architecture.

Network Communication Table

Connected Automation Data Flow

Understanding the AGDR-81C’s role requires tracing the full data flow from the power stage to the control room. At the field level, the AGDR-81C interfaces directly with the FS450R17KE3 IGBT power module, monitoring gate switching states, desaturation events, and junction temperature in real time. This data is passed to the drive’s main control board — typically the ABB RMIO-11C or RDCU-02C control unit — which aggregates drive health metrics and exposes them to the fieldbus layer.

From the drive’s communication slot, an ABB FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP / PROFINET adapter transmits drive status, speed references, torque feedback, and fault codes to the plant’s PLC layer. In a typical ABB-centric architecture, this connects to an ABB AC500 PLC or a Siemens S7-1500 PLC running the process logic. The PLC then communicates upstream to a Wonderware System Platform SCADA or ABB Ability System 800xA DCS, where operators monitor motor performance, energy consumption, and alarm states across the entire production line.

At the HMI layer, an ABB CP600 HMI panel or Siemens TP1200 Comfort Panel provides local visualization of drive parameters, allowing maintenance engineers to view IGBT gate driver status, fault history, and thermal trends without accessing the SCADA workstation. For remote sites or multi-plant operations, an industrial edge gateway — such as the ABB Edgenius Operations Data Manager — can aggregate drive data from multiple AGDR-81C-equipped drives and push it to cloud analytics platforms for predictive maintenance and OEE optimization.

Sensor-level integration is equally important. Temperature sensors and current transducers connected to the drive’s analog I/O — or via a remote I/O module such as the ABB CI854A PROFIBUS remote I/O coupler — feed process variables into the same data loop, ensuring that the AGDR-81C’s gate driver performance is always correlated with real process conditions. This closed-loop data architecture is the foundation of transparent, data-driven smart factory operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — where drive systems, PLC controllers, and SCADA platforms operate on incompatible protocols, creating blind spots in production visibility. The ABB AGDR-81C, when deployed within the ABB SP Kit drive ecosystem, directly addresses this problem by ensuring that IGBT-level diagnostics are not trapped at the hardware layer but are instead surfaced through the drive’s communication gateway to the plant network.

For facilities running mixed-protocol environments — where legacy Modbus RTU devices coexist with modern PROFINET or EtherNet/IP networks — the AGDR-81C’s host drive can be equipped with protocol conversion adapters that bridge these communication gaps. This eliminates the need for standalone protocol converters and reduces network complexity. The result is a unified data stream from the IGBT power stage all the way to the SCADA historian, enabling production line transparency, real-time alarm propagation, and remote fault diagnosis without on-site intervention.

System expansion is equally straightforward. As production capacity grows, additional ABB SP Kit drives equipped with AGDR-81C gate driver boards can be added to the network without architectural redesign. Each new drive node integrates into the existing PROFIBUS or PROFINET segment, automatically appearing in the SCADA system’s device tree. This scalability makes the AGDR-81C a future-proof investment for facilities planning phased automation upgrades.

All units supplied by ZYPLC undergo pre-shipment functional testing, including gate signal verification and insulation resistance checks, ensuring that every AGDR-81C arrives ready for immediate installation. Combined with a 12-month warranty and in-stock global availability, this minimizes procurement risk and reduces unplanned downtime exposure for maintenance teams worldwide.

Industrial Connectivity FAQ

Q1: Does the ABB AGDR-81C support direct fieldbus communication?
The AGDR-81C itself is a gate driver board and does not contain an independent fieldbus interface. However, when installed in an ABB ACS880 or ACS580 drive, the drive’s communication module (e.g., FPBA-01 for PROFIBUS or FENA-21 for PROFINET/EtherNet/IP) exposes all drive and gate driver diagnostic data to the plant network, enabling full SCADA and PLC integration.

Q2: How is communication latency managed in high-speed drive applications?
The AGDR-81C operates at the hardware gate driver level with microsecond-range switching response. At the network level, PROFINET IRT (Isochronous Real-Time) mode on compatible ABB drives achieves cycle times below 1 ms, ensuring that drive status updates reach the PLC and SCADA system with minimal latency — critical for coordinated multi-axis motion and process control applications.

Q3: Is the AGDR-81C compatible with third-party SCADA and HMI systems?
Yes. Because the AGDR-81C’s diagnostic data is exposed through the host drive’s standard fieldbus interface, it is compatible with any SCADA or HMI platform that supports PROFIBUS-DP, PROFINET, EtherNet/IP, or Modbus TCP — including Wonderware, Ignition, Siemens WinCC, Rockwell FactoryTalk, and ABB Ability System 800xA.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every AGDR-81C unit supplied by ZYPLC is tested prior to shipment for gate signal integrity, power supply rail stability, and communication interface functionality. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize production downtime. Contact our team for warranty claim procedures and RFQ support.
