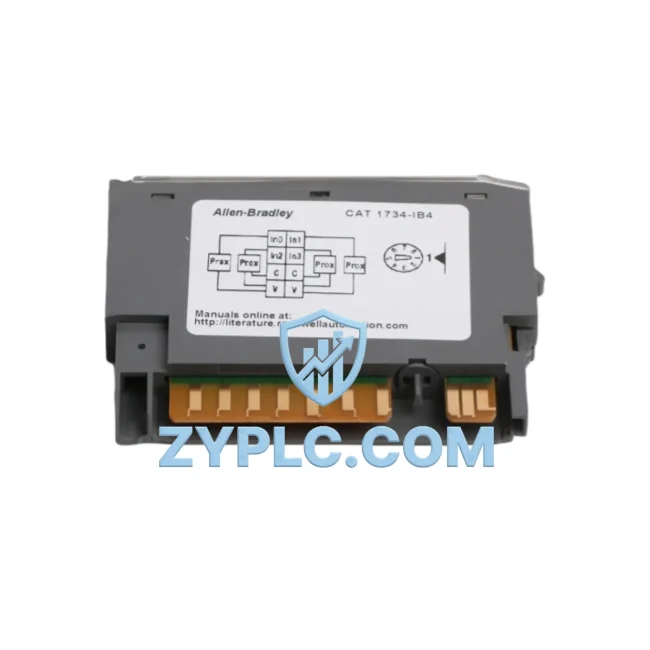

Allen-Bradley 1734-IB4 Industrial Network Interface for POINT I/O Systems

Allen-Bradley 1734-IB4: Industrial Data Link for POINT I/O Smart Factory Systems

The Allen-Bradley 1734-IB4 is a 4-channel 24VDC sourcing digital input module engineered for the POINT I/O platform — one of Rockwell Automation’s most scalable and field-deployable distributed I/O architectures. Designed to operate at the intersection of field-level signal acquisition and upper-layer control networks, the 1734-IB4 serves as a critical node in the industrial data chain, connecting physical sensors and actuators to PLC controllers, SCADA systems, and HMI platforms with precision and reliability.

In modern smart factory environments, the ability to capture discrete input signals from proximity sensors, limit switches, push buttons, and safety interlocks — and transmit that data in real time to a Logix-based controller — is foundational to operational transparency. The 1734-IB4 fulfills this role with a compact, DIN-rail-mountable form factor that integrates seamlessly into the POINT I/O backplane, supporting high-density I/O expansion without compromising signal integrity or network performance.

Network Communication Table

Connected Automation Data Flow

The 1734-IB4 sits at the front end of the industrial data pipeline. In a typical smart factory deployment, field-level devices — including inductive proximity sensors, photoelectric sensors, and mechanical limit switches — feed discrete 24VDC signals directly into the 1734-IB4’s four input channels. These signals are then transmitted across the POINT I/O backplane to a communication adapter such as the 1734-AENT EtherNet/IP adapter, which bridges the field bus to the plant Ethernet network.

From the EtherNet/IP network, a ControlLogix L7x or CompactLogix L3x controller polls the 1734-IB4 input states in real time, executing ladder logic or function block programs that govern machine sequencing, safety interlocks, and process control. The controller’s output decisions may then drive a 1734-OB4E 4-channel transistor output module or a 1734-OW4 relay output module on the same POINT I/O rack, closing the control loop at the field level.

For applications requiring analog signal integration alongside discrete inputs, the 1734-IB4 can coexist on the same POINT I/O rack with modules such as the 1734-IE4C 4-channel current input module or the 1734-IE2V 2-channel voltage input module, enabling mixed I/O architectures that handle both digital status signals and analog process variables within a single compact node.

At the supervisory level, the real-time input data captured by the 1734-IB4 flows upward through the EtherNet/IP network to FactoryTalk View SE or third-party SCADA platforms such as Ignition by Inductive Automation, where operators monitor machine states, production counts, and alarm conditions on graphical HMI displays. Integration with FactoryTalk Historian or similar data historians enables long-term trending and OEE analysis based on the discrete event data sourced from the 1734-IB4.

In distributed architectures where the POINT I/O rack is located remotely from the main control panel — such as on a conveyor line, packaging station, or robotic cell — the 1734-AENTR dual-port EtherNet/IP adapter supports Device Level Ring (DLR) topology, providing network redundancy and ensuring that a single cable fault does not interrupt I/O communication. This is particularly valuable in high-availability production environments where unplanned downtime carries significant cost.

For legacy integration scenarios, the 1734-IB4 can also be deployed with the 1734-APB PROFIBUS DP adapter or the 1734-ADN DeviceNet adapter, enabling the POINT I/O platform to interface with older control systems or third-party PLCs that do not natively support EtherNet/IP. This protocol flexibility makes the 1734-IB4 a versatile component in multi-vendor industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field-level devices generate valuable process data that never reaches the control layer, the SCADA system, or the enterprise MES/ERP platform. This isolation typically arises from protocol fragmentation, where legacy equipment communicates over proprietary or older fieldbus protocols that are incompatible with modern Ethernet-based control networks.

The Allen-Bradley 1734-IB4, deployed within the POINT I/O ecosystem, directly addresses this challenge. By supporting multiple communication adapters — EtherNet/IP, DeviceNet, PROFIBUS DP, and ControlNet — the POINT I/O platform acts as a universal field I/O node capable of bridging diverse protocol environments. Field signals captured by the 1734-IB4 are made available to any controller or SCADA system that can communicate with the selected adapter, eliminating the need for separate protocol converters or gateway devices in many scenarios.

For production line transparency, the 1734-IB4 enables real-time visibility into machine states, cycle counts, and fault conditions. When integrated with a ControlLogix controller and FactoryTalk View, operators gain a live dashboard of every input signal on the line — from conveyor jam detectors to end-of-arm tooling sensors on robotic cells. Alarm conditions are surfaced immediately, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Remote diagnostics are supported through the EtherNet/IP network, allowing maintenance engineers to interrogate the 1734-IB4’s input states, check module health, and review fault logs from a central engineering workstation or even a mobile device — without requiring physical access to the field panel. This capability is especially valuable in large facilities, hazardous environments, or multi-site operations where on-site intervention is costly or time-consuming.

System expansion is straightforward with the POINT I/O platform. Additional 1734-IB4 modules, output modules, analog modules, and specialty modules can be added to an existing rack without rewiring the communication infrastructure. The modular architecture supports incremental capacity growth aligned with production expansion, protecting the initial infrastructure investment.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1734-IB4 support?
The 1734-IB4 itself is a signal input module; its network protocol is determined by the POINT I/O communication adapter installed on the same rack. Supported adapters include the 1734-AENT/1734-AENTR for EtherNet/IP, the 1734-ADN for DeviceNet, the 1734-APB for PROFIBUS DP, and the 1734-ACNR for ControlNet. This makes the 1734-IB4 compatible with virtually all major industrial network architectures in use today.

Q2: How does the 1734-IB4 perform in terms of communication latency and real-time response?
When paired with the 1734-AENT EtherNet/IP adapter and a ControlLogix or CompactLogix controller, the 1734-IB4 supports Requested Packet Intervals (RPI) as low as 1ms, enabling near-real-time input scanning suitable for high-speed machine control, safety monitoring, and time-sensitive process applications.

Q3: Can the 1734-IB4 be integrated with third-party SCADA and HMI systems?
Yes. Because the POINT I/O platform communicates over standard industrial protocols — particularly EtherNet/IP — the 1734-IB4’s input data is accessible to any SCADA or HMI platform with an EtherNet/IP driver. This includes Ignition SCADA, Wonderware System Platform, Siemens WinCC, and GE iFIX, in addition to Rockwell’s native FactoryTalk View SE and ME environments.

Q4: What warranty and quality assurance does ZYPLC provide for the 1734-IB4?
Every Allen-Bradley 1734-IB4 supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. All units undergo pre-shipment functional testing to verify input channel integrity, backplane communication, and module identification. We maintain ready stock of POINT I/O modules to support urgent project timelines, with global express shipping via DHL and FedEx and RFQ response within 24 hours.
