Allen-Bradley 2711-T10C8X Industrial Network Interface for PanelView Systems

Allen-Bradley 2711-T10C8X Industrial Network Interface for PanelView Systems

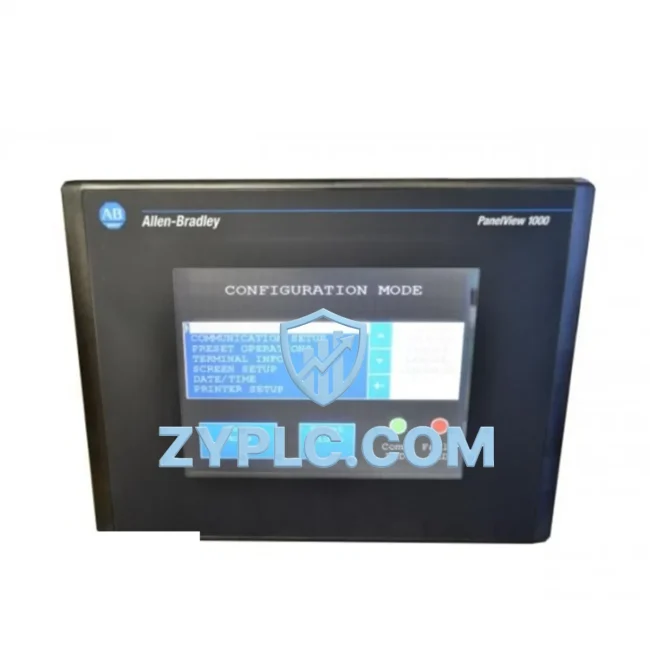

The Allen-Bradley 2711-T10C8X is a 10-inch color touch HMI terminal from the PanelView 1000 series, engineered to serve as a critical data link between field-level devices and supervisory control systems in industrial automation environments. Supporting DH-485 and RS-232 communication protocols, this panel bridges the gap between machine-level controllers and plant-wide SCADA or MES platforms, enabling real-time visualization, alarm management, and operator interaction across complex production lines.

In smart factory deployments, the 2711-T10C8X functions as the human-machine interface node within a layered communication architecture. It connects directly to Allen-Bradley SLC 500 series PLCs and MicroLogix controllers via DH-485 network, collecting process variables, status signals, and diagnostic data from the controller layer. The RS-232 port extends its connectivity to serial-based devices, barcode readers, and legacy instrumentation, ensuring backward compatibility without requiring costly infrastructure upgrades.

Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch, covering display integrity, touch calibration, communication port verification, and protocol handshake validation. Stock is maintained on-hand for immediate fulfillment, and all units are backed by a 12-month warranty covering hardware defects and communication failures.

Network Communication Table

Connected Automation Data Flow

Within a typical DH-485 network topology, the 2711-T10C8X operates as the visualization endpoint, receiving real-time tag data from Allen-Bradley SLC 5/03 and SLC 5/04 processors. These controllers manage discrete I/O modules — including 1746-IB16 digital input cards and 1746-OB16 output cards — which feed process status back through the DH-485 bus to the HMI for operator display. Analog signals from 1746-NI4 analog input modules, such as temperature or pressure readings, are mapped to trend displays on the PanelView screen, giving operators immediate visibility into process deviations.

For applications requiring integration with higher-level systems, the RS-232 port on the 2711-T10C8X connects to protocol converters or serial-to-Ethernet gateways, enabling data forwarding to SCADA platforms such as RSView32 or FactoryTalk View SE. This path allows alarm events and production counters captured at the HMI level to be logged centrally, supporting plant-wide OEE monitoring and shift reporting without requiring a dedicated communication processor.

In distributed architectures, the 2711-T10C8X is often deployed alongside Allen-Bradley 1747-SDN DeviceNet Scanner modules, which extend the control network to field devices such as photoelectric sensors, proximity switches, and variable frequency drives. PowerFlex 40 and PowerFlex 70 drives connected via DeviceNet report speed references, current draw, and fault codes back through the SLC controller to the PanelView display, creating a closed-loop visibility chain from motor shaft to operator screen.

Remote diagnostic capability is achieved by pairing the 2711-T10C8X with a 1761-NET-AIC Advanced Interface Converter, which allows multiple DH-485 nodes — including additional PanelView terminals, MicroLogix 1100 controllers, and 1747-UIC USB interface cables for programming — to share the same network segment. This multi-node configuration supports remote fault acknowledgment, parameter adjustment, and production recipe download directly from the HMI without interrupting machine operation.

For power infrastructure, the 2711-T10C8X panel is typically powered through a 1606-XLP power supply, which provides regulated 24 VDC to associated I/O racks and communication modules on the same panel. Stable power delivery is essential for maintaining DH-485 signal integrity, particularly in environments with variable loads from servo drives or induction motors on the same electrical circuit.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — machines acquired over different eras running incompatible communication standards that prevent unified monitoring. The 2711-T10C8X addresses this directly by supporting both DH-485 for Allen-Bradley controller networks and RS-232 for serial device integration, allowing a single HMI terminal to aggregate data from multiple source types without requiring a separate protocol gateway appliance.

Data silos are further broken down through the panel’s ability to display and log data from multiple SLC 500 nodes on the same DH-485 segment. Operators can switch between machine views — conveyor status, packaging line throughput, reject counts — on a single screen, eliminating the need for dedicated displays at each machine station. This consolidation reduces hardware cost, simplifies wiring, and gives supervisors a unified view of production status from a single operator station.

Remote monitoring is enabled through the RS-232 uplink path, where the 2711-T10C8X can forward alarm and event data to a host PC running RSLinx Classic or a third-party SCADA client. This allows maintenance engineers to monitor equipment health, acknowledge alarms, and review historical trends from a control room or remote workstation, reducing the need for physical presence on the production floor during off-shift hours.

Production line transparency is further enhanced by the panel’s recipe management and alarm history functions. Operators can load product-specific parameter sets directly from the HMI, reducing changeover time and minimizing the risk of manual entry errors. Alarm history logs with timestamps provide the data foundation for root cause analysis and predictive maintenance scheduling, directly supporting reductions in unplanned downtime and maintenance cost.

System expansion is straightforward within the DH-485 architecture — additional PanelView terminals, MicroLogix controllers, or communication adapters can be added to the network segment up to the 32-node limit without reconfiguring existing nodes. This scalability makes the 2711-T10C8X a long-term investment for facilities planning phased automation upgrades.

Industrial Connectivity FAQ

Q: Does the 2711-T10C8X support Ethernet/IP or EtherNet communication?
A: No. The 2711-T10C8X communicates via DH-485 and RS-232 protocols. It is designed for SLC 500 and MicroLogix controller networks. For Ethernet-based HMI applications, Allen-Bradley PanelView Plus 6 or PanelView Plus 7 terminals with EtherNet/IP support are recommended alternatives.

Q: Can this HMI be integrated with a SCADA system?
A: Yes. Via the RS-232 port and a serial-to-Ethernet converter or a host PC running RSLinx Classic, the 2711-T10C8X can forward tag data and alarm events to SCADA platforms including RSView32 and FactoryTalk View SE, enabling centralized monitoring and data logging.

Q: What is the communication speed and network stability of the DH-485 interface?
A: DH-485 operates at up to 19.2 Kbps and supports up to 32 nodes on a single segment. The protocol uses token-passing for deterministic communication, ensuring stable, collision-free data exchange even in electrically noisy industrial environments. Proper shielded cable and termination resistors are recommended for maximum network reliability.

Q: What does the 12-month warranty cover, and how is the unit tested before shipment?
A: Every 2711-T10C8X unit is tested for display function, touch screen calibration, DH-485 and RS-232 communication port operation, and power supply integrity before shipment. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. ZYPLC maintains in-stock inventory for immediate dispatch, with global shipping available.
