Allen-Bradley 2711P-K4M20A Industrial Network Interface for PanelView Plus Systems

Allen-Bradley 2711P-K4M20A: Industrial Data Link for PanelView Plus Smart Factory Connectivity

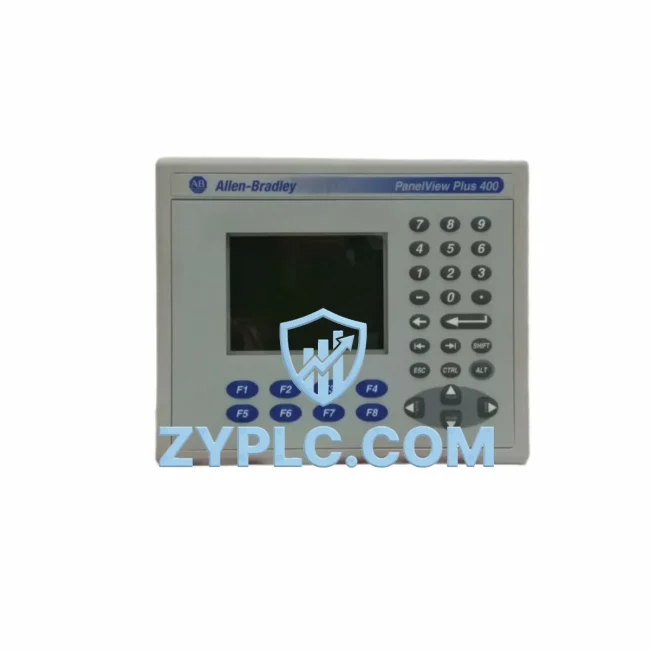

The Allen-Bradley 2711P-K4M20A is a PanelView Plus 400 Grayscale HMI Keypad Terminal, Series B, engineered to serve as a critical human-machine interface node within modern industrial network architectures. Designed for seamless integration across EtherNet/IP and Data Highway Plus (DH+) communication backbones, this unit bridges the gap between field-level devices and supervisory control systems, enabling real-time data visibility, operator interaction, and remote diagnostics across the full automation stack.

In a smart factory environment, the 2711P-K4M20A functions as the operator-facing endpoint of a layered data flow that begins at the sensor and actuator level, passes through programmable logic controllers, traverses industrial Ethernet switches, and terminates at SCADA and MES platforms. Its native EtherNet/IP support allows it to communicate directly with Allen-Bradley ControlLogix and CompactLogix PLCs over standard TCP/IP infrastructure, while its DH+ port maintains backward compatibility with legacy control networks — a critical advantage in brownfield automation projects where mixed-generation equipment is the norm.

Network Communication Table

Connected Automation Data Flow

The 2711P-K4M20A sits at the intersection of operator control and machine intelligence. In a typical deployment, field sensors — including photoelectric sensors, proximity switches, and pressure transmitters — feed analog and digital signals into remote I/O modules such as the Allen-Bradley 1734 POINT I/O or 1769 Compact I/O. These I/O modules communicate upstream to a CompactLogix L3x or ControlLogix L7x PLC via EtherNet/IP, where ladder logic and function block programs process the incoming data and generate control outputs.

The 2711P-K4M20A connects directly to this PLC layer, reading tag values in real time and presenting them to the operator through its grayscale keypad interface. Operators can acknowledge alarms, adjust setpoints, and trigger manual overrides — all without requiring a separate engineering workstation. This tight integration with the ControlLogix platform means that the HMI and PLC share a unified tag database, eliminating the need for redundant data mapping and reducing configuration errors.

Further upstream, the EtherNet/IP network carries data from the 2711P-K4M20A and associated PLCs to a SCADA gateway — such as the Rockwell Automation FactoryTalk View SE server or a third-party OPC-UA gateway — where production data is aggregated, historized, and made available to MES and ERP systems. Industrial managed Ethernet switches, such as the Stratix 5700 series, provide the network backbone, ensuring deterministic communication latency and VLAN segmentation between control and information networks.

In drive-intensive applications, the 2711P-K4M20A works alongside PowerFlex 525 and PowerFlex 755 variable frequency drives, which communicate their speed, torque, and fault status back to the PLC via EtherNet/IP. The HMI displays this drive data in real time, allowing operators to monitor motor performance and respond to fault conditions without navigating to the drive panel. Similarly, in process control loops, the HMI interfaces with Allen-Bradley 1756-IF16 analog input modules to display temperature, pressure, and flow readings sourced from field transmitters.

For remote diagnostic scenarios, the 2711P-K4M20A’s network connectivity enables engineers to access live HMI screens and PLC tag data through FactoryTalk Remote Access or VPN-secured connections, reducing the need for on-site intervention and accelerating mean time to repair (MTTR). This capability is particularly valuable in multi-site manufacturing environments where a single engineering team supports multiple production lines.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations and vendors of equipment. Legacy systems running DH+ or DF1 protocols cannot natively communicate with modern EtherNet/IP devices, creating data silos that prevent production managers from achieving full line transparency. The 2711P-K4M20A addresses this directly: its dual-protocol support for both EtherNet/IP and DH+ allows it to serve as a protocol bridge, presenting a unified operator interface across mixed-generation control networks.

In facilities where older Allen-Bradley SLC 500 or PLC-5 controllers still manage critical processes, the 2711P-K4M20A’s DH+ port enables direct communication without requiring a separate protocol converter or gateway device. This reduces network complexity, lowers hardware costs, and simplifies troubleshooting — all while preserving the investment in existing control infrastructure.

For production line transparency, the HMI’s tag-based architecture allows engineers to expose any PLC variable — cycle counts, reject rates, OEE metrics, energy consumption — directly on the operator screen. Combined with SCADA integration via EtherNet/IP, this data can be pushed to dashboards accessible by production supervisors, quality engineers, and plant managers in real time, enabling data-driven decision-making at every level of the organization.

System expansion is equally straightforward: additional 2711P-series HMI terminals can be added to the EtherNet/IP network without disrupting existing communications, and the shared tag database architecture means that new screens can be configured and deployed rapidly. This scalability makes the 2711P-K4M20A a long-term investment for facilities planning phased automation upgrades.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication link verification, display integrity checks, and keypad response validation. Stock is maintained in-warehouse for prompt dispatch via DHL or FedEx international express, with full 12-month warranty coverage on all units.

Industrial Connectivity FAQ

Q1: What communication protocols does the 2711P-K4M20A support, and is it compatible with third-party PLCs?
The 2711P-K4M20A natively supports EtherNet/IP and DH+ protocols. It is optimized for Allen-Bradley ControlLogix, CompactLogix, SLC 500, and PLC-5 platforms. Integration with third-party PLCs is possible via OPC-UA gateways or protocol converters, though native tag-based communication is exclusive to Rockwell Automation controllers.

Q2: What is the typical communication latency on EtherNet/IP with this HMI?
Under standard industrial Ethernet conditions with a managed switch infrastructure, EtherNet/IP CIP communication latency between the 2711P-K4M20A and a ControlLogix PLC is typically under 10 milliseconds for tag update cycles. Network segmentation via VLANs and QoS configuration on Stratix switches can further optimize deterministic performance.

Q3: Can the 2711P-K4M20A be integrated into an existing SCADA or FactoryTalk View SE environment?
Yes. The 2711P-K4M20A is fully compatible with FactoryTalk View ME (Machine Edition) software and can be integrated into FactoryTalk View SE (Site Edition) supervisory environments via EtherNet/IP. Application files developed in FactoryTalk View Studio can be deployed directly to the terminal, and live tag data is accessible to SCADA servers through the shared EtherNet/IP network.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 2711P-K4M20A?
All 2711P-K4M20A units supplied by ZYPLC carry a 12-month warranty covering hardware defects and communication failures. Each unit undergoes pre-shipment testing including power-on verification, display and keypad functionality checks, and EtherNet/IP communication link validation. Units are shipped in original or equivalent protective packaging via DHL or FedEx international express with full tracking.
