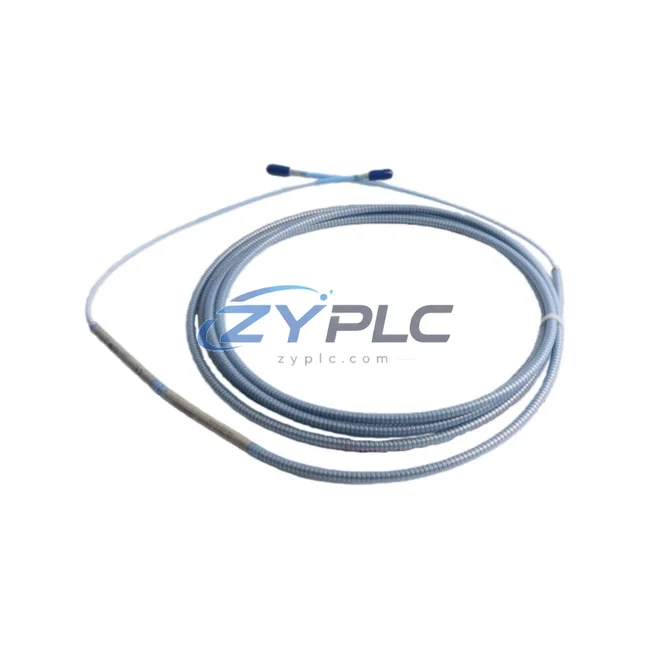

Bently Nevada 330190-040-01-05 Extension Cable 3300 Series

Bently Nevada 330190-040-01-05 Extension Cable 3300 Series: Replacement and Sourcing Information

The Bently Nevada 330190-040-01-05 is a high-performance extension cable engineered for the 3300 Series proximity monitoring system — one of the most widely deployed vibration and position measurement platforms in rotating machinery applications. Designed to bridge the gap between the 3300 XL 8mm proximity transducer and its dedicated signal conditioning module, this 40-inch (approximately 1 metre) extension cable maintains signal integrity across the full measurement chain, directly contributing to reduced unplanned downtime, improved equipment utilization, and lower total cost of ownership in continuous industrial operations.

In modern maintenance-focused manufacturing environments, every component in the monitoring loop matters. An improperly specified or degraded extension cable introduces signal noise, measurement drift, and false alarms — all of which translate into unnecessary shutdowns, wasted energy from unplanned restarts, and accelerated wear on drive systems. The 330190-040-01-05 eliminates these risks by providing a factory-calibrated, impedance-matched signal path that preserves the accuracy of the 3300 Series proximity measurement from sensor tip to the monitoring rack.

Product Specification Table

System Compatibility and Application

The 330190-040-01-05 extension cable operates as a critical link within a broader industrial automation system. In a typical rotating machinery protection system, the signal chain begins at the Bently Nevada 330130-080-01-05 8mm proximity transducer, which detects shaft displacement with micron-level resolution. The transducer output travels through this extension cable to the Bently Nevada 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance.

This conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor / Seismic Monitor housed within the 3500 Series rack-based monitoring system. The 3500 rack integrates with plant-level DCS and SCADA platforms via the 3500/92 Communication Gateway, enabling real-time data exchange with maintenance planning systems. When vibration or position values approach alarm thresholds, the system can trigger load-shedding commands to variable frequency drives — such as the Rockwell PowerFlex 755 VFD or Siemens SINAMICS G120 drive — reducing motor speed and power draw before a protective trip occurs.

On the control side, the monitoring data integrates with Allen-Bradley ControlLogix PLCs running energy optimisation routines that adjust pump and compressor duty cycles based on real-time vibration health scores. Complementary power monitoring hardware, such as the Schneider Electric PowerLogic ION7650 power meter, captures kWh consumption at the motor control centre level, correlating energy draw with mechanical condition data from the 3300 Series system. This closed-loop architecture — sensor, extension cable, Proximitor, monitor rack, PLC, VFD, and power meter — forms the backbone of a predictive maintenance planning strategy that keeps rotating assets running at peak efficiency.

For facilities running Modbus TCP or PROFIBUS DP communication backbones, the 3500 rack’s gateway modules ensure that the proximity data captured through the 330190-040-01-05 cable is available to every layer of the automation hierarchy, from field-level I/O modules to enterprise energy dashboards.

Maintenance and Replacement Notes

In petrochemical plants, power generation facilities, and heavy manufacturing environments, unplanned shutdowns of rotating machinery are among the most energy-intensive events in the production cycle. A single unplanned trip of a large centrifugal compressor can consume tens of thousands of operating-hours in restart energy alone, not counting the production losses and thermal cycling stress on associated equipment.

The Bently Nevada 330190-040-01-05 extension cable contributes directly to preventing these events. By maintaining a clean, low-noise signal path between the proximity transducer and the Proximitor sensor, it ensures that the 3300 Series monitoring system receives accurate shaft position and vibration data at all times. This accuracy is the foundation of effective alarm management: correctly calibrated gap measurements mean that alarm setpoints reflect true mechanical condition rather than measurement artefacts, eliminating nuisance trips that waste energy and disrupt production rhythm.

In continuous process lines — such as ethylene crackers, LNG compressor trains, or large cooling water pump systems — the ability to trend shaft vibration over weeks and months enables maintenance teams to schedule interventions during planned outages rather than reacting to failures. This predictive maintenance posture reduces the frequency of energy-intensive cold starts, extends bearing and seal life, and allows variable speed drives to operate at optimised load points rather than conservative derating margins imposed by uncertainty about machine health.

Furthermore, accurate proximity measurement supports rotor balancing optimisation. When the 3300 Series system confirms that shaft runout is within specification, operations teams can confidently increase throughput on pumps and compressors, extracting more production value per operating-hour consumed. The 330190-040-01-05 cable, as the signal conduit in this measurement chain, is therefore not merely a passive connector — it is an active enabler of energy-efficient, high-utilisation machine operation.

All units supplied by ZYPLC undergo pre-shipment functional verification to confirm cable continuity, insulation integrity, and connector condition. Each 330190-040-01-05 is backed by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid deployment to minimise downtime on critical rotating machinery.

Product Sourcing FAQ

Q1: How does the 330190-040-01-05 extension cable contribute to operational stability in rotating machinery applications?
By maintaining a clean, calibrated signal path between the 3300 XL proximity transducer and the Proximitor sensor, this cable ensures accurate vibration and position measurements. Accurate data eliminates nuisance trips and enables predictive maintenance scheduling, reducing the frequency of energy-intensive unplanned shutdowns and cold restarts. Facilities that transition from reactive to predictive maintenance using reliable 3300 Series signal chains typically report measurable reductions in annual operating load from rotating machinery systems.

Q2: Is the 330190-040-01-05 compatible with both the 3300 Series and the 3500 Series monitoring racks?
Yes. The 330190-040-01-05 is designed for use with the Bently Nevada 3300 XL 8mm proximity transducer system and is compatible with the full range of 3300 XL Proximitor sensors. The conditioned output from the Proximitor is then compatible with 3500 Series monitor modules, making this cable suitable for installations that feed into either standalone 3300 Series monitors or the more comprehensive 3500 rack-based protection system.

Q3: What is the recommended replacement interval, and how do I verify cable condition before replacement?
Bently Nevada recommends inspecting extension cables during scheduled maintenance outages, typically every 12–24 months depending on environmental severity. Key indicators of cable degradation include increased DC bias voltage drift at the Proximitor output, elevated noise floor on the vibration signal, and visible jacket damage or connector corrosion. If any of these symptoms are present, replacement with a new 330190-040-01-05 should be performed before returning the machine to service. ZYPLC maintains RFQ-confirmed sourcing to support rapid replacement with minimal lead time.

Q4: What testing is performed on the 330190-040-01-05 before shipment, and what does the warranty terms confirmed during quotation cover?
Every 330190-040-01-05 unit supplied by ZYPLC undergoes pre-shipment inspection covering cable continuity, connector integrity, and insulation resistance. The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team — contact us at plc.sales@zyplc.com or +86 19859288691 for assistance.
