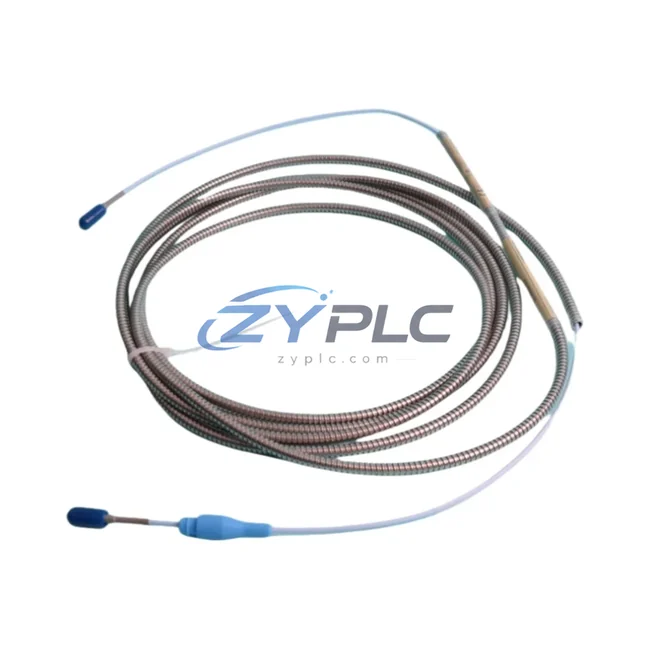

In modern industrial facilities where uptime, energy efficiency, and predictive maintenance converge, the signal integrity of every monitoring component directly impacts operational cost. The Bently Nevada 330930-040-01-05 Extension Cable is a precision-engineered interconnect component designed for the 3300 Series proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications worldwide. Far from being a passive cable, this extension cable plays a critical role in maintaining low-loss signal transmission between the proximity probe and the Proximitor sensor, ensuring that the vibration data feeding into your condition monitoring system is accurate, stable, and actionable.

In energy-intensive industries such as petrochemical refining, power generation, steel production, and large-scale water treatment, rotating equipment — including turbines, compressors, pumps, and motors — accounts for a significant share of total facility energy consumption. When vibration signals are degraded due to poor cable quality, incorrect cable length, or impedance mismatch, the control system loses the ability to detect early-stage mechanical faults. This leads to unplanned shutdowns, excessive energy draw from imbalanced or misaligned machinery, and costly emergency maintenance. The 330930-040-01-05 eliminates these risks by providing a shielded, impedance-matched signal path that preserves the full bandwidth of the 3300 Series proximity measurement chain.

Product Specification Table

System Compatibility and Application

The 330930-040-01-05 Extension Cable does not operate in isolation. It is the signal backbone connecting the probe tip to the monitoring electronics, and its performance directly determines the quality of data available to the broader automation and maintenance planning architecture.

In a typical rotating machinery protection system, the 3300 XL 8mm Proximity Probe (such as the 330103-00-08-10-02-00) is mounted at the bearing housing to measure shaft displacement. The extension cable bridges the distance between the probe and the 3300 XL Proximitor Sensor (330180-91-00), which converts the eddy-current signal into a calibrated DC voltage. This voltage is then fed into the 3500 Series Machinery Protection System, a rack-based monitoring platform that processes vibration, position, and speed data in real time.

Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface analyze the incoming signals to detect imbalance, misalignment, oil whirl, and rub conditions — all of which cause machinery to consume more energy than its design baseline. By catching these faults early, the system allows maintenance teams to schedule corrective action during planned downtime rather than reacting to catastrophic failures that result in extended outages and energy-intensive restart sequences.

On the control side, the 3500 system communicates fault status and vibration trends to the plant DCS or SCADA platform via Modbus TCP or FOUNDATION Fieldbus interfaces, enabling the Bently Nevada System 1 Condition Monitoring Software to correlate vibration data with process variables such as load, temperature, and flow rate. This integration allows energy managers to identify operating points where machinery efficiency is degraded and take corrective action — adjusting speed setpoints on variable frequency drives, rebalancing loads across parallel pump trains, or scheduling bearing replacements before friction losses escalate energy consumption.

For motor-driven equipment, the vibration data from the 3300 Series system can be cross-referenced with power quality data from power monitoring units installed on the MCC (Motor Control Center), creating a closed-loop maintenance planning workflow where mechanical condition and electrical consumption are monitored together. This architecture is particularly effective in facilities running multiple large motors simultaneously, where even a 2-3% improvement in average motor efficiency translates to significant annual operational stability.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressors, the 330930-040-01-05 Extension Cable enables continuous shaft vibration monitoring at each compressor bearing. When the 3500 Series rack detects an upward trend in 1X vibration amplitude — a classic indicator of rotor imbalance — the operations team can reduce compressor load or schedule a balance correction during the next maintenance window. Without this early warning, the compressor would continue operating in a degraded state, drawing excess current and generating heat that accelerates bearing wear and increases cooling energy demand.

In a power generation facility, steam turbines monitored by the 3300 Series system benefit from continuous axial position and differential expansion monitoring. The extension cable’s low-noise signal path ensures that the Proximitor sensor receives a clean, drift-free signal even in high-temperature, high-vibration environments near the turbine casing. This allows the turbine control system to maintain optimal steam admission and extraction parameters, minimizing heat rate deviation and improving overall thermal efficiency.

In a water treatment facility running large vertical pump motors, the 3300 Series proximity system detects shaft runout and bearing wear before they cause pump efficiency to degrade. By maintaining pumps in good mechanical condition, the facility avoids the energy penalty of operating worn pumps at higher speeds to compensate for reduced hydraulic efficiency — a common but often overlooked source of unplanned downtime in water infrastructure.

Across all these applications, the 330930-040-01-05 Extension Cable contributes to maintenance planning not by consuming less power itself, but by enabling the accurate, continuous measurement that makes intelligent maintenance planning possible. Its 40-foot length accommodates the typical installation geometry of large rotating machines where the probe must be mounted close to the bearing while the Proximitor sensor is located in a more accessible, temperature-controlled junction box.

ZYPLC maintains availability subject to RFQ confirmation of the 330930-040-01-05 and all compatible 3300 Series components. Each unit undergoes functional testing prior to shipment, and all products are covered by a warranty terms confirmed during quotation. With fast international shipping and dedicated technical support, ZYPLC is your reliable source for Bently Nevada monitoring components.

Product Sourcing FAQ

Q1: How does the 330930-040-01-05 contribute to operational stability in rotating machinery applications?
By maintaining a low-noise, impedance-matched signal path between the proximity probe and the Proximitor sensor, this extension cable ensures that the 3300 Series monitoring system receives accurate vibration data. Accurate data enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear — all of which cause machinery to consume more energy than its design specification. Early intervention reduces unplanned downtime, extends equipment life, and avoids the high energy cost of unplanned restarts after catastrophic failures.

Q2: Is the 330930-040-01-05 compatible with both the 3300 Series and the 3500 Series Machinery Protection System?
The 330930-040-01-05 is designed as part of the 3300 Series proximity transducer system and is compatible with 3300 Series 8mm proximity probes and Proximitor sensors. The output of the Proximitor sensor — a calibrated DC voltage — is then connected to the 3500 Series rack input modules. The extension cable itself interfaces with the 3300 Series components; the 3500 Series rack receives the processed signal from the Proximitor. Always verify cable length and connector type against your specific installation drawing before ordering.

Q3: What is the recommended replacement interval for the 330930-040-01-05 in high-temperature or high-vibration environments?
Bently Nevada extension cables are designed for long service life, but in environments with sustained temperatures above 70 degrees C or high mechanical vibration at the cable routing path, periodic inspection is recommended. Signs of degradation include increased signal noise, DC gap voltage drift, or visible jacket damage. ZYPLC recommends keeping a spare 330930-040-01-05 on hand to enable rapid replacement during planned maintenance windows, minimizing production downtime. All replacement units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: What testing is performed on the 330930-040-01-05 before shipment from ZYPLC?
Each 330930-040-01-05 unit in ZYPLC’s inventory undergoes continuity testing, insulation resistance verification, and connector integrity inspection prior to shipment. Units that do not meet Bently Nevada’s original specification are quarantined and not sold. This pre-shipment testing process ensures that replacement cables perform identically to new OEM components, protecting the integrity of your vibration monitoring system and the accuracy of your maintenance planning data.
