Bently Nevada 330800-28-00-085-02-02 Proximity Transducer

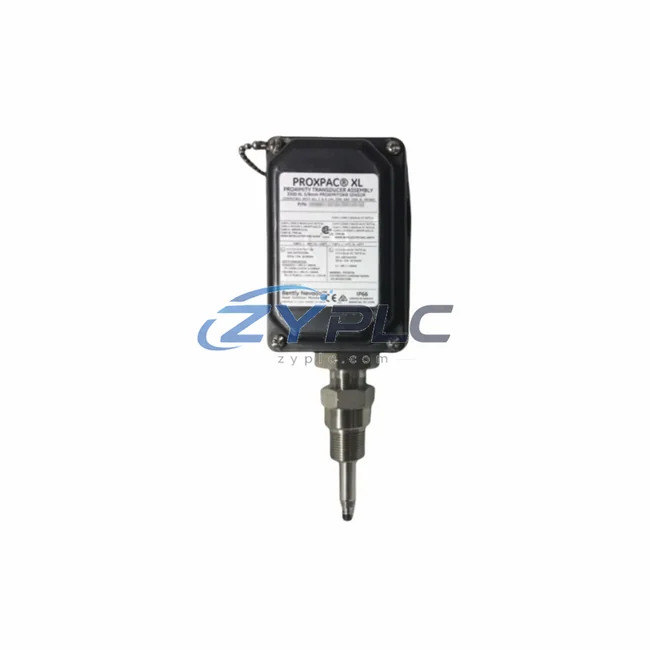

Bently Nevada 330800-28-00-085-02-02: Proximity Transducer for PROXPAC XL

The Bently Nevada 330800-28-00-085-02-02 is a precision eddy-current proximity transducer engineered for seamless integration within the PROXPAC XL and 3300 Series vibration monitoring architecture. Designed to operate as a critical sensing node in layered industrial automation systems, this transducer delivers continuous, high-resolution shaft displacement and vibration data to the control layer — enabling real-time condition monitoring, predictive maintenance, and machinery protection across demanding process environments.

In modern industrial control architectures, the proximity transducer is not a standalone device — it is the foundational sensing element that feeds signal integrity into the entire monitoring chain. The 330800-28-00-085-02-02 is factory-calibrated to interface directly with Bently Nevada 3300 XL 8mm Extension Cables, 3300 XL Proximitor Sensors, and the 3500/42M Proximitor Seismic Monitor, ensuring that signal conditioning, gap voltage, and sensitivity specifications remain consistent across the full measurement loop. This system-level compatibility eliminates field calibration errors and reduces commissioning time significantly.

Within a complete machinery protection system, this transducer connects upstream to the rotating shaft and downstream to the 3500 Rack — a modular, rack-based monitoring platform that integrates with DCS and SCADA layers via Modbus, Profibus, or Ethernet/IP communication protocols. The 3500 Rack accepts inputs from multiple 330800-series transducers simultaneously, supporting redundant measurement configurations for critical turbines, compressors, and pumps where unplanned downtime carries severe operational and financial consequences.

At the I/O layer, the 330800-28-00-085-02-02 pairs with the 3500/15 Power Supply Module and 3500/20 Rack Interface Module to form a complete signal acquisition front-end. Engineers specifying this transducer for new installations or replacement projects benefit from its backward compatibility with legacy 3300 Series Proximitor housings and junction boxes, reducing retrofit complexity in brownfield facilities. The transducer’s 28mm armored cable configuration is particularly suited for installations requiring mechanical protection in high-vibration or chemically aggressive environments such as petrochemical columns, gas turbine enclosures, and rotating kiln drives.

From a system architecture perspective, the 330800-28-00-085-02-02 supports both radial vibration and axial position measurement depending on mounting orientation, making it a versatile component across multiple machine train monitoring points. When deployed alongside the 3300 XL 5mm Proximity Transducer System for smaller shaft diameters or the 330180 Velomitor Piezo-Velocity Sensor for seismic measurements, engineers can construct a comprehensive, multi-parameter monitoring architecture from a single vendor ecosystem — simplifying spare parts management, calibration procedures, and long-term maintenance contracts.

Supply chain continuity is a critical consideration for plant engineers managing multi-year maintenance cycles. The 330800-28-00-085-02-02 is stocked and available for shipment arranged after confirmation, supported by a warranty terms confirmed during quotation covering manufacturing defects and performance conformance. This warranty, combined with full system integration support within the Bently Nevada 3500 platform, ensures that replacement units can be installed and commissioned without requiring system-wide reconfiguration or firmware updates.

Product Specification Table

System Compatibility Notes

The 330800-28-00-085-02-02 achieves its full operational value when deployed as part of a coordinated Bently Nevada monitoring architecture. In a typical turbine protection system, this transducer feeds shaft displacement data to the 3500/42M Proximitor Seismic Monitor, which processes the signal and transmits alarm and trip outputs to the plant DCS. The 3500/15 Power Supply Module provides regulated -24 VDC to the transducer loop, while the 3500/20 Rack Interface Module manages communication between the monitoring rack and the control network.

For multi-point machine train monitoring, the 330800-28-00-085-02-02 is commonly deployed alongside the 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor to form a complete eddy-current measurement chain. In applications requiring seismic velocity measurement at bearing housings, the 330180 Velomitor Piezo-Velocity Sensor complements the proximity transducer by capturing high-frequency structural vibration that eddy-current systems are not designed to measure. Together, these sensors provide a complete vibration signature for rotating machinery health assessment.

At the human-machine interface layer, vibration data from the 330800-28-00-085-02-02 is visualized through System 1 Condition Monitoring Software, which aggregates trend data, alarm histories, and spectral analysis from all connected 3500 Rack modules. For installations requiring local display, the 3500/94 TMR Relay Module provides hardwired trip outputs that interface directly with the machine’s emergency shutdown system, independent of the DCS communication layer — ensuring protection continuity even during network faults.

In redundant architecture designs, dual 330800-series transducers are mounted at 90° intervals around the shaft to provide X-Y vibration vectors, enabling orbit plot analysis and precise identification of rotor dynamic faults such as unbalance, misalignment, and oil whirl. This configuration, supported natively by the 3500 platform’s 3500/40M Proximitor Monitor, is standard practice in API 670-compliant machinery protection systems for critical rotating equipment in oil and gas, power generation, and petrochemical facilities.

Industrial Application Notes

The 330800-28-00-085-02-02 is deployed across a wide range of process industries where rotating machinery reliability is directly linked to production continuity and safety compliance. In power generation facilities, this transducer monitors shaft displacement on steam turbines and gas turbines, providing the primary vibration signal for API 670 machinery protection systems. Trip setpoints configured in the 3500 Rack protect turbine bearings from catastrophic failure during load transients or lubrication system faults.

In petrochemical and refinery applications, the 330800-28-00-085-02-02 is installed on centrifugal compressors, reactor agitators, and boiler feed pumps — equipment where vibration excursions can indicate impeller fouling, seal degradation, or rotor instability. The transducer’s armored cable construction provides mechanical protection in environments where process piping, thermal insulation, and chemical exposure present installation challenges.

For water treatment and municipal infrastructure projects, this transducer monitors large vertical turbine pumps and blower trains, where bearing wear monitoring reduces unplanned outages in facilities operating with minimal maintenance staffing. In mining and mineral processing, the 330800-28-00-085-02-02 is applied to SAG mill pinion bearings, crusher drives, and slurry pump trains — environments characterized by high shock loading and abrasive contamination that accelerate bearing wear rates.

In packaging and discrete manufacturing lines, the transducer supports condition-based maintenance programs on high-speed spindles and conveyor drive systems, reducing scheduled downtime by replacing fixed-interval bearing replacements with data-driven maintenance decisions. Across all these applications, the 330800-28-00-085-02-02’s system integration capability within the Bently Nevada 3500 platform ensures that vibration data is available to plant historians, MES systems, and predictive maintenance platforms without requiring additional signal conditioning hardware.

Product Compatibility FAQ

Q1: Is the 330800-28-00-085-02-02 compatible with existing 3300 Series Proximitor housings and junction boxes?
Yes. The 330800-28-00-085-02-02 is designed for full backward compatibility with 3300 Series Proximitor housings, junction boxes, and extension cable assemblies. The coaxial connector interface and electrical specifications conform to the 3300 XL platform standard, allowing direct replacement of legacy transducers without modification to existing conduit runs, junction box wiring, or Proximitor sensor configurations. This compatibility significantly reduces retrofit labor costs in brownfield installations.

Q2: Can this transducer be used in a redundant (dual-transducer) configuration for API 670 compliance?
Yes. API 670 machinery protection standards for critical rotating equipment require dual transducers mounted at 90° (X-Y configuration) for radial vibration measurement. The 330800-28-00-085-02-02 is fully qualified for this configuration when paired with the Bently Nevada 3500/40M or 3500/42M monitor modules, which natively support dual-channel proximity inputs and provide independent alarm and trip outputs for each measurement plane. This architecture ensures that a single transducer failure does not compromise the machine protection function.

Q3: What does the warranty terms confirmed during quotation cover, and how does it apply to system integration scenarios?
The warranty terms confirmed during quotation covers manufacturing defects, electrical performance non-conformance, and mechanical integrity of the transducer assembly from the date of shipment. In system integration scenarios where the 330800-28-00-085-02-02 is installed as part of a larger 3500 Rack monitoring system, warranty claims are processed based on the transducer’s individual performance specifications — independent of other system components. Warranty replacement units are shipped with factory calibration certificates, ensuring that reinstallation into an existing system integration architecture requires no additional field calibration steps.
