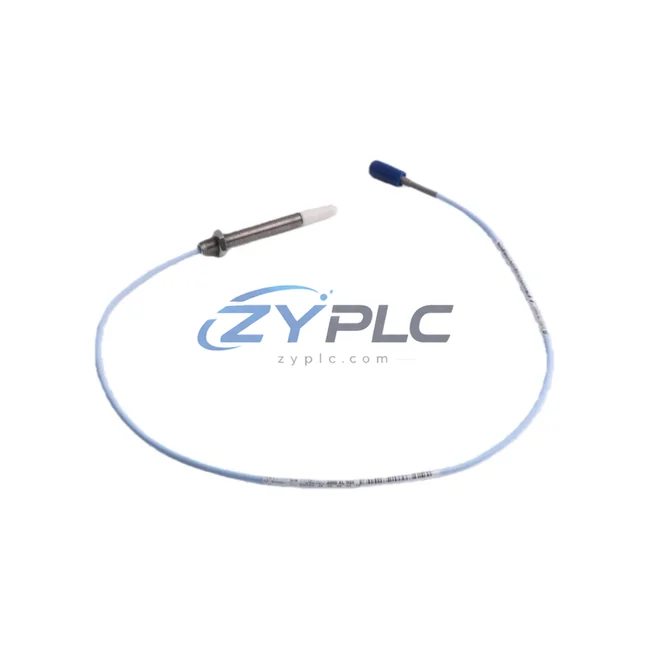

Bently Nevada 330903-00-09-05-02-CN Extension Cable

Bently Nevada 330903-00-09-05-02-CN Extension Cable for 3300 Series Automation

The Bently Nevada 330903-00-09-05-02-CN is a precision-engineered extension cable designed for the 3300 Series proximity probe system — one of the most widely deployed vibration and position monitoring platforms in industrial rotating machinery. In energy-intensive production environments, signal integrity between the proximity probe and the Bently Nevada 3300 XL proximitor sensor is not merely a connectivity concern; it is a direct factor in how accurately the control system reads shaft displacement, bearing wear, and rotor dynamics. Poor cable performance introduces signal noise, increases diagnostic uncertainty, and ultimately forces maintenance teams into reactive rather than predictive workflows — a pattern that drives up both unplanned downtime and unplanned downtime costs.

The 330903-00-09-05-02-CN extension cable eliminates this uncertainty. With a rated cable length of 5 meters (the “-05” designation in the SKU) and full compatibility with the 3300 Series proximitor driver electronics, this cable maintains the low-capacitance, shielded signal path required for accurate eddy-current proximity measurements. When the sensor chain — probe, extension cable, and proximitor — operates within its calibrated parameters, the 3300 XL system can detect shaft displacement changes as small as a few microns, enabling the plant’s condition monitoring platform to flag developing faults before they escalate into catastrophic failures or energy-wasting imbalance conditions.

Product Specification Table

System Compatibility and Application

In a modern industrial plant, energy efficiency is not achieved by a single device — it is the result of a tightly integrated measurement and control chain. The Bently Nevada 330903-00-09-05-02-CN extension cable sits at the sensing layer of this architecture, bridging the 3300 Series proximity probe to the proximitor electronics that feed real-time shaft position data into the plant’s machinery protection and condition monitoring infrastructure.

At the protection layer, the Bently Nevada 3500/22M Transient Data Interface and the 3500/42M Proximitor I/O Module receive the analog signals carried through this extension cable and convert them into actionable vibration and position data. These modules communicate over standard industrial protocols — including Modbus TCP and FOUNDATION Fieldbus — to the plant’s distributed control system (DCS) or SCADA platform, where operators can monitor real-time energy consumption patterns alongside mechanical health indicators.

On the drive side, variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 adjust motor speed based on load demand signals derived partly from the vibration data that this cable helps deliver. When the 3300 Series system detects that a pump or compressor is operating with elevated vibration — often a sign of cavitation, misalignment, or bearing wear — the control system can instruct the VFD to reduce speed or trigger an alarm, preventing the motor from consuming excess energy while running in a degraded mechanical state.

The Bently Nevada System 1 software platform aggregates data from multiple 3500 Series rack modules, including inputs from 3300 Series probe systems connected via cables like the 330903-00-09-05-02-CN, and applies trend analysis algorithms to identify developing faults weeks or months before failure. This predictive capability directly reduces the energy penalty associated with running deteriorating equipment at full load — a compressor with worn seals, for example, may consume 15–25% more energy than a healthy unit running the same process duty.

For I/O integration, the 3500 Series rack communicates with plant-level Ethernet I/P or Profibus DP networks, feeding data to Rockwell Automation ControlLogix or Siemens S7-400 PLCs that manage broader production line sequencing. The accuracy of the proximity measurement — which depends directly on the signal integrity maintained by the 330903-00-09-05-02-CN cable — determines how confidently the PLC can act on machinery health data without requiring manual inspection cycles that interrupt production rhythm and increase idle energy consumption.

Power quality monitoring instruments, such as the Fluke 435-II or Schneider Electric PowerLogic ION7650, installed at the motor control center (MCC) level, can correlate electrical power draw anomalies with the mechanical vibration trends captured by the 3300 Series system. When both datasets align — elevated current draw coinciding with rising vibration amplitude — maintenance teams have high-confidence evidence to schedule targeted intervention, avoiding both premature replacement and run-to-failure scenarios that waste energy and materials.

Maintenance and Replacement Notes

Consider a gas turbine-driven compressor train in a petrochemical facility. The compressor shaft runs at 12,000 RPM, and the plant’s maintenance planning system targets a specific shaft displacement envelope to ensure the compressor operates at its aerodynamic design point — the condition of maximum efficiency. The Bently Nevada 3300 Series proximity probes, connected through 330903-00-09-05-02-CN extension cables to the 3300 XL proximitor sensors, continuously measure radial shaft position relative to the bearing housing. Any deviation from the target displacement band — caused by rotor imbalance, bearing wear, or process surge — is immediately visible in the 3500 Series machinery protection rack.

When the system detects a trend toward the alarm threshold, the plant’s DCS can automatically reduce compressor load via the anti-surge control valve, preventing a surge event that would not only risk mechanical damage but would also cause a sharp spike in energy consumption as the compressor recycles gas. This closed-loop response — from proximity measurement through the 330903-00-09-05-02-CN cable, through the proximitor, through the 3500 rack, to the DCS, and finally to the control valve — happens in milliseconds, far faster than any manual intervention.

In a paper mill or steel rolling line, where large induction motors drive process rolls at variable speeds, the same 3300 Series measurement chain helps identify bearing defects at an early stage. A bearing running with a developing spall will show characteristic vibration signatures in the proximity data long before it causes a forced outage. By scheduling bearing replacement during a planned maintenance window rather than responding to an emergency breakdown, the plant avoids the energy cost of an uncontrolled restart — which typically consumes 3–5 times the steady-state energy of a controlled startup — and maintains production line throughput at its optimized pace.

The 330903-00-09-05-02-CN is fully tested before shipment and backed by a warranty terms confirmed during quotation, ensuring that the measurement chain it supports remains reliable throughout the warranty period. Stock availability allows for rapid deployment in both new installations and replacement scenarios, minimizing the time that a machine runs unmonitored — and therefore unoptimized — between a cable failure and its replacement.

Product Sourcing FAQ

Q1: How does the 330903-00-09-05-02-CN extension cable contribute to operational stability in rotating machinery applications?
The cable maintains the signal integrity of the 3300 Series proximity measurement chain, enabling accurate real-time shaft position monitoring. This accuracy is the foundation of predictive maintenance strategies that prevent machinery from operating in degraded, energy-inefficient states. By catching developing faults early, plants avoid the excess energy consumption associated with imbalanced rotors, worn bearings, and process inefficiencies caused by mechanical deterioration.

Q2: Is the 330903-00-09-05-02-CN compatible with the Bently Nevada 3500 Series Machinery Protection System?
Yes. The 330903-00-09-05-02-CN is designed for use within the 3300 Series probe system, which is fully compatible with the 3500 Series rack-based machinery protection platform. The extension cable connects the proximity probe to the 3300 XL proximitor sensor, whose output feeds directly into 3500 Series I/O modules such as the 3500/42M Proximitor I/O Module.

Q3: Can this cable replace a damaged or out-of-spec extension cable in an existing 3300 Series installation?
Yes. The 330903-00-09-05-02-CN is a direct replacement for the same part number in existing 3300 Series installations. When replacing a cable, it is important to verify that the total system cable length (probe cable + extension cable) matches the calibrated range of the proximitor sensor. The “-09-05” designation in this SKU indicates a 9-meter total system length with a 5-meter extension segment, which must match the original system configuration to maintain calibration accuracy.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330903-00-09-05-02-CN unit is functionally tested before shipment to verify electrical continuity, shielding integrity, and connector condition. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are replaced or refunded. For applications where cable reliability is critical to continuous plant operation, we recommend maintaining a spare unit in inventory to eliminate any monitoring gap during a replacement event.
