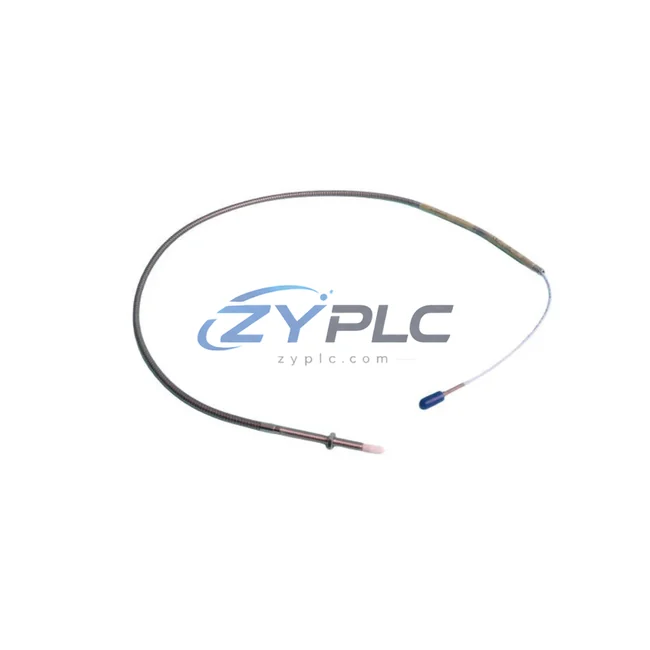

Bently Nevada 330910-00-23-10-01-00 Proximity Transducer 3300 Series

Bently Nevada 330910-00-23-10-01-00 Proximity Transducer 3300 Series: Replacement and Sourcing Information for Optimized Production Lines

In modern industrial facilities where uptime directly translates to profitability, the Bently Nevada 330910-00-23-10-01-00 proximity transducer stands as a critical component in the industrial automation system of rotating machinery protection systems. Engineered as part of the renowned Bently Nevada 3300 Series — one of the most trusted vibration monitoring platforms in the oil & gas, power generation, petrochemical, and heavy manufacturing industries — this transducer delivers the precise, real-time shaft displacement data that drives intelligent maintenance planning and predictive maintenance decisions across the plant floor.

Unlike passive sensing elements that simply relay raw signals, the 330910-00-23-10-01-00 operates within a tightly integrated eddy-current sensing system. Working in conjunction with the Bently Nevada 330130 extension cable and the 330180 proximitor sensor, it forms a complete non-contact measurement chain capable of detecting radial shaft vibration, axial position, and differential expansion with micron-level resolution. This level of measurement fidelity is what allows plant engineers to move from reactive maintenance cycles — which consume disproportionate energy through unplanned restarts, thermal cycling, and emergency load balancing — toward a structured predictive maintenance regime that keeps machines running at their optimal efficiency point.

The transducer’s 23mm probe tip length and 10mm target area geometry, encoded in its SKU designation, are specifically matched to rotor surface characteristics in mid-to-large rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and induced draft fans. When shaft vibration begins to deviate from baseline — whether due to imbalance, misalignment, bearing wear, or rotor rub — the 330910-00-23-10-01-00 captures that deviation in real time and transmits a conditioned voltage signal to the Bently Nevada 3500/42M Proximitor Seismic Monitor or the 3500/22M Transient Data Interface rack module. These rack-mounted monitors process the signal and trigger alarm or trip outputs before catastrophic failure occurs, protecting both the machine and the energy investment embedded in its operation.

Product Specification Table

System Compatibility and Application

The true maintenance planning value of the Bently Nevada 330910-00-23-10-01-00 emerges when it is viewed not as a standalone sensor, but as the front-end data acquisition node of a plant-wide efficiency control loop. In a typical large-scale rotating machinery installation, the signal chain begins here at the probe tip and flows upstream through the Bently Nevada 330130-080-00-00 extension cable, which maintains signal integrity over distances up to 9 meters between the machine casing and the proximitor housing.

The conditioned output from the Bently Nevada 330180-X1-05 proximitor sensor feeds directly into the 3500/42M Proximitor Seismic Monitor housed in the 3500 Rack System. This rack communicates machine health data via Modbus TCP or OPC-UA to the plant’s SCADA or DCS platform — such as a Honeywell Experion PKS or Emerson DeltaV system — where operating load trends are correlated with vibration signatures. When a compressor begins drawing 8% more current than its baseline while simultaneously showing elevated 1X vibration amplitude, the system flags this as an early-stage imbalance condition rather than a normal load variation, allowing maintenance to be scheduled during a planned low-production window rather than during peak energy tariff hours.

At the drive level, variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 series receive speed reference signals from the DCS, but their efficiency optimization is only possible when the mechanical health of the driven equipment is known. The 330910-00-23-10-01-00 provides that mechanical health baseline. A pump running with a worn impeller will exhibit characteristic sub-synchronous vibration; a compressor with a fouled rotor will show amplitude growth at blade-pass frequency. Without proximity transducer data feeding the control loop, VFD speed optimization algorithms operate blind — reducing speed to save energy while the machine is actually degrading faster due to undetected mechanical stress.

For facilities running Bently Nevada System 1 software on their condition monitoring servers, the 330910-00-23-10-01-00 data stream integrates natively, enabling trend analysis, alarm rationalization, and energy-correlated health scoring across entire machine trains. This integration reduces the manual inspection burden on maintenance teams, freeing technician hours for higher-value tasks while ensuring that no machine is allowed to operate in an energy-inefficient degraded state undetected.

Maintenance and Replacement Notes

Consider a petrochemical plant operating six centrifugal compressors in parallel, each consuming between 2.5 MW and 4 MW depending on process load. Without reliable shaft displacement monitoring, operators must apply conservative safety margins to all operating parameters — running machines at lower speeds, scheduling more frequent shutdowns for inspection, and maintaining larger spare parts inventories as insurance against unexpected failures. Each of these conservative practices carries a direct energy cost: lower speed means less throughput per kWh consumed; more frequent shutdowns mean more energy-intensive restart cycles; larger inventories mean more warehouse climate control and logistics energy.

The Bently Nevada 330910-00-23-10-01-00, deployed as part of a complete 3300 XL NSv proximity transducer system on each compressor, eliminates the need for these conservative margins. With continuous, high-resolution shaft position data available to the control system, operators can push each machine closer to its best efficiency point (BEP) with confidence. The 3500/22M Transient Data Interface captures startup and shutdown transient data, allowing engineers to optimize acceleration ramps and reduce the thermal and electrical stress of each start cycle — directly reducing per-start operating load.

In power generation applications, where steam turbines must respond rapidly to grid frequency deviations, the proximity transducer system provides the rotor position feedback that allows turbine control systems to execute fast load changes without exceeding vibration trip thresholds. This capability reduces the frequency of unnecessary turbine trips — each of which requires a full cold-start sequence consuming significant fuel and electrical energy before the unit returns to synchronization. Plants that have upgraded from older 330900 series transducers to the current 330910 geometry have reported measurable reductions in nuisance trips due to improved signal linearity and reduced sensitivity to temperature-induced zero drift.

Maintenance cost reduction is the third pillar of maintenance planning enabled by this transducer. Bearing replacements, seal changes, and rotor balancing operations all consume energy — both the direct energy of the maintenance activity and the indirect energy cost of the production loss during the maintenance window. By providing early warning of developing faults, the 330910-00-23-10-01-00 allows these interventions to be planned, batched, and executed during scheduled low-production periods, minimizing both the maintenance energy footprint and the opportunity cost of lost production capacity.

All units supplied by ZYPLC undergo functional verification testing prior to dispatch, confirming output linearity, gap voltage response, and cable continuity. Availability confirmed by RFQ inventory ensures short lead times for both planned maintenance replacements and emergency procurement scenarios, supporting plant maintenance planning programs without supply chain disruption.

Product Sourcing FAQ

Q1: How does the 330910-00-23-10-01-00 contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this proximity transducer enables plant operators to run rotating equipment closer to its best efficiency point with confidence. Early detection of imbalance, misalignment, and bearing degradation prevents the unplanned downtime associated with machines operating in degraded mechanical states, reduces unplanned shutdown restart cycles, and supports VFD optimization algorithms with accurate mechanical health data.

Q2: Is the 330910-00-23-10-01-00 compatible with existing Bently Nevada 3500 Series monitoring racks and System 1 software?
Yes. The 330910-00-23-10-01-00 is designed as part of the 3300 XL NSv system and is fully compatible with Bently Nevada 3500 Series rack monitors, including the 3500/42M Proximitor Seismic Monitor and 3500/22M Transient Data Interface. It integrates natively with Bently Nevada System 1 condition monitoring software for trend analysis and alarm management.

Q3: Can this transducer replace older 330900 series proximity probes without system reconfiguration?
In most installations, the 330910-00-23-10-01-00 can serve as a direct functional replacement for earlier 330900 series probes with matching geometry specifications. However, it is recommended to verify probe length, cable length, and proximitor model compatibility before installation. ZYPLC’s technical team can assist with cross-reference verification to ensure a seamless replacement without monitor recalibration.

Q4: What testing is performed before dispatch, and what does the warranty terms confirmed during quotation cover?
Every 330910-00-23-10-01-00 unit supplied by ZYPLC is tested for output linearity, gap voltage response across the full measurement range, and cable/connector continuity before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of this SKU to support both planned maintenance schedules and emergency replacement requirements with minimal lead time.
