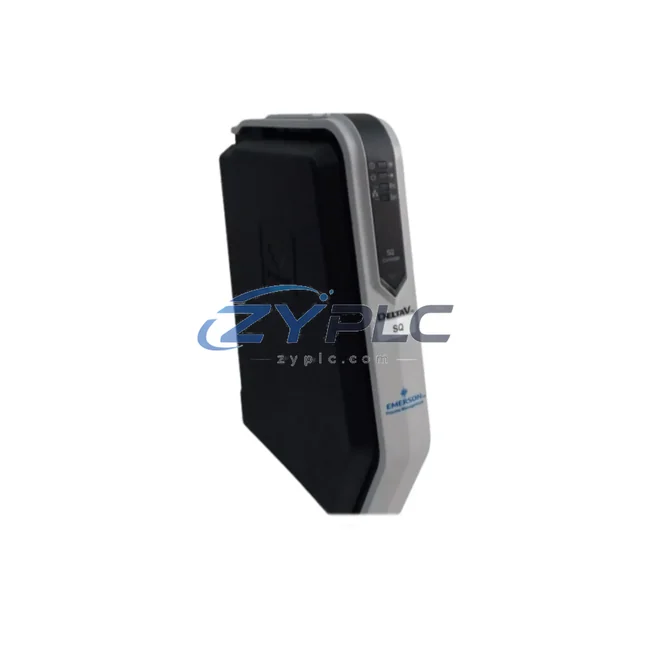

Emerson KJ2005X1-SQ1 12P6383X022 SIS Logic Solver for DeltaV SIS

Emerson KJ2005X1-SQ1 12P6383X022 SIS Logic Solver for DeltaV SIS

The Emerson KJ2005X1-SQ1 12P6383X022 is a dedicated Safety Instrumented System (SIS) Logic Solver engineered for seamless integration within the DeltaV SIS distributed control architecture. Designed to meet the rigorous demands of IEC 61511-compliant safety loops, this module occupies a critical position at the safety control layer — bridging field-level sensor inputs with the broader process automation network. Its role extends beyond standalone safety execution: it functions as a coordinated node within a layered automation hierarchy, enabling consistent safety response, deterministic logic execution, and full system integration with the DeltaV process control domain.

In modern industrial facilities — spanning oil and gas, petrochemical refining, power generation, water treatment, and advanced manufacturing — safety and process control systems must operate in tight coordination. The KJ2005X1-SQ1 achieves this by sharing a unified engineering environment with the DeltaV DCS platform, allowing safety logic to be configured, diagnosed, and maintained through the same DeltaV Explorer and DeltaV Operate interfaces used for process control. This eliminates the engineering silos that traditionally separate SIS and BPCS (Basic Process Control System) domains, reducing lifecycle costs and improving system-wide visibility.

The module installs into the DeltaV SIS carrier and controller chassis, operating alongside components such as the KJ2005X1-BA1 SIS controller base, KJ3001X1-BA1 SIS I/O carrier, and KJ3221X1-BB1 SIS analog input module. Within the I/O layer, it interfaces with discrete and analog field devices — pressure transmitters, temperature sensors, emergency shutdown valves, and flame detectors — through dedicated SIS I/O modules that maintain signal integrity and channel isolation. The logic solver’s deterministic scan cycle ensures that safety function response times remain within the SIL-rated requirements for each safety instrumented function (SIF).

At the network layer, the KJ2005X1-SQ1 communicates over the DeltaV SIS network infrastructure, which supports redundant Ethernet-based communication between the SIS controller, the DeltaV workstation, and the process historian. This architecture supports integration with the CHARM I/O system for remote I/O marshalling, and can interface with third-party systems via OPC DA/UA gateways where cross-platform data exchange is required. The redundant network topology ensures that a single cable or switch failure does not interrupt safety function execution or diagnostic reporting.

Power supply integrity is maintained through dedicated SIS power conditioners and redundant 24 VDC supply modules, which are isolated from the BPCS power domain to prevent common-cause failures. The KJ2005X1-SQ1 supports online diagnostics that continuously monitor internal hardware health, I/O channel status, and communication link integrity — reporting fault conditions to the DeltaV Operate HMI and the DeltaV Event Chronicle for audit trail compliance. This diagnostic transparency is essential for facilities operating under functional safety management systems and periodic proof test regimes.

From a system expansion perspective, the DeltaV SIS architecture supports modular scaling: additional SIS I/O carriers and logic solver modules can be added to the same controller network without requiring a full system redesign. This modularity is particularly valuable in phased plant expansions, where new process units must be integrated into an existing safety architecture with minimal disruption to ongoing operations. The KJ2005X1-SQ1 supports this growth model by maintaining backward compatibility with existing DeltaV SIS firmware versions and engineering databases.

For maintenance engineers, the module’s hot-swap capability — supported within the DeltaV SIS carrier design — allows replacement of a failed logic solver without de-energizing the entire safety loop, provided the redundant controller is active. This feature significantly reduces mean time to repair (MTTR) and supports the high-availability requirements of continuous process industries. Combined with the warranty terms confirmed during quotation provided on this unit, procurement and maintenance teams can plan replacement cycles with confidence, knowing that the module has been fully tested and verified prior to shipment.

The KJ2005X1-SQ1 12P6383X022 is supplied tested, inspected, and ready for installation. It is compatible with the full DeltaV SIS ecosystem, including the DeltaV SIS workstation software, DeltaV Operate for SIS, and the DeltaV SIS on DeltaV controller platform. Whether deployed in a new greenfield SIS installation or as a replacement module in an existing safety system, this logic solver delivers the reliability, diagnostic depth, and system integration required for long-term safe operation.

Product Specification Table

System Compatibility Notes

The KJ2005X1-SQ1 does not operate in isolation — its value is realized through coordinated deployment within a complete DeltaV SIS control architecture. At the controller level, it works in conjunction with the KJ2005X1-BA1 SIS controller base and, where redundancy is required, a paired redundant logic solver module to ensure continuous safety function execution during planned maintenance or unplanned hardware events. The KJ3001X1-BA1 SIS I/O carrier provides the physical mounting and backplane connectivity for SIS I/O modules, while the KJ3221X1-BB1 SIS analog input module handles 4–20 mA field signals from process transmitters.

At the field device interface, the system connects to emergency shutdown valves, solenoid valve assemblies, and final control elements through SIS discrete output modules, maintaining the electrical isolation and diagnostic capability required for SIL-rated final elements. The DeltaV CHARM I/O system extends the reach of the SIS architecture to remote marshalling cabinets, reducing field wiring costs in large-footprint facilities. For human-machine interface, the DeltaV Operate for SIS workstation provides operators with real-time safety loop status, bypass management, and alarm annunciation — all integrated within the same operator display used for process control.

Power distribution to the SIS controller network is managed through dedicated SIS power supply modules and redundant 24 VDC bus arrangements, physically separated from the BPCS power domain. Communication between the SIS controller and the DeltaV workstation traverses a redundant Ethernet switch infrastructure, with the DeltaV SIS network isolated from the plant business network to prevent cybersecurity exposure. This layered architecture — from field sensor through I/O module, logic solver, network, and HMI — ensures that the KJ2005X1-SQ1 operates within a fully validated, IEC 61511-compliant safety system boundary.

Industrial Application Notes

The Emerson KJ2005X1-SQ1 12P6383X022 is deployed across a wide range of process industries where functional safety is a regulatory and operational requirement. In oil and gas upstream and midstream facilities, it executes emergency shutdown (ESD) and high-integrity pressure protection system (HIPPS) functions, responding to overpressure or leak detection events within the required SIL response time. In petrochemical and refining plants, it manages burner management system (BMS) logic and reactor safety interlocks, where a missed safety function could result in catastrophic process upset.

In power generation facilities — including combined-cycle gas turbine plants and cogeneration units — the KJ2005X1-SQ1 supports turbine protection and boiler safety shutdown systems, integrating with the plant DCS for coordinated startup and shutdown sequencing. Water and wastewater treatment facilities use the DeltaV SIS platform for pump protection, chemical dosing safety interlocks, and high-level shutdown functions in storage and treatment tanks. In mining and minerals processing, the module supports conveyor protection, crusher interlock, and ventilation safety systems in underground and surface operations.

Across all these applications, the KJ2005X1-SQ1’s system integration with the DeltaV process control domain provides a unified view of both safety and process data — enabling operations teams to make informed decisions during abnormal situations without switching between separate HMI systems. This integration, combined with the module’s warranty terms confirmed during quotation and verified pre-shipment testing, makes it a reliable choice for both new installations and maintenance replacement programs in critical process industries.

Product Compatibility FAQ

Q1: Is the KJ2005X1-SQ1 12P6383X022 compatible with my existing DeltaV SIS system, and does it require a firmware upgrade?
The KJ2005X1-SQ1 is designed for the DeltaV SIS platform and is compatible with DeltaV SIS controller carriers and I/O infrastructure. Firmware compatibility depends on the DeltaV SIS software version running in your system. It is recommended to verify the module’s firmware revision against your current DeltaV SIS engineering database before installation. In most cases, the module can be integrated without a full system firmware upgrade, but a DeltaV SIS software compatibility check should be performed during the engineering review phase.

Q2: Can this logic solver be installed as a hot-swap replacement without shutting down the safety system?
Hot-swap replacement is supported within the DeltaV SIS architecture when a redundant logic solver is active and the safety system is in a healthy redundant state. The replacement procedure requires following the DeltaV SIS maintenance bypass and module replacement protocol to ensure that the safety function remains active during the swap. It is strongly recommended to perform this operation under a formal management of change (MOC) process and with a qualified DeltaV SIS engineer present to verify system status before and after the replacement.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for a warranty claim?
The warranty terms confirmed during quotation covers hardware defects and functional failures identified under normal operating conditions within 12 months of the shipment date. Each unit is tested and verified prior to shipment to confirm correct operation. In the event of a warranty claim, contact our technical support team at plc.sales@zyplc.com or +86 19859288691 with the module part number, serial number, and a description of the observed fault. Our team will coordinate the return, inspection, and replacement or repair process to minimize downtime in your facility.
