Emerson KJ3242X1-BA1 12P2471X052 Industrial Network Interface for DeltaV Systems

Emerson KJ3242X1-BA1 12P2471X052: Industrial Data Link for Smart Factory Connectivity

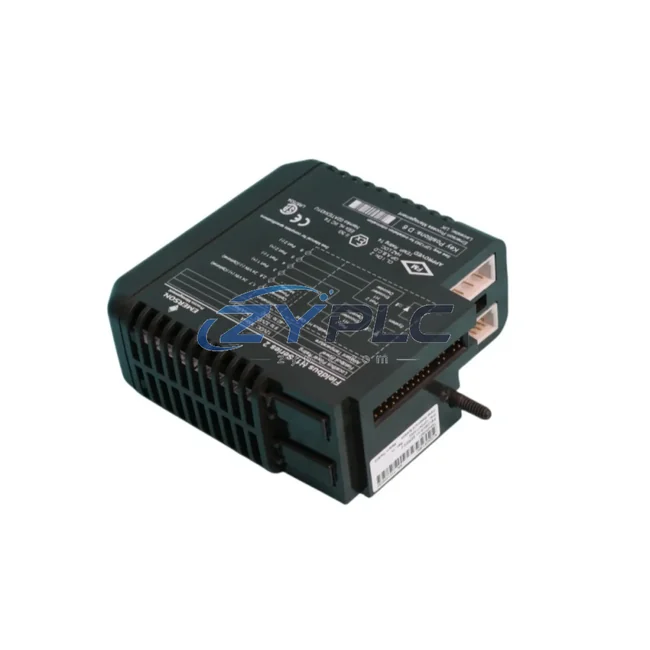

The Emerson KJ3242X1-BA1 12P2471X052 is a FOUNDATION Fieldbus H1 card module engineered for the DeltaV Distributed Control System (DCS) platform. Designed to serve as a critical industrial network interface, this module bridges field-level instrumentation — including transmitters, positioners, and smart sensors — with the DeltaV controller backbone, enabling deterministic, real-time process data exchange across the entire automation hierarchy. In smart factory environments where data integrity and communication latency directly impact production efficiency, the KJ3242X1-BA1 12P2471X052 delivers the protocol-level reliability that modern industrial sites demand.

From signal acquisition at the field device layer through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, this Fieldbus card module occupies a foundational role in the industrial data chain. It supports bidirectional communication between field instruments and the DeltaV DCS host, enabling continuous process variable updates, device health monitoring, and configuration management — all without interrupting live production operations.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical DeltaV-based process automation architecture, the KJ3242X1-BA1 12P2471X052 acts as the network gateway between the physical process layer and the digital control layer. Field instruments such as Emerson Rosemount 3051 pressure transmitters and Fisher FIELDVUE DVC6200 digital valve controllers connect directly to the H1 Fieldbus segment managed by this card. The module continuously polls device process variables, diagnostic parameters, and status flags, forwarding structured data packets upstream to the DeltaV MD Plus or MD Controller over the DeltaV backplane.

Within the DeltaV system, the controller processes this real-time field data and executes control strategies — PID loops, cascade controls, and interlock logic — before passing setpoints and output commands back down through the KJ3242X1-BA1 to the connected field devices. This closed-loop data path eliminates the signal degradation and latency associated with legacy 4–20 mA analog wiring, replacing it with a fully digital, self-describing communication architecture.

At the supervisory level, DeltaV Operate (the integrated HMI/SCADA environment) receives live process data from the controller, enabling operators to monitor trends, acknowledge alarms, and execute remote setpoint adjustments in real time. For sites running OSIsoft PI or third-party SCADA platforms, the DeltaV OPC DA/UA server exports tag data from the Fieldbus network — including device diagnostics captured by the KJ3242X1-BA1 — to historian and analytics systems without additional protocol conversion hardware.

Remote I/O expansion is supported through DeltaV CHARM I/O cards and CIOC (Cabinet I/O Controller) modules, which can coexist on the same DeltaV network alongside Fieldbus segments. For wireless field devices, the Emerson Wireless THUM Adapter or WirelessHART Gateway integrates seamlessly with the DeltaV host, complementing the wired FF-H1 segments managed by the KJ3242X1-BA1. Variable frequency drives such as the Emerson Control Techniques Commander series can also be networked into the DeltaV environment via PROFIBUS DP or HART multiplexers, with the KJ3242X1-BA1 handling the Fieldbus segment independently within the same controller chassis.

Edge computing nodes — including Emerson PACEdge or third-party Linux-based gateways — can subscribe to DeltaV OPC UA data streams, enabling local analytics, machine learning inference, and IIoT data forwarding to cloud platforms such as Emerson Plantweb Optics or AspenTech Industrial AI, all anchored by the real-time field data flowing through the KJ3242X1-BA1 12P2471X052.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process automation is the coexistence of multiple communication protocols across different generations of field equipment. Legacy 4–20 mA instruments, HART-enabled smart devices, PROFIBUS DP nodes, and FOUNDATION Fieldbus segments often operate in parallel on the same plant floor, creating data silos that prevent unified monitoring and control. The Emerson KJ3242X1-BA1 12P2471X052 directly addresses the Fieldbus segment of this challenge by providing a standardized, IEC 61158-compliant digital communication interface that integrates natively with the DeltaV DCS host.

By replacing point-to-point analog wiring with a multi-drop digital bus, the KJ3242X1-BA1 enables a single H1 segment to carry process variables, device diagnostics, and control signals from multiple field instruments simultaneously. This consolidation reduces wiring complexity, lowers installation costs, and — critically — makes previously invisible device-level data (valve travel accumulation, sensor drift indicators, loop diagnostic alerts) visible to operators and maintenance teams through DeltaV Operate and AMS Device Manager.

For production line transparency, the module supports Emerson’s PlantWeb digital plant architecture, where device health alerts generated at the field instrument level propagate through the Fieldbus segment to AMS Device Manager, triggering predictive maintenance workflows before equipment failures impact production. Remote diagnostics via DeltaV Remote Client or secure VPN access allow engineers to interrogate field device parameters, adjust control strategies, and acknowledge alarms from off-site locations — eliminating the need for physical plant access during routine monitoring cycles.

System expansion is straightforward: additional KJ3242X1-BA1 cards can be installed in DeltaV carrier modules to increase the number of supported H1 segments as the plant grows, without requiring changes to the existing DeltaV controller configuration or SCADA integration. This scalability makes the KJ3242X1-BA1 12P2471X052 a long-term investment for facilities planning phased automation upgrades.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify H1 communication integrity, segment power delivery, and DeltaV host recognition. Stock is maintained for fast global dispatch, and all units are covered by a warranty terms confirmed during quotation.

Industrial Connectivity FAQ

Q1: What is the communication latency of the KJ3242X1-BA1 12P2471X052 on an FF-H1 segment?
FOUNDATION Fieldbus H1 operates at 31.25 kbit/s with a deterministic, scheduled communication model (LAS — Link Active Scheduler). Typical cycle times for process variable updates range from 100 ms to 1 second depending on segment device count and macrocycle configuration. For time-critical control loops, DeltaV allows prioritization of specific function block schedules to minimize effective latency.

Q2: Is the KJ3242X1-BA1 compatible with all FOUNDATION Fieldbus H1 field devices?
Yes. The module complies with the IEC 61158 / IEC 61784 FOUNDATION Fieldbus standard, ensuring interoperability with any FF-H1 certified device from manufacturers including Emerson Rosemount, Yokogawa, Endress+Hauser, ABB, and Honeywell. Device capability files (DD/CFF) are imported into DeltaV to enable full function block integration.

Q3: Can this module support network redundancy for high-availability applications?
The KJ3242X1-BA1 is designed for use within DeltaV’s redundant controller architecture. When paired with a redundant DeltaV MD Controller pair, the system provides automatic failover at the controller level. For segment-level redundancy, FOUNDATION Fieldbus HSE (High Speed Ethernet) backbone configurations can be implemented alongside H1 segments for critical process areas.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
All KJ3242X1-BA1 12P2471X052 units supplied by ZYPLC are tested for H1 segment communication, power conditioning output, DeltaV carrier slot recognition, and firmware version verification prior to dispatch. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Replacement or repair is arranged promptly to minimize site downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for RFQ and availability.
