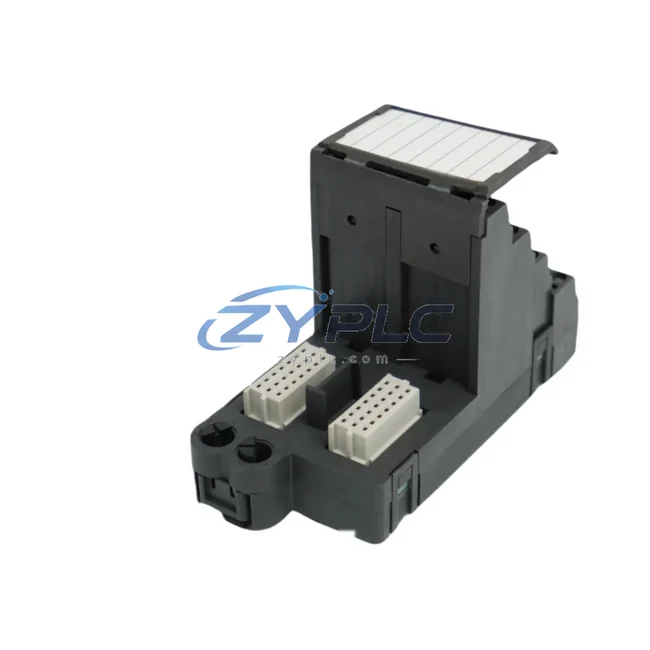

Emerson KJ4001X1-CJ1 12P1902X062 Terminal Block for DeltaV

Emerson KJ4001X1-CJ1 12P1902X062 Terminal Block for DeltaV

The Emerson KJ4001X1-CJ1 12P1902X062 is a precision-engineered terminal block designed to serve as a critical field-wiring interface within the Emerson DeltaV distributed control system (DCS) architecture. Rather than functioning as a standalone component, this terminal block is purpose-built to integrate seamlessly across the control layer, I/O layer, field device layer, and power distribution layer of a complete DeltaV automation system. Its role is to ensure signal integrity, reduce wiring complexity, and support long-term maintainability in demanding industrial environments including oil and gas, chemical processing, power generation, water treatment, pharmaceutical manufacturing, and continuous process industries.

In a layered DeltaV architecture, the KJ4001X1-CJ1 12P1902X062 terminal block connects directly to Emerson DeltaV I/O subsystem cards, providing a structured and reliable termination point for field instrument signals. This design eliminates the need for intermediate marshalling panels in many configurations, reducing installation footprint and simplifying signal routing from field transmitters, control valves, and actuators back to the controller. The result is a tighter, more coherent system architecture with fewer potential failure points and improved diagnostic accessibility during commissioning and ongoing maintenance cycles.

System engineers working with the DeltaV S-series or M-series controllers will recognize the KJ4001X1-CJ1 as a standard termination component that supports the broader ecosystem of Emerson I/O cards, including analog input modules, analog output modules, discrete input modules, and discrete output modules. When paired with DeltaV CHARM (Characterization Module) I/O technology or traditional I/O subsystem cards, this terminal block ensures that field wiring is organized, labeled, and accessible for rapid fault isolation and replacement without disrupting adjacent channels or system operation.

Product Specification Table

System Compatibility Notes

The KJ4001X1-CJ1 12P1902X062 does not operate in isolation — its value is realized within a coordinated DeltaV system architecture. In a typical DeltaV installation, the control layer is anchored by an Emerson DeltaV MD Plus Controller or DeltaV MQ Controller, which manages process logic, PID loops, and sequence control. These controllers communicate with I/O subsystem cards mounted on DeltaV I/O carrier assemblies, where the KJ4001X1-CJ1 terminal block provides the physical field wiring interface.

On the power layer, DeltaV Power Supplies (such as the KJ4001X1-BA1 or equivalent redundant power modules) deliver stable DC power to the I/O subsystem, ensuring that signal termination at the KJ4001X1-CJ1 level remains uninterrupted even during partial power events. Redundant power architectures are common in DeltaV installations serving critical process units, and the terminal block’s design accommodates these configurations without requiring additional isolation hardware.

At the network layer, DeltaV system nodes communicate over the DeltaV Control Network using standard Ethernet-based protocols, while field devices connected through the KJ4001X1-CJ1 terminal block may use HART protocol for digital communication superimposed on the 4–20 mA analog signal. This allows DeltaV Asset Management Solutions (AMS) software to access device diagnostics, calibration data, and health status without interrupting the primary control signal — a significant advantage for predictive maintenance programs.

For human-machine interface (HMI) integration, DeltaV Operate workstations and DeltaV Live HMI platforms provide operators with real-time visibility into the signals terminated at the KJ4001X1-CJ1 level. Alarm management, trend displays, and faceplates are all driven by the data flowing through the I/O subsystem that this terminal block supports. In larger installations, DeltaV Batch and DeltaV Advanced Control modules further leverage the signal infrastructure established at the field termination layer.

System integrators frequently pair the KJ4001X1-CJ1 12P1902X062 with DeltaV CHARM I/O modules, DeltaV Electronic Marshalling cabinets, and DeltaV SIS (Safety Instrumented System) components to build unified control and safety architectures. This approach reduces the number of distinct termination standards across a facility, simplifies spare parts management, and supports a consistent commissioning methodology across multiple process units.

Industrial Application Notes

In petroleum refining and petrochemical processing, the KJ4001X1-CJ1 12P1902X062 is deployed in DeltaV cabinets serving reactor temperature control loops, distillation column pressure management, and compressor surge control systems. The terminal block’s reliable field wiring interface supports the high channel density required in these applications, where hundreds of analog and discrete signals must be terminated, labeled, and maintained within a compact cabinet footprint.

In power generation facilities — including combined-cycle gas turbine plants and coal-fired boiler systems — DeltaV architectures using the KJ4001X1-CJ1 terminal block manage burner management sequences, turbine speed control, and emissions monitoring I/O. The terminal block’s compatibility with HART-enabled transmitters allows plant engineers to perform remote calibration and diagnostics on pressure, temperature, and flow instruments without requiring physical access to the field device.

Water and wastewater treatment plants benefit from the KJ4001X1-CJ1’s role in DeltaV systems controlling pump stations, chemical dosing systems, and filtration process loops. The modular DeltaV architecture allows treatment plant operators to expand I/O capacity incrementally as new process units are added, with the KJ4001X1-CJ1 terminal block serving as the consistent field interface standard across all expansion phases.

In pharmaceutical and biotech manufacturing, where process validation and data integrity are regulatory requirements, the DeltaV system’s structured I/O architecture — anchored by components like the KJ4001X1-CJ1 — supports 21 CFR Part 11 compliance by providing traceable, auditable signal paths from field instruments to the control system historian. This traceability is essential for batch record documentation and process validation protocols.

Mining and minerals processing operations deploy DeltaV systems with KJ4001X1-CJ1 terminal blocks in crusher control panels, conveyor drive coordination systems, and flotation cell process control cabinets. The rugged industrial design of DeltaV I/O components ensures reliable operation in environments with elevated vibration, dust, and temperature variation.

Product Compatibility FAQ

Q1: Is the KJ4001X1-CJ1 12P1902X062 compatible with both traditional DeltaV I/O and DeltaV CHARM Electronic Marshalling systems?
The KJ4001X1-CJ1 12P1902X062 is designed for use within the DeltaV traditional I/O subsystem architecture, where it serves as the field wiring termination interface for DeltaV I/O cards mounted on carrier assemblies. For DeltaV CHARM Electronic Marshalling installations, Emerson provides dedicated CHARM terminal blocks and carriers. System architects should confirm the target I/O architecture — traditional subsystem or CHARM — before specifying terminal block part numbers to ensure full compatibility across the control cabinet design.

Q2: Can this terminal block be installed or replaced without shutting down the entire DeltaV I/O subsystem?
DeltaV I/O subsystem components, including terminal blocks like the KJ4001X1-CJ1 12P1902X062, are designed to support maintainability within the DeltaV architecture. In many DeltaV configurations, individual I/O cards and their associated terminal blocks can be accessed for inspection and replacement during planned maintenance windows with minimal impact on adjacent channels. For live system modifications, engineers should consult the DeltaV Hardware Installation Guide and follow site-specific management of change (MOC) procedures to ensure safe and compliant maintenance practices.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term DeltaV system maintenance planning?
All KJ4001X1-CJ1 12P1902X062 units supplied by ZYPLC are backed by a warranty terms confirmed during quotation covering manufacturing defects and functional performance under normal operating conditions. This warranty period supports DeltaV system maintenance planning by providing a defined coverage window during which defective units can be replaced without additional procurement cost. For facilities managing large DeltaV installations with hundreds of I/O termination points, maintaining a certified spare inventory of KJ4001X1-CJ1 terminal blocks — each covered by the warranty terms confirmed during quotation — is a recommended practice for minimizing unplanned downtime and supporting rapid fault recovery in critical process control environments.
