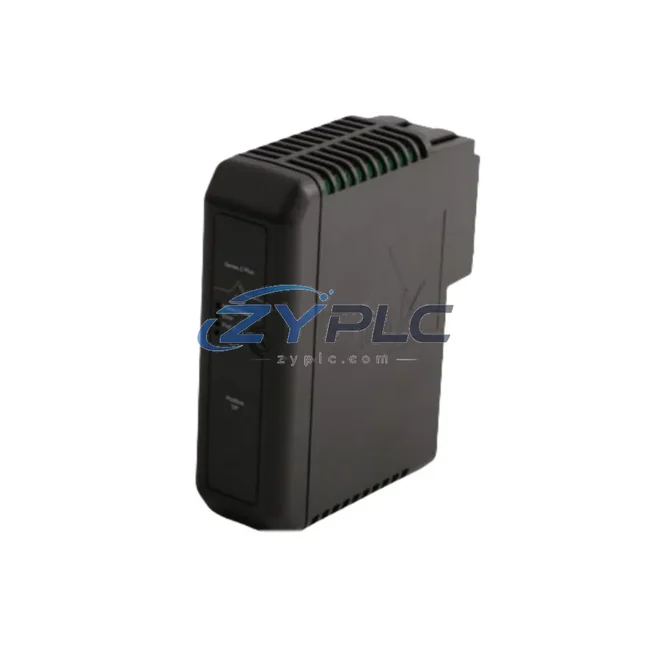

Emerson VE4022 KJ3243X1-BB1 Profibus DP Module for DeltaV

Emerson VE4022 KJ3243X1-BB1 Profibus DP Module: Control System & Upstream-Downstream Coordination

The Emerson VE4022 KJ3243X1-BB1 12P3994X052 is a Profibus DP communication module engineered for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. Rather than functioning as a standalone peripheral, this module occupies a critical position in the layered automation hierarchy — bridging the controller layer with field-level devices across Profibus DP networks. Its role spans signal acquisition, protocol translation, and real-time data exchange, making it an indispensable component for engineers designing or maintaining complex industrial control environments in manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries.

In a fully integrated DeltaV system, the VE4022 KJ3243X1-BB1 operates in coordination with the DeltaV MD Plus Controller (KJ3001X1-BA1) at the control layer, which handles logic execution and process regulation. The Profibus DP module extends the controller’s reach to field instruments — including variable frequency drives, intelligent valve positioners, and remote I/O stations — without requiring additional signal conditioning hardware. This direct integration reduces wiring complexity, lowers installation costs, and improves diagnostic transparency across the entire control loop.

At the I/O layer, the VE4022 works alongside standard DeltaV I/O cards such as the KJ3002X1-BA1 analog input module and KJ3222X1-BB1 discrete output module, sharing the same DeltaV carrier and power infrastructure. The module draws power from the DeltaV Power Supply (KJ3204X1-BA1), which provides regulated 24 VDC to the I/O subsystem. This shared power architecture ensures consistent voltage delivery across all modules in the carrier, supporting stable Profibus DP communication even under high-load conditions.

From a network layer perspective, the VE4022 KJ3243X1-BB1 supports Profibus DP-V0 and DP-V1 communication profiles, enabling both cyclic data exchange and acyclic parameter access for connected field devices. This capability is essential for systems that require online device parameterization and diagnostic readback without interrupting the control cycle. The module integrates natively with the DeltaV network infrastructure, including the DeltaV Control Network switch and redundant Ethernet backbone, ensuring that Profibus segment data is reliably aggregated and forwarded to the DeltaV workstation layer.

For human-machine interface coordination, the VE4022 feeds real-time field device data — including drive status, fault codes, and process variables — directly into the DeltaV operator workstation (DeltaV Operate) and engineering station. This system integration allows operators to monitor Profibus-connected devices from the same unified HMI environment used for all other DeltaV I/O, eliminating the need for separate Profibus configuration tools during normal operations. Engineers can also access device diagnostics through DeltaV Diagnostics, reducing mean time to repair (MTTR) during fault conditions.

At the execution layer, the VE4022 communicates with a wide range of Profibus DP-compatible field devices, including Emerson Control Valve Positioners (Fisher FIELDVUE DVC6200), ABB ACS880 variable speed drives, Siemens ET 200M remote I/O stations, and intelligent motor control centers. This cross-vendor compatibility is a key advantage in brownfield installations where existing Profibus infrastructure must be preserved while migrating the control layer to DeltaV. The module’s ability to manage up to 32 Profibus DP slaves per segment — with configurable baud rates up to 12 Mbps — provides the scalability required for large-scale process units.

Redundancy is a core design consideration for the VE4022 in mission-critical applications. When deployed in a redundant DeltaV controller configuration using paired KJ3001X1-BA1 controllers and redundant I/O carriers, the Profibus DP module supports bumpless switchover, ensuring that Profibus communication is maintained without data loss during controller failover events. This redundancy architecture is particularly valuable in continuous process industries such as refining, chemical production, and power generation, where unplanned communication interruptions can result in significant production losses or safety incidents.

From a maintenance and lifecycle perspective, the VE4022 KJ3243X1-BB1 12P3994X052 is designed for hot-swap replacement within the DeltaV carrier, allowing field engineers to replace a faulty module without shutting down adjacent I/O channels. Combined with DeltaV’s automatic module recognition and configuration download capability, replacement time is minimized and the risk of misconfiguration is eliminated. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that replacement modules meet original factory specifications and perform reliably from the moment of installation.

Inventory availability and supply chain continuity are critical factors for long-term DeltaV system support. ZYPLC supports RFQ sourcing for the VE4022 KJ3243X1-BB1 12P3994X052 alongside complementary DeltaV components, enabling rapid dispatch for both planned maintenance and emergency replacement scenarios. Our technical team can assist with compatibility verification, system architecture review, and pre-shipment functional testing to ensure that every module delivered is ready for immediate deployment.

Product Specification Table

System Compatibility Notes

The VE4022 KJ3243X1-BB1 achieves its full potential when deployed as part of a coordinated DeltaV control system architecture. At the controller level, the DeltaV MD Plus Controller (KJ3001X1-BA1) executes control strategies and communicates with the VE4022 via the DeltaV I/O bus, passing setpoints and receiving process variable feedback in real time. The DeltaV Power Supply (KJ3204X1-BA1) provides stable 24 VDC to the carrier, ensuring that both the controller and all I/O modules — including the VE4022 — operate within their specified electrical parameters.

On the same carrier, the KJ3002X1-BA1 analog input module handles 4–20 mA signals from traditional field transmitters, while the VE4022 manages Profibus DP-connected smart devices in parallel. The KJ3222X1-BB1 discrete output module handles on/off control of solenoid valves and motor starters, completing the I/O layer alongside the Profibus segment. For systems requiring serial device integration, the DeltaV Serial Interface Module (KJ3232X1-BA1) can be installed on the same carrier to handle Modbus RTU or RS-485 devices, creating a multi-protocol I/O architecture within a single DeltaV chassis.

At the network layer, the DeltaV Control Network (redundant 100 Mbps Ethernet) connects all controllers and I/O subsystems to the DeltaV Application Station and Operator Workstations. The VE4022’s Profibus DP segment data is aggregated at the controller and transmitted upstream via this network, ensuring that all field device data is available to the DeltaV Operate HMI without latency. For large installations, the DeltaV Remote I/O (ARIO) system can extend the I/O subsystem to remote marshalling cabinets, with the VE4022 supporting Profibus DP segments at each remote node.

Industrial Application Notes

In manufacturing and discrete production environments, the VE4022 KJ3243X1-BB1 is commonly deployed to integrate variable frequency drives (VFDs) and servo controllers on Profibus DP networks, enabling centralized speed and torque control from the DeltaV operator station. Packaging lines, assembly conveyors, and robotic work cells benefit from the module’s high-speed cyclic data exchange, which supports precise synchronization between drive systems and process controllers.

In power generation and utilities, the VE4022 connects Profibus DP-compatible protection relays, intelligent electronic devices (IEDs), and motor control centers to the DeltaV control layer. This integration supports centralized monitoring of electrical parameters — including current, voltage, and power factor — alongside process variables such as steam pressure and turbine speed, within a single DeltaV operator environment.

In petrochemical and refining applications, the module’s DP-V1 acyclic communication capability is used for online calibration and parameterization of Fisher FIELDVUE valve positioners and Rosemount transmitters without interrupting the control cycle. This capability is critical in continuous process units where manual intervention must be minimized to maintain production targets and safety integrity levels.

In water and wastewater treatment facilities, the VE4022 integrates Profibus DP-connected pump drives, flow meters, and level transmitters into the DeltaV control architecture, supporting automated process control across multiple treatment stages. The module’s diagnostic transparency allows maintenance teams to identify failing field devices before they cause process upsets, reducing unplanned downtime and extending equipment service life.

Product Compatibility FAQ

Q1: Is the VE4022 KJ3243X1-BB1 compatible with all DeltaV system versions, and can it be used in a redundant controller configuration?
The VE4022 KJ3243X1-BB1 is designed for use within the Emerson DeltaV DCS platform and is compatible with DeltaV system versions that support the standard I/O carrier architecture. It can be deployed in systems using redundant DeltaV MD Plus Controllers (KJ3001X1-BA1 pairs), where the Profibus DP module supports bumpless controller switchover. For specific firmware and system version compatibility, consult the Emerson DeltaV hardware compatibility matrix or contact ZYPLC’s technical team for pre-installation verification.

Q2: How many Profibus DP devices can the VE4022 support, and what is the maximum segment length?
The VE4022 supports up to 32 Profibus DP slave devices per segment. Maximum segment length depends on the configured baud rate: at 1.5 Mbps, the maximum segment length is 200 meters; at 93.75 kbps, it extends to 1,200 meters. For larger installations requiring more than 32 slaves or longer cable runs, Profibus DP repeaters can be used to extend the segment. ZYPLC can assist with segment design and device count planning as part of pre-sales technical support.

Q3: What does the warranty terms confirmed during quotation cover, and what is the replacement process if the module fails in service?
All VE4022 KJ3243X1-BB1 12P3994X052 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, ZYPLC will provide a tested replacement unit. The VE4022 supports hot-swap replacement within the DeltaV carrier, allowing field engineers to install the replacement module without shutting down adjacent I/O channels. DeltaV’s automatic module recognition will download the stored configuration to the new module, minimizing restoration time. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim.
