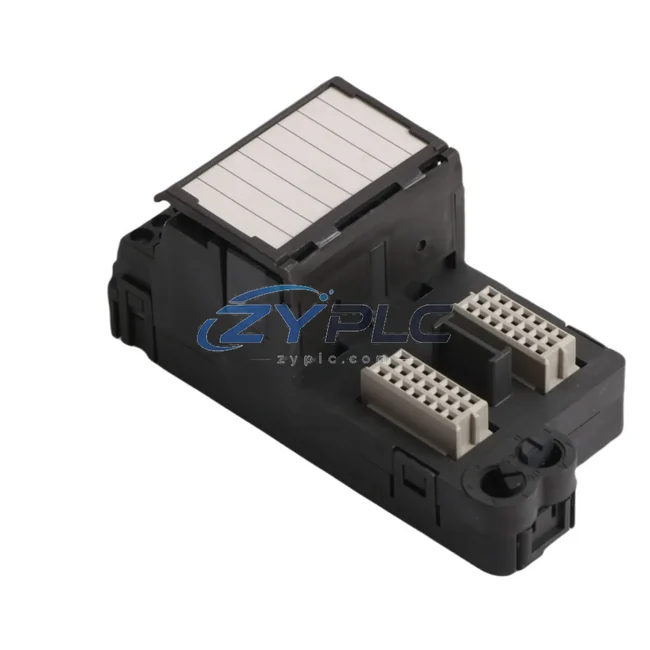

Emerson KJ3242X1-FA1 12P2575X032 H1 Terminal Block for DeltaV

Emerson KJ3242X1-FA1 12P2575X032 H1 Terminal Block for DeltaV

The Emerson KJ3242X1-FA1 12P2575X032 is a FOUNDATION Fieldbus H1 Terminal Block engineered for seamless integration within the DeltaV Distributed Control System architecture. Rather than functioning as a standalone wiring component, this terminal block serves as a critical junction point between the field instrument layer and the DeltaV controller infrastructure — enabling reliable signal transmission, simplified field wiring, and long-term maintainability across complex process control environments.

In a fully layered DeltaV automation system, the KJ3242X1-FA1 12P2575X032 occupies the I/O and field wiring layer, bridging FOUNDATION Fieldbus H1 segment devices — such as transmitters, positioners, and analyzers — to the DeltaV H1 Interface Cards (e.g., KJ3221X1-BA1 or KJ3222X1-BA1). This architectural role ensures that each H1 segment maintains consistent bus topology, proper termination impedance, and stable power distribution to connected field devices, all of which are prerequisites for deterministic fieldbus communication in process-critical applications.

System architects integrating the KJ3242X1-FA1 into a DeltaV cabinet will typically pair it with the DeltaV M-Series or S-Series controller platforms, where the H1 card slots reside within the DeltaV I/O subsystem. The terminal block mounts on standard DIN rail within the marshalling or junction cabinet, accepting multi-pair field cables and distributing individual H1 segment connections to the corresponding interface cards. This arrangement supports clean cable management, reduces cross-wiring errors during commissioning, and accelerates loop checkout procedures — a measurable benefit in large-scale projects with hundreds of fieldbus devices.

From a power architecture perspective, the KJ3242X1-FA1 12P2575X032 works in conjunction with FOUNDATION Fieldbus H1 power conditioners and segment protectors to maintain the 9–32 VDC bus voltage required by H1 devices. Proper coordination with the power supply layer — including redundant 24 VDC power rails and segment-level fusing — ensures that a single power fault does not cascade across multiple H1 segments, preserving system availability in continuous process operations.

For network layer integrity, the terminal block supports correct bus termination at both ends of the H1 segment, which is essential for preventing signal reflections that degrade communication reliability. When used alongside DeltaV’s built-in diagnostics and the AMS Device Manager platform, engineers can monitor segment health, device status, and communication quality in real time — enabling predictive maintenance strategies that reduce unplanned downtime.

In redundant DeltaV architectures, where controller pairs such as the MD Plus or MQ controllers operate in primary/secondary failover configurations, the H1 terminal block’s passive and deterministic nature ensures that fieldbus segment continuity is maintained during controller switchover events. This characteristic makes the KJ3242X1-FA1 12P2575X032 a preferred choice for safety-instrumented and high-availability process loops.

Engineering teams working on DeltaV system expansions or migrations will find that the KJ3242X1-FA1 integrates directly with existing DeltaV I/O carrier assemblies and backplane infrastructure, minimizing re-engineering effort. Its compatibility with the broader DeltaV ecosystem — including KJ3001X1-BA1 power supplies, KJ2003X1-BA1 redundant controller modules, and standard DeltaV I/O cards — means that spare parts management and system documentation remain consistent across the installed base.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional testing prior to shipment, ensuring that each KJ3242X1-FA1 12P2575X032 arrives ready for installation and commissioning without additional incoming inspection overhead.

Product Specification Table

System Compatibility Notes

The KJ3242X1-FA1 12P2575X032 achieves its full value when considered within the complete DeltaV control system architecture rather than in isolation. At the controller layer, DeltaV MD Plus or MQ redundant controller modules manage the execution of control strategies and communicate with the I/O subsystem via the DeltaV backplane bus. The H1 Interface Cards — such as the KJ3221X1-BA1 (non-redundant) or KJ3222X1-BA1 (redundant H1 card) — plug directly into the DeltaV I/O carrier, and the KJ3242X1-FA1 terminal block provides the physical field wiring interface for each H1 segment connected to these cards.

Power integrity for the H1 segments is maintained by dedicated FOUNDATION Fieldbus H1 power conditioners, which filter the 24 VDC supply rail and deliver clean, regulated bus power to each segment. Segment protectors installed at the terminal block level provide short-circuit protection and isolate individual device faults without disrupting the entire segment — a design practice strongly recommended in DeltaV engineering guidelines for process-critical loops.

At the human-machine interface layer, DeltaV Operate workstations and DeltaV Live HMI platforms display real-time process data sourced from fieldbus devices connected through the KJ3242X1-FA1 terminal block. The AMS Device Manager software further extends visibility into device-level diagnostics, enabling operators and maintenance engineers to identify degraded sensors or actuators before they cause process upsets.

For network communication, the DeltaV system relies on a dedicated control network (VNET/IP or legacy DeltaV network switches) to interconnect controllers, workstations, and application stations. The fieldbus H1 segments, terminated and distributed through the KJ3242X1-FA1, operate independently of the Ethernet control network, providing inherent network segmentation and reducing the risk of control network congestion affecting field device communication.

In cabinet-level design, the KJ3242X1-FA1 is typically installed alongside DeltaV I/O carrier assemblies, KJ3001X1-BA1 or equivalent power supply modules, and standard DIN rail terminal blocks for conventional 4–20 mA or discrete I/O signals. This mixed I/O architecture — combining FOUNDATION Fieldbus H1 segments with conventional analog and digital I/O — is common in brownfield DeltaV expansions where legacy instrumentation coexists with modern fieldbus devices.

Industrial Application Notes

The Emerson KJ3242X1-FA1 12P2575X032 is deployed across a wide range of process industries where DeltaV DCS platforms are the control system of choice. In oil and gas processing facilities, H1 terminal blocks of this type support the integration of FOUNDATION Fieldbus transmitters and control valves in wellhead, separation, and compression applications, where the ability to perform remote diagnostics and valve partial stroke testing via the fieldbus protocol reduces the need for physical field access in hazardous areas.

In chemical and petrochemical plants, the KJ3242X1-FA1 enables high-density fieldbus segment wiring in reactor control, distillation column, and heat exchanger applications. The terminal block’s support for proper H1 bus termination is particularly important in these environments, where long cable runs between the control room and field junction boxes can introduce signal integrity challenges if termination is not correctly implemented.

For power generation and utilities, DeltaV systems equipped with H1 terminal blocks manage boiler control, turbine auxiliary systems, and balance-of-plant automation. The warranty terms confirmed during quotation provided by ZYPLC supports maintenance planning cycles aligned with annual outage schedules, ensuring that spare parts are available and warranted for the duration of planned maintenance windows.

In water and wastewater treatment facilities, the KJ3242X1-FA1 supports the integration of fieldbus-enabled flow meters, level transmitters, and dosing pump controllers within DeltaV-based SCADA and DCS architectures. The terminal block’s DIN rail mounting and compact form factor make it suitable for installation in distributed field control panels located throughout the treatment plant.

For pharmaceutical and life sciences manufacturing, where DeltaV is widely used for batch process control and FDA 21 CFR Part 11 compliance, the KJ3242X1-FA1 contributes to system validation by providing a consistent, documented wiring interface that simplifies IQ/OQ documentation and change control procedures during system qualification activities.

Product Compatibility FAQ

Q1: Is the KJ3242X1-FA1 12P2575X032 compatible with both redundant and non-redundant DeltaV H1 Interface Card configurations?
Yes. The KJ3242X1-FA1 terminal block is compatible with both the KJ3221X1-BA1 non-redundant H1 Interface Card and the KJ3222X1-BA1 redundant H1 card. In redundant H1 configurations, two H1 cards share a single H1 segment, and the terminal block provides the common field wiring termination point for both cards. This architecture ensures that a single H1 card failure does not interrupt fieldbus communication to the connected devices, supporting high-availability process control requirements.

Q2: What commissioning steps are required when installing the KJ3242X1-FA1 in an existing DeltaV system?
Installation involves mounting the terminal block on DIN rail within the marshalling cabinet, connecting field cables from H1 segment devices, and verifying bus termination at both ends of the H1 segment. After physical installation, the DeltaV engineering workstation should be used to perform a segment scan to confirm that all expected fieldbus devices are recognized and communicating correctly. AMS Device Manager can then be used to verify device configurations and perform initial loop checks. ZYPLC recommends reviewing the DeltaV H1 Fieldbus Installation Guide and confirming cable length and device count against H1 segment loading calculations before commissioning.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of shipment. All units are tested prior to dispatch to verify electrical continuity and terminal integrity. For maintenance teams managing DeltaV spare parts inventories, the warranty period aligns with typical annual maintenance cycles, providing assurance that replacement components sourced from ZYPLC will perform reliably throughout the warranty term. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
