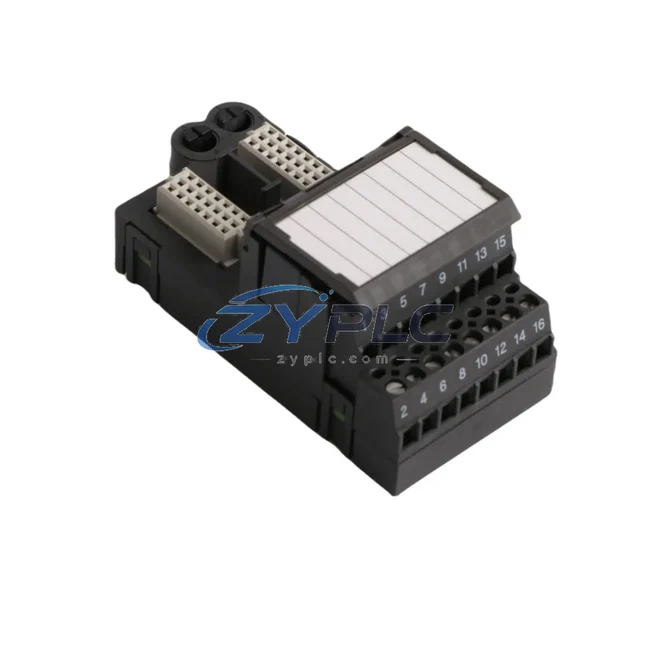

Emerson KJ4001X1-CA1 12P0623X082 I/O Terminal for DeltaV

Emerson KJ4001X1-CA1 12P0623X082 I/O Terminal for DeltaV

The Emerson KJ4001X1-CA1 12P0623X082 is a precision-engineered I/O terminal block designed to serve as a critical field-wiring interface within the Emerson DeltaV distributed control system (DCS) architecture. In modern process automation environments, the integrity of signal transmission between field instruments and the controller layer is foundational to system reliability. This terminal block fulfills that role by providing a structured, low-resistance wiring termination point that ensures consistent signal fidelity across the entire I/O subsystem.

Within a layered automation architecture, the KJ4001X1-CA1 12P0623X082 occupies the I/O layer — the critical junction between the physical process and the digital control domain. It interfaces directly with DeltaV I/O cards, enabling field signals from transmitters, actuators, and sensors to be cleanly routed into the DeltaV controller network. This positional role makes it indispensable for maintaining system coherence, particularly in large-scale installations where hundreds of field loops must be managed with precision and repeatability.

System architects integrating this terminal block into a DeltaV environment will find it fully compatible with the broader DeltaV I/O subsystem, including the KJ3001X1 Series I/O cards, the CIOC/EIOC controller interface modules, and the DeltaV S-series and M-series controllers. When paired with the KJ4001X1 series marshalling panels and the DeltaV CHARMs (Characterization Modules), the terminal block supports a highly flexible, loop-powered signal architecture that reduces cabinet footprint while improving diagnostic accessibility. The integration of this component into a CHARMs-based I/O strategy further enables intrinsic safety compliance for hazardous area installations.

From a redundancy design perspective, the KJ4001X1-CA1 12P0623X082 supports dual-path signal routing configurations when used alongside redundant I/O card pairs. In critical process industries such as oil and gas, petrochemical refining, and power generation, this redundancy capability is essential for achieving the SIL (Safety Integrity Level) requirements mandated by IEC 61511. The terminal block’s mechanical design accommodates side-by-side installation of redundant wiring paths without compromising cabinet density or maintenance access.

For system engineers managing multi-cabinet DCS installations, the KJ4001X1-CA1 12P0623X082 simplifies the marshalling process by providing clearly labeled, individually isolated termination points. This design reduces the risk of cross-wiring errors during commissioning and accelerates loop checking procedures. When used in conjunction with the DeltaV Electronic Marshalling system and the CHARM I/O cards, field wiring can be connected in any order without pre-assignment, dramatically reducing engineering lead time on large projects.

Long-term maintenance efficiency is another key advantage of this terminal block within the DeltaV ecosystem. Its tool-free or minimal-tool wiring interface reduces technician time during scheduled maintenance windows, and its robust construction ensures reliable performance across extended operational cycles in demanding industrial environments — including high-vibration, high-humidity, and thermally variable conditions typical of manufacturing plants, water treatment facilities, and mining operations.

Supply chain continuity is a critical consideration for any long-lifecycle DCS installation. ZYPLC maintains availability subject to RFQ confirmation of the KJ4001X1-CA1 12P0623X082, supporting both new project builds and ongoing maintenance programs. All units are tested prior to dispatch and covered by a warranty terms confirmed during quotation, providing procurement teams and plant engineers with the confidence needed for both capital projects and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The KJ4001X1-CA1 12P0623X082 does not operate in isolation — its value is realized through its integration into a coordinated DeltaV control system architecture. In a typical DeltaV installation, the control layer is anchored by the DeltaV MD or SD Plus controllers, which communicate with I/O subsystems via the DeltaV control network. The terminal block serves as the physical endpoint of this signal chain, connecting field instruments to the I/O cards that feed data upward to the controller.

Within the I/O layer, the KJ4001X1-CA1 12P0623X082 works in close coordination with the KJ3001X1 AI (Analog Input) cards and KJ3002X1 AO (Analog Output) cards, which handle the conversion of field signals into digital process values. For digital I/O applications, it interfaces with the KJ3221X1 DI and KJ3222X1 DO modules. In CHARMs-based architectures, the terminal block connects to CHARM I/O cards such as the KJ3002X1-BA1, enabling per-channel characterization and HART communication without additional hardware.

At the power layer, the DeltaV PS2 or PS6 power supplies provide stable 24 VDC bus power to the I/O subsystem, ensuring that field loop power delivered through the terminal block remains within specification even under full-load conditions. For network communication, the DeltaV system relies on the DeltaV control network switches and, in larger installations, the EIOC (Ethernet I/O Controller) modules to extend I/O capacity across geographically distributed process areas.

Human-machine interface integration is achieved through DeltaV Operate workstations, which display real-time process data sourced from the field signals terminated at the KJ4001X1-CA1 12P0623X082. For safety-critical loops, the terminal block may also feed signals into the DeltaV SIS (Safety Instrumented System) logic solvers, where they are processed according to IEC 61511 safety function requirements. At the execution layer, final control elements such as control valves and variable frequency drives receive output signals routed back through the terminal block from the DeltaV AO cards.

Industrial Application Notes

The Emerson KJ4001X1-CA1 12P0623X082 finds application across a broad spectrum of process industries where DeltaV DCS platforms are deployed. In oil and gas upstream and midstream facilities, it supports the termination of pressure, temperature, and flow transmitter signals in wellhead control panels and pipeline SCADA integration points. In petrochemical and refining plants, it is used extensively in reactor control loops, distillation column instrumentation, and heat exchanger monitoring systems where signal integrity directly impacts product quality and process safety.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the terminal block supports turbine control, boiler management, and balance-of-plant I/O systems. Water and wastewater treatment plants utilize it in pump control, chemical dosing, and effluent monitoring applications, where reliable signal termination is essential for regulatory compliance and environmental protection. Mining and minerals processing operations deploy it in conveyor control, crusher monitoring, and flotation cell automation systems, where harsh environmental conditions demand robust, long-life termination hardware.

In pharmaceutical and food and beverage manufacturing, the KJ4001X1-CA1 12P0623X082 supports GMP-compliant process control installations where traceability, signal accuracy, and system validation are mandatory. Packaging and material handling lines also benefit from its use in coordinated motion and process control architectures where DeltaV manages both continuous and discrete I/O in a unified control strategy.

Product Compatibility FAQ

Q1: Is the KJ4001X1-CA1 12P0623X082 compatible with both legacy DeltaV S-series and current CHARMs-based I/O architectures?
A: Yes. The KJ4001X1-CA1 12P0623X082 is designed to interface with the DeltaV field wiring infrastructure across both traditional card-based I/O (S-series, M-series) and the Electronic Marshalling / CHARMs architecture. In CHARMs-based systems, it serves as the field-side termination point that connects to CHARM I/O cards, enabling per-channel signal characterization. Compatibility should always be verified against the specific DeltaV system revision and I/O card type in use; ZYPLC technical support can assist with configuration validation prior to procurement.

Q2: How does this terminal block support redundant I/O design in safety-critical applications?
A: The KJ4001X1-CA1 12P0623X082 supports dual-path field wiring configurations, allowing the same field signal to be routed to two independent I/O cards simultaneously. This is a standard practice in SIL-rated DeltaV SIS installations, where redundant signal paths ensure that a single hardware failure does not result in loss of safety function. The terminal block’s wiring layout accommodates this configuration without requiring additional marshalling hardware, simplifying cabinet design and reducing overall system cost.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance programs?
A: All KJ4001X1-CA1 12P0623X082 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to dispatch, each unit undergoes functional testing to verify electrical integrity and termination performance. For long-term maintenance programs, ZYPLC maintains ongoing stock of this and related DeltaV components, enabling rapid response to both planned maintenance schedules and unplanned emergency replacement requirements. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 to discuss volume procurement, lead times, and maintenance contract options.
