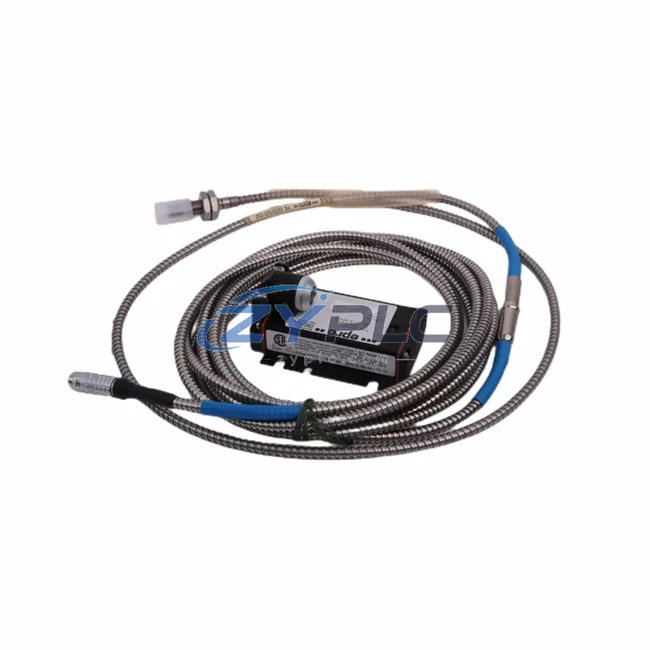

Emerson PR6423/010-010 CON021 Proximity Transducer for EPRO

Emerson PR6423/010-010 CON021 Proximity Transducer for EPRO

The Emerson PR6423/010-010 CON021 is a precision eddy current proximity transducer engineered for seamless integration within the Emerson EPRO machinery protection and condition monitoring architecture. Rather than functioning as a standalone sensing element, this transducer is designed as a critical node within a layered automation system — connecting the physical machine layer to the signal conditioning layer, the monitoring layer, and ultimately the control and safety shutdown layer. Its role in the overall control hierarchy makes it indispensable for facilities that demand continuous, high-fidelity vibration and position data across rotating machinery assets.

In modern industrial automation, the reliability of a control system is only as strong as its sensing foundation. The PR6423/010-010 CON021 addresses this requirement by delivering consistent, low-noise displacement signals that feed directly into EPRO signal conditioners such as the CON021 extension cable and associated driver electronics. This signal chain integrity is essential for upstream components — including the EPRO MMS 6000 series monitoring modules, the MMS 6110 shaft vibration monitor, and the MMS 6120 axial position monitor — to perform accurate threshold evaluation and alarm triggering without false positives caused by signal degradation.

From a system architecture perspective, the PR6423/010-010 CON021 occupies the field sensing layer, interfacing directly with rotating shafts, thrust collars, and gear faces. Its output is routed through the CON021 extension cable assembly to the driver unit, which conditions the raw eddy current signal into a standardized voltage output compatible with the EPRO rack-mounted monitoring system. This architecture ensures that the signal path from the machine surface to the control room remains electrically isolated, mechanically stable, and thermally compensated — critical attributes in high-temperature environments such as gas turbines, steam turbines, compressors, and large induction motors.

The transducer’s compatibility with the broader EPRO platform means it can be deployed alongside complementary components including the PR6424 series proximity probes, the PR9268 series velocity transducers, the TK-3 triaxial accelerometer assemblies, and the EPRO A6500-UM universal monitor for integrated machinery protection. When combined with the MMS 6823 or MMS 6840 relay output modules, the system can execute automatic machine shutdown sequences based on vibration amplitude thresholds — a capability that is fundamental to API 670-compliant protection systems in the oil and gas, petrochemical, and power generation sectors.

For facilities operating distributed control architectures, the PR6423/010-010 CON021 supports integration with Emerson DeltaV DCS platforms and third-party SCADA systems via the EPRO monitoring rack’s analog and digital output interfaces. This cross-layer compatibility allows vibration data to be consolidated within plant-wide historian systems, enabling predictive maintenance workflows, condition-based monitoring programs, and long-term asset health trending. The transducer’s stable sensitivity factor and low temperature coefficient ensure that data integrity is maintained across seasonal ambient temperature variations — a key consideration for outdoor installations in mining, water treatment, and metallurgical processing environments.

Installation and commissioning of the PR6423/010-010 CON021 follows the standard EPRO gap voltage calibration procedure, where the probe-to-target gap is set to achieve the nominal output voltage specified in the system design. This process is compatible with the EPRO calibration tools and gap setting fixtures used across the PR6423 product family, reducing the learning curve for maintenance engineers already familiar with the EPRO ecosystem. The transducer’s threaded body and locknut design allows precise gap adjustment and mechanical locking, ensuring long-term positional stability even in high-vibration environments.

From a supply chain and maintenance planning perspective, stocking the PR6423/010-010 CON021 as part of a critical spare parts inventory is a best practice for facilities with continuous process requirements. Unplanned downtime caused by transducer failure can result in significant production losses, particularly in industries such as LNG processing, power generation, and chemical manufacturing where machinery protection systems are the last line of defense before catastrophic equipment failure. ZYPLC maintains ready stock of this component with a warranty terms confirmed during quotation, supporting rapid deployment for both planned maintenance outages and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The PR6423/010-010 CON021 achieves its full potential when deployed as part of a coordinated EPRO machinery protection system. At the monitoring layer, the MMS 6110 shaft vibration monitor and MMS 6120 axial position monitor receive conditioned signals from the PR6423 transducer chain and apply configurable alarm and danger thresholds in accordance with API 670 requirements. The MMS 6823 relay output module translates these threshold events into discrete shutdown signals that interface with the machine’s safety interlock system or the plant’s emergency shutdown (ESD) controller.

At the power supply layer, the EPRO PS6901 or equivalent rack power supply provides the regulated -24 VDC required by the transducer driver electronics, ensuring stable operation even during plant power fluctuations. The EPRO monitoring rack backplane distributes power and signal routing across all installed monitoring modules, supporting hot-swap capability for individual cards without interrupting the overall protection system — a critical feature for continuous process industries where machinery cannot be stopped for routine maintenance.

For facilities requiring redundant protection architectures, the PR6423/010-010 CON021 can be deployed in dual-transducer configurations where two probes monitor the same measurement plane. The MMS 6840 voting module or equivalent logic solver evaluates signals from both transducers and applies 1oo2 or 2oo2 voting logic to determine alarm and shutdown actions, eliminating false trips caused by single transducer failures. This redundancy architecture is standard practice in API 670-compliant systems for critical rotating machinery in the oil and gas and power generation sectors.

Integration with the plant’s DCS or SCADA layer is achieved through the EPRO monitoring rack’s analog output cards, which transmit 4–20 mA signals representing vibration amplitude, gap voltage, and alarm status to the Emerson DeltaV I/O subsystem or third-party PLC analog input modules. This cross-layer data flow enables operators to monitor machinery health from the control room HMI alongside process variables such as temperature, pressure, and flow — providing a unified operational picture that supports both real-time decision-making and long-term predictive maintenance analysis.

Industrial Application Notes

In power generation facilities, the PR6423/010-010 CON021 is typically installed on steam turbine shaft journals and thrust collars, providing continuous displacement data to the EPRO protection system. Any exceedance of the vibration danger setpoint triggers an automatic turbine trip via the MMS 6823 relay module, preventing catastrophic bearing failure and rotor damage. The transducer’s high-temperature rating makes it suitable for installation in the hot zone of the turbine casing, where ambient temperatures can exceed 100°C during normal operation.

In petrochemical and refinery applications, the PR6423/010-010 CON021 monitors centrifugal compressors and pumps handling hazardous process fluids. The non-contact sensing principle eliminates the risk of process fluid contamination through the sensing element, and the sealed cable assembly prevents ingress of corrosive vapors into the signal path. The transducer’s compatibility with the EPRO system’s SIL-rated monitoring modules supports deployment in Safety Instrumented Systems (SIS) where functional safety certification is required.

In mining and metallurgical processing environments, the PR6423/010-010 CON021 is applied to large ball mills, SAG mills, and crusher drives where shaft displacement monitoring is essential for detecting bearing wear and rotor imbalance before they progress to catastrophic failure. The transducer’s robust construction and wide temperature range make it suitable for the harsh ambient conditions typical of mineral processing facilities, including high dust concentrations, wide temperature swings, and mechanical vibration from adjacent equipment.

In water treatment and municipal utility applications, the PR6423/010-010 CON021 monitors large vertical pump shafts and blower rotors, providing early warning of bearing degradation and shaft misalignment. Integration with the plant’s SCADA system via the EPRO monitoring rack’s analog outputs allows maintenance teams to trend vibration data over time and schedule bearing replacements during planned outages — avoiding unplanned service interruptions that can affect water supply reliability.

Product Compatibility FAQ

Q1: Is the PR6423/010-010 CON021 compatible with third-party monitoring systems, or is it limited to the Emerson EPRO platform?
The PR6423/010-010 CON021 is optimized for use with the Emerson EPRO driver and monitoring ecosystem, where the CON021 extension cable interfaces directly with EPRO-compatible driver electronics. However, the transducer’s analog voltage output can be adapted for use with third-party monitoring systems that accept standard eddy current probe inputs, provided the driver electronics are compatible with the PR6423 sensitivity factor and gap range. For guaranteed system performance and warranty terms confirmed during quotation coverage, deployment within the EPRO architecture is recommended.

Q2: What is the recommended commissioning procedure for the PR6423/010-010 CON021 in a new installation?
Commissioning begins with mechanical installation of the transducer at the specified radial or axial measurement position, followed by gap setting using the EPRO gap voltage calibration procedure. The probe-to-target gap is adjusted until the driver output voltage matches the nominal gap voltage specified in the system design documentation, typically corresponding to the center of the transducer’s linear range. After gap setting, the system is verified against the alarm and danger setpoints configured in the MMS 6000 series monitoring modules, and a functional test is performed to confirm correct relay output operation. All commissioning records should be retained for long-term maintenance reference.

Q3: How does the warranty terms confirmed during quotation apply to the PR6423/010-010 CON021, and what support is available for long-term maintenance planning?
All PR6423/010-010 CON021 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and premature failure under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize machinery downtime. For long-term maintenance planning, ZYPLC recommends maintaining a minimum of one spare transducer assembly per critical machine train, with replacement intervals determined by the facility’s condition monitoring program. Our technical team is available to assist with spare parts planning, system compatibility verification, and cross-reference support for legacy EPRO installations.
