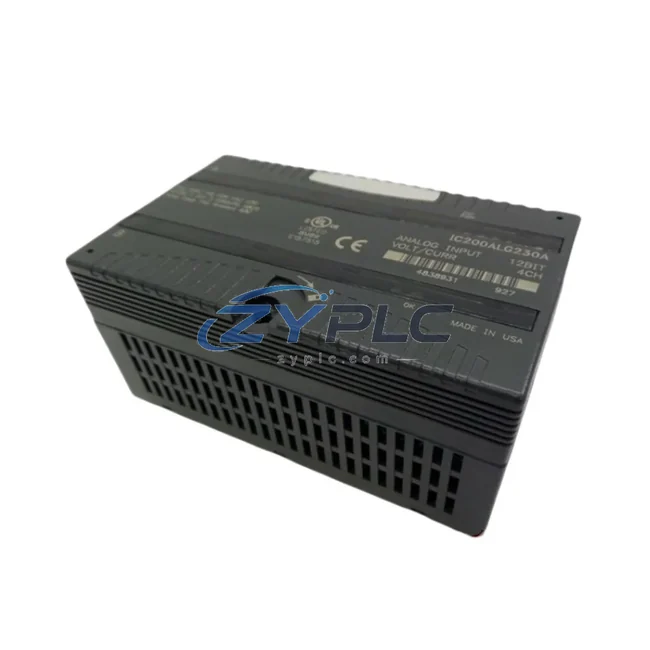

GE Fanuc IC200ALG230 Analog Input for VersaMax

GE Fanuc IC200ALG230 Analog Input for VersaMax: Compatibility and Replacement Notes

The GE Fanuc IC200ALG230 is a 4-channel analog input module engineered for seamless integration within the VersaMax distributed I/O architecture. Rather than functioning as a standalone component, the IC200ALG230 occupies a critical position in the signal acquisition layer of a layered automation system — converting real-world process variables such as temperature, pressure, flow, and level into precise digital values that feed the control decision layer. Understanding its role within the full control hierarchy is essential for engineers designing high-availability, scalable, and maintainable industrial systems.

In a complete VersaMax control architecture, the IC200ALG230 operates in close coordination with the CPU carrier, I/O expansion backplanes, power supply modules, communication gateways, and HMI terminals. Its 4-channel current/voltage input capability supports standard 0–10V and 4–20mA signal ranges, making it compatible with the vast majority of field transmitters deployed across process industries. The module’s 12-bit resolution ensures sufficient signal fidelity for closed-loop PID control applications, while its compact form factor allows dense I/O configurations within VersaMax carrier assemblies.

Product Specification Table

System Compatibility Notes

The IC200ALG230 achieves its full potential when deployed as part of a coordinated VersaMax system architecture. At the control layer, a GE Fanuc IC200CPUE05 or IC200CPUE05-AE CPU module serves as the central processing unit, executing ladder logic and function block programs that consume the analog data provided by the IC200ALG230. The CPU communicates with the I/O subsystem through the VersaMax local bus, ensuring deterministic scan cycle performance even under high I/O density configurations.

Power integrity is maintained by the IC200PWR002 or IC200PWR101 power supply modules, which deliver regulated 24V DC to the carrier backplane. Stable power delivery is a prerequisite for accurate analog signal conversion — voltage ripple or transient noise on the supply rail directly impacts ADC accuracy, making the selection of an appropriate power supply module a critical architectural decision when deploying the IC200ALG230 in precision measurement applications.

For distributed I/O expansion, the IC200ALG230 can be installed in remote VersaMax I/O stations connected via the IC200BEM002 or IC200BEM003 bus expansion modules. These expansion modules extend the VersaMax I/O bus across physical distances, enabling analog signal acquisition at field locations remote from the main control panel. This architecture is particularly valuable in large-footprint facilities such as water treatment plants, petrochemical complexes, and power generation stations where field instruments are distributed across wide geographic areas.

At the network layer, the IC200PNS001 PROFINET Scanner or IC200EBI001 Ethernet Bus Interface module bridges the VersaMax I/O subsystem to plant-level Ethernet networks, enabling real-time data exchange with SCADA systems, historian servers, and MES platforms. The analog values acquired by the IC200ALG230 can thus be transmitted upstream to supervisory systems for trend analysis, alarm management, and production reporting without additional signal conditioning hardware.

For human-machine interface integration, the analog data from the IC200ALG230 is typically visualized on GE Fanuc QuickPanel or third-party HMI terminals connected via the plant Ethernet backbone. Operators can monitor real-time process values, configure alarm thresholds, and review historical trends — all driven by the analog acquisition capability of the IC200ALG230 at the field level.

In redundant architecture designs, the IC200ALG230 can be paired with redundant CPU configurations using the IC200CRPDS001 CPU Redundancy module, ensuring that analog input data remains available to the control system even during a CPU failover event. This redundancy capability is essential in critical process applications where loss of analog feedback could result in unsafe operating conditions or production shutdowns.

Terminal connectivity for field wiring is provided through compatible IC200TBM series terminal block modules, which offer screw-clamp or spring-clamp termination options for 4–20mA transmitter loops and voltage signal sources. Proper terminal module selection ensures reliable field connections and simplifies maintenance activities during scheduled shutdowns.

Industrial Application Notes

Manufacturing & Discrete Production Lines: In automotive assembly and electronics manufacturing environments, the IC200ALG230 monitors analog process variables such as hydraulic pressure, servo drive feedback signals, and temperature profiles across production cells. Its integration with VersaMax CPU modules enables closed-loop quality control, where out-of-tolerance analog readings trigger immediate corrective actions at the machine level.

Power Generation & Electrical Utilities: Power plant control systems rely on precise analog measurement for turbine speed monitoring, generator output voltage feedback, and transformer temperature supervision. The IC200ALG230’s 500V isolation barrier protects the VersaMax control system from high-voltage transients common in electrical utility environments, while its 4–20mA input capability interfaces directly with standard industrial transmitters used in power plant instrumentation.

Petrochemical & Refinery Process Control: In oil refinery and chemical processing applications, the IC200ALG230 acquires analog signals from pressure transmitters, flow meters, and level sensors distributed across process units. Its Class I, Division 2 rating supports deployment in areas where flammable vapors may be present, making it suitable for use in hazardous area control panels when installed with appropriate barriers and enclosures.

Water & Wastewater Treatment: Municipal water treatment facilities use the IC200ALG230 to monitor flow rates, pH levels, chlorine dosing rates, and pump discharge pressures. The module’s compatibility with standard 4–20mA transmitters simplifies integration with existing field instrumentation, while its VersaMax bus architecture enables centralized SCADA monitoring of distributed pump stations and treatment processes.

Mining & Metallurgical Processing: In mineral processing and smelting operations, the IC200ALG230 provides analog acquisition for conveyor belt load cells, furnace temperature sensors, and hydraulic system pressure monitors. Its robust operating temperature range and industrial-grade construction ensure reliable performance in the harsh environmental conditions typical of mining and metallurgical facilities.

Product Compatibility FAQ

Q1: Is the IC200ALG230 compatible with all VersaMax carrier and CPU configurations?
The IC200ALG230 is designed for use with the full range of VersaMax I/O carriers, including the IC200CHS002, IC200CHS005, and IC200CHS014 carrier assemblies. It is compatible with all VersaMax-capable CPU modules, including the IC200CPUE05, IC200CPUE05-AE, and IC200CPUF73 series. Configuration is performed through the GE Fanuc Proficy Machine Edition programming environment, where each channel’s input type (voltage or current) and range are defined in the hardware configuration table. No additional configuration hardware is required for standard deployments.

Q2: How does the IC200ALG230 support long-term maintenance and spare parts management in a multi-site architecture?
The IC200ALG230’s standardized VersaMax form factor means that a single spare module can serve as a replacement across multiple I/O stations within the same VersaMax architecture, reducing spare parts inventory complexity. Its hot-swap capability (where supported by the carrier configuration) minimizes system downtime during module replacement. ZYPLC supports RFQ sourcing for the IC200ALG230 with a warranty terms confirmed during quotation on all units, ensuring that replacement modules are tested, verified, and shipment arranged after confirmation — supporting both planned maintenance schedules and emergency repair scenarios.

Q3: What are the key considerations for integrating the IC200ALG230 into a redundant control architecture?
In redundant VersaMax architectures, the IC200ALG230 should be installed in I/O stations that are accessible to both the primary and secondary CPU modules via the VersaMax redundancy bus. Signal wiring should follow a star topology from the field transmitter to the terminal block, with shielded twisted-pair cable used for all 4–20mA loops to minimize electromagnetic interference. Ground loops should be eliminated by grounding the cable shield at one end only — typically at the control panel end. For critical analog loops, consider deploying duplicate IC200ALG230 modules on separate I/O carriers connected to independent power supplies, providing full hardware redundancy at the analog acquisition layer. All units supplied by ZYPLC include a warranty terms confirmed during quotation and system integration support to assist with commissioning and architecture validation.
