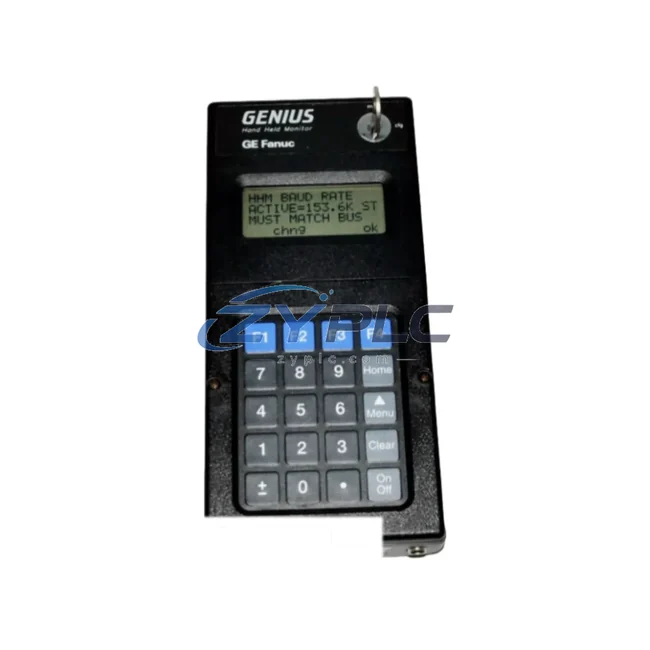

GE Fanuc IC660HHM501S HMI Monitor for Series Six

GE Fanuc IC660HHM501S HMI Monitor for Series Six

The GE Fanuc IC660HHM501S Hand-Held Monitor is a purpose-built human-machine interface component designed to operate within the layered control architecture of GE Series Six programmable controller systems. Rather than functioning as a standalone diagnostic tool, the IC660HHM501S is engineered for system integration — meaning its value is fully realized when deployed alongside the broader Series Six control platform, where it enables real-time parameter access, fault diagnostics, and program monitoring without interrupting live production cycles. In distributed industrial environments where uptime is non-negotiable, this monitor provides field engineers with direct, portable access to the control layer, reducing mean time to repair and supporting long-term maintenance efficiency across complex automation systems.

The IC660HHM501S connects directly to the Series Six CPU rack, allowing technicians to interrogate register values, monitor I/O status, and execute limited programming functions from the plant floor. This capability is critical in architectures where the control cabinet is remotely located or where HMI panels such as the IC660HHM501 series are not permanently installed at every node. The hand-held form factor ensures that a single device can serve multiple rack locations across a facility, reducing the total cost of ownership for multi-zone automation systems.

Within a complete Series Six control system, the IC660HHM501S interfaces with the CPU module — typically the IC660CPU501 or IC660CPU105 — through the rack backplane, sharing the same communication bus used by I/O modules such as the IC660BBD101 discrete input module and the IC660BBD025 discrete output module. This tight integration means that the monitor can reflect real-time I/O states, enabling engineers to verify signal flow from field devices through the input layer, across the logic processor, and down to output actuators without requiring a separate programming terminal. For analog process control applications, the IC660BBA020 analog input module and IC660BBA104 analog output module can also be monitored through the same interface, supporting loop diagnostics and calibration verification in the field.

In redundant control architectures — common in power generation, petrochemical processing, and water treatment facilities — the IC660HHM501S supports maintenance of both primary and standby CPU modules. Engineers can use the monitor to verify that the standby IC660CPU501 is synchronized with the active controller, check rack health across the IC660CBB900 baseplate, and confirm that the power supply module is delivering stable voltage to all installed cards. This level of system-level visibility, delivered through a portable interface, is essential for maintaining the integrity of fault-tolerant control designs where unplanned switchovers must be minimized.

Communication stability is a foundational requirement in any industrial control architecture, and the IC660HHM501S supports this by providing direct access to the Series Six communication registers without requiring network-layer intervention. In facilities where the Series Six system communicates upstream to a SCADA platform or DCS via a gateway module such as the IC660ELB912 Ethernet link module, the hand-held monitor allows local verification of data integrity at the PLC level — confirming that the values being transmitted to the supervisory layer accurately reflect field conditions. This is particularly valuable during commissioning, where discrepancies between field signals and SCADA displays must be traced to their source quickly.

For packaging lines, mineral processing plants, and metallurgical facilities operating Series Six controllers in high-vibration or high-temperature environments, the IC660HHM501S provides a ruggedized interface that can be used without powering down the control system. Maintenance teams can perform register edits, force I/O points for testing, and review ladder logic execution in real time — capabilities that significantly reduce the duration of scheduled maintenance windows and support continuous production targets. The monitor’s compatibility with the full Series Six rack ecosystem, including expansion racks connected via the IC660CBB902 baseplate, ensures that it remains a relevant diagnostic tool even as systems are expanded over time.

All IC660HHM501S units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with each unit tested prior to shipment to verify communication integrity, keypad function, and display operation. Inventory is maintained availability confirmed by RFQ to support urgent replacement requirements, and units are available for rapid dispatch to minimize control system downtime. Our technical team can assist with compatibility verification for specific Series Six rack configurations and CPU firmware revisions upon request.

Product Specification Table

System Compatibility Notes

The IC660HHM501S achieves its highest operational value when deployed as part of a coordinated Series Six control system. A typical architecture begins with the CPU layer — the IC660CPU501 or IC660CPU105 — mounted in the IC660CBB900 or IC660CBB902 baseplate, which provides the backplane bus that the hand-held monitor accesses directly. Power integrity across this rack is maintained by the Series Six power supply module, and the IC660HHM501S allows field technicians to verify supply status without opening the control cabinet.

At the I/O layer, discrete signals are managed through modules such as the IC660BBD101 (discrete input) and IC660BBD025 (discrete output), while analog process variables are handled by the IC660BBA020 (analog input) and IC660BBA104 (analog output). The hand-held monitor provides direct visibility into the status of all these modules from a single portable device, enabling rapid fault isolation across the full I/O layer without requiring a laptop or programming terminal. For systems that include relay output modules such as the IC660BBR101, the monitor can be used to verify output states and confirm that relay coils are being energized correctly by the CPU logic.

At the network and communication layer, the IC660ELB912 Ethernet link module provides upstream connectivity to SCADA and DCS platforms. The IC660HHM501S complements this by providing a local verification point — engineers can confirm that register values at the PLC level match what is being reported to the supervisory system, supporting data integrity audits during commissioning and periodic maintenance cycles. In redundant architectures, the monitor supports health checks on both active and standby controllers, ensuring that switchover readiness is maintained at all times.

Industrial Application Notes

The IC660HHM501S is deployed across a wide range of industrial sectors where GE Series Six controllers form the backbone of the automation infrastructure. In power generation facilities, the monitor is used to verify turbine control logic and generator protection relay outputs during scheduled outages, reducing the time required to return units to service. In petrochemical and refinery applications, it supports safe maintenance of process control loops by allowing engineers to monitor analog I/O values and verify PID register states without interrupting live process conditions.

Water treatment and municipal utility operators rely on the IC660HHM501S to maintain aging Series Six installations where replacement of the entire control system is not economically viable. The monitor extends the useful life of these systems by enabling efficient troubleshooting and parameter adjustment without specialized programming equipment. In mining and metallurgical applications, where control systems operate in high-vibration, high-dust environments, the portable monitor allows maintenance teams to perform diagnostics at the rack level without transporting sensitive laptop equipment to the plant floor.

Packaging and discrete manufacturing lines using Series Six controllers benefit from the IC660HHM501S during changeover and commissioning activities, where rapid verification of I/O assignments and timer/counter register values is required to minimize line downtime. The monitor’s ability to force I/O points for testing purposes is particularly valuable in these environments, where functional verification of each output must be completed before production resumes.

Product Compatibility FAQ

Q1: Is the IC660HHM501S compatible with all Series Six CPU modules and rack configurations?
The IC660HHM501S is designed for use with the GE Fanuc Series Six control platform and is compatible with CPU modules including the IC660CPU501 and IC660CPU105, as well as all standard Series Six baseplates such as the IC660CBB900 and IC660CBB902. Compatibility with specific firmware revisions or expanded rack configurations should be verified against the Series Six system documentation or confirmed with our technical team prior to deployment.

Q2: Can the IC660HHM501S be used in a redundant CPU architecture without disrupting the active controller?
Yes. The IC660HHM501S connects to the Series Six backplane bus in a non-intrusive manner for monitoring and diagnostic functions. In redundant architectures, it can be used to inspect the standby CPU’s register states and verify synchronization with the active controller. I/O forcing functions should be used with caution in live redundant systems and only during controlled maintenance windows in accordance with site safety procedures.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration questions?
All IC660HHM501S units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures, including display, keypad, and communication interface integrity. Units are tested prior to shipment to verify operational status. For system integration questions — including rack compatibility, CPU firmware matching, and multi-zone deployment planning — our technical team is available via the contact details below. Replacement units are maintained RFQ Available to support urgent field requirements with minimal lead time.
