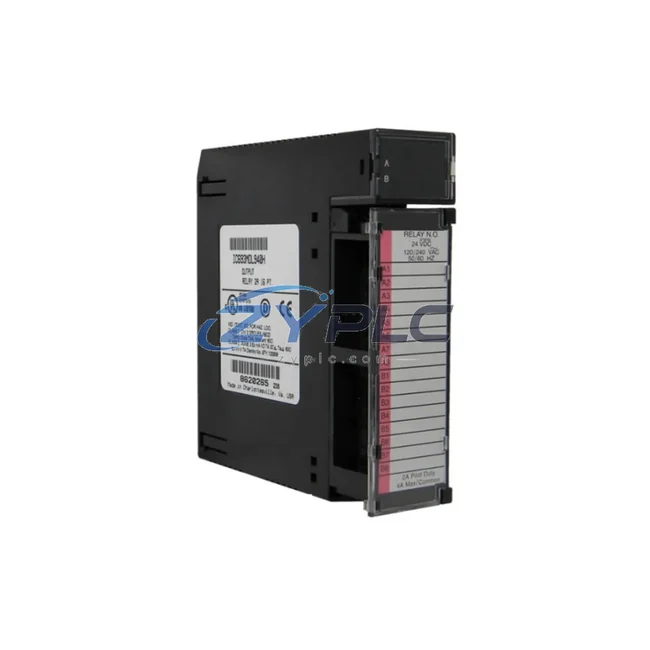

GE Fanuc IC693MDL940 Relay Output for 90-30

GE Fanuc IC693MDL940 Relay Output for 90-30: Compatibility and Replacement Notes

The GE Fanuc IC693MDL940 is a 16-point relay output module engineered for seamless integration within the Series 90-30 PLC platform — one of GE Fanuc’s most widely deployed modular control architectures across industrial automation sectors. Rather than functioning as a standalone component, the IC693MDL940 occupies a critical position in the discrete output layer of a layered automation system, bridging the logic execution layer and the field device execution layer with high-reliability relay switching capability. Understanding its role within the full control system architecture is essential for engineers designing, commissioning, or maintaining complex industrial installations.

In a complete Series 90-30 control system, the IC693MDL940 operates in coordination with the CPU module — typically the IC693CPU374 or IC693CPU375 — which handles ladder logic execution, PID loops, and inter-module communication via the backplane bus. The CPU module scans the output image table and writes discrete output states to the IC693MDL940 through the IC693CHS391 or IC693CHS397 baseplate chassis, which provides the physical and electrical backbone for all I/O modules in the rack. The relay contacts on the IC693MDL940 then switch field-side loads including solenoid valves, motor starters, indicator lamps, and alarm relays — making it indispensable in the execution layer of any discrete control application.

From a power architecture perspective, the IC693MDL940 relies on the IC693PWR321 or IC693PWR331 power supply module to deliver stable 5 VDC backplane power. The relay output contacts themselves are isolated from the backplane logic, allowing the module to switch AC or DC field loads independently of the controller’s internal power domain. This electrical isolation is a key design feature that enhances system safety and reduces the risk of field-side transients propagating into the CPU or communications modules.

At the network and communications layer, the IC693MDL940 integrates naturally into systems using the IC693CMM321 Communications Coprocessor or the IC693CMM311 Ethernet Interface module, enabling remote I/O monitoring, SCADA connectivity, and distributed control architectures. In larger installations, the Series 90-30 platform supports multi-rack expansion via the IC693CHS398 expansion chassis and IC693BEM331 Bus Expansion Module, allowing the IC693MDL940 to be deployed in remote I/O racks while maintaining synchronous communication with the main CPU rack. This architecture supports scalable system design without requiring additional CPUs or programming environments.

For human-machine interface integration, the IC693MDL940’s output states are typically visualized through GE Fanuc QuickPanel or Cimplicity HMI platforms, where operators can monitor relay status, acknowledge alarms, and initiate manual overrides. The tight integration between the HMI layer and the I/O layer — mediated by the CPU’s data table — ensures that the IC693MDL940’s relay states are always accurately reflected in the operator interface, supporting both normal operations and fault diagnosis workflows.

In redundant system architectures, the IC693MDL940 can be deployed in hot-standby configurations using the IC693RCM311 Redundancy Control Module, which manages CPU switchover and ensures output continuity during controller failover events. This redundancy capability is particularly valuable in critical process applications where unplanned output interruptions could result in equipment damage, production loss, or safety incidents. The relay output module’s inherent contact isolation further supports redundant wiring schemes where dual-coil actuators or safety relays require independent switching paths.

From a maintenance and lifecycle management perspective, the IC693MDL940 supports hot-swap replacement within powered Series 90-30 racks, minimizing downtime during corrective maintenance. Its standardized form factor ensures compatibility across all IC693-series baseplate configurations, simplifying spare parts management and reducing the inventory complexity associated with maintaining large fleets of Series 90-30 systems. ZYPLC maintains availability subject to RFQ confirmation of the IC693MDL940 with full functional testing, ensuring that replacement modules meet original GE Fanuc performance specifications.

Product Specification Table

System Compatibility Notes

The IC693MDL940 achieves its full value when deployed as part of a coordinated Series 90-30 system architecture. A typical installation pairs the IC693MDL940 with the IC693CPU374 CPU module for logic execution, the IC693PWR321 power supply for backplane power distribution, and the IC693CHS391 5-slot or IC693CHS397 10-slot chassis as the physical integration platform. Discrete input signals are typically gathered by companion modules such as the IC693MDL654 (24 VDC input module) or IC693MDL752 (120 VAC input module), providing the CPU with field status data that drives the relay output logic in the IC693MDL940.

For analog process control loops operating alongside discrete output control, the IC693ALG442 analog output module or IC693ALG222 analog input module can be installed in adjacent rack slots, enabling the Series 90-30 system to manage both continuous process variables and discrete switching operations within a single unified control platform. Communications to upstream SCADA or DCS systems are handled by the IC693CMM321 Communications Coprocessor, which supports SNP, SNPX, and Modbus RTU protocols — ensuring the IC693MDL940’s output states are visible and controllable from plant-level supervisory systems.

In multi-rack installations, the IC693BEM331 Bus Expansion Module extends the backplane bus to remote IC693CHS398 expansion chassis, allowing IC693MDL940 modules to be distributed across the control cabinet or remote I/O panels while maintaining synchronous communication with the main CPU. Terminal block assemblies compatible with the IC693MDL940’s 40-pin connector — such as the IC693ACC300 series field wiring accessories — simplify field wiring and support structured cable management within the control enclosure.

Industrial Application Notes

The IC693MDL940 is deployed across a broad range of industrial automation sectors where reliable discrete output switching is required within a structured PLC architecture. In manufacturing and assembly automation, the module controls conveyor drive contactors, pneumatic valve solenoids, and machine cycle indicators within Series 90-30-based machine controllers. Its 2A relay contacts handle the inductive loads typical of motor starter coils and solenoid valves without requiring external interposing relays in most applications.

In power generation and electrical substation applications, the IC693MDL940 provides the discrete switching interface for protection relay trip circuits, breaker control outputs, and alarm annunciator panels. The module’s contact isolation and wide voltage range (5–250 VAC) make it suitable for both low-voltage control circuits and medium-voltage auxiliary switching applications within substation automation systems.

In petrochemical and refinery process control, the IC693MDL940 operates within Series 90-30 systems managing pump start/stop sequences, valve position control, and emergency shutdown (ESD) output circuits. Its integration with redundant CPU configurations via the IC693RCM311 ensures that critical output states are maintained during controller switchover events, supporting the high-availability requirements of continuous process operations.

In water and wastewater treatment facilities, the module controls lift station pump contactors, chemical dosing pump relays, and UV disinfection system enable outputs within Series 90-30-based SCADA-integrated control systems. The module’s long service life and standardized replacement profile reduce lifecycle maintenance costs in remote or unmanned installations where minimizing site visits is a priority.

In mining, metallurgy, and heavy industry, the IC693MDL940 provides robust relay output capability for conveyor belt control, crusher interlock circuits, and ventilation fan switching within harsh-environment control panels. Its operating temperature range and industrial-grade construction support reliable operation in the elevated ambient temperatures and vibration levels common in mining and smelting environments.
