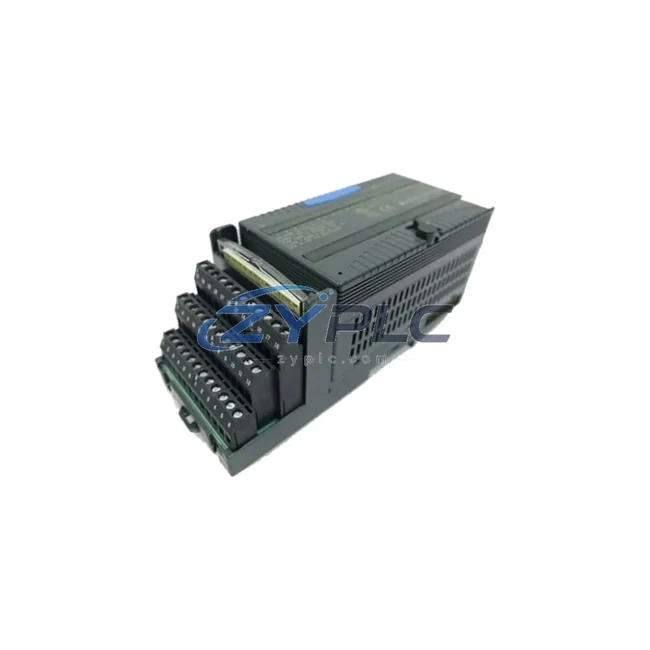

GE IC200MDL741 Output Module for VersaMax

GE IC200MDL741 Output Module for VersaMax Automation

The GE IC200MDL741 is a 32-point discrete DC sourcing output module engineered for the GE VersaMax modular I/O platform. Purpose-built for energy-conscious industrial automation, it delivers deterministic, low-latency output switching that enables plant engineers to eliminate idle-state power draw, tighten production cycle times, and reduce the cumulative energy cost of field device operation. In facilities where motor control, solenoid actuation, and contactor switching account for a significant share of electrical consumption, the IC200MDL741 provides the output-side precision required to implement meaningful demand-side maintenance planning — without additional hardware investment.

Whether deployed as a new installation in a VersaMax rack or as a direct drop-in replacement in an existing GE PACSystems control cabinet, the IC200MDL741 supports the full range of discrete field device control: solenoid valves, motor starters, relay coils, indicator lamps, and contactor coils. Its low-draw backplane design minimizes the module’s own contribution to rack power budget, freeing capacity for additional I/O expansion while keeping cabinet thermal load in check.

Product Specification Table

System Compatibility and Application

The IC200MDL741 functions as the output execution layer within a structured, industrial control architecture. In a standard VersaMax rack, it operates alongside the IC200MDL640 32-point discrete input module, forming a complete I/O subsystem where field sensor states drive output actuation decisions with minimal scan-cycle latency. The IC200PWR002 rack power supply feeds the backplane efficiently, and its regulated power distribution reduces cabinet thermal load — directly lowering the energy consumed by cooling systems in enclosed control panels.

At the controller level, the IC200CPUE05 VersaMax CPU executes the ladder logic or function block programs that govern output switching sequences. Engineers can implement intelligent output sequencing — staggering motor starter activations to suppress inrush current spikes — using the IC200MDL741 as the command interface. This approach delivers demand-side maintenance planning without additional metering hardware. In larger multi-rack architectures, a GE PACSystems RX3i CPU315 can coordinate energy logic across multiple VersaMax remote I/O drops, centralizing efficiency control across an entire production cell.

For drive-level energy control, the IC200MDL741’s output signals interface directly with GE AF-650GP variable frequency drives (VFDs), commanding start/stop and speed-reference enable signals. This discrete handshake eliminates unnecessary motor run time — a primary source of wasted energy in conveyor, pump, and fan applications. When the VFD receives a de-energize command from the IC200MDL741, it executes a controlled deceleration ramp rather than an abrupt stop, protecting mechanical components and, where regenerative braking is configured, recovering kinetic energy back to the DC bus.

On the communications and monitoring side, the VersaMax system supports Profibus DP and Ethernet/IP network adapters such as the IC200PBI001, enabling the IC200MDL741’s output states to be read in real time by SCADA systems and maintenance planning platforms. This transparency allows maintenance teams to correlate output switching patterns with power meter data, identifying outputs that remain energized beyond process requirements — a common source of hidden unplanned downtime in aging production lines. Integration with GE Predix-based analytics platforms further enables trend analysis of output utilization rates against energy consumption KPIs.

For operator-level visibility, the IC200MDL741 integrates naturally with GE QuickPanel+ HMI terminals, where operators can monitor output group status, acknowledge fault conditions, and manually override outputs during maintenance windows without interrupting the broader control program. This capability reduces the duration of unplanned stops and the associated energy cost of restarting cold equipment from a full-stop state.

Maintenance and Replacement Notes

In discrete manufacturing environments — automotive assembly, food and beverage packaging, pharmaceutical filling lines — the IC200MDL741 contributes to maintenance planning through precise, program-controlled output management. Consider a bottling line where 24 solenoid valves control fill, cap, and label stations. Without disciplined output control, solenoids remain energized during line stoppages, consuming power and generating heat unnecessarily. With the IC200MDL741 and a structured VersaMax program, output groups are de-energized automatically during scheduled micro-stops, reducing solenoid power draw to zero during idle intervals and extending coil service life simultaneously.

In motor control applications, the module’s 0.5 A per-point output rating is well-suited to driving relay coils and motor starter auxiliary contacts. By sequencing motor starts through the IC200MDL741 rather than allowing simultaneous energization, plants reduce peak demand charges — often a significant and controllable component of industrial electricity billing. The module’s fast output response time ensures that sequencing logic introduces no perceptible process delay, maintaining production throughput while flattening the electrical demand profile.

Predictive maintenance integration is another energy-efficiency lever enabled by the IC200MDL741. By logging output cycle counts and on-time durations through the VersaMax CPU’s data logging functions, maintenance teams can identify outputs driving actuators approaching end-of-life — actuators that may be drawing higher-than-normal current due to mechanical wear. Early replacement, guided by this operational data, prevents the unplanned downtime and unplanned downtime associated with actuator failure mid-shift.

Every IC200MDL741 unit supplied by ZYPLC undergoes full functional output testing across all 32 points prior to shipment, verifying switching response, leakage current within GE specification, and backplane communication integrity. This pre-shipment validation ensures replacement modules integrate without commissioning delays, minimizing the energy cost of extended maintenance windows. All units are covered by a warranty terms confirmed during quotation, providing procurement teams with the confidence to maintain lean spare-parts inventory without unacceptable risk exposure.

Product Sourcing FAQ

Q1: How does the IC200MDL741 contribute to measurable operational stability on a production line?
The IC200MDL741 enables PLC-program-controlled output management, allowing engineers to de-energize field devices — solenoids, contactors, motor starters — during idle periods, micro-stops, and scheduled maintenance windows. When combined with VFD start/stop command logic via the GE AF-650GP, this output-level control reduces motor and actuator energy consumption by eliminating unnecessary run time. Savings are measurable through energy meters connected to the same control network via Profibus DP or Ethernet/IP, providing a direct feedback loop for continuous efficiency improvement.

Q2: Is the IC200MDL741 compatible with existing GE VersaMax and PACSystems installations?
Yes. The IC200MDL741 is a standard VersaMax modular I/O discrete output module compatible with all VersaMax rack configurations and CPU modules, including the IC200CPUE05. It also integrates with PACSystems RX3i systems using VersaMax remote I/O drops via the IC200PBI001 Profibus adapter. No firmware changes or special configuration are required for drop-in replacement in existing installations, minimizing commissioning time and associated downtime costs.

Q3: What is the recommended replacement process to minimize production downtime?
For replacement in a VersaMax rack, power down the affected rack section, remove the existing IC200MDL741, insert the ZYPLC-supplied replacement module, and restore power. The VersaMax CPU automatically re-establishes communication with the new module and resumes output control within one scan cycle. ZYPLC recommends maintaining a tested spare on-site to minimize mean time to repair (MTTR). All ZYPLC-supplied units are pre-tested across all 32 output points before shipment, eliminating the risk of receiving a non-functional replacement during a critical maintenance window.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers all functional defects in the IC200MDL741, including output switching failures, backplane communication errors, and hardware component failures under normal operating conditions. Prior to shipment, each unit undergoes a full 32-point output functional test, backplane communication verification, and leakage current measurement against GE specification. Units that do not meet specification are quarantined and not shipped. Warranty claims are processed directly through ZYPLC with replacement units dispatched from RFQ-confirmed sourcing, ensuring minimal disruption to production schedules.
