Honeywell 900R12-0101 Rack Chassis for HC900

Honeywell 900R12-0101 Rack Chassis for HC900: Control System Integration and Upstream-Downstream Coordination

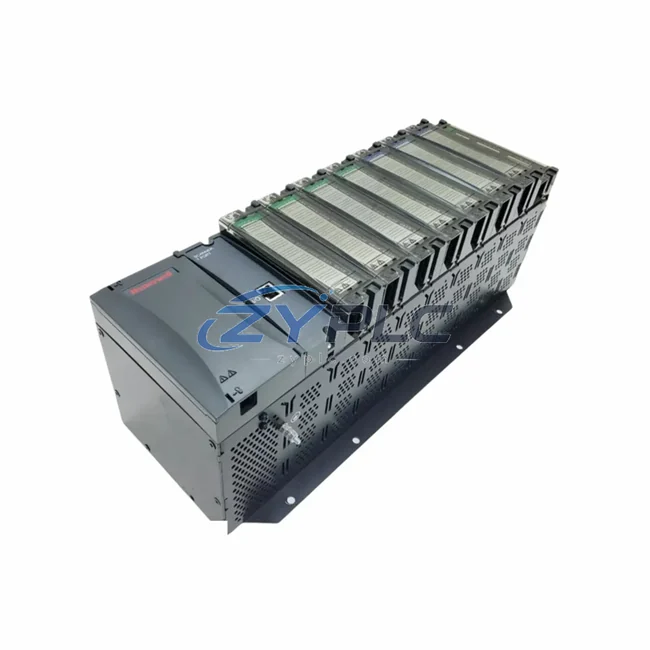

The Honeywell 900R12-0101 is a 12-slot rack chassis engineered as the structural and electrical backbone of the HC900 Hybrid Controller platform. In modern industrial automation, the rack chassis is far more than a passive mounting frame — it defines the physical topology of the control system, determines module slot capacity, governs backplane communication integrity, and directly influences the scalability, redundancy, and long-term maintainability of the entire control architecture. The 900R12-0101 is designed to fulfill this role with precision across demanding process environments including chemical manufacturing, oil and gas, power generation, water treatment, and continuous production lines.

Within a layered automation hierarchy, the 900R12-0101 occupies the control layer, serving as the physical host for the HC900 CPU module, I/O modules, communication gateways, and power supply units. Its 12-slot configuration provides sufficient density for mid-to-large scale process control applications while maintaining a compact footprint suitable for standard 19-inch control cabinet installations. The backplane architecture supports high-speed internal data exchange between the CPU and all installed I/O modules, ensuring deterministic scan cycle performance and minimizing latency in time-critical control loops.

Product Specification Table

System Compatibility Notes

The 900R12-0101 rack chassis is the integration point for all HC900 system components. A fully operational HC900 control node built around this chassis typically includes the 900C32-0243 or 900C72-0460 CPU module installed in the designated CPU slot, providing the processing core for all control logic, PID loop execution, and inter-module communication. Power is delivered through the 900P01-0301 or 900P02-0301 power supply module, which mounts directly into the chassis and distributes regulated DC power across the backplane to all installed modules.

Analog signal acquisition is handled by modules such as the 900H32-0101 analog input module, which connects field transmitters — pressure, temperature, flow, and level — directly into the control loop. Digital I/O is managed through modules like the 900G32-0101 digital input module and the 900G01-0202 digital output module, enabling discrete control of solenoids, motor starters, and status monitoring of field switches and limit sensors.

For applications requiring expanded I/O beyond the 12 slots of the primary chassis, the HC900 architecture supports remote I/O expansion through the 900B16-0202 remote I/O base and associated expansion racks, allowing the control system to scale across large process units without requiring additional CPU resources. Communication with supervisory SCADA systems, historian servers, and HMI platforms is facilitated through the Ethernet port on the CPU module and optionally through dedicated communication gateway modules, supporting Modbus TCP, OPC, and proprietary Honeywell protocols.

Terminal modules such as the 900A16-0202 analog terminal assembly provide the field wiring interface, connecting directly to the I/O modules installed in the 900R12-0101 chassis. This modular wiring approach significantly reduces commissioning time and simplifies maintenance — field wiring can be disconnected at the terminal assembly level without disturbing the I/O module or the backplane, enabling hot-swap maintenance procedures in systems designed for continuous operation.

For redundancy-critical applications, the HC900 platform supports CPU redundancy configurations where a secondary CPU module and chassis mirror the primary control node. The 900S75-0360 redundancy synchronization module coordinates state transfer between primary and backup controllers, ensuring bumpless switchover in the event of a primary CPU fault. This architecture is particularly relevant in power generation, refinery, and pharmaceutical applications where unplanned process interruptions carry significant safety and financial consequences.

Industrial Application Notes

In chemical and petrochemical process control, the 900R12-0101 chassis hosts the HC900 controller responsible for managing reactor temperature profiles, pressure regulation, and feed ratio control. Its robust backplane ensures that analog PID loops execute with consistent scan times even under high I/O load, maintaining product quality and process safety margins.

In power generation and utility applications, the HC900 system built on the 900R12-0101 chassis manages boiler combustion control, turbine auxiliary systems, and cooling water regulation. The chassis’s compatibility with redundant CPU configurations and its support for Ethernet-based supervisory communication make it well-suited for integration into plant-wide DCS architectures alongside historian and alarm management systems.

In water and wastewater treatment facilities, the 900R12-0101 provides the control infrastructure for pump sequencing, chemical dosing, and filtration process management. Its wide operating temperature range and industrial-grade construction ensure reliable operation in the humid, chemically aggressive environments typical of water treatment installations.

In mining and metallurgical operations, the chassis supports control of conveyor systems, crusher circuits, flotation cells, and smelting process loops. The modular I/O architecture allows engineers to configure the system precisely for the signal types present in each application — thermocouple inputs, 4–20 mA transmitters, high-current digital outputs — without over-specifying hardware.

In packaging and discrete manufacturing lines, the HC900 system provides the process control layer that interfaces with motion controllers, vision systems, and line PLCs, coordinating product flow, quality inspection triggers, and environmental monitoring within a unified control architecture.

Product Compatibility FAQ

Q1: Is the 900R12-0101 compatible with all HC900 CPU and I/O modules, and can it be used in a redundant CPU configuration?
The 900R12-0101 is fully compatible with the HC900 module family, including all current CPU variants (900C32-0243, 900C72-0460), analog and digital I/O modules, power supply modules (900P01-0301, 900P02-0301), and communication modules. For redundant CPU configurations, a secondary chassis and CPU are required alongside the 900S75-0360 redundancy module. The primary chassis (900R12-0101) hosts the active CPU, while the secondary chassis mirrors its state in real time. Consult the HC900 Hybrid Controller Product Manual for slot assignment rules and redundancy wiring requirements before commissioning.

Q2: What are the installation and environmental requirements for the 900R12-0101 in a control cabinet, and are there any derating considerations?
The 900R12-0101 is designed for installation in a standard 19-inch industrial control cabinet with adequate ventilation. Operating temperature range is 0°C to 60°C; installations in environments exceeding 50°C may require derating of certain I/O modules — refer to individual module datasheets for thermal derating curves. The chassis should be mounted horizontally with a minimum clearance of 50mm above and below for airflow. Avoid installation in locations subject to excessive vibration, corrosive atmospheres, or direct condensation without appropriate enclosure protection rated to the environmental conditions of the site.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the HC900 platform?
All 900R12-0101 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. ZYPLC supports RFQ sourcing for HC900 chassis, CPU modules, I/O modules, power supplies, and terminal assemblies to support both new system builds and long-term maintenance requirements. For legacy HC900 installations where Honeywell factory support has been discontinued, ZYPLC provides tested, verified replacement units with full functional validation prior to shipment. Contact our engineering team for system-level spare parts planning, compatibility verification, and expedited supply for critical maintenance situations.
