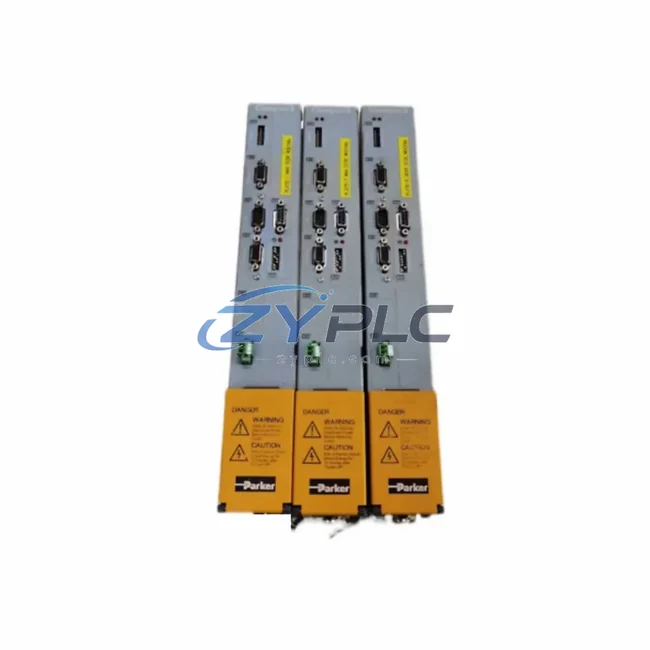

Parker C3M050D6F11I20F30M00S0 Servo Drive for Compax3

Parker C3M050D6F11I20F30M00S0 Servo Drive for Compax3

In modern industrial automation, no component operates in isolation. The Parker C3M050D6F11I20F30M00S0 is a high-performance servo drive from the Parker Compax3 series, engineered to function as a precision motion control node within a fully integrated control system architecture. Rather than evaluating this drive as a standalone unit, system engineers and automation architects should understand its role across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer — and how its system integration capability ensures seamless coordination across all of them.

The C3M050D6F11I20F30M00S0 designation encodes critical system-compatible parameters: a 5.0 A continuous output current rating, 600 VDC bus voltage compatibility, resolver feedback interface (F11), 20-pin I/O configuration (I20), and a standard fieldbus communication module slot (F30). These specifications make it a versatile and scalable motion axis for demanding applications where precision, repeatability, and system coherence are non-negotiable.

Within a Compax3 multi-axis architecture, this drive connects directly to the Parker C3 Power Supply Unit (PSU), sharing a common DC bus with adjacent axes. This shared-bus topology reduces operating load through regenerative braking and simplifies cabinet wiring. Engineers integrating this drive alongside the Compax3 C3S025V4 or C3S150V4 axis modules will find that the common firmware platform and unified C3 ServoManager commissioning software dramatically reduce engineering time and eliminate cross-axis compatibility risks.

At the network layer, the C3M050D6F11I20F30M00S0 supports system integration with upper-level controllers via PROFIBUS-DP, CANopen, DeviceNet, or EtherCAT — depending on the installed communication module. This makes it fully compatible with Siemens SIMATIC S7-300/S7-400 PLCs, Rockwell ControlLogix platforms, Beckhoff TwinCAT controllers, and Schneider Electric Modicon M340 systems. The drive’s motion profile execution capability also allows it to operate in stand-alone mode, reducing real-time communication load on the master controller during high-speed positioning sequences.

From the I/O layer perspective, the 20-pin I/O configuration (I20) provides digital inputs for homing, enable, fault reset, and travel limit functions, as well as analog inputs for torque or velocity reference signals. This I/O density is sufficient for direct integration with safety relay modules such as the Pilz PNOZ or Phoenix Contact PSR series, enabling STO (Safe Torque Off) compliance without additional external hardware.

Power layer integration is equally straightforward. The drive accepts three-phase 400–480 VAC input and interfaces with standard DIN-rail mounted circuit breakers, line filters, and EMC suppression components. When deployed alongside a Parker AC10 or AC30 variable frequency drive on the same power distribution rail, engineers can implement a coordinated motion and process control strategy within a single control cabinet — reducing footprint and simplifying maintenance access.

At the HMI layer, the drive’s parameter set is fully accessible through Parker’s C3 ServoManager PC software, which supports online monitoring, oscilloscope functions, and parameter backup. For panel-level visualization, the drive status and fault codes can be mapped to a Parker or third-party HMI via the fieldbus interface, enabling operators to monitor axis health, current load, and position error in real time without requiring direct drive access.

Long-term maintenance efficiency is a core design principle of the Compax3 platform. The C3M050D6F11I20F30M00S0 supports non-volatile parameter storage, meaning that a replacement unit can be commissioned in minutes by restoring a saved parameter file — a critical advantage in high-availability production environments. Combined with our warranty terms confirmed during quotation coverage, this drive represents a low-risk, high-reliability investment for both OEM machine builders and end-user maintenance teams.

Inventory availability and supply chain continuity are equally important for system architects planning multi-year automation projects. ZYPLC maintains dedicated stock of the C3M050D6F11I20F30M00S0 and related Compax3 components, ensuring that replacement units, spare axis modules, and communication cards are available for rapid dispatch to minimize unplanned downtime.

Product Specification Table

System Compatibility Notes

The C3M050D6F11I20F30M00S0 achieves its full potential when deployed as part of a coordinated Compax3 system architecture. A typical multi-axis installation begins with the Parker Compax3 PSU (Power Supply Unit), which provides the shared 600 VDC bus to all connected axis modules. Adjacent axes such as the Compax3 C3S025V4 (2.5 A axis) and Compax3 C3S150V4 (15 A axis) can be stacked directly alongside the C3M050D6F11I20F30M00S0, sharing the same bus and firmware environment.

At the network layer, a Parker Compax3 EtherCAT communication module (C3 ECAT) or PROFIBUS-DP module (C3 PBUS) installed in the F30 slot connects the drive to the master controller. In Siemens-based architectures, this enables direct integration with Siemens SIMATIC ET 200SP distributed I/O or S7-1500 CPU motion control functions. In Rockwell environments, the drive communicates with Allen-Bradley Kinetix 5500 or ControlLogix L8x controllers via EtherNet/IP gateway adapters.

For safety-critical applications, the STO input of the C3M050D6F11I20F30M00S0 is typically wired to a Pilz PNOZmulti 2 or Sick Flexi Soft safety controller, ensuring that the axis can be de-energized without removing main power — a requirement in collaborative robot and press-brake applications. Terminal modules such as the Phoenix Contact FLKM 50 or Weidmüller OMNIMATE series simplify field wiring and reduce commissioning errors at the I/O layer.

At the HMI layer, drive status, fault history, and axis diagnostics are surfaced through a Parker IPC (Industrial PC) running C3 ServoManager, or mapped to a Siemens SIMATIC HMI TP1200 Comfort panel via the fieldbus interface. This layered visibility ensures that maintenance engineers can diagnose and resolve axis faults without specialist drive knowledge, reducing mean time to repair (MTTR) across the production line.

Industrial Application Notes

The Parker C3M050D6F11I20F30M00S0 is deployed across a wide range of industrial sectors where precise motion control and system-level integration are essential.

In manufacturing and assembly automation, the drive controls servo axes on pick-and-place gantries, rotary indexing tables, and linear transfer systems. Its resolver feedback interface provides robust position feedback in environments with high electrical noise from welding equipment or variable frequency drives.

In power generation and electrical infrastructure, the drive is used in valve actuator control systems and turbine governor test rigs, where precise torque control and STO safety compliance are mandatory. The drive’s ability to execute stand-alone motion profiles reduces dependency on the master PLC during critical sequencing operations.

In petrochemical and process industries, the C3M050D6F11I20F30M00S0 controls metering pump drives, agitator axes, and extruder feed systems. Its compatibility with PROFIBUS-DP and DeviceNet ensures seamless integration into legacy DCS architectures without requiring controller upgrades.

In water and wastewater treatment, the drive manages aeration blower positioning, sluice gate actuators, and chemical dosing pump axes. The IP20 rating and DIN-rail mounting make it suitable for installation in standard control panels used in pump stations and treatment plant MCC rooms.

In mining, metallurgy, and heavy industry, the drive’s 600 VDC bus compatibility and robust thermal management make it suitable for high-duty-cycle applications such as conveyor positioning, crusher feed control, and rolling mill auxiliary axes. The warranty terms confirmed during quotation provides procurement teams with the cost certainty required for capital equipment budgeting.

In packaging and material handling, the drive synchronizes with upstream and downstream axes on form-fill-seal machines, case erectors, and palletizing robots. Its EtherCAT communication capability enables sub-millisecond cycle time synchronization across multi-axis packaging lines, ensuring consistent product registration and seal quality.

Product Compatibility FAQ

Q1: Is the C3M050D6F11I20F30M00S0 compatible with existing Compax3 multi-axis systems using older firmware versions?
A: Yes. The Compax3 platform maintains backward firmware compatibility across the C3M and C3S axis families. When integrating this drive into an existing system, it is recommended to align the firmware version using Parker C3 ServoManager before commissioning. ZYPLC provides pre-delivery firmware verification as part of its standard warranty terms confirmed during quotation service, ensuring the unit is ready for immediate installation without additional configuration overhead.

Q2: Can this drive be used with both resolver and encoder feedback motors, and how does this affect system architecture?
A: The C3M050D6F11I20F30M00S0 is configured with a resolver feedback interface (F11), making it optimized for resolver-equipped Parker servo motors such as the MPP or MPS series. If your system architecture requires incremental encoder or absolute encoder feedback, a different Compax3 variant with the appropriate feedback module (e.g., F21 for incremental encoder) should be selected. ZYPLC’s technical team can assist with variant selection to ensure full system integration with your existing motor inventory.

Q3: What is covered under the warranty terms confirmed during quotation, and how does it support long-term maintenance planning?
A: ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement units to minimize production downtime, with full technical support for re-commissioning. For long-term maintenance planning, ZYPLC recommends maintaining one spare C3M050D6F11I20F30M00S0 unit per three installed axes, ensuring rapid recovery from unplanned failures without extended lead times.
