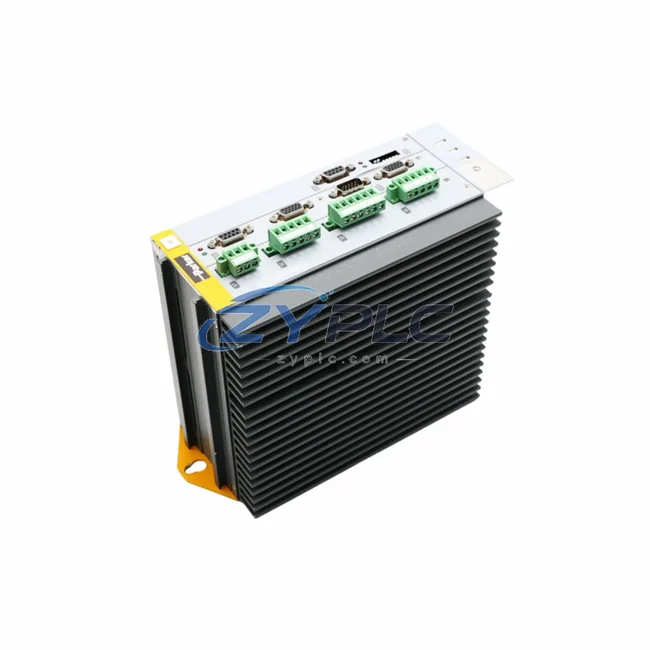

Parker C3S075V4F10I20T40M11 Servo Drive for Compax3

Parker C3S075V4F10I20T40M11 Servo Drive for Compax3

The Parker C3S075V4F10I20T40M11 is a high-performance servo drive engineered within the Compax3 platform, designed to serve as the motion execution layer in complex industrial control architectures. In modern distributed control systems, the servo drive does not operate in isolation — it functions as a critical node between the supervisory control layer, the I/O subsystem, the communication backbone, and the field-level actuators. This product is purpose-built for seamless system integration into multi-axis motion platforms, coordinated process lines, and high-precision positioning systems across manufacturing, packaging, semiconductor handling, and material processing industries.

Product Specification Table

System Compatibility Notes

Within a fully integrated automation architecture, the Parker C3S075V4F10I20T40M11 operates downstream of the supervisory PLC or motion controller. In a typical Compax3-based system, the motion controller — such as the Parker PAC (Programmable Automation Controller) or a Parker ACR9000 multi-axis controller — issues trajectory commands over a deterministic fieldbus network. The C3S075V4F10I20T40M11 receives these commands and executes precise current, velocity, and position loops to drive the connected servo motor with sub-millisecond response times.

For power distribution within the control cabinet, the system relies on a shared DC bus architecture. The Parker Compax3 DC supply module (such as the C3F038V4) provides regulated DC bus voltage to multiple Compax3 drives mounted on the same backplane or DIN rail assembly. This shared bus topology reduces component count, simplifies wiring, and improves energy recovery during regenerative braking events — a critical consideration in high-cycle packaging or pick-and-place applications.

On the communication layer, the C3S075V4F10I20T40M11 integrates with industrial Ethernet protocols through option modules such as the Parker Compax3 EtherCAT communication card (C3F0xxE series) or the PROFINET interface module. These modules enable the drive to participate in synchronized multi-axis interpolation alongside other Compax3 units — for example, a C3S055V4F10I20T40M11 handling a secondary axis or a C3S150V4F10I20T40M11 managing a higher-torque spindle axis within the same machine frame.

Signal conditioning and safety integration are handled through dedicated I/O terminals on the Compax3 front panel and through external safety relay modules. The Parker Compax3 safe torque off (STO) function, compliant with SIL 2 / PLd, connects to the machine’s safety PLC — often a Parker PAC with integrated safety or a standalone safety controller — ensuring that emergency stop commands propagate to the drive within deterministic time bounds.

For human-machine interface requirements, the system architecture typically includes a Parker XPR or InteractX HMI panel, providing real-time visualization of drive status, fault diagnostics, and parameter tuning. The HMI communicates with the motion controller over Ethernet/IP or Modbus TCP, while the controller relays drive-level data from the Compax3 network.

At the field level, the C3S075V4F10I20T40M11 pairs with Parker servo motors from the SMH or SMB series — specifically sized for the 7.5 kW power range — using single-cable or dual-cable connections depending on the feedback system selected. The drive’s auto-tuning capability simplifies commissioning when paired with Parker motors, reducing engineering time during initial setup or motor replacement events.

Terminal blocks, shielded cable glands, and EMC filters (such as the Parker Compax3 mains filter C3F0xxL) complete the cabinet-level integration, ensuring electromagnetic compatibility in environments with high switching noise from adjacent VFDs or contactors.

Industrial Application Notes

The Parker C3S075V4F10I20T40M11 finds its strongest application in layered automation systems where precision motion is coordinated across multiple axes. In flexible packaging lines, this drive controls film feed rollers, sealing bar positioning, or cutting knife synchronization — all requiring tight electronic gearing with adjacent axes. In semiconductor wafer handling, the Compax3 platform delivers the jerk-limited profiles and sub-micron repeatability demanded by cleanroom transport systems.

In metals processing, the C3S075V4F10I20T40M11 manages tension control on coil winding and unwinding stations, where consistent torque regulation prevents material deformation. In automotive assembly, it drives robotic positioning stages, adhesive dispensing axes, and conveyor indexing systems that must synchronize with upstream welding cells and downstream inspection stations.

Water treatment and power generation facilities deploy Compax3 drives for valve actuator positioning and damper control, where the drive’s ability to hold position under varying load conditions ensures process stability. The warranty terms confirmed during quotation provided by ZYPLC supports long-term maintenance planning in these critical infrastructure applications, giving plant engineers confidence in spare parts availability and system uptime continuity.

Product Compatibility FAQ

Q1: What communication protocol should I select for integrating the C3S075V4F10I20T40M11 into an existing EtherCAT-based control system?

A1: The Compax3 platform supports EtherCAT through a dedicated option module. Ensure the drive is ordered or retrofitted with the EtherCAT communication card, then configure the drive’s node address and PDO mapping through the Parker C3 ServoManager software. The drive will appear as a standard CoE (CANopen over EtherCAT) device in your master controller’s network scan.

Q2: Can the C3S075V4F10I20T40M11 share a DC bus with other Compax3 drives, and what are the architectural benefits?

A2: Yes. The Compax3 series is designed for shared DC bus operation using a common supply module. This architecture reduces per-axis component cost, enables regenerative energy sharing between motoring and braking axes, and simplifies cabinet layout. Ensure the DC supply module is rated for the aggregate peak current of all connected drives.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term system maintenance?

A3: The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains ready stock of Compax3 series drives and accessories, enabling rapid replacement to minimize production downtime. For system architects planning preventive maintenance schedules, this warranty provides a defined coverage window for budgeting and spare parts rotation.
