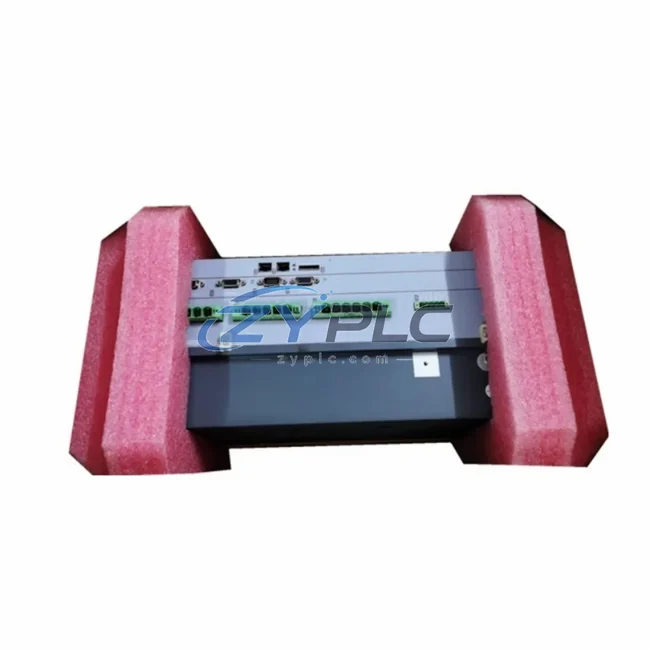

Parker CPX2570S/E2/E3/F8/S1 Servo Drive for Compax-S

Parker CPX2570S/E2/E3/F8/S1 Servo Drive for Compax-S: Control System Integration and Upstream-Downstream Coordination

The Parker CPX2570S/E2/E3/F8/S1 is a high-performance digital servo drive engineered for seamless deployment within the Parker Compax-S motion control architecture. Rather than functioning as a standalone axis controller, this drive is designed from the ground up to operate as a coordinated node within a layered automation system — interfacing with upstream PLCs and motion controllers, synchronizing with peer drives across multi-axis gantries, and communicating downward to feedback devices, encoders, and actuators. In modern industrial environments where system consistency, deterministic response, and long-term maintainability are non-negotiable, the CPX2570S/E2/E3/F8/S1 delivers the architectural coherence that engineers demand.

This drive supports the full Compax-S option matrix: the /E2 and /E3 encoder interface options enable direct connection to incremental and absolute encoders, while the /F8 fieldbus interface provides integration with PROFIBUS-DP or CANopen networks depending on configuration. The /S1 safety option adds STO (Safe Torque Off) functionality compliant with IEC 62061 and EN 13849, making it suitable for safety-rated machine zones without external safety relays. Together, these options define a drive that is not merely a power stage, but a fully integrated motion intelligence node within the Compax-S ecosystem.

Product Specification Table

System Compatibility Notes

The CPX2570S/E2/E3/F8/S1 achieves its full potential when deployed within a coordinated control architecture rather than as an isolated drive. At the control layer, a Parker ACR9000 multi-axis motion controller or a Siemens S7-300/S7-400 PLC with PROFIBUS master capability serves as the command source, issuing position, velocity, and torque setpoints over the /F8 fieldbus interface. The drive’s PROFIBUS-DP slave implementation supports cyclic process data exchange with sub-millisecond update rates, ensuring that the CPX2570S/E2/E3/F8/S1 responds to trajectory commands with the determinism required for synchronized multi-axis motion.

At the I/O layer, the drive interfaces with digital and analog I/O modules — such as Parker’s own Compax-S I/O expansion cards or third-party Wago 750-series I/O terminals — to receive limit switch signals, home sensor inputs, and enable/disable commands from the machine safety circuit. The /S1 STO input integrates directly with safety PLCs such as the Pilz PNOZ or Siemens ET 200SP F-modules, eliminating the need for external contactors in safety-rated stop categories.

In multi-axis configurations, the CPX2570S/E2/E3/F8/S1 operates alongside peer drives such as the Parker CPX2540S/E2/F8/S1 (lower current rating for smaller axes) and the CPX2590S/E3/F8/S1 (higher current for heavy-load axes), all sharing a common DC bus through Parker’s Compax-S shared bus architecture. This DC bus coupling reduces energy consumption during regenerative braking cycles and simplifies the power supply design — a single Parker PSD power supply module feeds the entire drive cluster, reducing cabinet footprint and wiring complexity.

At the network layer, the /F8 fieldbus card enables the drive to participate in a PROFIBUS-DP segment alongside other field devices: Siemens ET 200M remote I/O stations, Parker GV6 servo drives on adjacent machine sections, and Endress+Hauser flow transmitters in process-integrated applications. CANopen mode supports CiA 402 device profile, enabling plug-and-play interoperability with CANopen masters such as the Beckhoff CX series or Bosch Rexroth IndraControl platforms.

The human-machine interface layer connects via the Parker Compax-S ServoManager commissioning software over RS-232, providing full parameter access, oscilloscope functionality, and auto-tuning routines. For runtime operator interaction, a Parker HMI05 or third-party Weintek MT8000 panel communicates with the upstream PLC, which relays drive status — actual position, following error, fault codes — to the operator display without requiring a direct drive-to-HMI connection.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive body-in-white welding lines, the CPX2570S/E2/E3/F8/S1 controls servo-driven spot welding gun axes, synchronizing with robot controllers via PROFIBUS-DP. The /E3 absolute encoder interface eliminates homing cycles after power restoration, reducing line restart time. The /S1 STO function integrates with the line’s safety PLC to achieve Category 3 / PLd stop performance on all servo axes simultaneously.

Power Generation and Utilities: In hydroelectric turbine governor systems and thermal power plant auxiliary drives, the CPX2570S/E2/E3/F8/S1 provides precise valve and damper positioning. Its PROFIBUS-DP interface connects to Siemens PCS 7 DCS systems, enabling the drive to participate in plant-wide process control loops with full diagnostic transparency.

Petrochemical and Process Industries: Compressor anti-surge control and reactor agitator drives in petrochemical plants demand high-reliability servo performance with safety-rated stop functions. The /S1 STO option satisfies SIL 2 requirements when combined with a certified safety controller, while the /F8 fieldbus interface provides the process DCS with real-time torque and speed feedback for process optimization.

Packaging and Converting: In high-speed packaging lines — form-fill-seal machines, cartoners, and case packers — the CPX2570S/E2/E3/F8/S1 drives registration rollers, sealing jaws, and infeed conveyors. Electronic gearing and camming functions, executed within the Parker ACR9000 motion controller and communicated to the drive via PROFIBUS-DP, enable format changes without mechanical adjustment, reducing changeover time from hours to minutes.

Mining and Metallurgy: Conveyor positioning drives, rolling mill gap control, and continuous caster withdrawal drives in steel mills operate in harsh environments with high ambient temperatures and vibration. The CPX2570S/E2/E3/F8/S1’s robust IP20 construction, combined with forced-air cooling and cabinet-level thermal management, supports reliable operation in these demanding conditions. Redundant fieldbus wiring with PROFIBUS-DP repeaters ensures communication continuity even in electrically noisy mill environments.

Product Compatibility FAQ

Q1: Is the CPX2570S/E2/E3/F8/S1 compatible with both PROFIBUS-DP and CANopen networks, and can the fieldbus type be changed after installation?
The /F8 option card supports both PROFIBUS-DP and CANopen protocols, with the active protocol selected via parameter configuration in Parker ServoManager software. Protocol switching requires a parameter change and drive restart but does not require hardware modification. This flexibility allows the same drive to be deployed across different machine platforms within the same facility, reducing spare parts inventory. Note that simultaneous operation on both buses is not supported — only one fieldbus protocol is active at a time.

Q2: How does the /S1 STO function integrate with an existing machine safety architecture, and what safety category does it achieve?
The /S1 STO input accepts a dual-channel 24 VDC signal from a safety relay or safety PLC output. When both STO channels are de-energized, the drive’s output stage is disabled within the response time specified in the safety datasheet, preventing torque generation without requiring the DC bus to be discharged. When integrated with a certified safety controller and wired per Parker’s safety application guide, the STO function achieves Category 3 / PLd per EN 13849-1 or SIL 2 per IEC 62061. The /S1 option eliminates the need for external motor contactors in most safety stop applications, simplifying cabinet design and reducing component count.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
All CPX2570S/E2/E3/F8/S1 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, including power stage verification, encoder interface validation, and fieldbus communication checks. For commissioning support, Parker ServoManager software (available for download) provides guided setup wizards, auto-tuning, and diagnostic logging. Long-term maintenance is supported through ZYPLC’s inventory of Compax-S spare parts and replacement drives, ensuring that system downtime is minimized even years after the original machine build. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for application-specific commissioning guidance.
