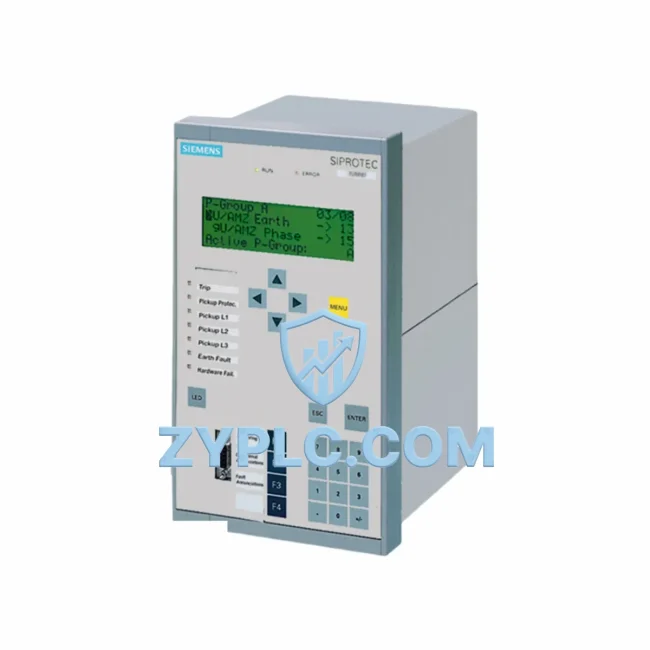

Siemens 7UT6125-5EB20-1AA0-BB Network Interface SIPROTEC 4

Siemens 7UT6125-5EB20-1AA0-BB: Industrial Data Link for SIPROTEC 4 Smart Grid Networks

The Siemens 7UT6125-5EB20-1AA0-BB is a high-performance differential protection relay from the SIPROTEC 4 series, engineered to serve as a critical node in modern industrial power protection networks. Designed for transformer, generator, and motor differential protection, this unit goes far beyond conventional relay functionality — it acts as an intelligent communication gateway that bridges field-level protection devices with upper-layer SCADA systems, HMI platforms, and substation automation networks. In smart factory and utility environments where data integrity, real-time response, and protocol interoperability are non-negotiable, the 7UT6125-5EB20-1AA0-BB delivers a robust, standards-compliant industrial connectivity solution.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory or utility substation deployment, the 7UT6125-5EB20-1AA0-BB sits at the intersection of primary equipment and the digital control layer. Signal acquisition begins at the current transformer (CT) and voltage transformer (VT) inputs, where the relay continuously samples differential currents across the protected zone. These analog signals are digitized and processed internally, with fault detection algorithms executing in milliseconds to isolate faults before they cascade into wider system failures.

Once a protection event is triggered or a status change is detected, the relay transmits structured data upstream via IEC 61850 GOOSE messaging over the station Ethernet bus. This real-time event data is received by the SICAM A8000 RTU, which aggregates protection signals from multiple SIPROTEC 4 devices — including the 7SJ82 overcurrent protection relay and the 7SD80 line differential relay — and forwards consolidated data to the SCADA master station over IEC 60870-5-104 or DNP3 WAN protocols.

For local HMI visualization, the 7UT6125-5EB20-1AA0-BB integrates seamlessly with DIGSI 4 engineering software and SICAM PAS substation automation software, enabling operators to view real-time phasor data, event logs, and disturbance records directly on the control room workstation. The SCALANCE X-200 industrial Ethernet switch provides the managed Layer 2 network backbone that connects the relay, the RTU, and the engineering workstation within the substation LAN, ensuring deterministic latency and network redundancy via RSTP.

At the field device level, the relay communicates with the SIMATIC S7-1500 PLC via PROFIBUS DP, enabling coordinated protection and control logic between the relay and the automation controller. The CP 1543-1 Ethernet communication module on the S7-1500 further extends connectivity to the plant-level MES and ERP systems, closing the data loop from field sensor to enterprise dashboard. Remote I/O modules such as the ET 200SP distributed I/O system can be integrated into the same PROFIBUS segment, allowing auxiliary contact status and binary output commands to be exchanged between the relay and the PLC without additional wiring.

Power supply reliability for the entire protection and communication panel is ensured by the SITOP PSU8200 industrial power supply, which provides stable 24 VDC auxiliary power to the relay, communication modules, and Ethernet switches. The 6MD85 bay control unit completes the substation automation architecture by handling interlocking logic and switchgear control commands, working in concert with the 7UT6125-5EB20-1AA0-BB to deliver a fully coordinated protection and control solution.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial power systems is protocol fragmentation — legacy protection relays speaking IEC 60870-5-103 or proprietary serial protocols cannot natively exchange data with modern IEC 61850-based substation automation systems. The 7UT6125-5EB20-1AA0-BB addresses this directly by supporting multiple communication protocols simultaneously, acting as a protocol gateway that translates between legacy serial interfaces and modern Ethernet-based station bus architectures. This eliminates data silos between old and new protection equipment without requiring full system replacement.

Remote monitoring and diagnostics are equally critical in distributed industrial sites where on-site intervention is costly and time-consuming. The relay’s IEC 61850 MMS reporting capability enables remote parameter reading and setting via the DIGSI 4 remote access function, allowing protection engineers to adjust relay settings, retrieve disturbance records, and verify relay health from a central control room or even a remote engineering office. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance workflows.

Production line transparency is achieved through continuous real-time data streaming to the SCADA layer. Operators gain visibility into differential current magnitudes, harmonic restraint values, and protection element pickup status — data that was previously locked inside the relay and inaccessible to the control system. With this transparency, plant managers can correlate protection events with process disturbances, identify recurring fault patterns, and make data-driven decisions about equipment maintenance schedules.

System scalability is built into the SIPROTEC 4 architecture. As substations expand with additional transformer bays or generation units, new 7UT6125 relays can be added to the IEC 61850 station bus without redesigning the communication network. The standardized IEC 61850 data model ensures that new devices are immediately recognized by the SCADA system and engineering tools, reducing commissioning time and integration costs.

Industrial Connectivity FAQ

Q1: What communication protocols does the 7UT6125-5EB20-1AA0-BB support, and is it compatible with existing SCADA systems?
The relay supports IEC 61850 (GOOSE and MMS), IEC 60870-5-103, PROFIBUS DP, and DNP3. It is fully compatible with major SCADA platforms including SICAM PAS, WinCC, and third-party systems that support IEC 61850 or IEC 60870-5-104 via gateway conversion.

Q2: How does the relay ensure network stability and minimize communication latency in time-critical protection applications?
IEC 61850 GOOSE messaging operates at Layer 2 Ethernet with typical transmission times under 4 ms, meeting the performance requirements of Class P2/P3 protection applications. The relay’s internal processing ensures that protection decisions are made independently of network communication, guaranteeing trip commands even during network disruptions.

Q3: Can the 7UT6125-5EB20-1AA0-BB be integrated into an existing SIPROTEC 4 system without replacing other relays?
Yes. The relay is fully interoperable with other SIPROTEC 4 devices on the same IEC 61850 station bus or PROFIBUS segment. It can be added to an existing system with minimal configuration changes, using DIGSI 4 to import the relay’s ICD file and configure its data model within the existing SCD file.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 7UT6125-5EB20-1AA0-BB unit supplied by ZYPLC undergoes pre-shipment functional testing including communication port verification, protection element calibration check, and firmware version confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair support coordinated through our technical team.
