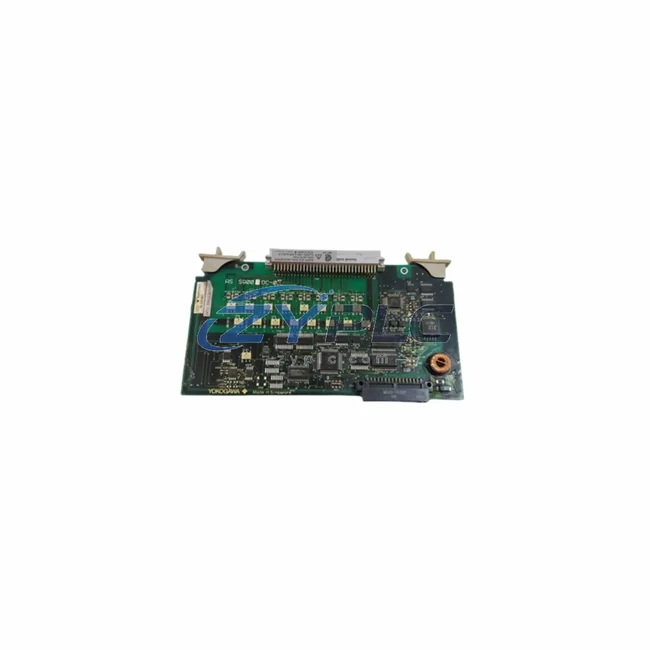

Yokogawa AMM12-S2 Analog Monitor Module for CENTUM

Yokogawa AMM12-S2 Analog Monitor Module for CENTUM: Control System and Upstream–Downstream Coordination

In modern distributed control system (DCS) deployments, every module must be evaluated not as a standalone component but as a functional node within a layered automation architecture. The Yokogawa AMM12-S2 Analog Monitor Module is engineered precisely for this role — serving as a critical signal conditioning and monitoring element within the CENTUM VP and CENTUM CS 3000 control platforms. Its integration into a complete control hierarchy, from field instrumentation through to supervisory HMI layers, defines its true operational value.

The AMM12-S2 is designed to receive analog input signals from field transmitters, sensors, and transducers, converting and monitoring these signals within the I/O subsystem of the CENTUM architecture. Rather than functioning in isolation, it operates in close coordination with upstream field devices and downstream controller modules, ensuring that signal integrity is maintained across the entire data acquisition chain. This system integration capability makes the AMM12-S2 an indispensable component for engineers designing high-reliability process control systems in industries such as oil and gas, petrochemicals, power generation, water treatment, and advanced manufacturing.

Product Specification Table

System Compatibility Notes

The AMM12-S2 does not operate in a vacuum. Its performance is intrinsically linked to the broader CENTUM system architecture, and understanding its upstream and downstream relationships is essential for effective system design and long-term maintenance planning.

At the controller layer, the AMM12-S2 interfaces directly with the CP451-10 or SCP451-11 Field Control Station (FCS) processor modules, which execute the control logic and manage I/O polling cycles. The FCS processor reads analog values from the AMM12-S2 at defined scan rates, feeding real-time process data into the control algorithms. For redundant architectures, dual FCS configurations using paired CP451-10 units ensure that a single processor failure does not interrupt monitoring continuity.

On the I/O side, the AMM12-S2 works alongside analog output modules such as the AAI143-S00 and AAI543-S00, which handle 4–20 mA output signals to final control elements. In a typical process loop, the AMM12-S2 monitors the process variable while the AAI143-S00 drives the control valve or actuator — together forming a closed-loop control pair within the same FCS node. Digital I/O modules such as the ADV551-P00 complement this arrangement by handling discrete signals from limit switches, solenoids, and motor starters within the same rack.

Power integrity across the node unit is maintained by the AIP827 power supply module, which provides regulated DC power to all I/O modules on the backplane. In critical applications, dual AIP827 units are deployed in a redundant power configuration, eliminating single points of failure at the power layer. The ESB-11 extended station bus module further expands the I/O capacity of the node unit, allowing additional AMM12-S2 modules and other I/O cards to be added as the system scales.

At the network layer, the CENTUM VP platform communicates via Vnet/IP, a high-speed, deterministic Ethernet-based control network that connects FCS nodes to the Human Interface Station (HIS). The ANB10D-400 network interface module manages this communication pathway, ensuring low-latency data exchange between the field control layer and the supervisory HMI. For legacy CS 3000 installations, the AMM12T and AAM10 modules serve analogous monitoring roles, and the AMM12-S2 is often selected as a direct upgrade path during system modernization projects.

At the human-machine interface layer, operators interact with the process data collected by the AMM12-S2 through CENTUM VP’s HIS workstations, where trend displays, alarm management, and process graphics provide real-time visibility into system performance. The seamless data flow from field sensor through AMM12-S2 to HIS display exemplifies the system integration that defines the CENTUM architecture’s strength.

Industrial Application Notes

The AMM12-S2 finds application across a wide range of process industries where analog signal monitoring is fundamental to safe and efficient operation.

In petrochemical and refinery plants, the AMM12-S2 monitors temperature, pressure, and flow signals from critical process streams. Its multi-channel architecture allows a single module to cover an entire process unit section, reducing rack space requirements while maintaining full signal coverage. Redundant FCS configurations ensure that monitoring continuity is preserved even during planned maintenance windows.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the AMM12-S2 integrates into turbine control and boiler management systems, where precise analog monitoring of steam parameters, vibration signals, and generator outputs is essential for both performance optimization and safety interlock functions.

In water and wastewater treatment plants, the AMM12-S2 supports monitoring of flow rates, chemical dosing levels, and tank levels across distributed pump stations and treatment stages. Its compatibility with the CENTUM VP platform’s remote I/O architecture allows it to be deployed in geographically distributed installations without sacrificing communication reliability.

In mining and metallurgical operations, where harsh environmental conditions and high-vibration environments are common, the AMM12-S2’s robust industrial design and rack-mount installation within sealed control cabinets provide the durability required for continuous operation. Its integration with the broader CENTUM system enables centralized monitoring of conveyor systems, crushers, and smelting process variables from a single control room.

For packaging and discrete manufacturing lines, the AMM12-S2 supports quality control monitoring applications, capturing analog signals from load cells, vision system outputs, and servo drive feedback channels, feeding this data into the CENTUM VP control logic for real-time process adjustment.

Product Compatibility FAQ

Q1: Is the AMM12-S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AMM12-S2 is primarily designed for the CENTUM VP platform and is compatible with its Field Control Station (FCS) node unit architecture. For CENTUM CS 3000 installations, compatibility depends on the specific FCS generation and backplane configuration. Engineers migrating from CS 3000 to CENTUM VP will find the AMM12-S2 a suitable I/O module for the upgraded platform. ZYPLC’s technical team can assist with compatibility verification prior to procurement.

Q2: Can the AMM12-S2 be used in a dual-redundant FCS architecture, and what additional modules are required?
Yes. The AMM12-S2 supports deployment within dual-redundant FCS configurations when paired with redundant CP451-10 or SCP451-11 processor modules and a redundant AIP827 power supply arrangement. In this configuration, both FCS processors continuously monitor the I/O modules, with automatic switchover occurring in the event of a processor fault. No additional configuration of the AMM12-S2 itself is required — redundancy is managed at the FCS processor and network level.

Q3: What does the warranty terms confirmed during quotation cover, and what support does ZYPLC provide for long-term maintenance?
All AMM12-S2 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains a dedicated inventory of CENTUM-compatible I/O modules to support rapid replacement in the event of field failures, minimizing system downtime. Our technical team provides pre-sales compatibility consultation, installation guidance, and post-sales support to ensure that the AMM12-S2 integrates seamlessly into your existing control architecture.
