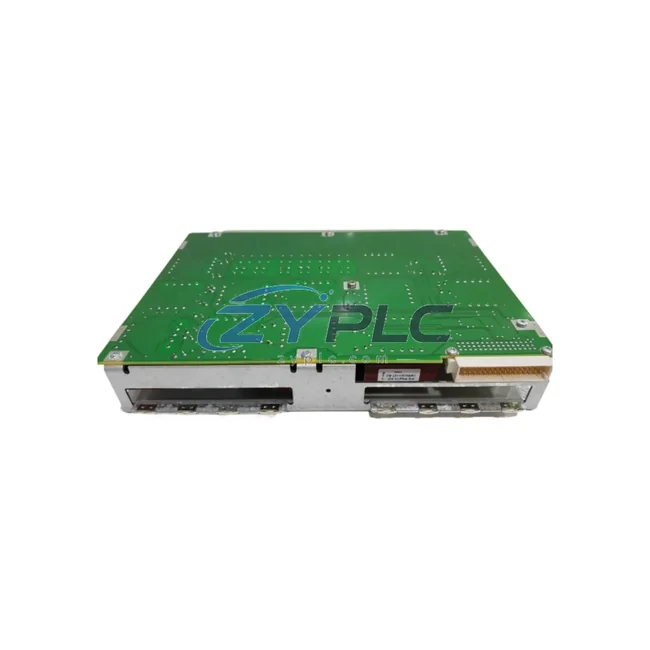

ABB 1MRK000161-AA IEC 61850 Conversion Module REB500

ABB 1MRK000161-AA IEC 61850 Conversion Module: Industrial Data Link for REB500 Substation Automation

The ABB 1MRK000161-AA is a high-performance IEC 61850 Conversion Module engineered for the REB500 Series busbar protection and substation automation platform. Designed to bridge legacy field devices and modern digital substation architectures, this module serves as a critical protocol gateway that enables seamless, real-time data exchange between protection relays, bay controllers, SCADA systems, and engineering workstations across IEC 61850 GOOSE and MMS communication networks.

In today’s smart substation and intelligent factory environments, data isolation between field-level devices and supervisory systems remains one of the most persistent operational challenges. The 1MRK000161-AA directly addresses this by converting proprietary or legacy communication signals into standardized IEC 61850 protocol streams, ensuring that every protection event, measurement value, and control command is transmitted with deterministic latency and full interoperability across the substation LAN.

Whether deployed in new greenfield substations or integrated into brownfield upgrades, this conversion module supports the full data flow chain — from current and voltage transformer inputs through the REB500 protection logic, across the station bus to ABB MicroSCADA Pro or third-party SCADA/HMI platforms, and up to enterprise-level energy management systems. Its role in the communication architecture ensures that operators receive real-time alarm feedback, fault records, and disturbance data without communication bottlenecks or protocol mismatches.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1MRK000161-AA sits at the heart of a layered substation communication architecture. At the process level, current transformers, voltage transformers, and merging units feed analog and digital signals into the ABB REB500 busbar protection IED. The conversion module then encapsulates these protection signals into IEC 61850 GOOSE messages, enabling high-speed, peer-to-peer tripping commands to reach ABB REF615 feeder protection relays and ABB RET615 transformer protection relays within single-digit millisecond response times — a critical requirement for busbar fault clearance.

At the station bus level, the module communicates via IEC 61850 MMS with the ABB COM600S station gateway, which aggregates data from multiple IEDs and forwards structured datasets to ABB MicroSCADA Pro DS for operator visualization and alarm management. Simultaneously, the ABB RTU560 remote terminal unit can poll the station bus for telecontrol data, forwarding real-time measurements and status points to the utility’s energy management system via IEC 60870-5-104 or DNP3.

For engineering and diagnostics, the ABB PCM600 protection and control IED manager connects to the station LAN, allowing engineers to perform online parameter changes, retrieve disturbance records, and execute remote diagnostics on the REB500 system without interrupting live protection functions. In parallel, ABB Ability™ System 800xA can subscribe to IEC 61850 data models published by the 1MRK000161-AA, integrating substation protection data into the plant-wide DCS for unified operational visibility.

Where legacy devices such as older ABB SPACOM relays or third-party Modbus RTU instruments remain in service, the conversion module’s gateway function ensures their data is normalized into IEC 61850 logical node structures, eliminating data silos and enabling a single-pane-of-glass view across the entire substation. Edge computing nodes and industrial Ethernet switches — such as the ABB AF series managed switches — provide the hardened network backbone over which all this data flows reliably in electrically noisy substation environments.

Solving Data Isolation in Industrial Sites

Legacy substations and industrial power distribution sites frequently suffer from fragmented communication architectures where protection relays, metering devices, and control systems speak incompatible protocols. The result is data isolation: operators cannot see real-time fault data, maintenance teams cannot perform remote diagnostics, and SCADA systems display incomplete or delayed information that undermines decision-making.

The ABB 1MRK000161-AA resolves these challenges by acting as a universal protocol bridge within the REB500 ecosystem. By converting device-level signals into standardized IEC 61850 data objects, it enables:

• Protocol Unification: Eliminates the need for parallel wiring or custom protocol converters between the REB500 and station-level systems.
• Real-Time Monitoring: GOOSE messaging delivers protection status and trip signals in <4ms, meeting IEC 61850 Performance Class P2/P3 requirements for busbar protection.
• Remote Diagnostics: Engineers can access disturbance records, event logs, and IED health data remotely via MMS, reducing on-site maintenance visits and accelerating fault analysis.
• Production Line Transparency: In industrial power applications, integrating the module with MicroSCADA or third-party HMI platforms gives plant managers full visibility into feeder status, load measurements, and protection events from a central control room.
• System Scalability: The IEC 61850 architecture supports horizontal expansion — additional IEDs, bay controllers, and merging units can be added to the station bus without rewiring, future-proofing the substation for digital transformation initiatives.

Every unit undergoes pre-shipment functional testing to verify communication integrity, protocol handshake performance, and hardware reliability before dispatch. Stock is maintained for immediate availability, with DHL and FedEx express shipping options for urgent project requirements.

Industrial Connectivity FAQ

Q1: What communication latency can be expected from the 1MRK000161-AA in a live IEC 61850 GOOSE network?
The module is designed to meet IEC 61850 Performance Class P2 and P3 requirements. GOOSE message transmission latency is typically under 4 milliseconds end-to-end across a properly configured 100Mbps station LAN, making it suitable for time-critical busbar protection tripping applications.

Q2: Is the 1MRK000161-AA compatible with third-party IEC 61850 SCADA and HMI systems beyond ABB MicroSCADA?
Yes. Because the module publishes standard IEC 61850 MMS data models and GOOSE datasets, it is interoperable with any IEC 61850-compliant SCADA, HMI, or gateway platform — including Siemens SICAM, GE GridSolutions, Schneider Electric EcoStruxure, and open-source IEC 61850 clients — provided the SCL/CID configuration files are correctly imported.

Q3: How does the module handle network redundancy and communication stability in high-availability substation environments?
The 1MRK000161-AA supports integration with RSTP (Rapid Spanning Tree Protocol) and PRP/HSR (Parallel Redundancy Protocol / High-availability Seamless Redundancy) network topologies when used with compatible managed Ethernet switches, ensuring zero-packet-loss failover and continuous communication availability even during network link failures.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing documentation available?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and communication interface faults under normal operating conditions. Each unit is subjected to pre-shipment functional testing including IEC 61850 protocol handshake verification, power-on self-test, and interface continuity checks. Test reports and certificates of conformity are available upon request for project documentation and FAT (Factory Acceptance Test) purposes.
